/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Jet Pump/.5036OS1BJPRW56C-S WEG 1/2HP Jet Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: .5036OS1BJPRW56C-S

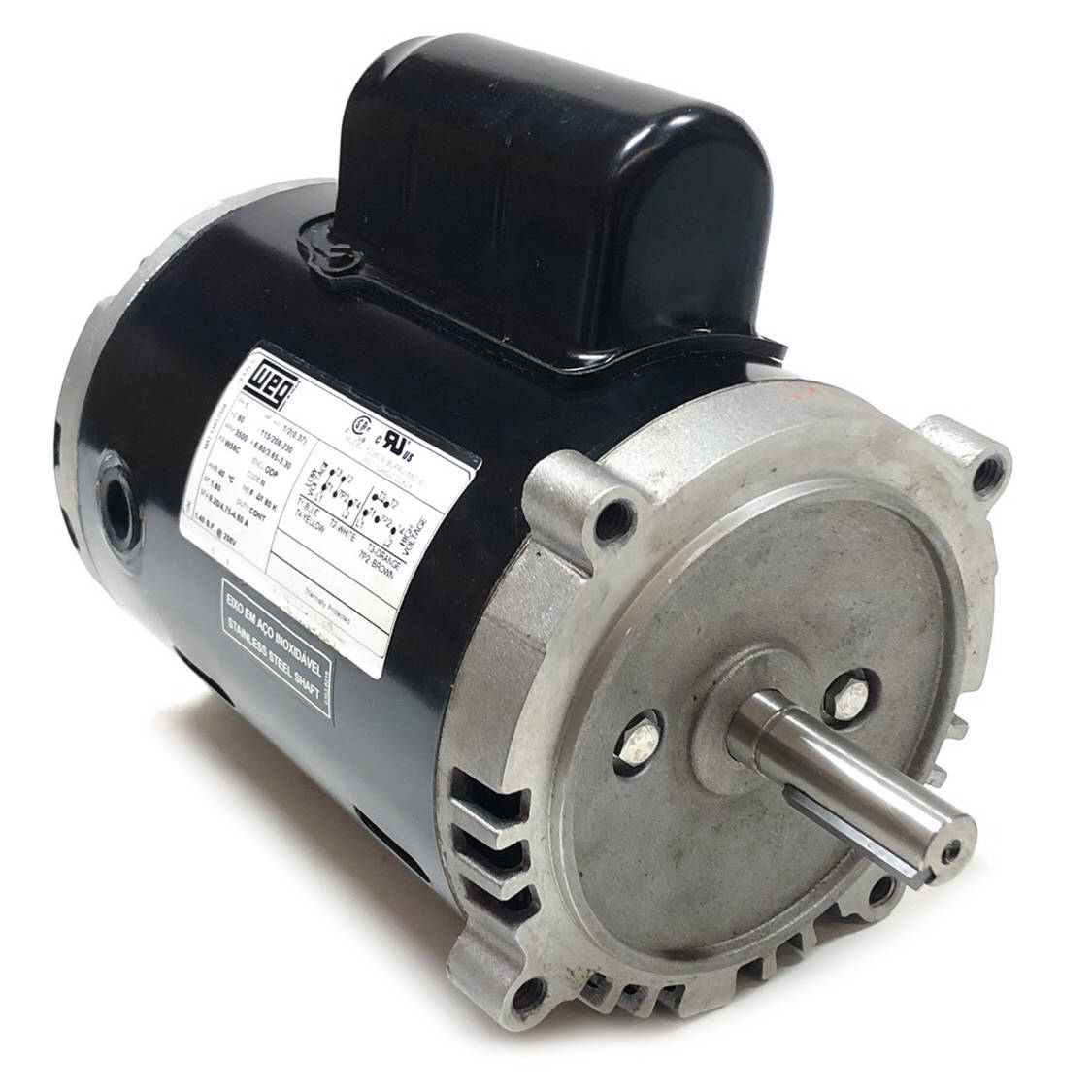

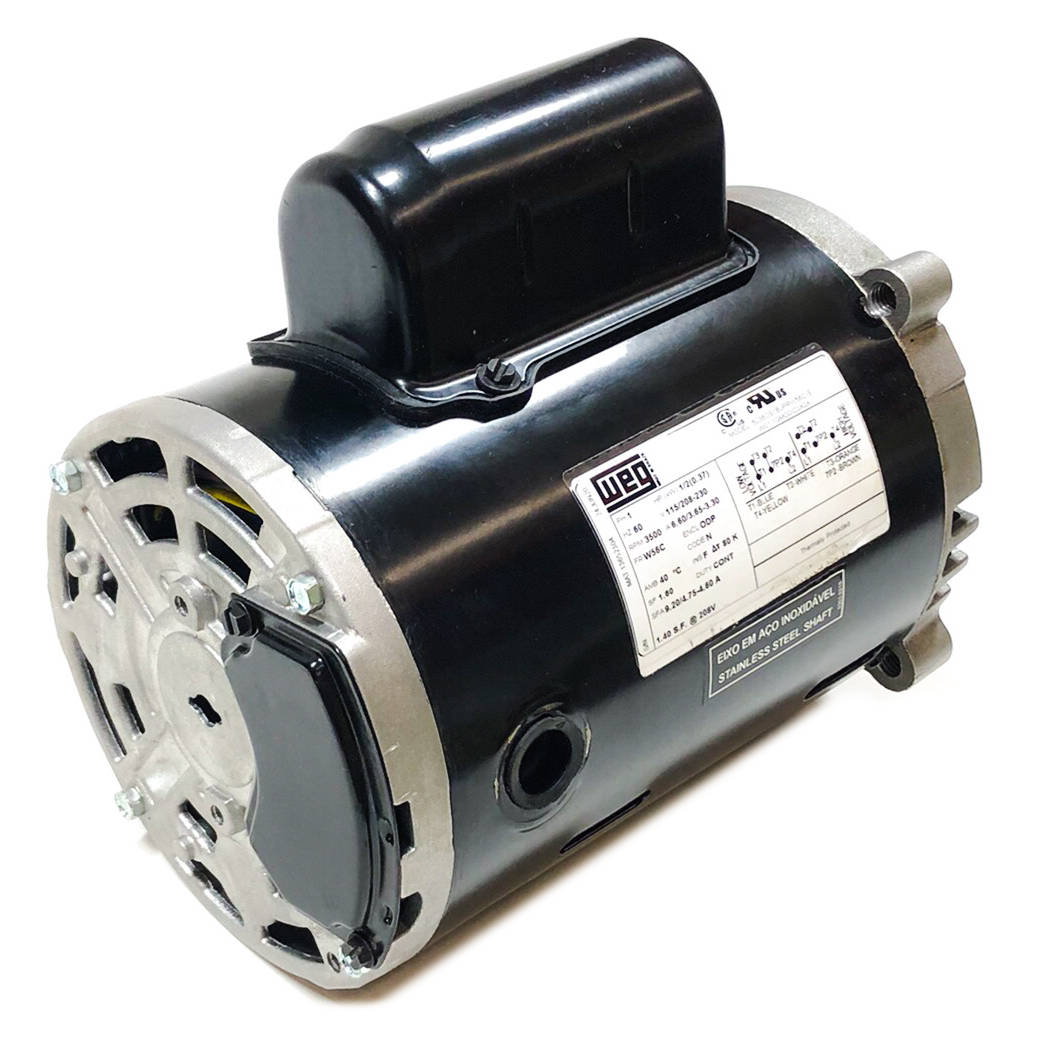

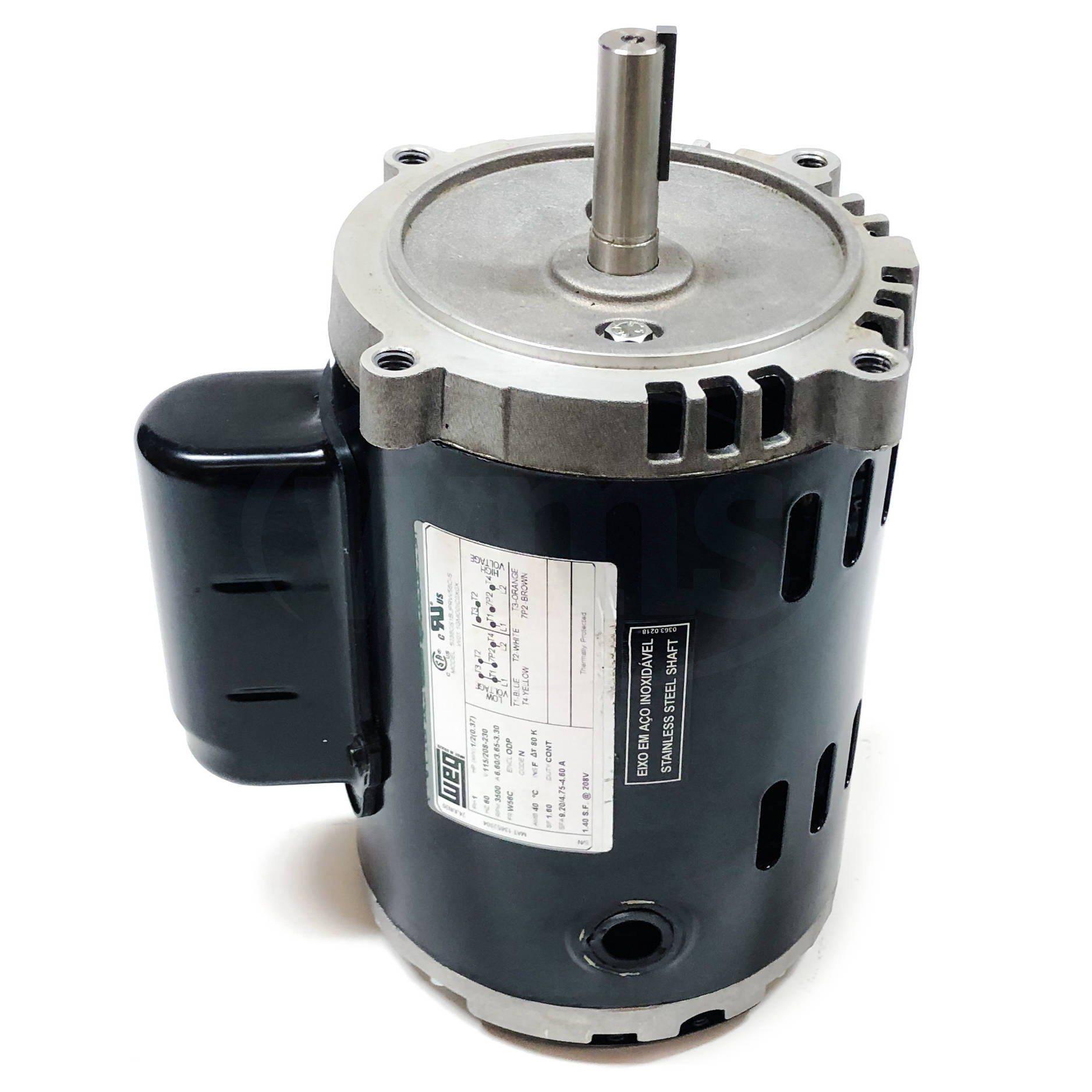

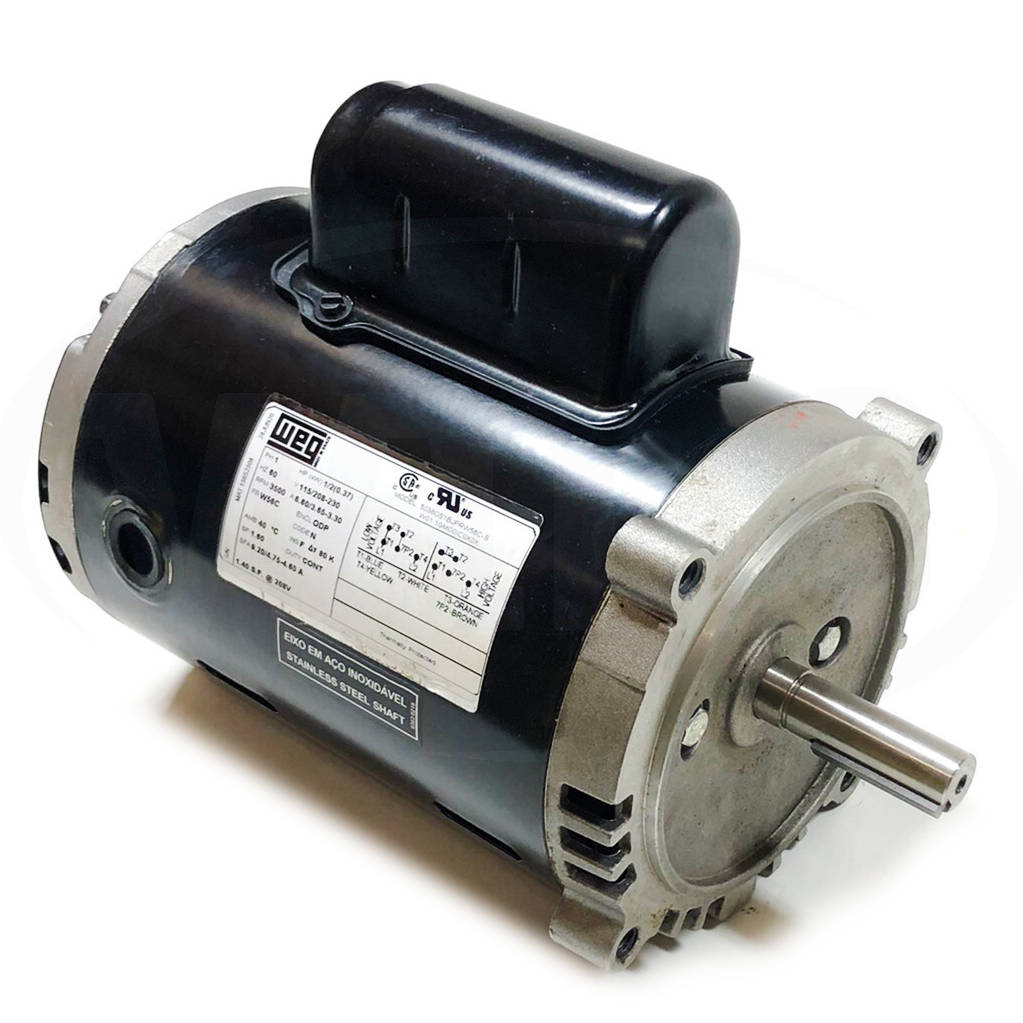

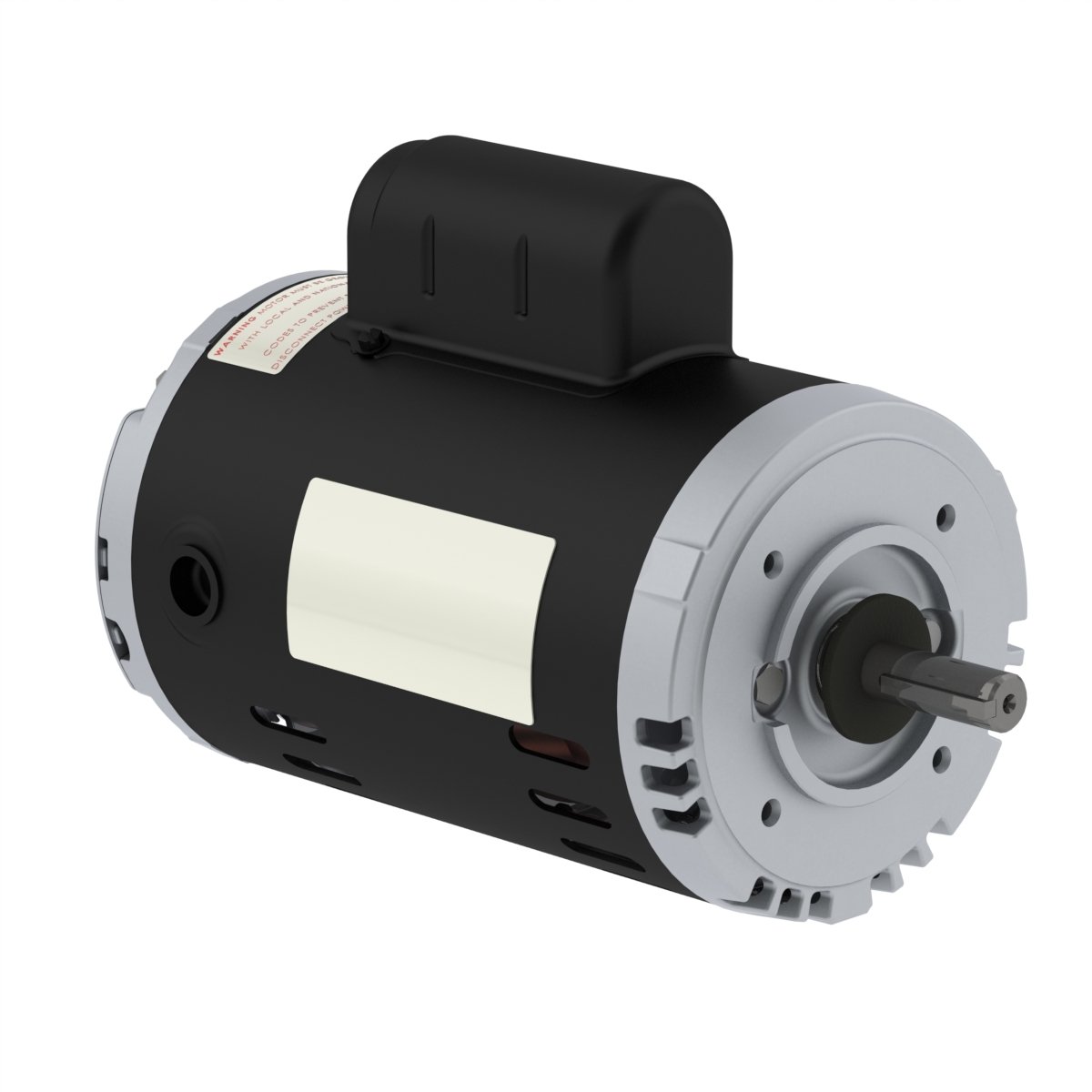

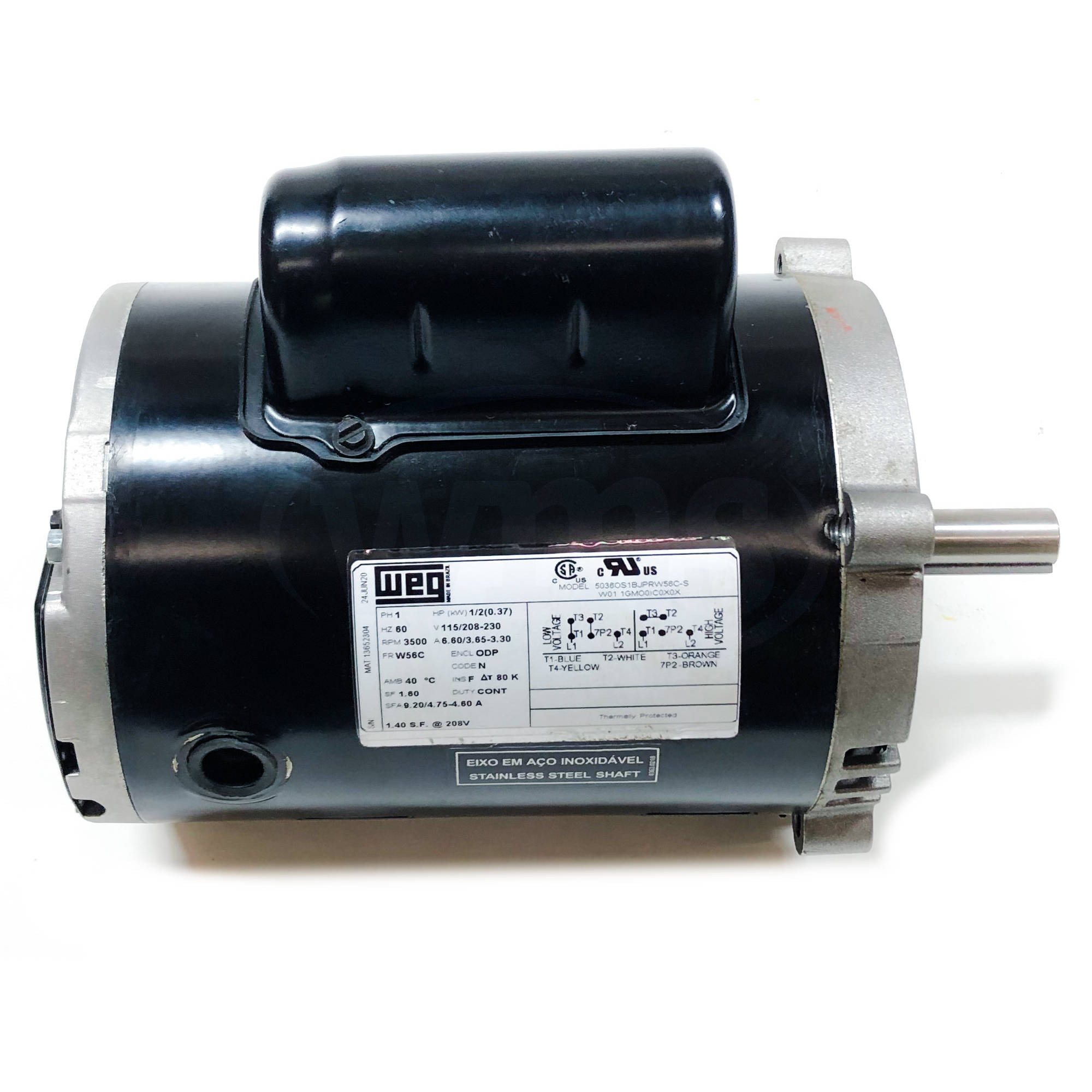

.5036OS1BJPRW56C-S WEG 1/2HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .5036OS1BJPRW56C-S

Selected accessories will also be added to cart
$191.25 / Each
Quantity:
IC01 - ODP, W56C Frame, 115/208-230VAC Single Phase 60Hz, 13652304, Footless, Rolled Steel, 304 Stainless Steel Shaft

Electric Motors

Frame W56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 6.60/3.65-3.30 A
L. R. Amperes 54.1/29.9-27.1 A
LRC 8.2x(Code N)
No load current 4.60/1.98-2.30 A
Rated torque 0.740 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0233 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.60 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 56.0 dB(A)
Approx. weight³ 19.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
54.0  61.0  65.0

Power factor

50% 75% 100%
0.55  0.66  0.74

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material AISI 304 Stainless Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without
