/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/C-Face, Footless/.5036ES1BW56CFL-S WEG 1/2HP Electric Motor, 3600RPM

Product ID: .5036ES1BW56CFL-S

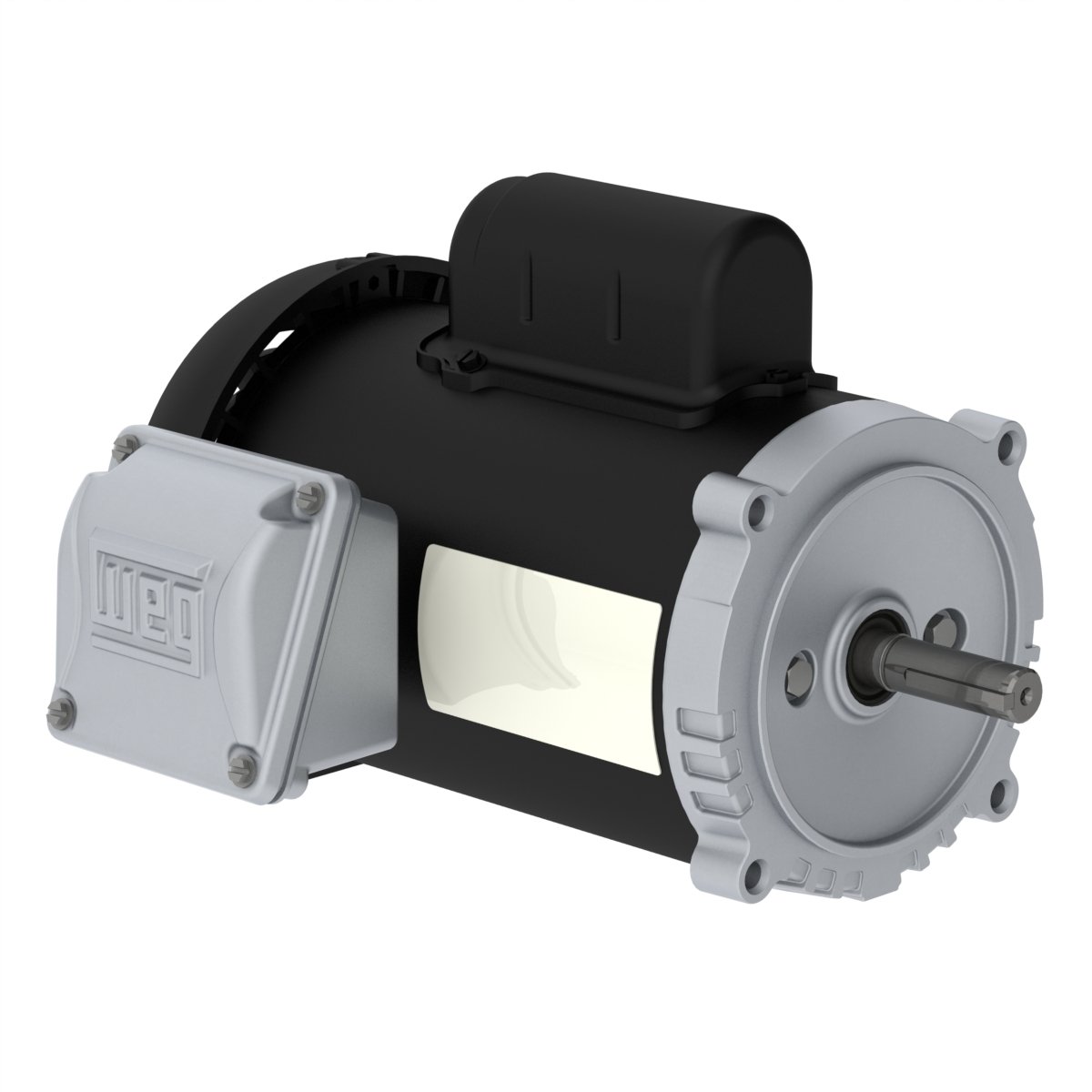

.5036ES1BW56CFL-S WEG 1/2HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .5036ES1BW56CFL-S

Selected accessories will also be added to cart

$234.75 / Each

Quantity:

IC411 - TEFC, W56C Frame, 115/208-230VAC Single Phase 60Hz, 13621385, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Details
Purchase Components

Frame	W56C
Output	0.5 HP (0.37 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	115/208-230 V
Rated current	7.00/3.87-3.50 A
L. R. Amperes	56.0/31.0-28.0 A
LRC	8.0x(Code P)
No load current	4.80/2.07-2.40 A
Rated torque	0.740 ft.lb
Locked rotor torque	290 %
Breakdown torque	300 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.0233 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	20.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
