/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Resilient Base/.5018OT1BRBOW56-S WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM

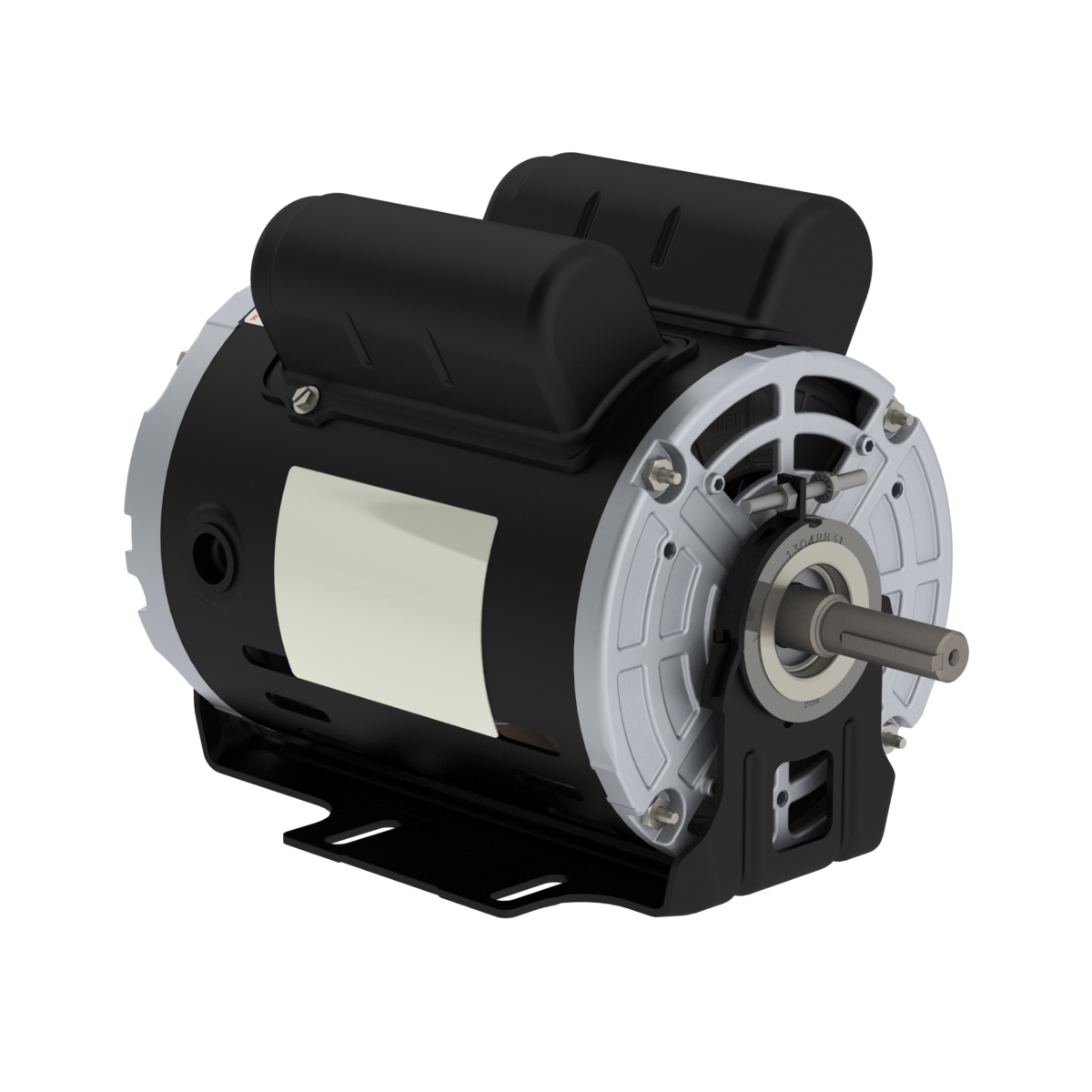

.5018OT1BRBOW56-S WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM
Enlarge Photo

Product ID: .5018OT1BRBOW56-S

.5018OT1BRBOW56-S WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018OT1BRBOW56-S

Selected accessories will also be added to cart
$276.00 / Each
Quantity:
IC01 - ODP, W56 Frame, 115/208-230V Single Phase 60Hz, Resilient Foot Mount, Rolled Steel, 14219954, 13901566, 5/8" Keyed Shaft

Electric Motors

Frame W56
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 115/208-230 V
Rated current 4.86/3.04-2.43 A
L. R. Amperes 37.4/23.4-18.7 A
LRC 7.7x(Code K)
No load current 2.70/1.16-1.35 A
Rated torque 1.50 ft.lb
Locked rotor torque 300 %
Breakdown torque 270 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0520 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 25.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
65.0  73.0  76.2

Power factor

50% 75% 100%
0.72  0.81  0.87

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6203 ZZ   6202 ZZ
Sealing Sem vedação  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
26 lb  52 lb
