/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Resilient Base/.5018OS1BSPRBW56-S WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM

Product ID: .5018OS1BSPRBW56-S

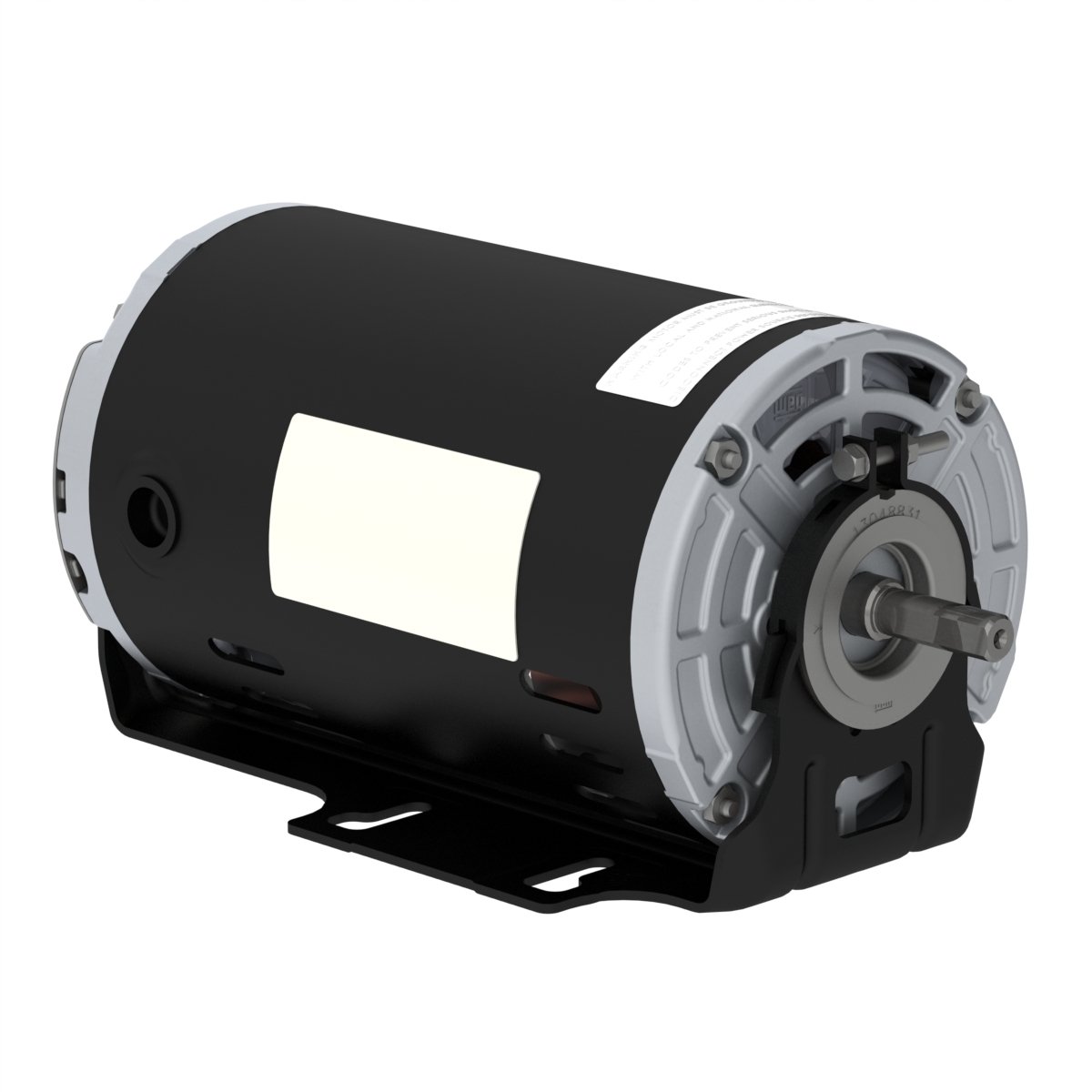

.5018OS1BSPRBW56-S WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018OS1BSPRBW56-S

Selected accessories will also be added to cart

$228.00 / Each

Quantity:

IC01 - ODP, W56 Frame, 115/208-230VAC Single Phase 60Hz, 14533016, Resilient Base, Rolled Steel, Split Phase, Standard Efficiency, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	W56
Output	0.5 HP (0.37 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1715 rpm
Slip	4.72 %
Rated voltage	115/208-230 V
Rated current	7.24/3.80-3.62 A
L. R. Amperes	47.1/24.7-23.5 A
LRC	6.5x(Code M)
No load current	5.80/2.50-2.90 A
Rated torque	1.51 ft.lb
Locked rotor torque	130 %
Breakdown torque	220 %

Locked rotor time	10s (cold) 6s (hot)
Design	O
Insulation Class	F
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	22.6 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
52.0	60.0	63.5

Power factor

50%	75%	100%
0.50	0.60	0.70

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
