/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Resilient Base/.5018OS1BSPRBOW56-S WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM

Product ID: .5018OS1BSPRBOW56-S

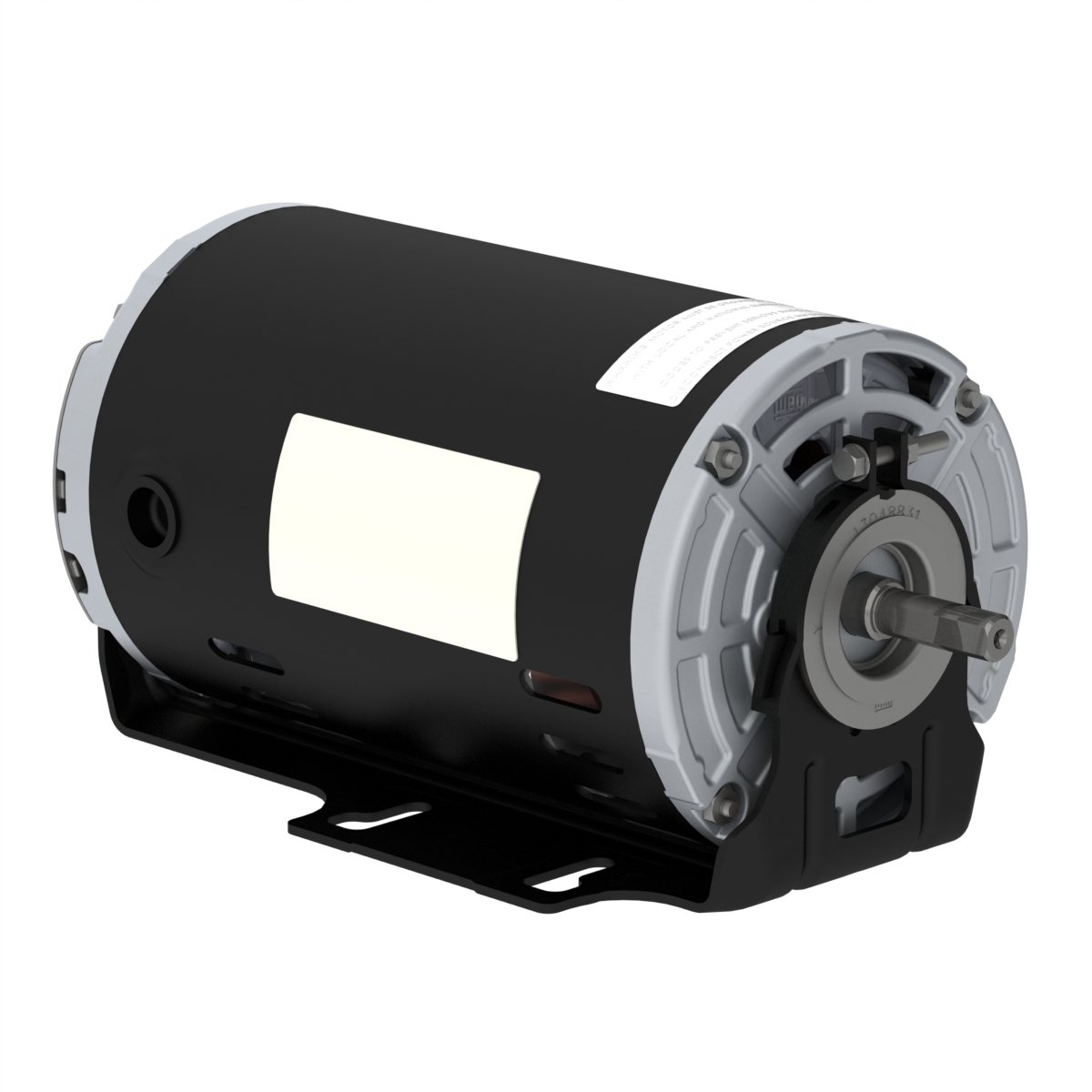

.5018OS1BSPRBOW56-S WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018OS1BSPRBOW56-S

Selected accessories will also be added to cart
$237.00 / Each
Quantity:
IC01 - ODP, W56 Frame, 115/208-230VAC Single Phase 60Hz, 13545645, Resilient Base Mount, Rolled Steel, Split Phase, 5/8" Keyed Shaft

Electric Motors

Frame W56
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1715 rpm
Slip 4.72 %
Rated voltage 115/208-230 V
Rated current 7.24/3.80-3.62 A
L. R. Amperes 47.1/24.7-23.5 A
LRC 6.5x(Code M)
No load current 5.80/2.50-2.90 A
Rated torque 1.51 ft.lb
Locked rotor torque 130 %
Breakdown torque 220 %
Locked rotor time 10s (cold) 6s (hot)
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 24.8 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
52.0  60.0  63.5

Power factor

50% 75% 100%
0.50  0.60  0.70

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without
