/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Brake Motor/.5018ES3EBMW56-S WEG 1/2HP Electric Brake Motor, 1800RPM
Click Image to Expand

Product ID: .5018ES3EBMW56-S

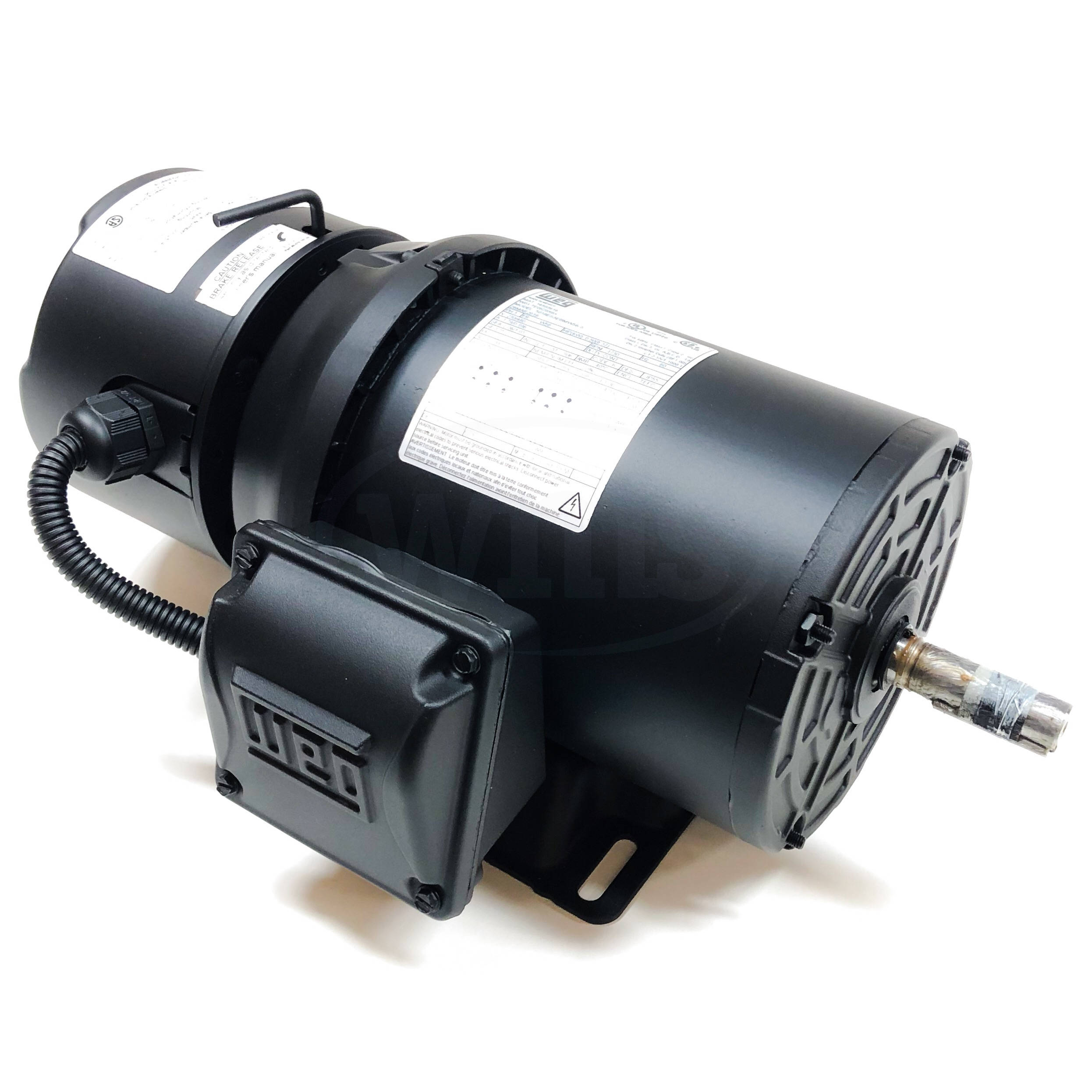

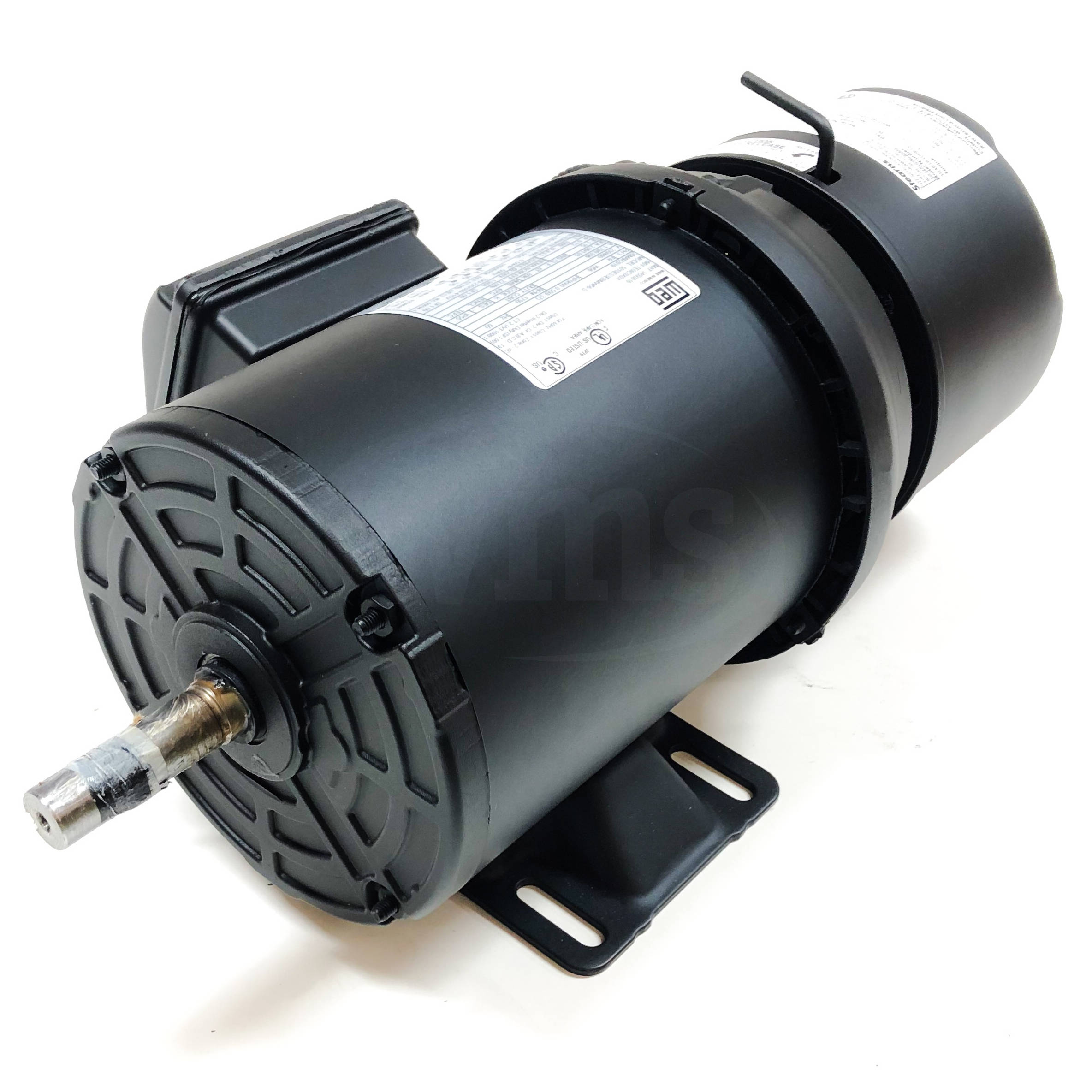

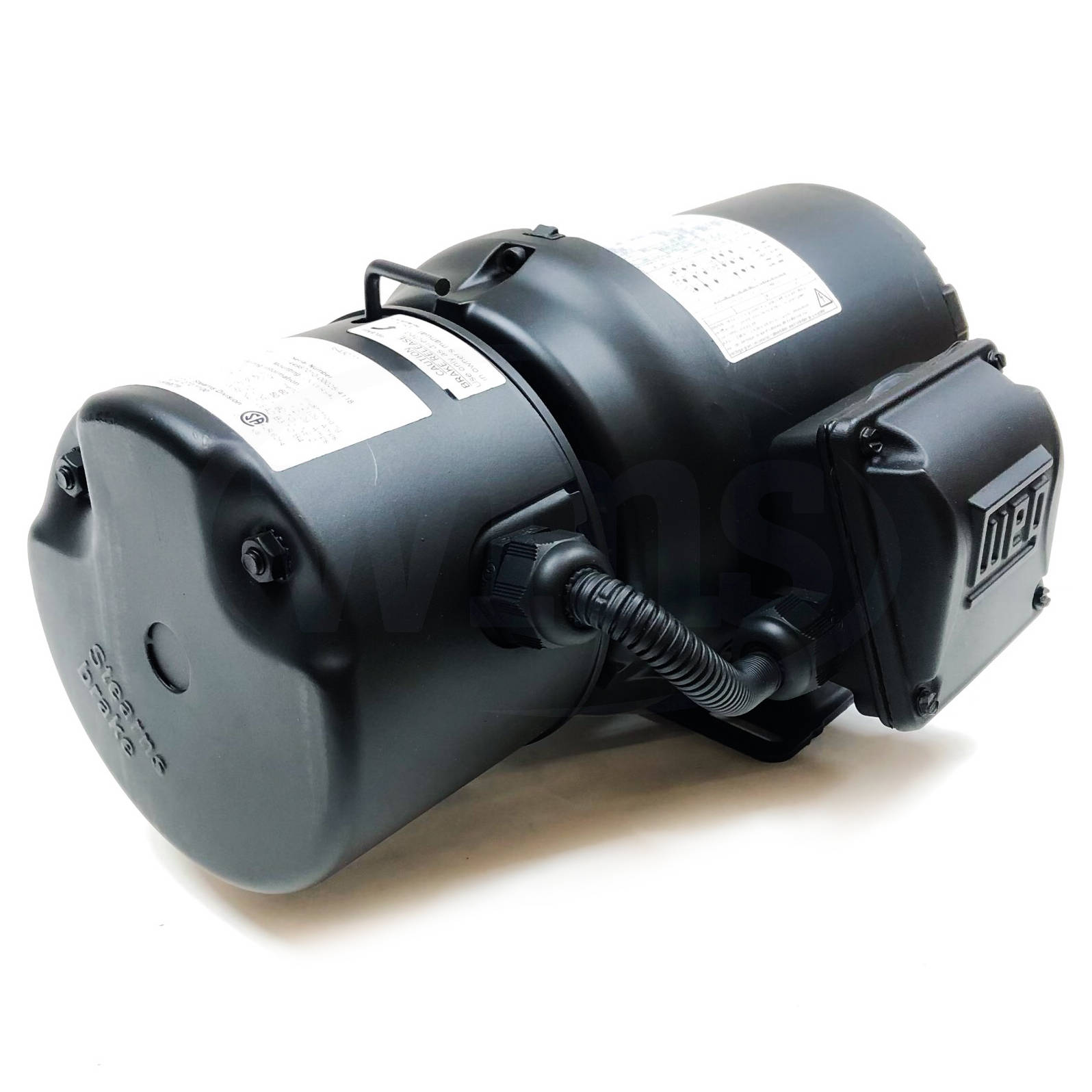

.5018ES3EBMW56-S WEG 1/2HP Electric Brake Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018ES3EBMW56-S

Selected accessories will also be added to cart
$828.75 / Each
Quantity:
IC411 - TEFC, W56 Frame, 208-230/460VAC 3-Phase 50/60Hz, 14593616, C-Face, Foot Mount, Rolled Steel, Standard Efficiency, 5/8" Keyed Shaft

Features

  • 1.15 Service Factor
  • Manual Release Lever
  • AC Brake
  • Inverter Rated
  • IP55 Enclosure
  • Dual Frequency (50/60Hz)

Applications

  • Conveyors
  • Door Operators
  • Packaging Equipment
  • Unit Handling

Technical Data

Electric Motors

Frame W56
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 208-230/460 V
Rated current 1.98-1.79/0.896 A
L. R. Amperes 11.9-10.8/5.38 A
LRC 6.0x(Code K)
No load current 1.20-1.40/0.698 A
Rated torque 1.50 ft.lb
Locked rotor torque 260 %
Breakdown torque 280 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.0399 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 26.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
62.0  70.0  72.0

Power factor

50% 75% 100%
0.49  0.62  0.72
Frame W56
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1400 rpm
Slip 6.67 %
Rated voltage 190/380 V
Rated current 2.04/1.02 A
L. R. Amperes 9.59/4.79 A
LRC 4.7x(Code H)
No load current 1.36/0.682 A
Rated torque 1.85 ft.lb
Locked rotor torque 190 %
Breakdown torque 200 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.0399 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 26.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
64.0  68.0  68.0

Power factor

50% 75% 100%
0.57  0.71  0.81
Frame W56
Output 0.5 HP (0.37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1420 rpm
Slip 5.33 %
Rated voltage 220/415 V
Rated current 1.98/1.05 A
L. R. Amperes 10.1/5.35 A
LRC 5.1x(Code J)
No load current 1.57/0.830 A
Rated torque 1.82 ft.lb
Locked rotor torque 229 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0399 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 26.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
59.0  66.0  67.0

Power factor

50% 75% 100%
0.50  0.63  0.73

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1/2"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Aluminum
Tropicalized Painting Without
Fan material Plastic
Brake input Voltage 208-230/460//190/380 V
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without
