/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/Foot Mount/.5018ES1RCHO56 WEG 1/2HP General Purpose Electric Motor, 1800RPM

Product ID: .5018ES1RCHO56

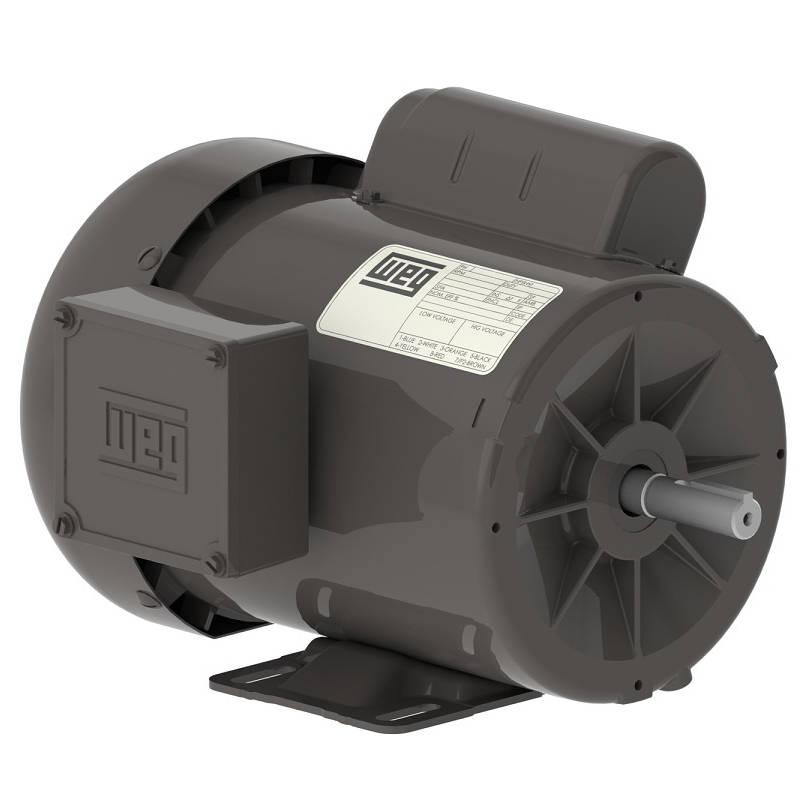

.5018ES1RCHO56 WEG 1/2HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018ES1RCHO56

Selected accessories will also be added to cart

$219.00 / Each

Quantity:

IC411 - TEFC, IP55, B56 Frame, 115/230VAC 60Hz Single Phase, 11690089, Rolled Steel Frame, Foot Mounted, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	B56
Output	0.5 HP (0.37 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	115/230 V
Rated current	8.00/4.00 A
L. R. Amperes	40.0/20.0 A
LRC	5.0x(Code L)
No load current	6.40/3.20 A
Rated torque	1.50 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %

Locked rotor time	10s (cold) 6s (hot)
Moment of inertia (J)	0.0973 sq.ft.lb
Insulation Class	B
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	26.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
54.0	62.0	65.0

Power factor

50%	75%	100%
0.46	0.57	0.64

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xNPT 1/2"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 7022 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Automatic
