/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/.5012ES3E56C-S WEG 1/2HP General Purpose Electric Motor, 1200RPM
.5012ES3E56C-S WEG 1/2HP General Purpose Electric Motor, 1200RPM

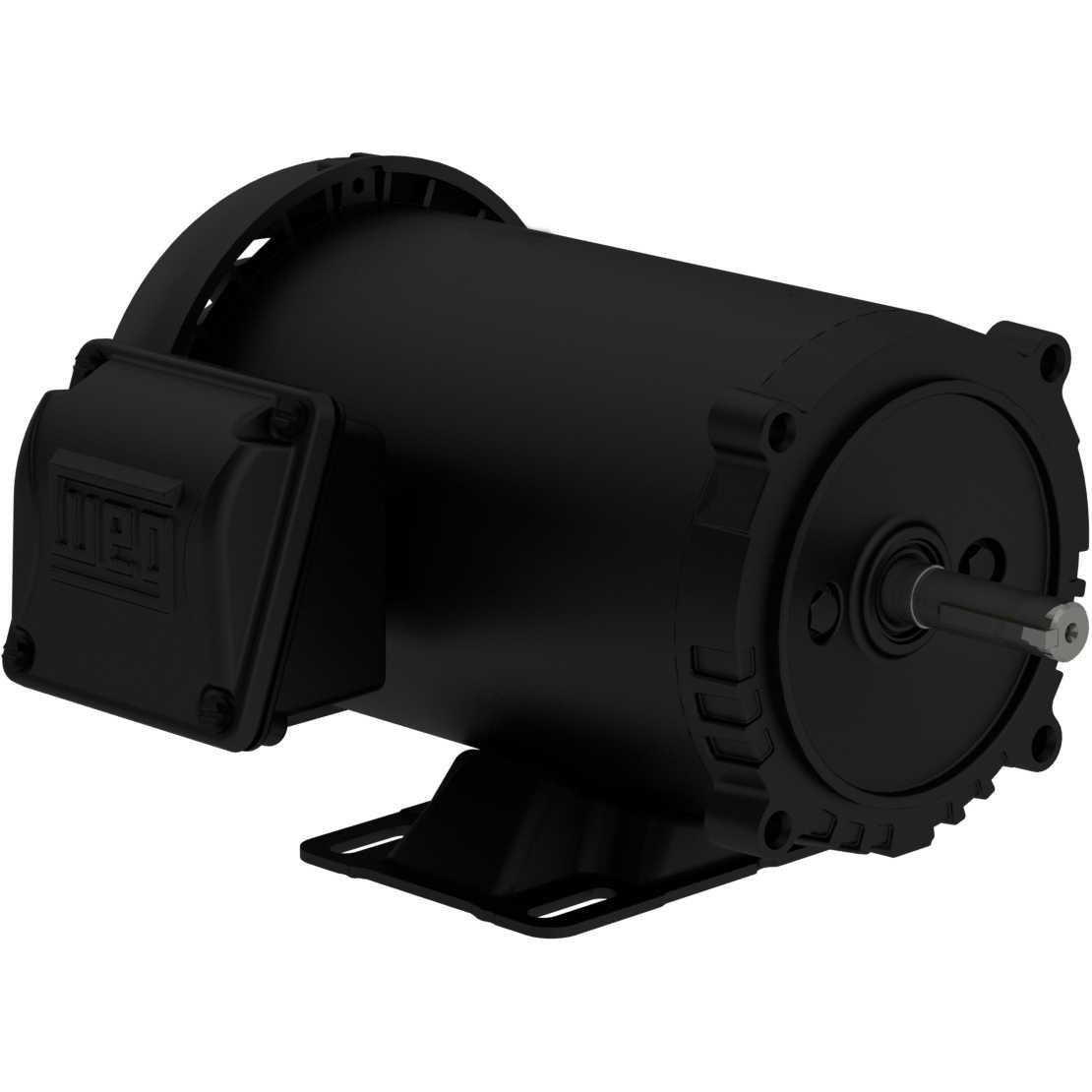

Enlarge Photo

Product ID: .5012ES3E56C-S

.5012ES3E56C-S WEG 1/2HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: .5012ES3E56C-S

Selected accessories will also be added to cart
$330.00 / Each
Quantity:
IC411 - TEFC, IP55, 56C Frame, 208-230/460/190-220/380-415VAC 60Hz 3 Phase, 14796991, C-Face, Foot Mounted, Rolled Steel, Standard Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1160 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 2.19-1.98/0.992 A
L. R. Amperes 11.8-10.7/5.36 A
LRC 5.4x(Code K)
No load current 1.33-1.54/0.772 A
Rated torque 2.26 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.1065 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 26.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
64.0  70.0  72.0

Power factor

50% 75% 100%
0.44  0.56  0.65
Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 945 rpm
Slip 5.50 %
Rated voltage 190/380 V
Rated current 2.14/1.07 A
L. R. Amperes 9.20/4.60 A
LRC 4.3x(Code G)
No load current 1.52/0.758 A
Rated torque 2.78 ft.lb
Locked rotor torque 160 %
Breakdown torque 210 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1065 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 26.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
64.8  69.4  69.9

Power factor

50% 75% 100%
0.52  0.65  0.75
Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 950 rpm
Slip 5.00 %
Rated voltage 220/415 V
Rated current 2.02/1.07 A
L. R. Amperes 9.28/4.92 A
LRC 4.6x(Code H)
No load current 1.54/0.816 A
Rated torque 2.76 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1065 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 26.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
62.9  68.6  70.1

Power factor

50% 75% 100%
0.49  0.62  0.71

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
