/Products/Electric Motors/3 Phase/WEG/Crusher Duty/45012ET3GRB586/7-W22 WEG 450HP Crusher Duty Electric Motor, 1200RPM

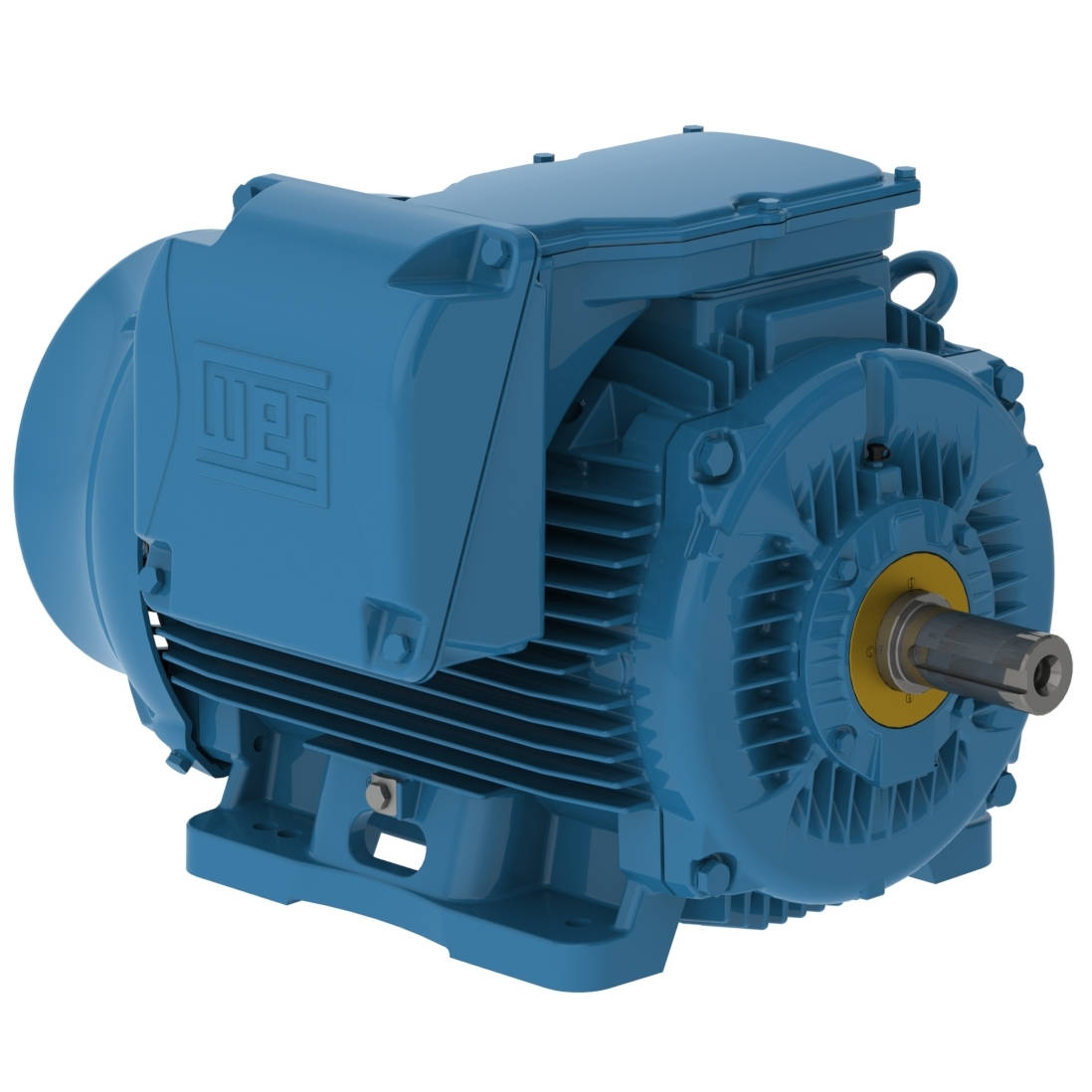

45012ET3GRB586/7-W22 WEG 450HP Crusher Duty Electric Motor, 1200RPM
Enlarge Photo

Product ID: 45012ET3GRB586/7-W22

45012ET3GRB586/7-W22 WEG 450HP Crusher Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 45012ET3GRB586/7-W22

Selected accessories will also be added to cart
$46,688.25 / Each
Quantity:
IC411 - TEFC, IP55, 586T/587T Frame, 460VAC 60Hz 3 Phase, 14335121, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft

Electric Motors

Frame 586/7T
Output 450 HP (330 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1193 rpm
Slip 0.58 %
Rated voltage 460 V
Rated current 532 A
L. R. Amperes 3245 A
LRC 6.1x(Code G)
No load current 220 A
Rated torque 1980 ft.lb
Locked rotor torque 200 %
Breakdown torque 210 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 368 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 4385 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.67  0.77  0.81
Frame 586/7T
Output 400 HP (300 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 991 rpm
Slip 0.90 %
Rated voltage 380 V
Rated current 580 A
L. R. Amperes 3074 A
LRC 5.3x(Code F)
No load current 215 A
Rated torque 2120 ft.lb
Locked rotor torque 180 %
Breakdown torque 190 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 368 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4385 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  95.8

Power factor

50% 75% 100%
0.70  0.79  0.82
Frame 586/7T
Output 400 HP (300 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 992 rpm
Slip 0.80 %
Rated voltage 400 V
Rated current 558 A
L. R. Amperes 3292 A
LRC 5.9x(Code G)
No load current 230 A
Rated torque 2120 ft.lb
Locked rotor torque 200 %
Breakdown torque 210 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 368 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4385 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  95.8

Power factor

50% 75% 100%
0.67  0.77  0.81
Frame 586/7T
Output 400 HP (300 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 993 rpm
Slip 0.70 %
Rated voltage 415 V
Rated current 542 A
L. R. Amperes 3415 A
LRC 6.3x(Code G)
No load current 245 A
Rated torque 2120 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 368 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 4385 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.64  0.75  0.80

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 200 - 240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Fan material Plastic
Screw cap CARBON STEEL SAE 1010/20
NDE bearing Seal Taconite Labyrinth
DE bearing Seal Taconite Labyrinth
Cable Press Material Sem
