Designed for the most demanding crusher applications. These motors are designed for horizontal and vertical mounting and have exceptional high starting and breakdown torques.
WEG’s W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise, extending the life of the motor.
IC411 - TEFC, IP55, 404T/405T Frame, 208-230/460VAC 60Hz 3 Phase, 13500516, Cast Iron Frame, NEMA Premium Efficiency, Foot Mounted, 2-7/8" Keyed Shaft
05009ET3EKD404T-W22
IC411 - TEFC, IP55, 404T/405T Frame, 208-230/460VAC 60Hz 3 Phase, 13503280, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft
06009ET3EKD405T-W22
IC411 - TEFC, IP55, 404T/405T Frame, 230/460VAC 60Hz 3 Phase, 12140630, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft
06012ET3ERB404T-W22

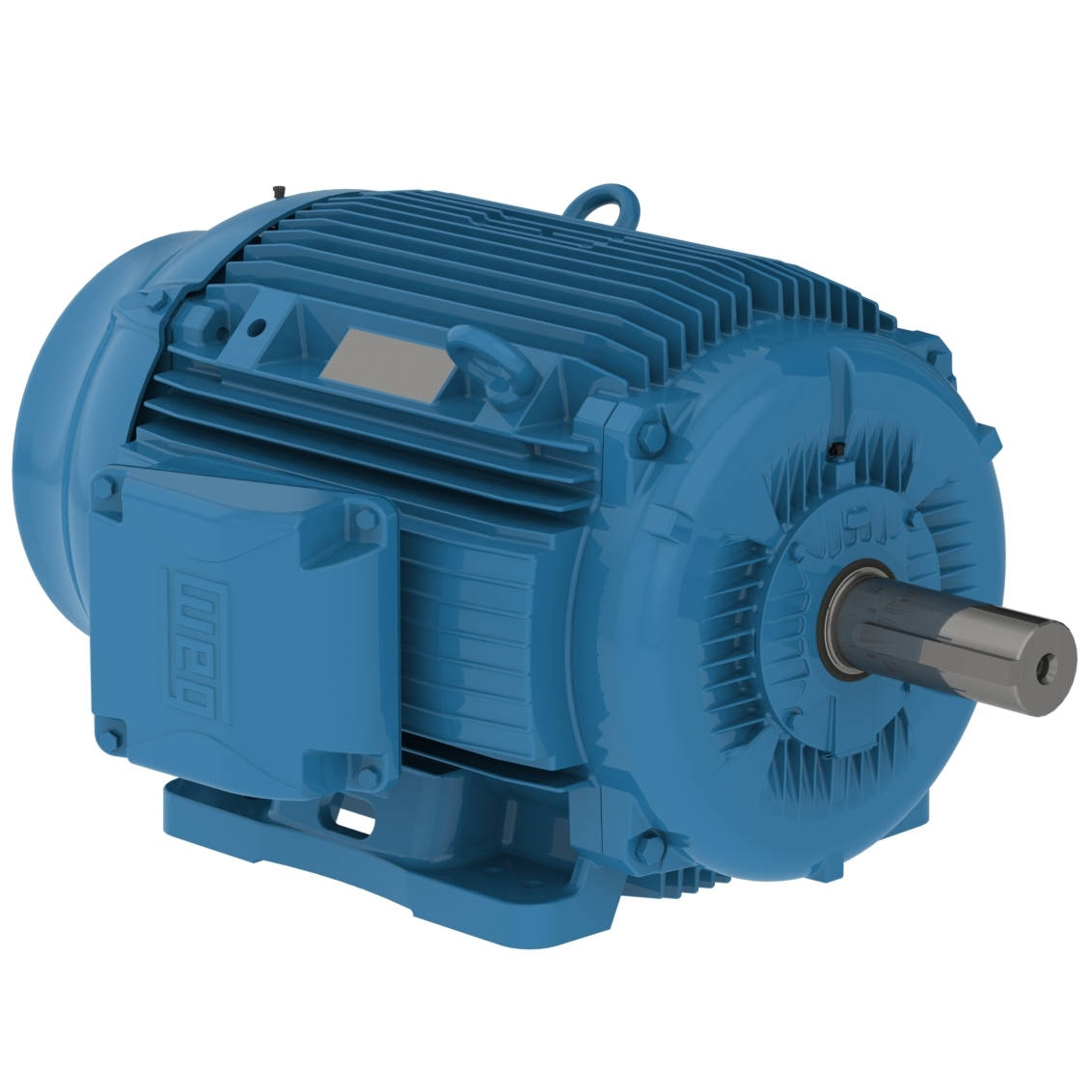

IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 13503282, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 3-3/8" Keyed Shaft
07509ET3GKD444T-W22
IC411 - TEFC, IP55, 444T/445T Frame, 460VAC, 60Hz, 3 Phase
07509ET3QRB444TF2-W2
IC411 - TEFC, IP55, 404T/405T Frame, 230/460VAC 60Hz 3 Phase, 11165649, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft
07512ET3ERB405T-W22
IC411 - TEFC, IP55, 404T/405T Frame, 460VAC 60Hz 3 Phase, 12357918, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 2-7/8" Keyed Shaft
07512ET3GRB405T-W22
IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 13500517, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 3-3/8" Keyed Shaft
10009ET3GKD445T-W22
IC411 - TEFC, IP55, 444T/445T Frame, 230/460VAC 60Hz 3 Phase, 11165650, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
10012ET3ERB444T-W22
IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 11356021, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
10012ET3GRB444T-W22
IC411 - TEFC, IP55, 404T/405T Frame, 230/460VAC 60Hz 3 Phase, 11355410, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft
10018ET3ERB405T-W22
IC411 - TEFC, IP55, 404T/405T Frame, 575VAC 60Hz 3 Phase, 11164525, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft
10018ET3HRB405T-W22

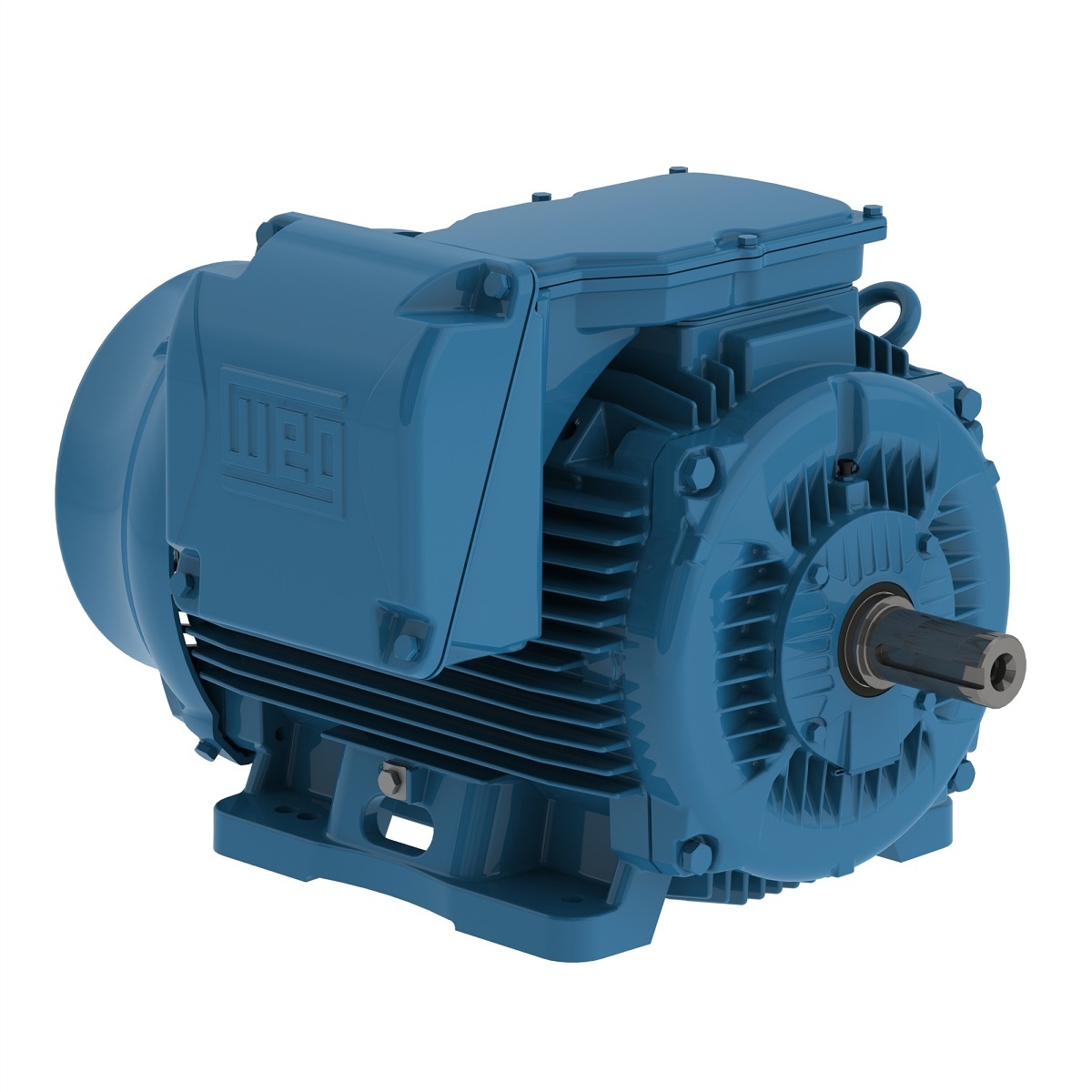

IC411 - TEFC, IP55, 445T/447T Frame, 460VAC 60Hz 3 Phase, 13503286, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 3-3/8" Keyed Shaft
12509ET3GKD447T-W22
IC411 - TEFC, IP55, 444T/445T Frame, 230/460VAC 60Hz 3 Phase, 11165651, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
12512ET3ERB445T-W22

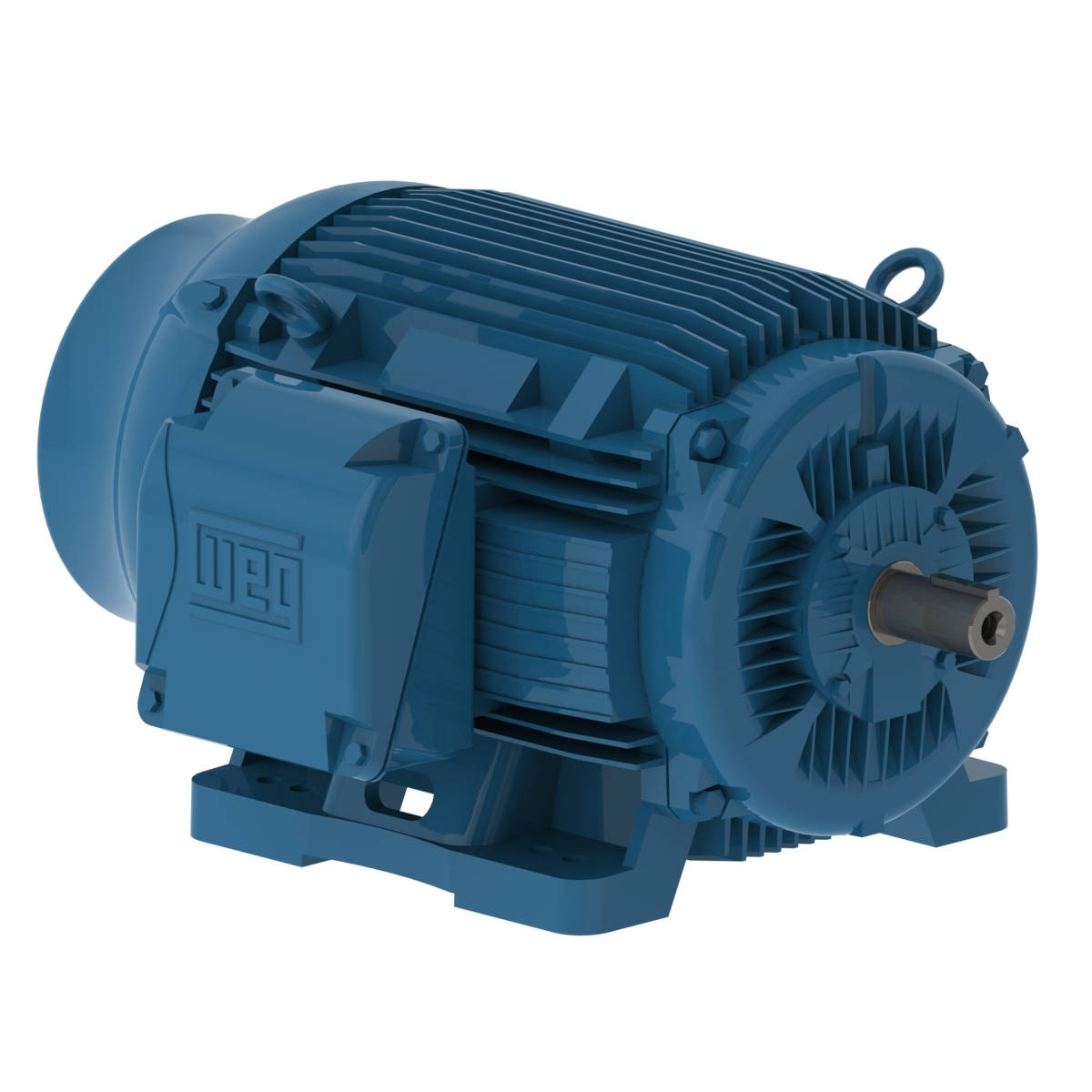

IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 11642623, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
12512ET3GRB445T-W22
IC-411-TEFC, IP55, 444T/445T Frame, 230/460VAC 60Hz 3 Phase, 11355772, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
12518ET3ERB444T-W22
IC411 - TEFC, IP55, 445T/447T Frame, 460VAC 60Hz 3 Phase, 13500588, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
15009ET3GKD447T-W22

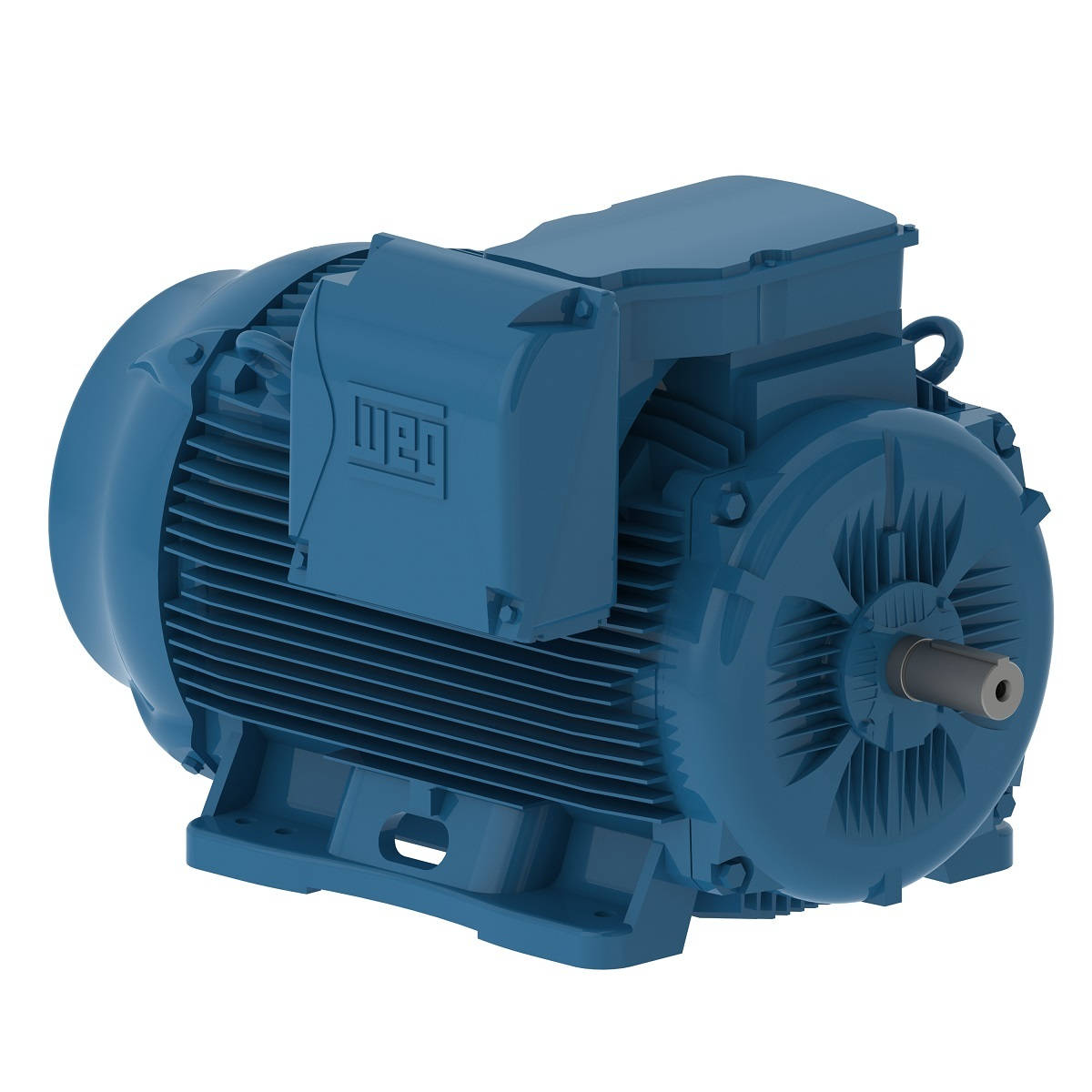

IC411 - TEFC, IP55, 445T/447T Frame, 460VAC 60Hz 3 Phase, 11457762, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
15012ET3GRB447T-W22

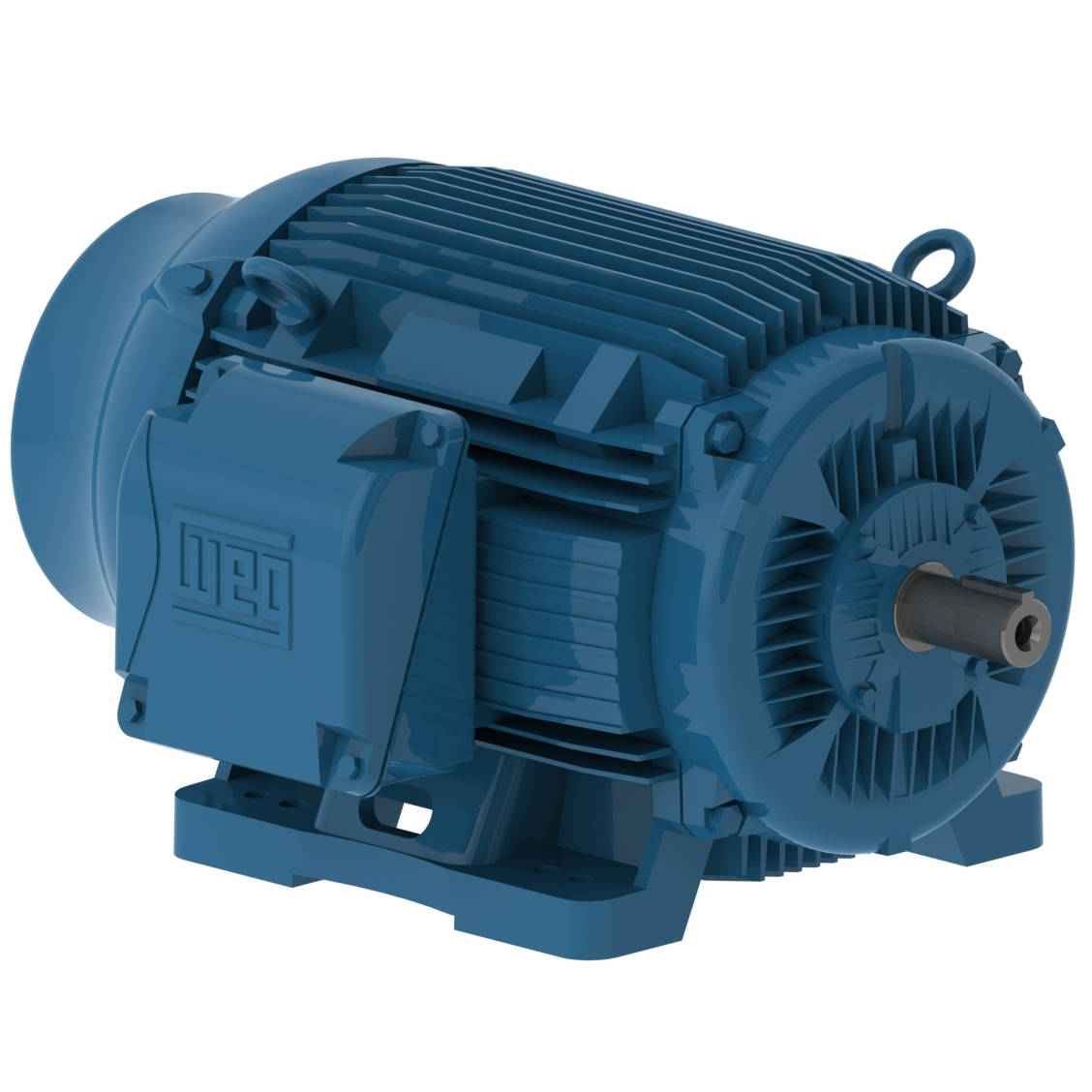

IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 11356087, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
15018ET3GRB445T-W22
IC411 - TEFC, IP55, 444T/445T Frame, 575VAC 60Hz 3 Phase, 11164580, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
15018ET3HRB445T-W22
IC411 - TEFC, IP55, 447T/449T Frame, 460VAC 60Hz 3 Phase, 13526433, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
20009ET3GKD449T-W22

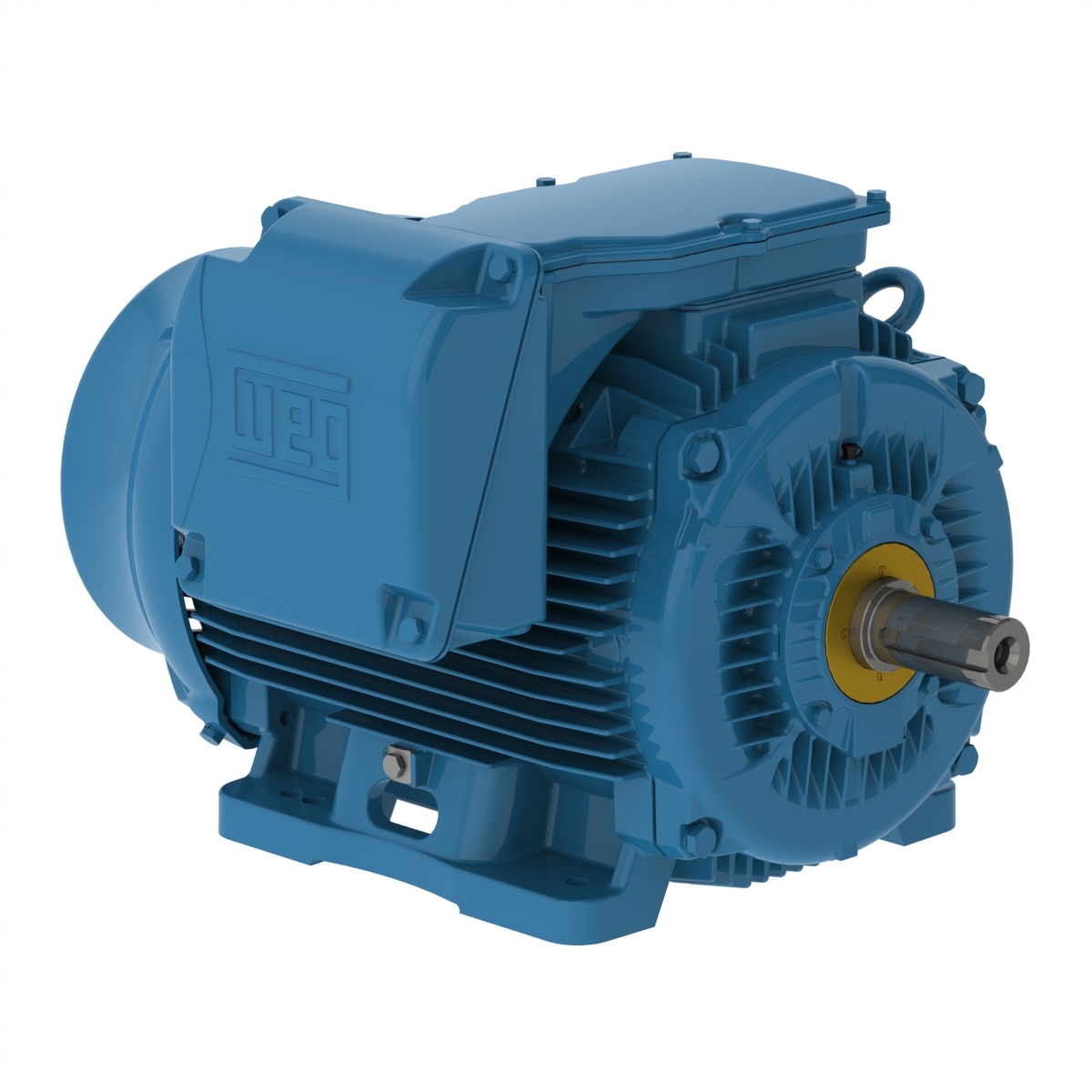

IC411 - TEFC, IP55, 504TZ/505TZ Frame, 460VAC 60Hz 3-Phase, 13500594, Foot Mounted, NEMA Premium Efficiency, Cast Iron Frame, 3-7/8" Keyed Shaft
20012ET3GKD505Z-W22
IC411 - TEFC, IP55, 445T/447T Frame, 460VAC 60Hz 3 Phase, 11546823, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft
20012ET3GRB447T-W22
IC411 - TEFC, IP55, 447T/449T Frame, 460VAC 60Hz 3 Phase, 11493490, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 3-3/8" Keyed Shaft
20012ET3GRB449T-W22

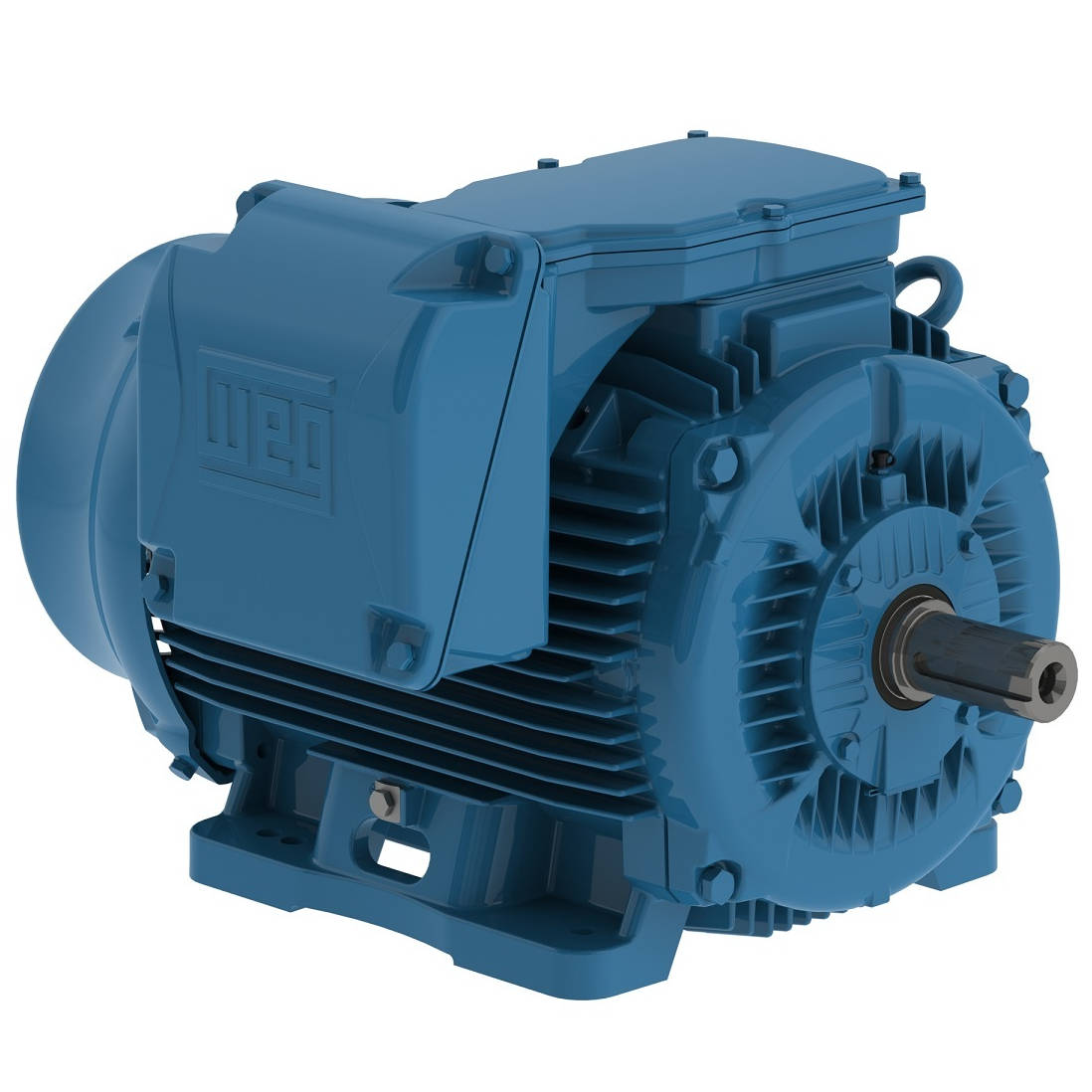

IC411 - TEFC, IP55, 504T/505T Frame, 575VAC 60Hz 3 Phase, 11537013, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft
20012ET3HKD505Z-W22

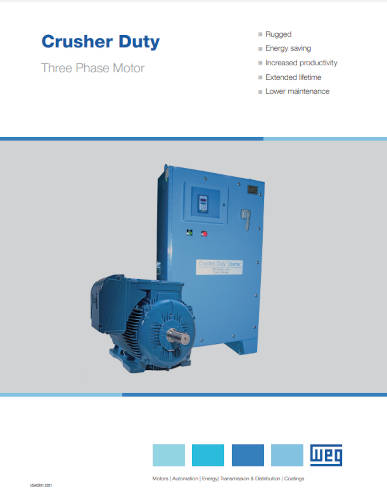

Catalogs & Documentation :
