/Products/Electric Motors/3 Phase/WEG/Crusher Duty/40012ET3GKD586/7-W22 WEG 400HP Crusher Duty Electric Motor, 1200RPM

Product ID: 40012ET3GKD586/7-W22

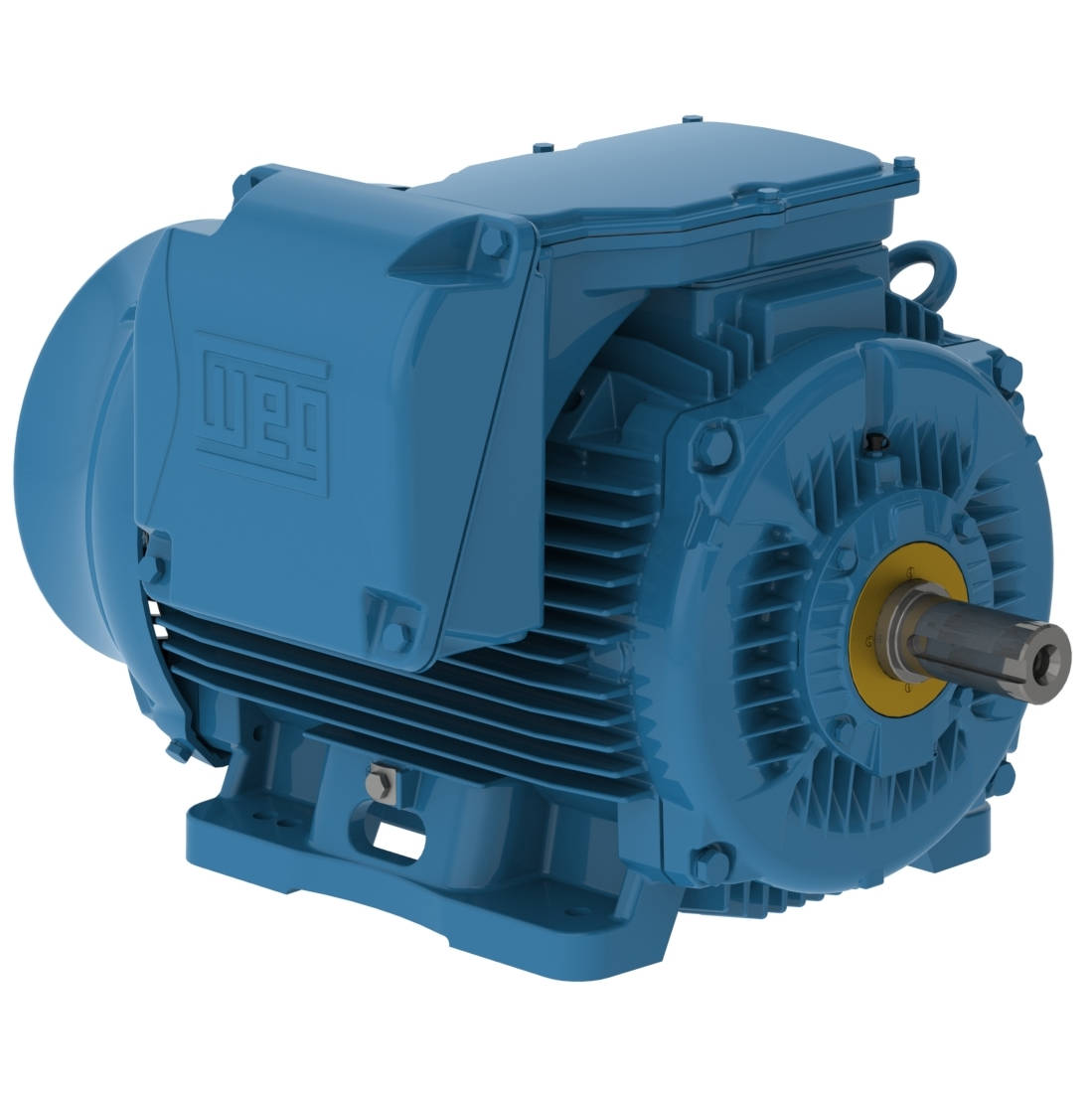

40012ET3GKD586/7-W22 WEG 400HP Crusher Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 40012ET3GKD586/7-W22

Selected accessories will also be added to cart

$42,150.75 / Each

Quantity:

IC411 - TEFC, IP55, 586T/587T Frame, 460VAC 60Hz 3 Phase, 13500699, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	586/7T
Output	400 HP (300 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1193 rpm
Slip	0.58 %
Rated voltage	460 V
Rated current	489 A
L. R. Amperes	3179 A
LRC	6.5x(Code H)
No load current	220 A
Rated torque	1760 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %

Locked rotor time	52s (cold) 29s (hot)
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	4115 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.8	96.2

Power factor

50%	75%	100%
0.66	0.75	0.80

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Space Heater Voltage	200 - 240 V
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	With
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Aluminum
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
