/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Footless/.3336ES3H56CFL-S WEG 1/3HP General Purpose Electric Motor, 3600RPM

Product ID: .3336ES3H56CFL-S

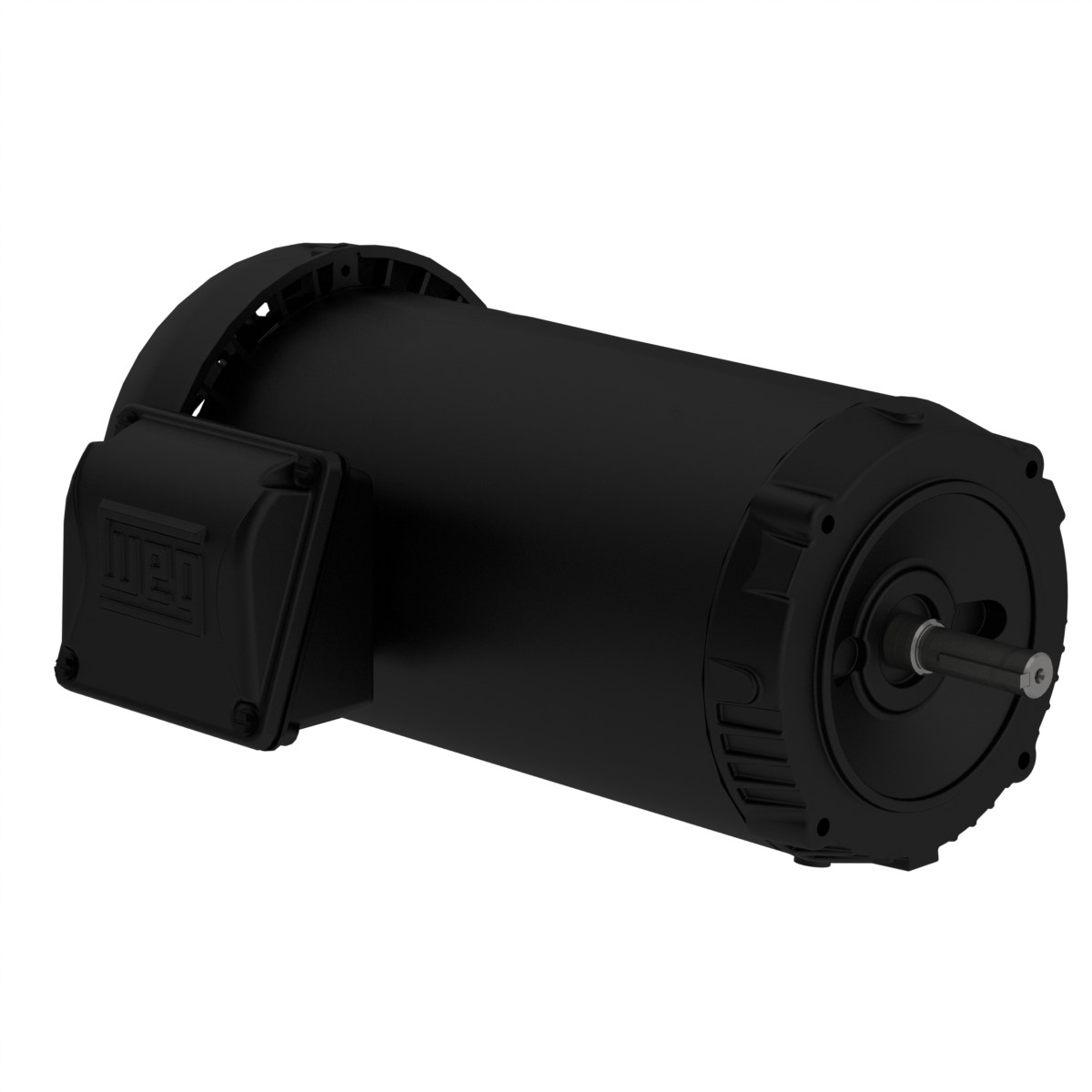

.3336ES3H56CFL-S WEG 1/3HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .3336ES3H56CFL-S

Selected accessories will also be added to cart

$202.50 / Each

Quantity:

IC411 - TEFC, IP55, 56C Frame, 575VAC 3-Phase 60Hz, 14785953, C-Face, Footless, Rolled Steel, Standard Efficiency, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56C
Output	0.33 HP (0.25 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3485 rpm
Slip	3.19 %
Rated voltage	575 V
Rated current	0.482 A
L. R. Amperes	3.08 A
LRC	6.4x(Code L)
No load current	0.288 A
Rated torque	0.491 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	72s (cold) 40s (hot)

Moment of inertia (J)	0.0389 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	17.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
48.0	57.5	62.0

Power factor

50%	75%	100%
0.72	0.79	0.84

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
