/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/Jet Pump/.3336ES1BJPW56J-S WEG 1/3HP Jet Pump Electric Motor, 3600RPM

Product ID: .3336ES1BJPW56J-S

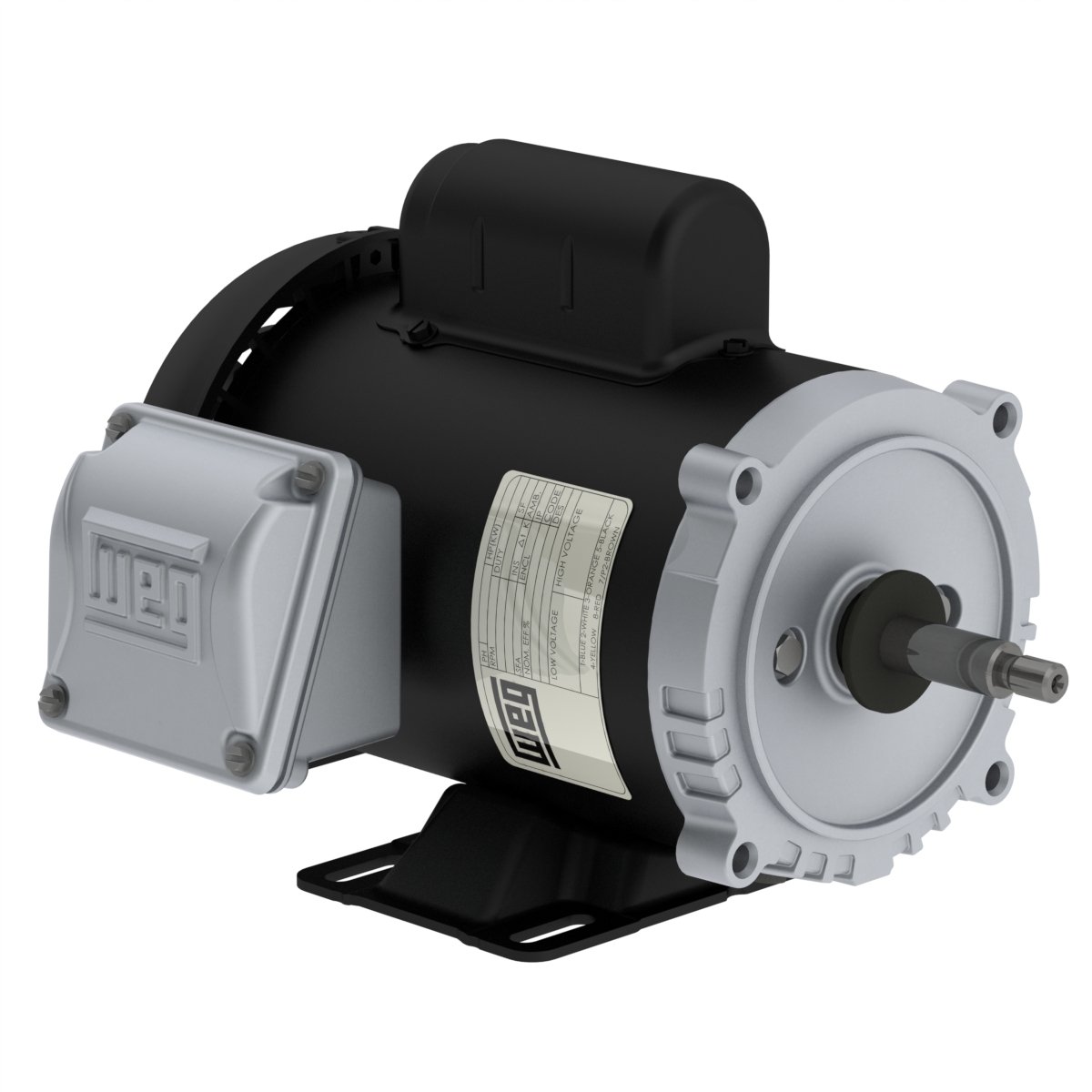

.3336ES1BJPW56J-S WEG 1/3HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .3336ES1BJPW56J-S

Selected accessories will also be added to cart

$211.50 / Each

Quantity:

IC411 - TEFC, IP55, W56J Frame, 115/208-230VAC Single Phase 60Hz, 13796999, J-Type, Foot Mount, Standard Efficiency

Details
Purchase Components

Electric Motors

Frame	W56J
Output	0.33 HP (0.25 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3490 rpm
Slip	3.06 %
Rated voltage	115/208-230 V
Rated current	5.20/2.87-2.60 A
L. R. Amperes	36.4/20.1-18.2 A
LRC	7.0x(Code P)
No load current	3.80/1.64-1.90 A
Rated torque	0.490 ft.lb
Locked rotor torque	290 %
Breakdown torque	290 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.0190 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	CCW
Noise level²	66.0 dB(A)
Approx. weight³	19.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
42.0	50.0	54.0

Power factor

50%	75%	100%
0.61	0.69	0.76

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	AISI 304 Stainless Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
