/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/Jet Pump/.3336ES1BJPW56C-S WEG 1/3HP Jet Pump Electric Motor, 3600RPM

Product ID: .3336ES1BJPW56C-S

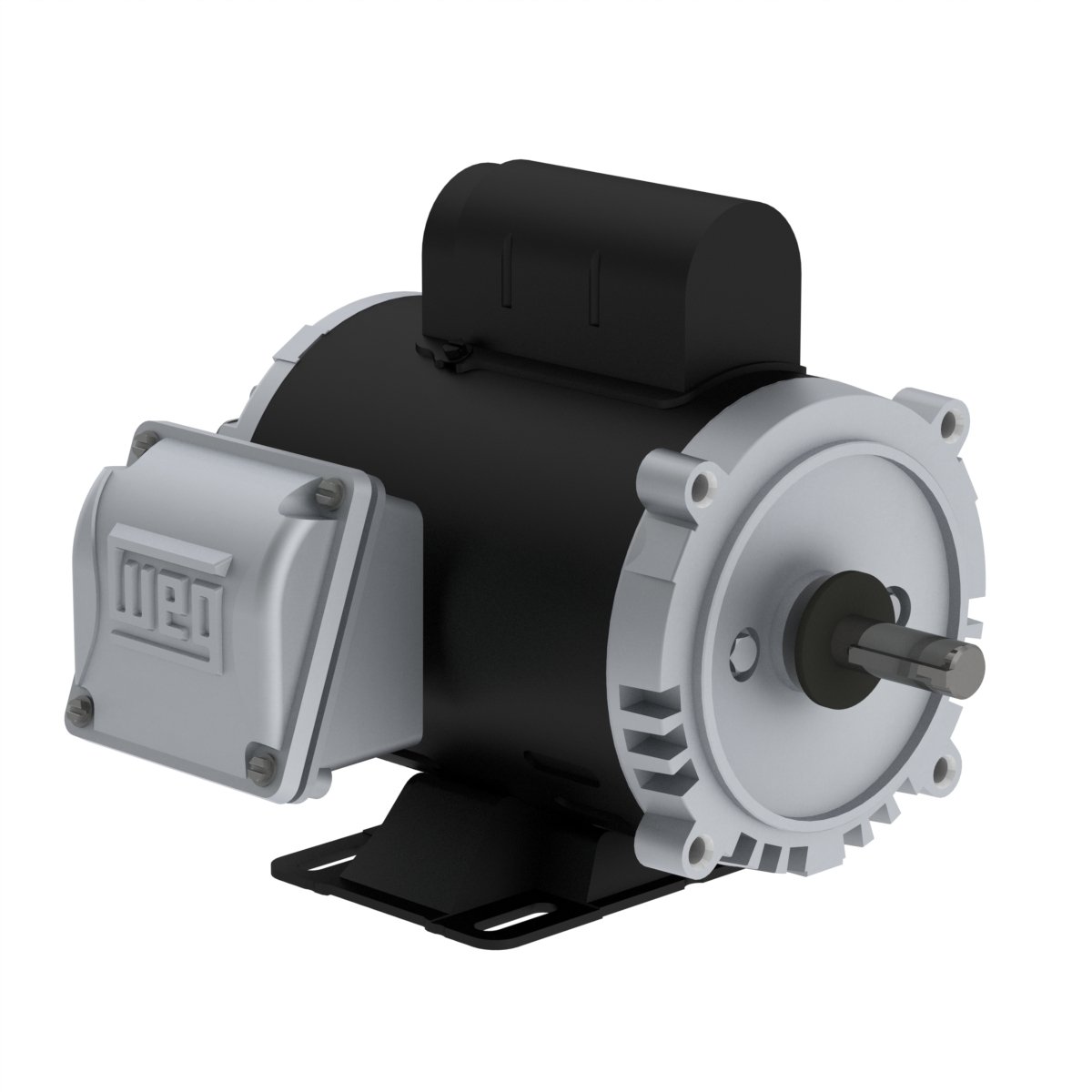

.3336ES1BJPW56C-S WEG 1/3HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .3336ES1BJPW56C-S

Selected accessories will also be added to cart

$197.25 / Each

Quantity:

IC411 - TEFC, W56C Frame, 115/208-230VAC Single Phase 60Hz, 14419289, Foot Mounted, C-Face, Rolled Steel, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	W56C
Output	0.33 HP (0.25 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	115/208-230 V
Rated current	5.00/2.76-2.50 A
L. R. Amperes	37.0/20.4-18.5 A
LRC	7.4x(Code P)
No load current	3.40/1.47-1.70 A
Rated torque	0.488 ft.lb
Locked rotor torque	300 %
Breakdown torque	300 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.0190 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.75 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	CCW
Noise level²	56.0 dB(A)
Approx. weight³	16.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
49.0	56.0	59.0

Power factor

50%	75%	100%
0.57	0.66	0.74

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	AISI 304 Stainless Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
