/Products/Electric Motors/Single Phase/WEG/Farm Duty - Poultry Fan/.3312AS1BPFPC48Z-S WEG 1/3HP Farm Duty Poultry Fan Electric Motor, 1200RPM

Product ID: .3312AS1BPFPC48Z-S

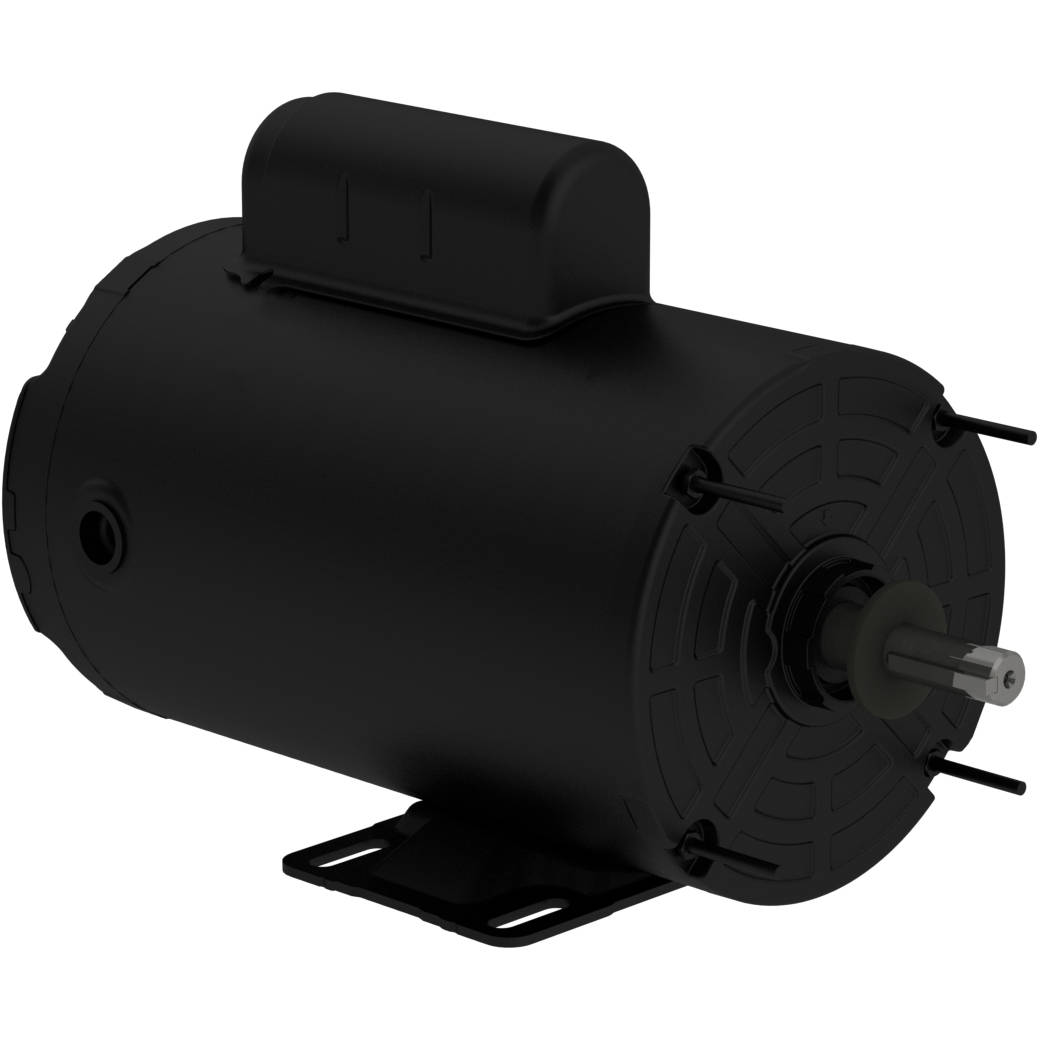

.3312AS1BPFPC48Z-S WEG 1/3HP Farm Duty Poultry Fan Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: .3312AS1BPFPC48Z-S

Selected accessories will also be added to cart

$241.50 / Each

Quantity:

IC410 - TEAO, IP55, 48Z Frame, 115/208-230VAC 60Hz Single Phase, 15647345, Rolled Steel, Foot Mounted

Details
Purchase Components

Electric Motors

Frame	48Z
Output	0.33 HP (0.25 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1165 rpm
Slip	2.92 %
Rated voltage	115/208-230 V
Rated current	3.75/1.86-1.88 A
L. R. Amperes	18.4/9.11-9.21 A
LRC	4.9x(Code H)
No load current	2.20/0.900-1.10 A
Rated torque	0.206 kgfm
Locked rotor torque	40 %
Breakdown torque	270 %

Locked rotor time	0s (cold) 0s (hot)
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	12.5 kg

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
40.7	52.6	61.0

Power factor

50%	75%	100%
0.91	0.94	0.95

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Automatic
