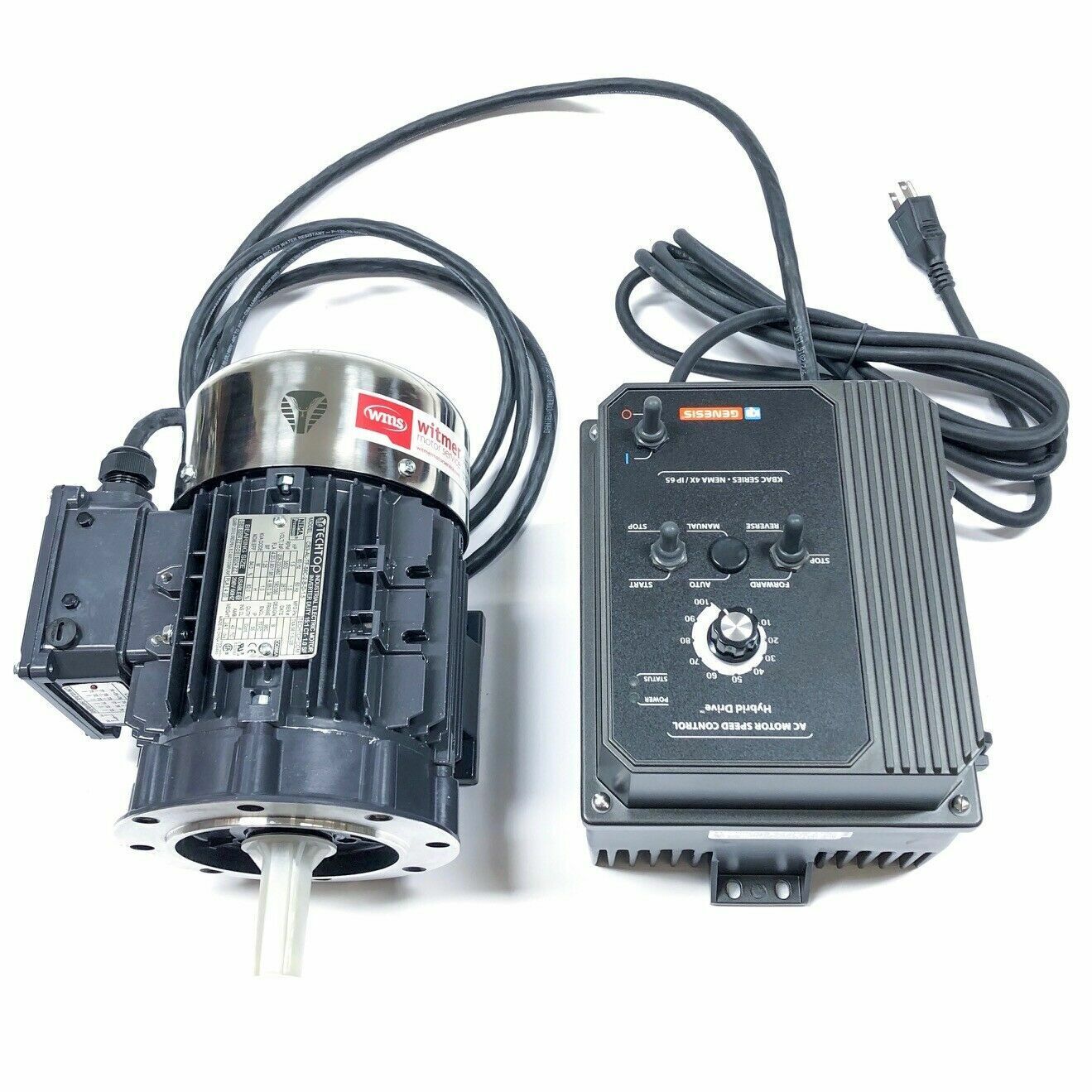

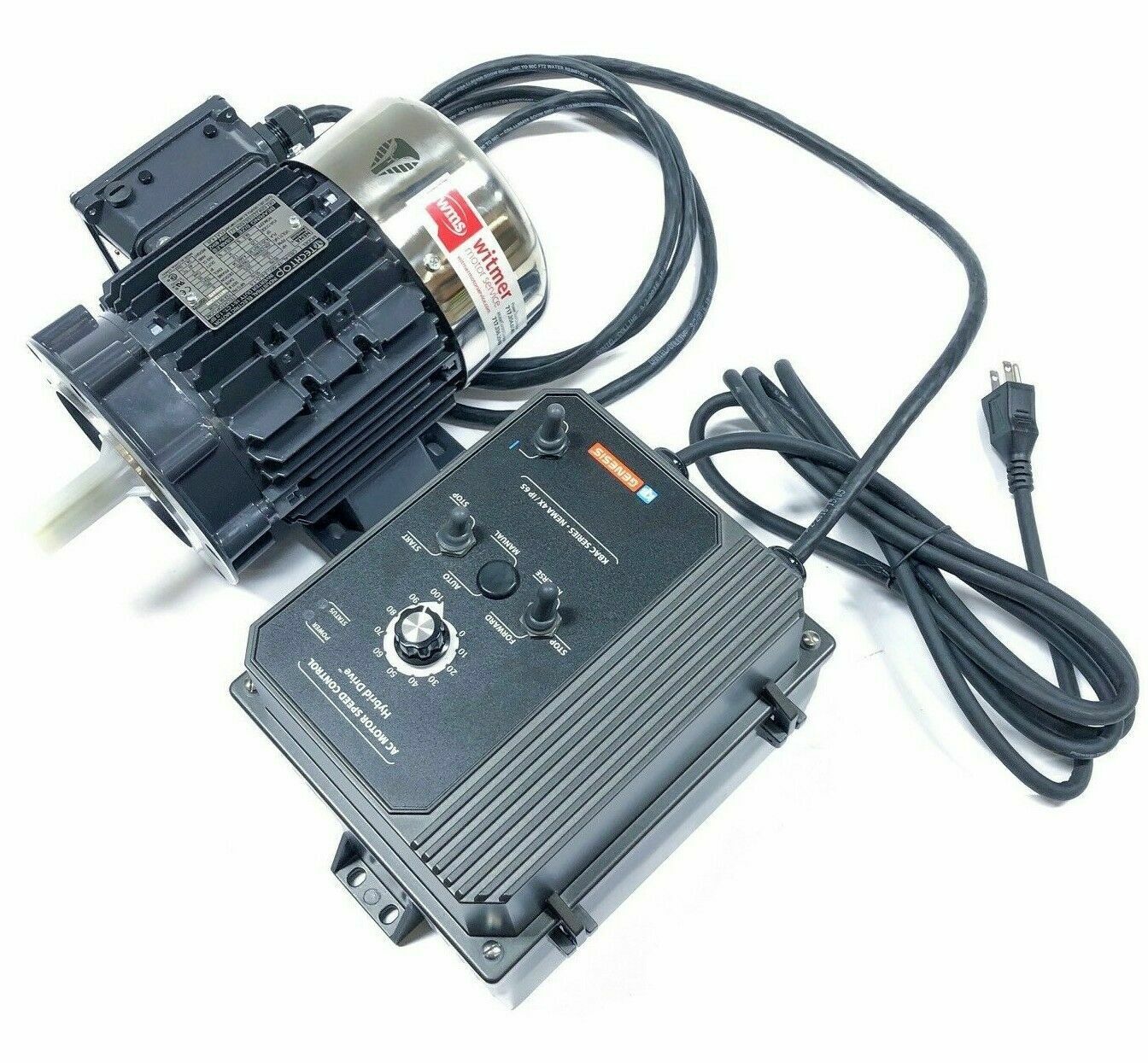

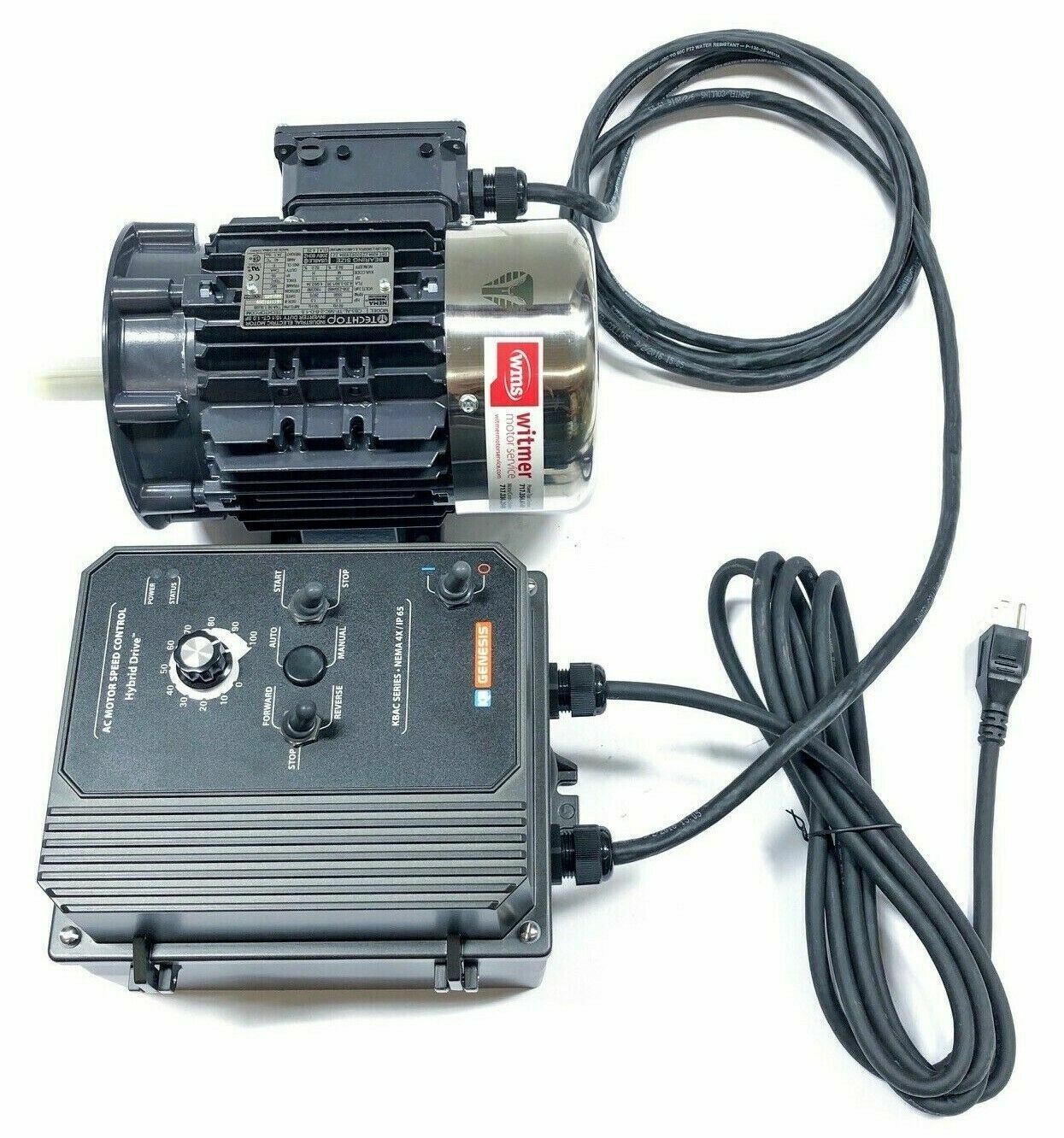

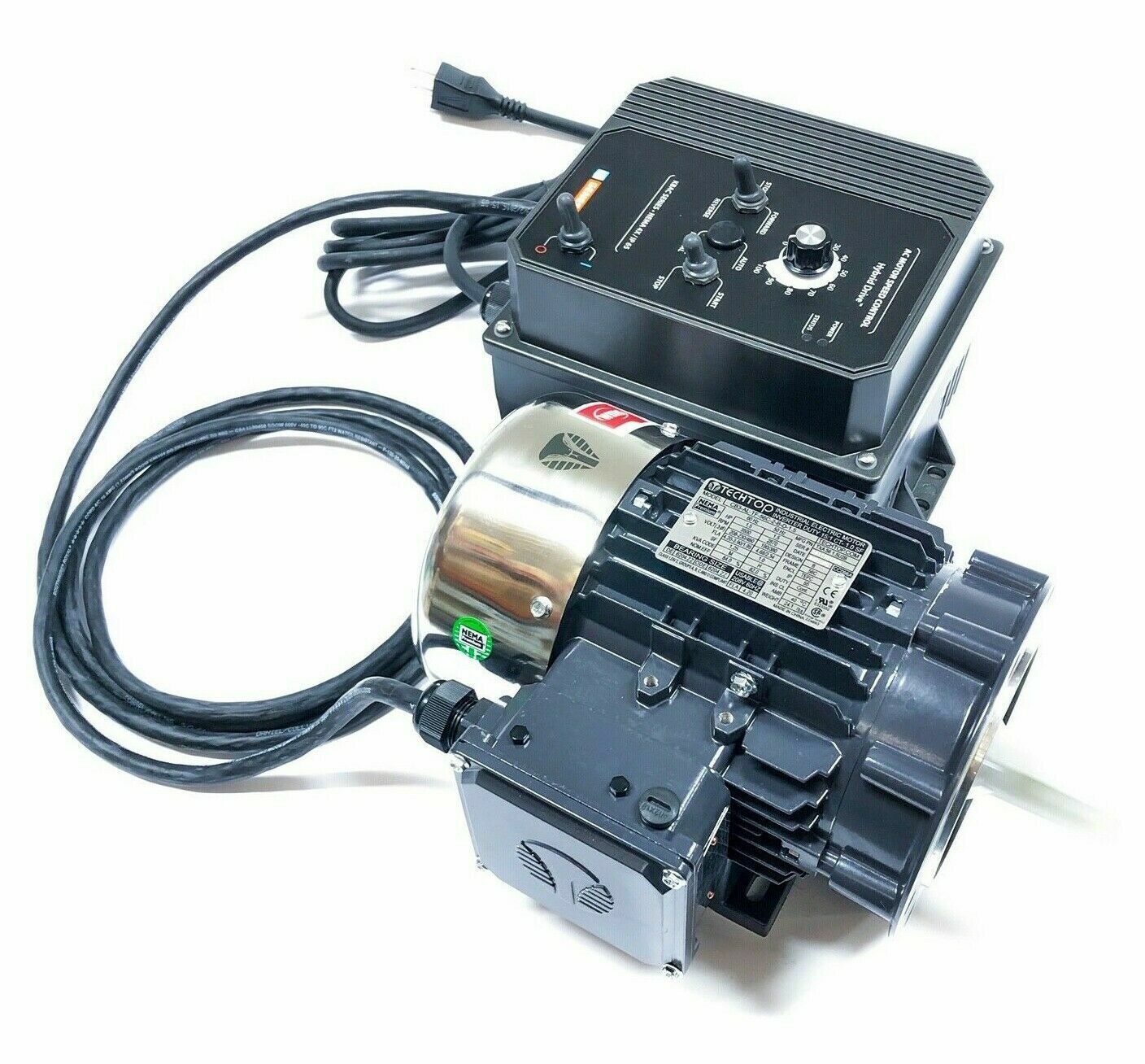

This package includes a complete Motor & Drive Package for use with Belt Grinders. The drive and motor are totally enclosed (TEFC, IP55 rated) to protect against dust. This package includes a 6' 120V Single Phase Power cord (with plug). Motor is a 2HP 3600RPM, 3-Phase Electric Motor, but the motor is derated to 1.5HP because of the 120V power input to the drive. Drive can be rewired for 230VAC Input to allow a full 2HP motor output. Detailed specifications are below:

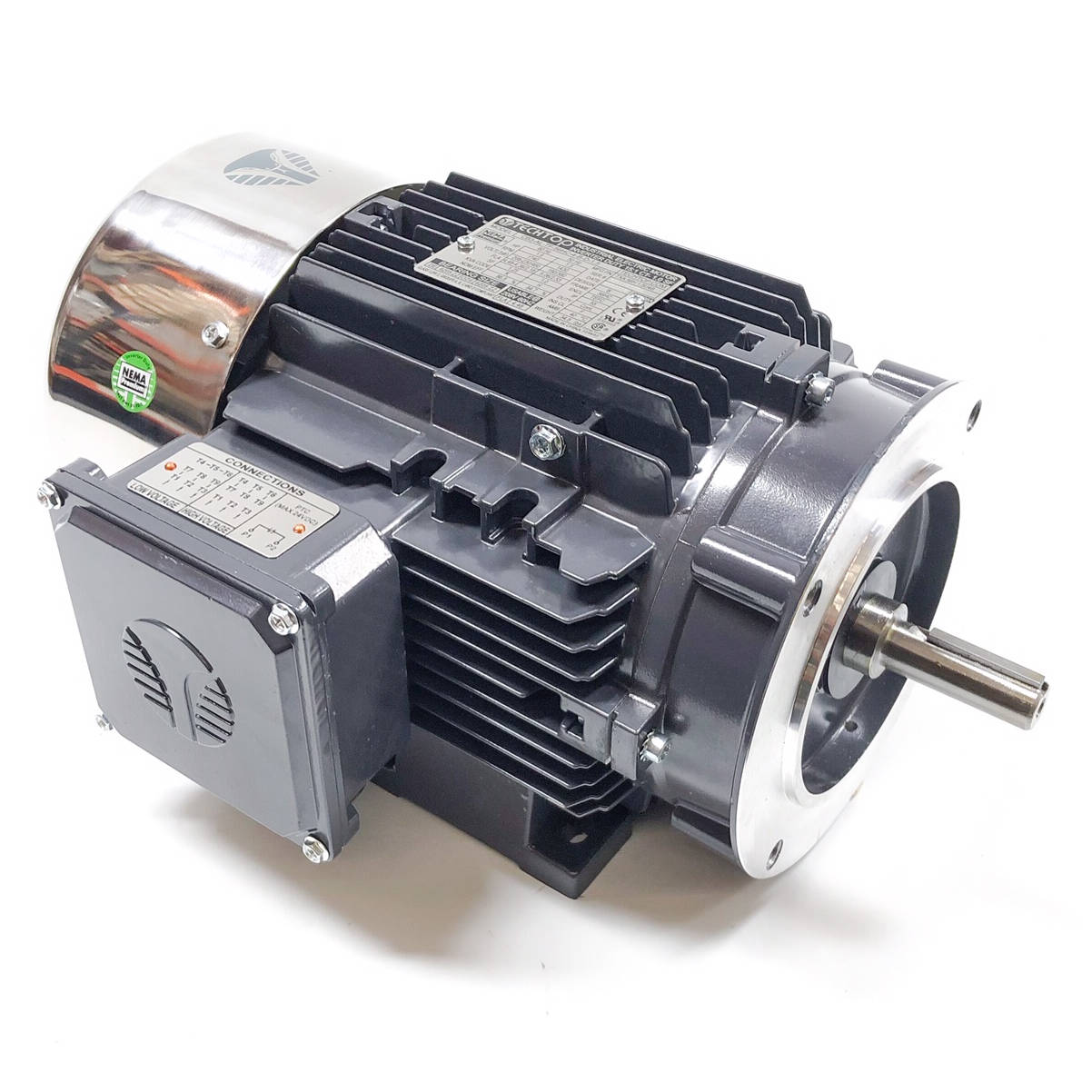

Motor:
| Brand | Techtop |
|---|
| Horsepower | 2 HP |
|---|
| Poles | 2 Pole |
|---|
| Sync Speed | 3600 RPM |
|---|
| Frame | 56C |
|---|
| Enclosure | TEFC
IP 55 |
|---|
| Voltage | 208-230 / 460 Volt
Wired for 230VAC |
|---|
| Phase | 3 Phase |
|---|
| C-Face | Yes |
|---|
| Rigid Base | Yes |
|---|
| Model Number | GR3-AL-TF-56C-2-B-D-2 |
|---|

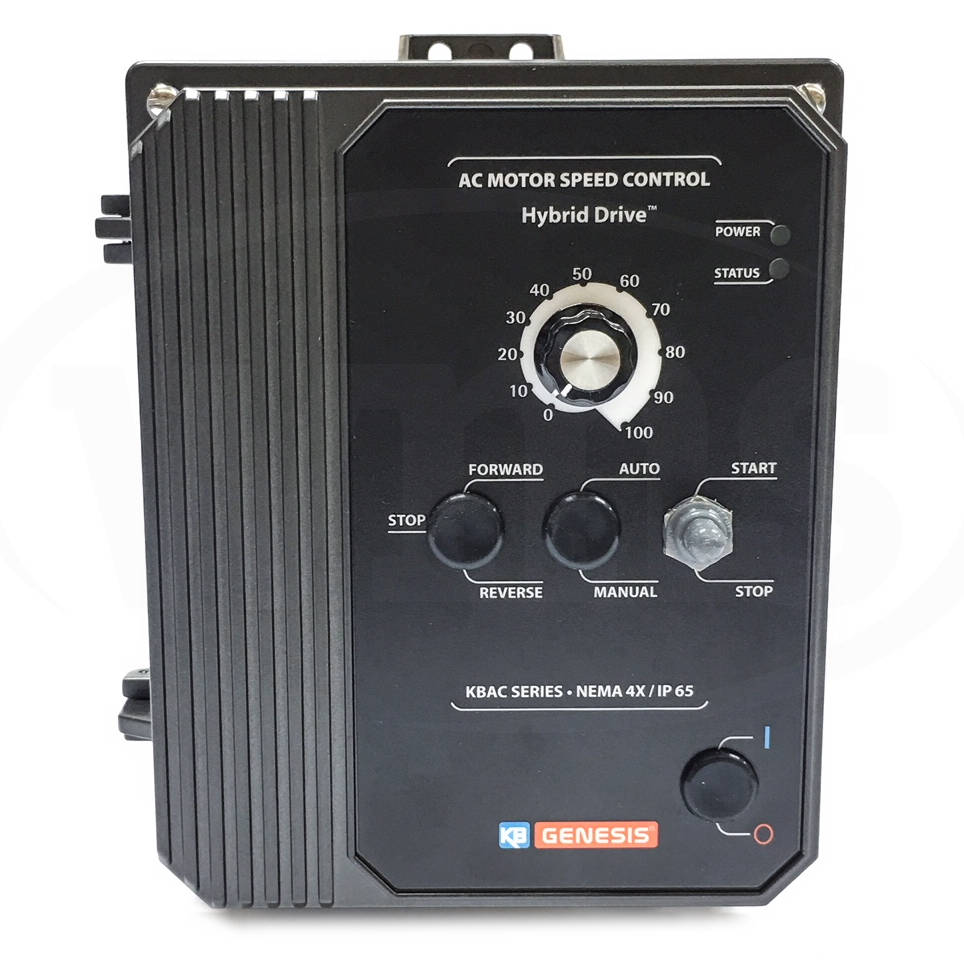

Drive:
| Brand | KB Electronics, Inc. |
|---|
| Part Number | 9520 |
|---|
| Model Number | KBAC-27D |
|---|
| Maximum Power | 1-1/2 HP (115V)
1.13 kW (115V)
2 HP (208-230V)
1.5 kW (208-230V) |
|---|
| Input Voltage | 115/208-230 Volt
Wired for 115VAC |
|---|
| Input Frequency | 50/60 Hz |
|---|
| Input Phase | Single Phase |
|---|
| Max AC Line Current | 22 Amps @ 115 Volts
16.7 Amps @ 230 Volts |
|---|
| Output Voltage Range | 0-208/230 VAC |
|---|
| Max Load Current | 5.5 Amps/Phase @ 115 Volts
6.7 Amps/Phase @ 230 Volts |
|---|
| Net Weight | 10.3 lbs
4.7 kg |
|---|
| Dimensions | 7.69" x 9.82" x 7.36"
195mm x 249mm x 187mm |
|---|
| Enclosure Rating | NEMA 4X, IP65 |
|---|
| Enclosure Color | Gray |
|---|
| UPC | 024822095204 |
|---|
Includes Power Cord (with 120V Plug), Motor, Drive, Cord (Motor to drive) and appropriate water-tight cord fittings. Does not include additional switches (On-Off or FWD-REV).
