Overview :
| Brand |
KB Electronics, Inc. |
| Part Number |
9520 |
| Model Number |
KBAC-27D |
| Maximum Power |
1-1/2 HP (115V)
1.13 kW (115V)
2 HP (208-230V)
1.5 kW (208-230V) |
| Input Voltage |
115/208-230 Volt |
| Input Frequency |
50/60 Hz |
| Input Phase |
Single Phase |
| Max AC Line Current |
22 Amps @ 115 Volts
16.7 Amps @ 230 Volts |
| Output Voltage Range |
0-208/230 VAC |
| Max Load Current |
5.5 Amps/Phase @ 115 Volts
6.7 Amps/Phase @ 230 Volts |
| Net Weight |
10.3 lbs
4.7 kg |
| Dimensions |
7.69" x 9.82" x 7.36"
195mm x 249mm x 187mm |
| Enclosure Rating |
NEMA 4X, IP65 |
| Enclosure Color |
Gray |
| UPC |
024822095204 |
Description :

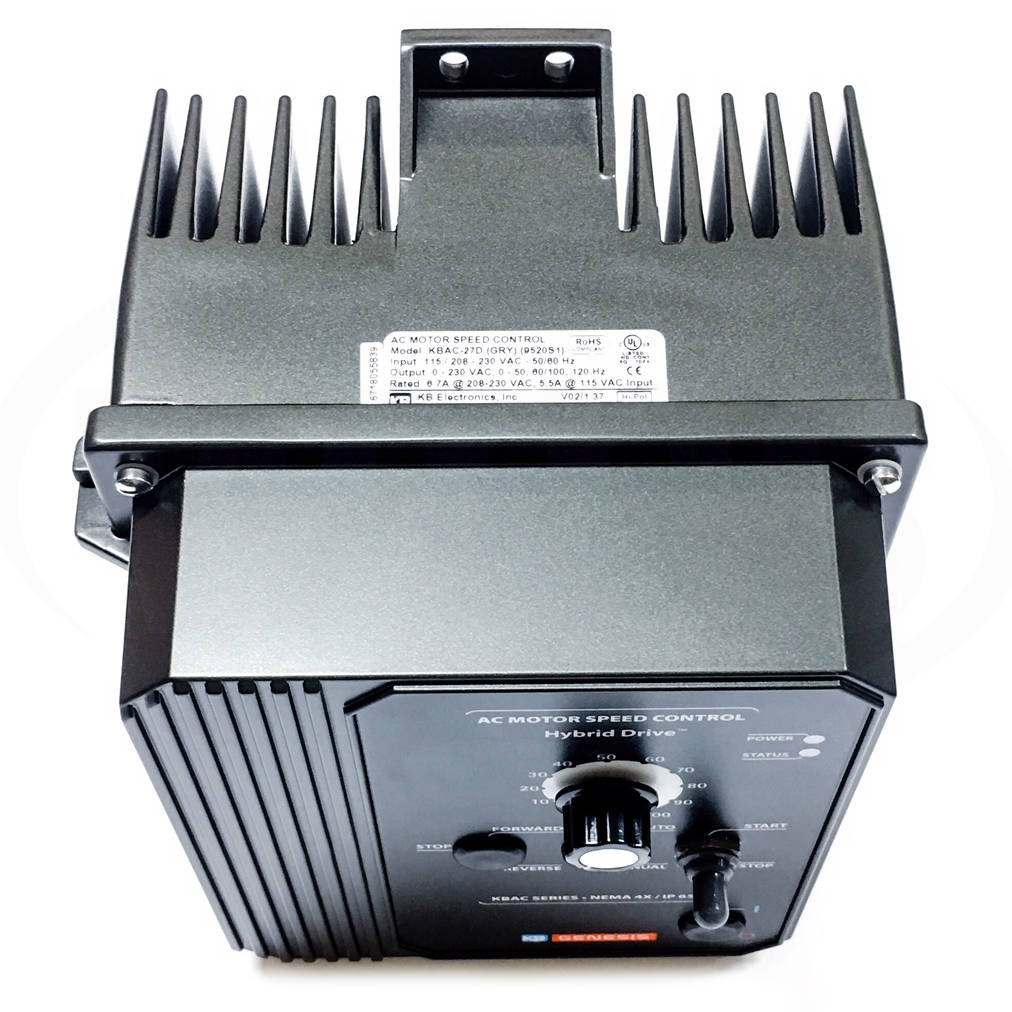

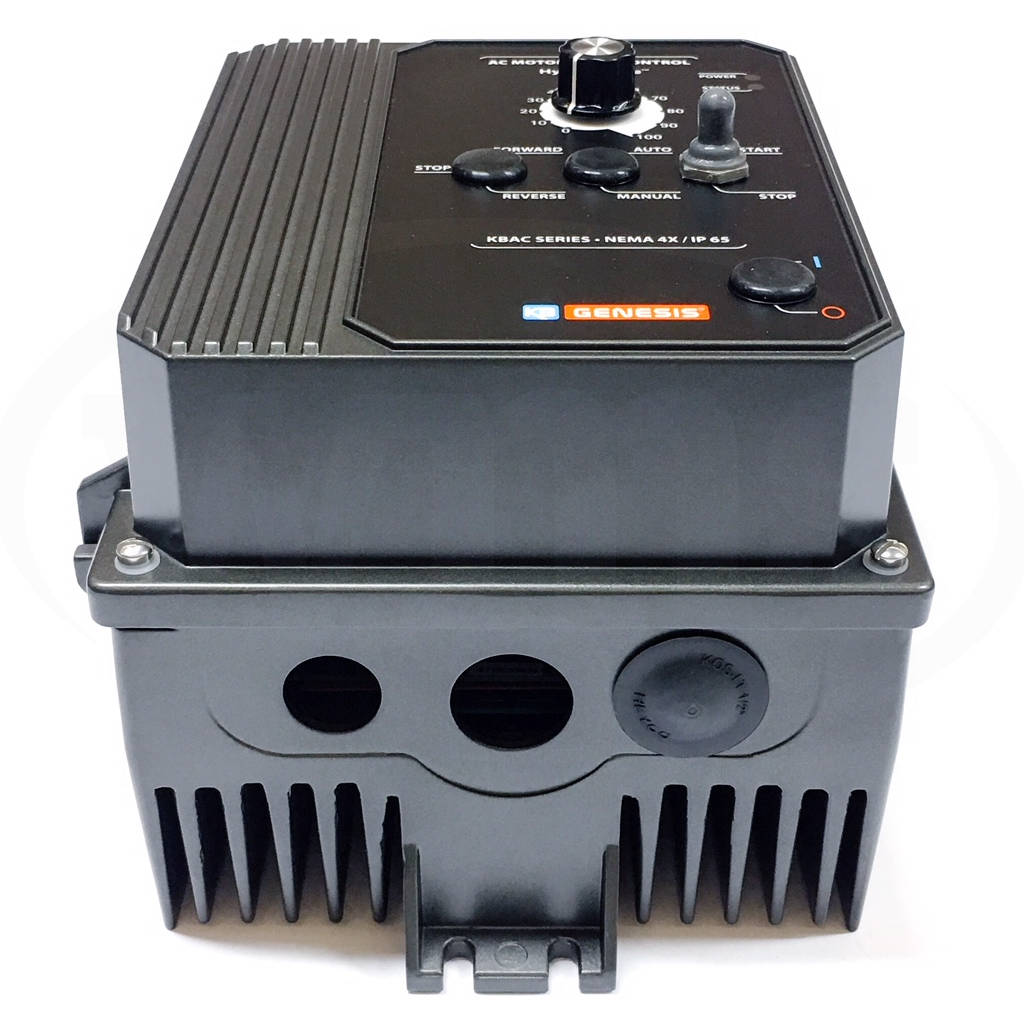

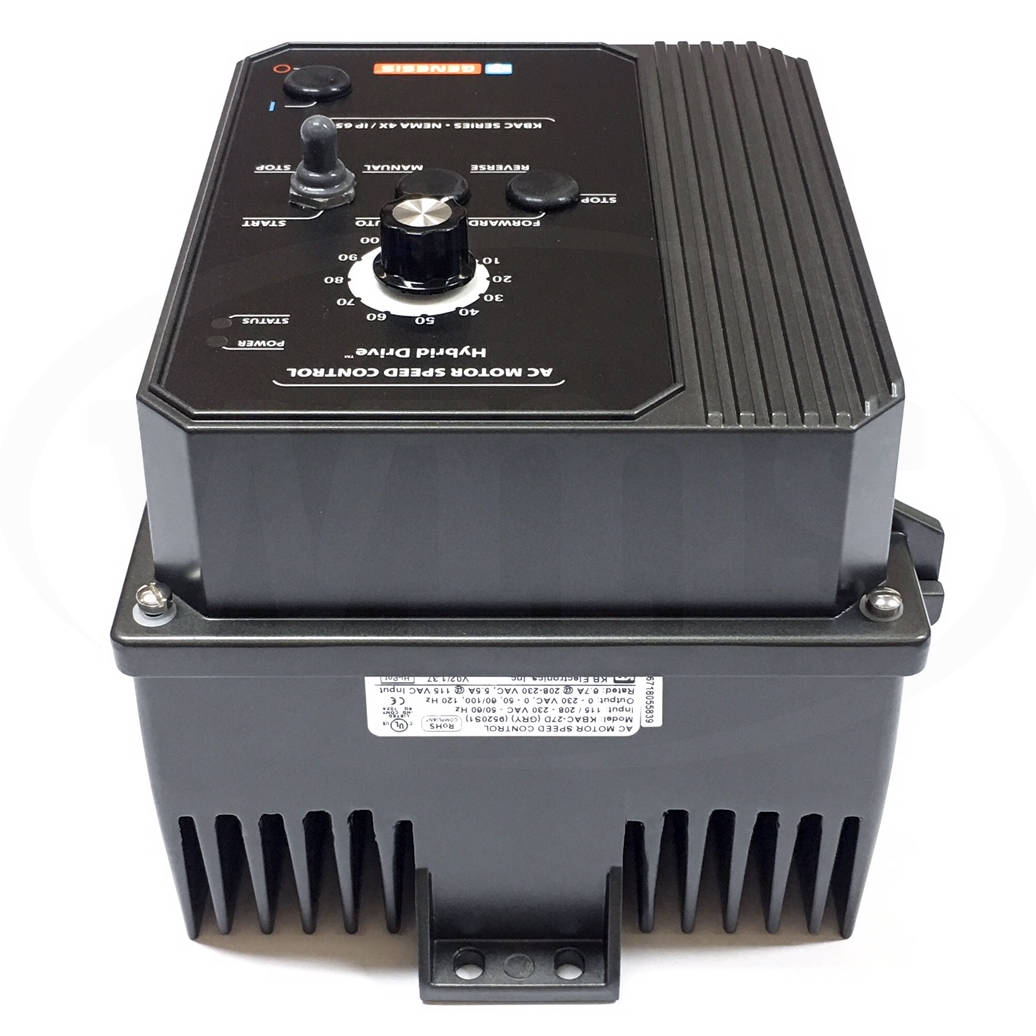

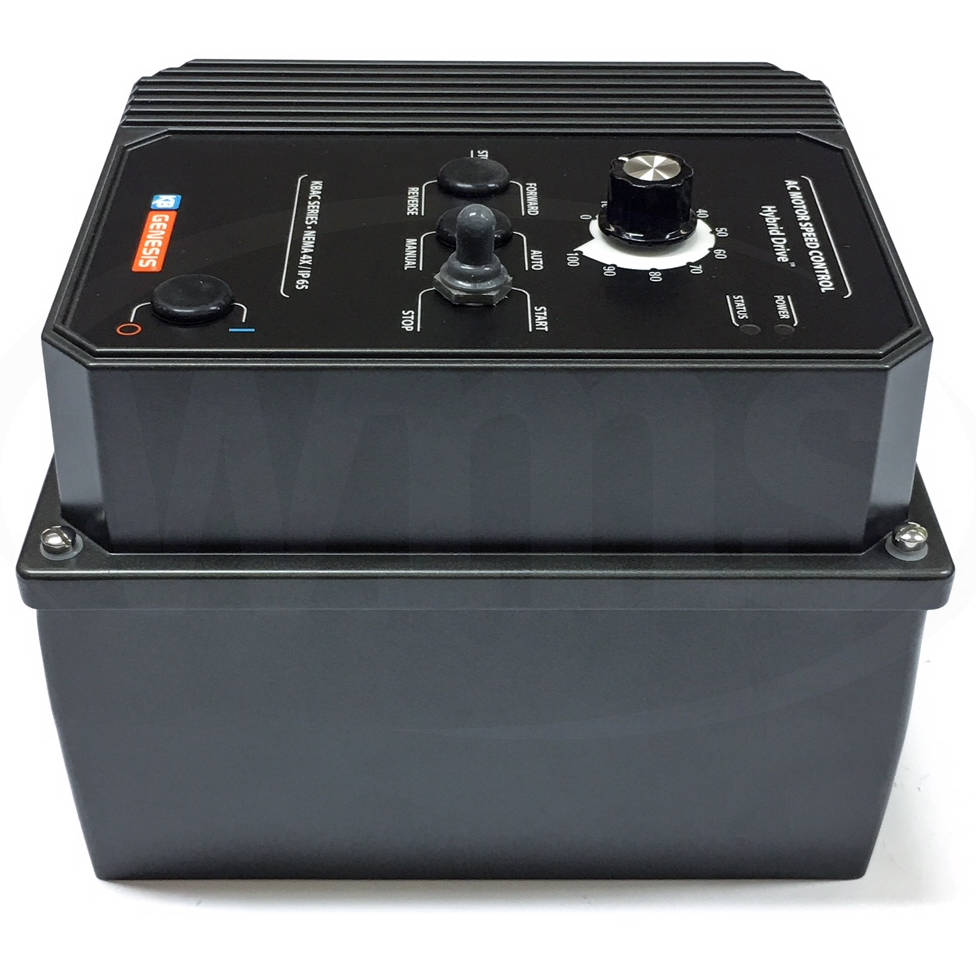

KBAC-27D Hybrid AC Drive - Digital Drive with Analog Interface

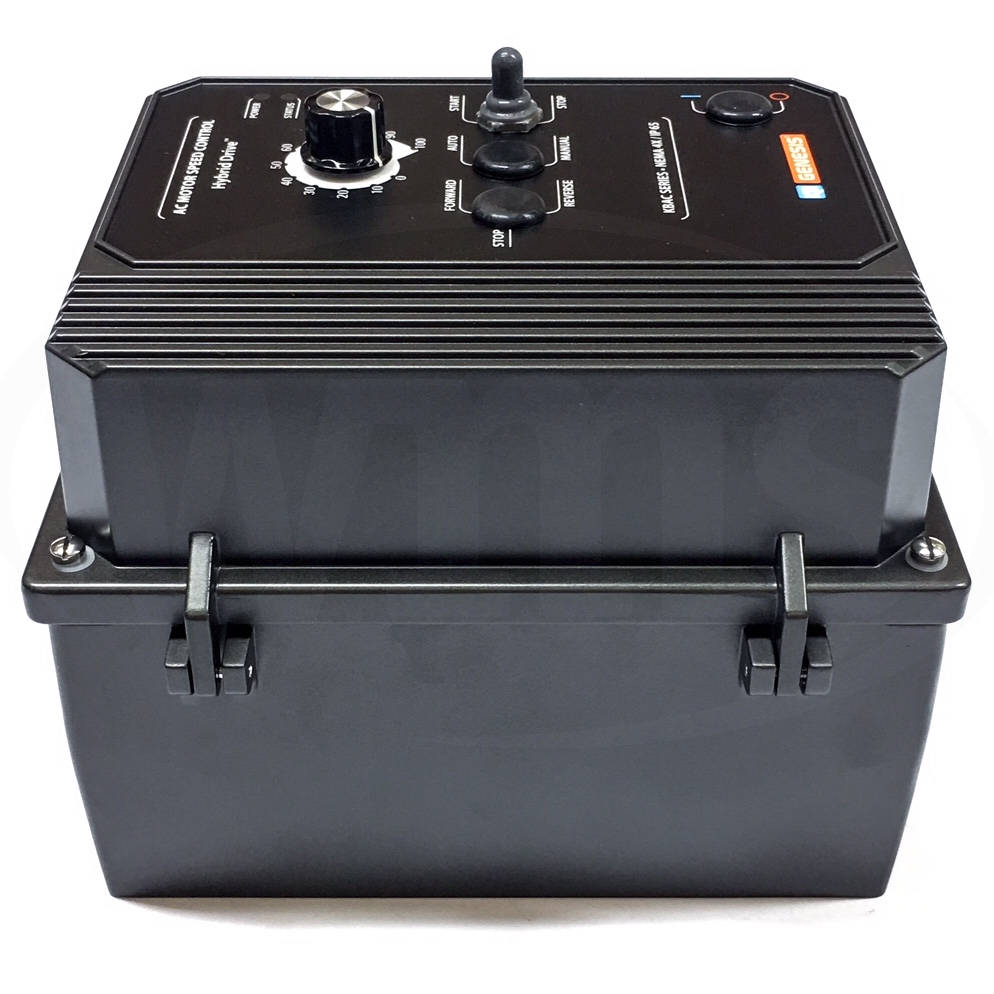

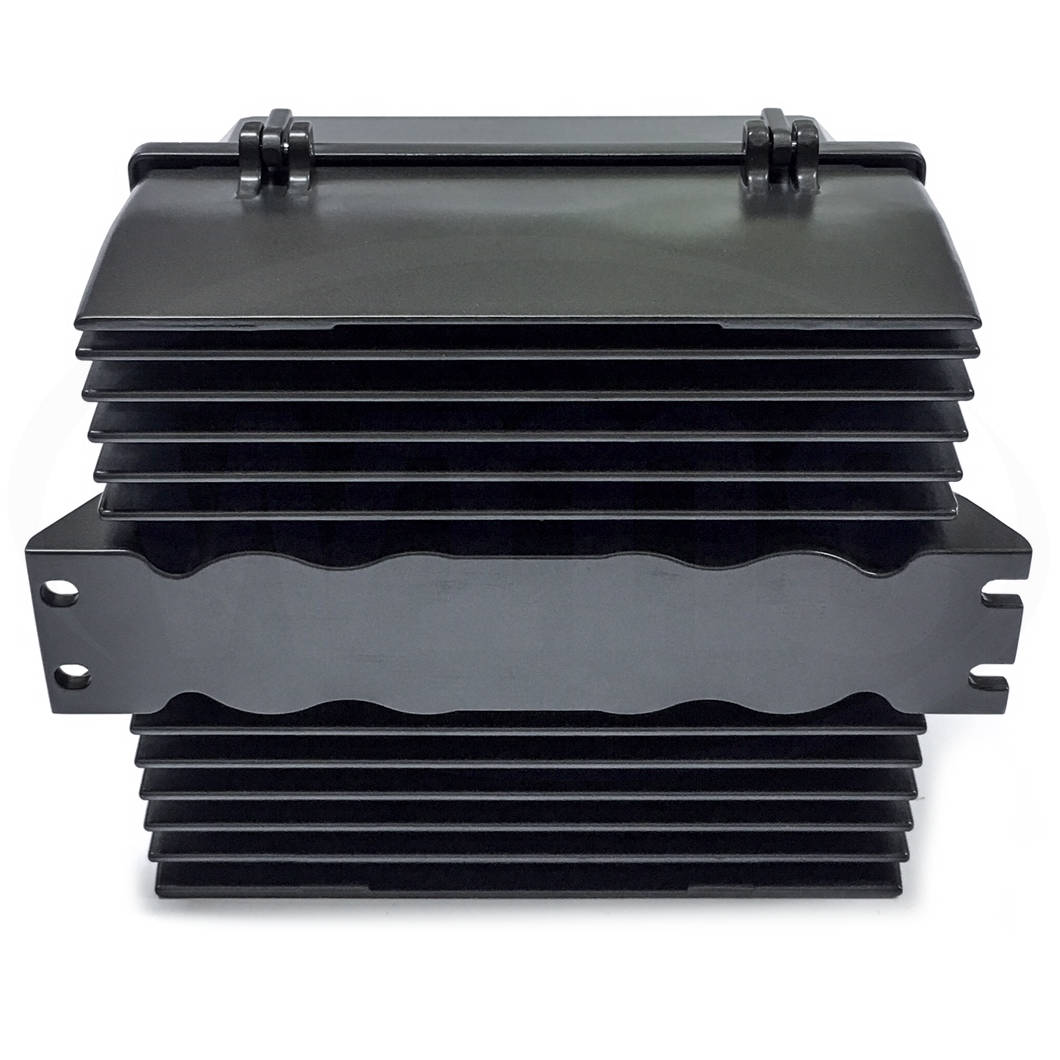

Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover.
Primary Features:
- Horsepower 1/8 to 2 HP, Jumper Selectable
- 1Ø Input 115/230 VAC, 50/60 Hz
- 3Ø Output 230 VAC
- Start/Stop Switch
- 200% Starting Torque
- Diagnostic LED Status Indicators
Additional Features:
- Sensorless Flux Vector Control
- Electronic Inrush Current Limit (EICLTM) Protection
- Run/Fault Relay Output Contacts
- Holding Torque at Zero Speed in "Stop" mode
- Undervoltage and Overvoltage Protection
- Short Circuit Protection, phase to phase
- Ride-Through momentary power loss
- Regeneration eliminates tripping
- Basic, Programmable, Trimpot Adjustments
Drive Options:
- On/Off AC Line Switch
- Forward-Stop-Reverse Switch
- Signal Isolator, Auto/Manual Switch
- Class "A" (CE) RFI Filter
- Liquid Tight Fittings
Dimensions approx. 9.8" X 7.6" X 7.3".
Agency approvals: UL, CE, CSA, C-Tick.
