/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/C-Face, Footless/.2518OT1BW56CFL-S WEG 1/4HP Electric Motor, 1800RPM

Product ID: .2518OT1BW56CFL-S

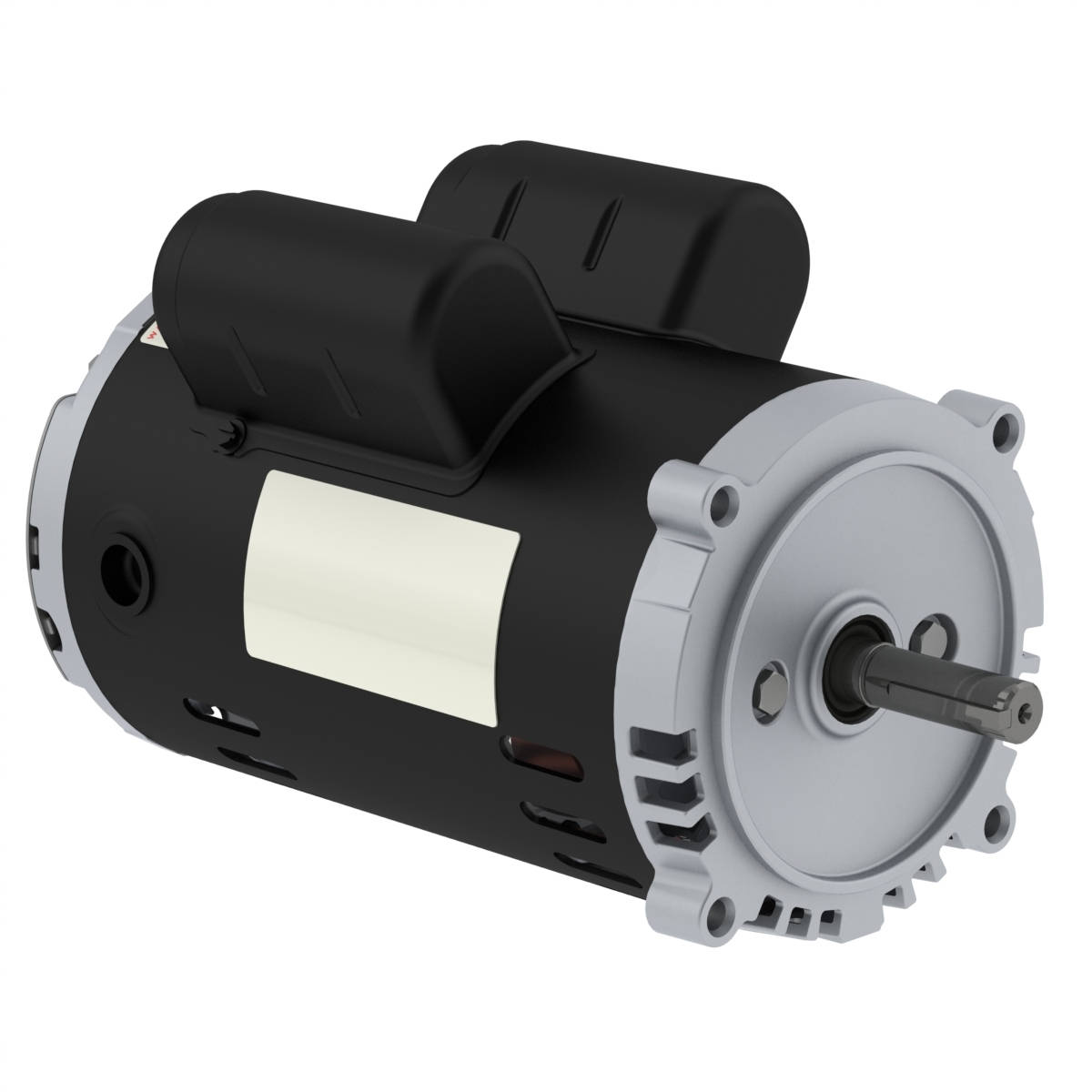

.2518OT1BW56CFL-S WEG 1/4HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .2518OT1BW56CFL-S

Selected accessories will also be added to cart

$201.75 / Each

Quantity:

IC01 - ODP, W56C Frame, 115/208-230VAC 60Hz Single Phase, 14360509, Rolled Steel Frame, Footless, C-Face, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	W56C
Output	0.25 HP (0.18 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1740 rpm
Slip	3.33 %
Rated voltage	115/208-230 V
Rated current	2.92/1.77-1.46 A
L. R. Amperes	15.5/9.38-7.74 A
LRC	5.3x(Code J)
No load current	2.00/0.862-1.00 A
Rated torque	0.754 ft.lb
Locked rotor torque	290 %
Breakdown torque	300 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0358 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.35 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	16.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
56.0	64.0	68.5

Power factor

50%	75%	100%
0.56	0.65	0.78

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
