/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Foot Mount/.2518OS1BSP48-S WEG 1/4HP General Purpose Electric Motor, 1800RPM

Product ID: .2518OS1BSP48-S

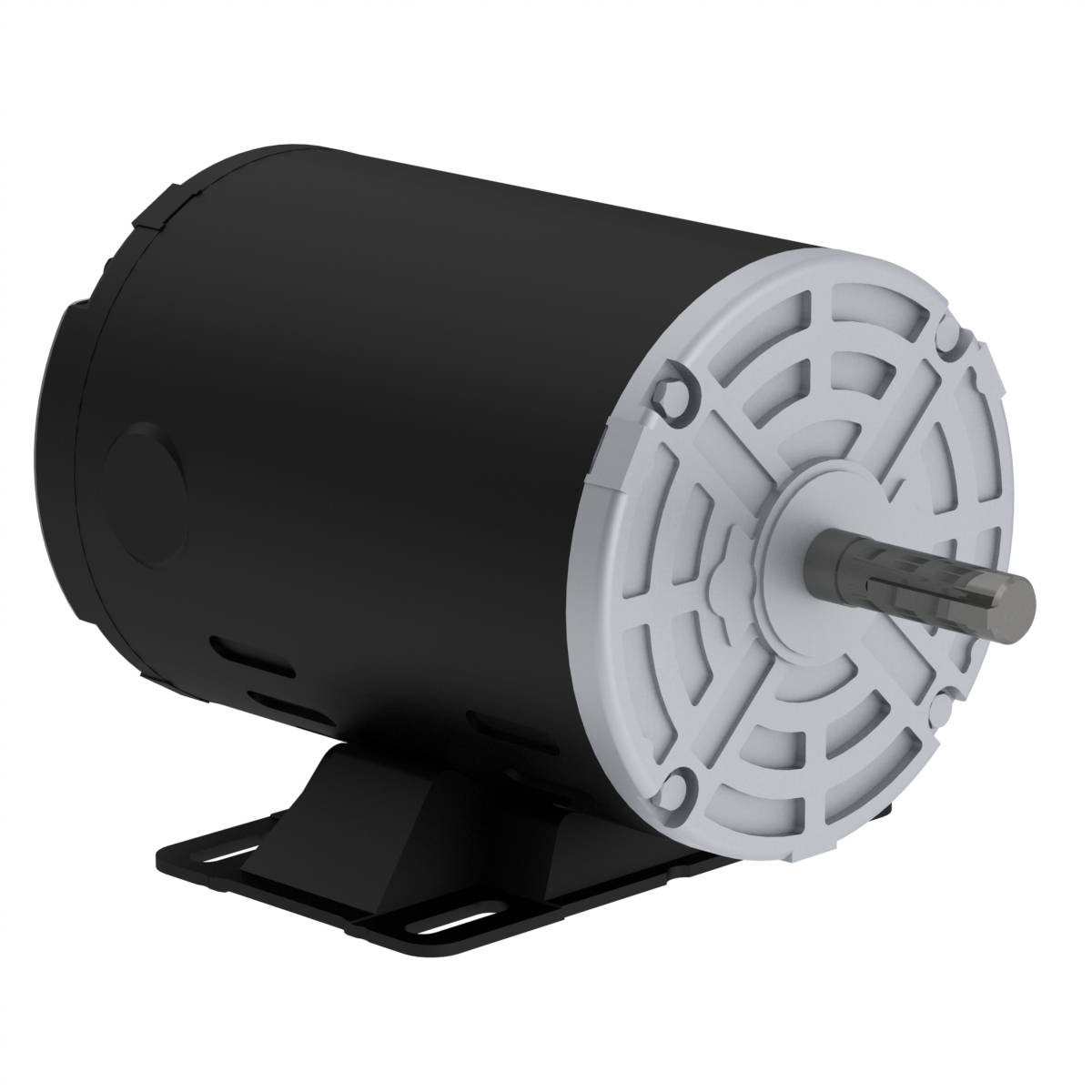

.2518OS1BSP48-S WEG 1/4HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .2518OS1BSP48-S

Selected accessories will also be added to cart

$180.00 / Each

Quantity:

IC01 - ODP, 48 Frame, 115/208-230VAC 60Hz Single Phase, 13195126, Rolled Steel Frame, Foot Mounted, Split Phase

Details
Purchase Components

Electric Motors

Frame	48
Output	0.25 HP (0.18 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1710 rpm
Slip	5.00 %
Rated voltage	115/208-230 V
Rated current	4.24/2.20-2.12 A
L. R. Amperes	25.4/13.2-12.7 A
LRC	6.0x(Code N)
No load current	4.00/1.72-2.00 A
Rated torque	0.768 ft.lb
Locked rotor torque	150 %
Breakdown torque	220 %

Locked rotor time	0s (cold) 0s (hot)
Design	N
Insulation Class	F
Service factor	1.35
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	11.0 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
42.0	51.0	55.0

Power factor

50%	75%	100%
0.49	0.59	0.67

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
