/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/C-Face, Foot Mount/.2512OT3E56C-S WEG 1/4HP General Purpose Electric Motor, 1200RPM
.2512OT3E56C-S WEG 1/4HP General Purpose Electric Motor, 1200RPM

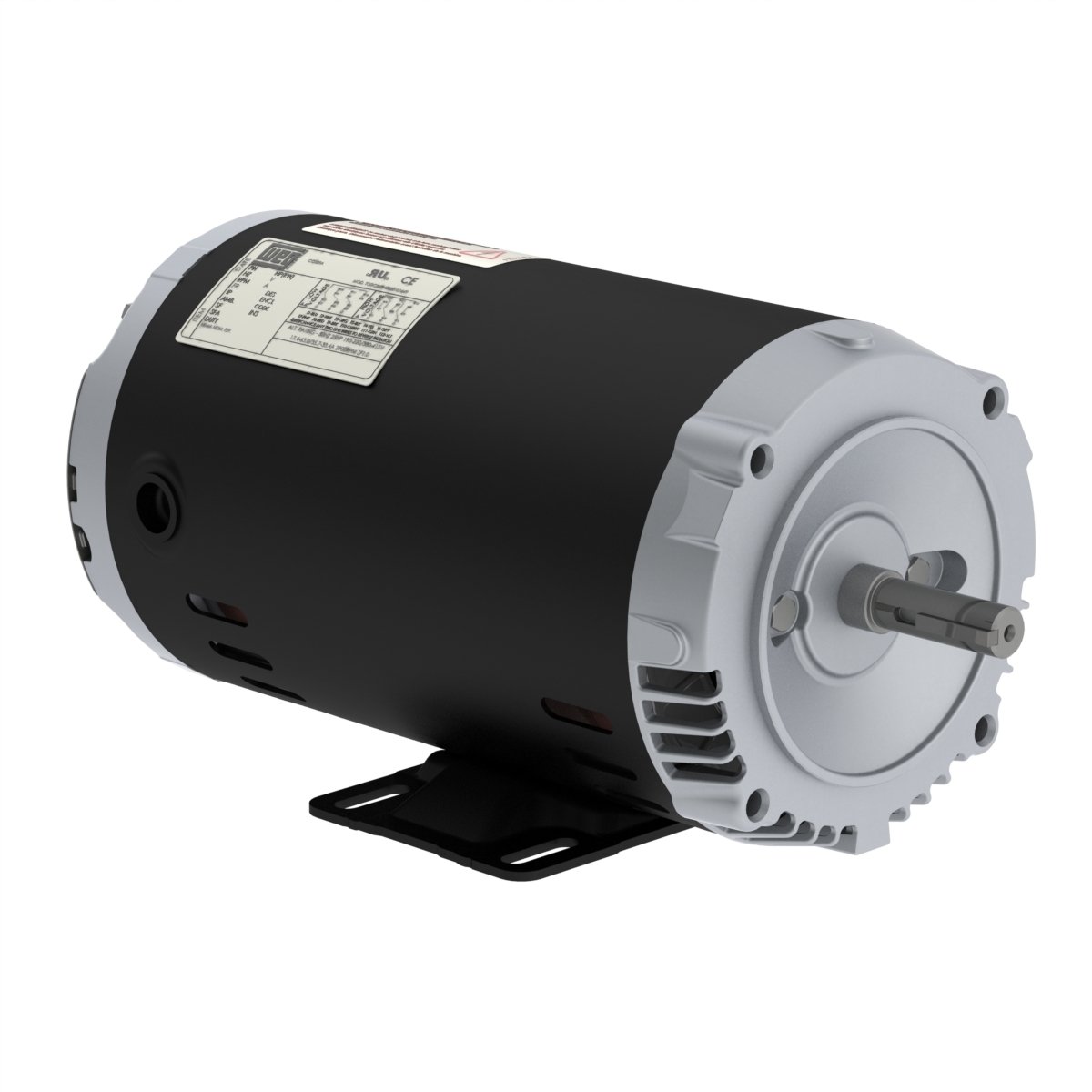

Enlarge Photo

Product ID: .2512OT3E56C-S

.2512OT3E56C-S WEG 1/4HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: .2512OT3E56C-S

Selected accessories will also be added to cart
$237.00 / Each
Quantity:
IC01 - ODP, 56C Frame, 208-230/460VAC 3-Phase 60Hz, 12808928, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1160 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 1.21-1.10/0.549 A
L. R. Amperes 5.83-5.27/2.64 A
LRC 4.8x(Code K)
No load current 0.862-1.00/0.500 A
Rated torque 1.12 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 72s (cold) 40s (hot)
Moment of inertia (J) 0.0622 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 17.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
55.0  64.0  67.5

Power factor

50% 75% 100%
0.41  0.52  0.61
Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 950 rpm
Slip 5.00 %
Rated voltage 190/380 V
Rated current 1.18/0.588 A
L. R. Amperes 4.70/2.35 A
LRC 4.0x(Code G)
No load current 0.942/0.471 A
Rated torque 1.36 ft.lb
Locked rotor torque 160 %
Breakdown torque 220 %
Locked rotor time 82s (cold) 46s (hot)
Moment of inertia (J) 0.0622 sq.ft.lb
Insulation Class F
Service factor 1.35
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 17.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
57.9  64.3  66.4

Power factor

50% 75% 100%
0.48  0.60  0.70
Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 220/415 V
Rated current 1.15/0.611 A
L. R. Amperes 4.96/2.63 A
LRC 4.3x(Code J)
No load current 1.02/0.542 A
Rated torque 1.35 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 66s (cold) 37s (hot)
Moment of inertia (J) 0.0622 sq.ft.lb
Insulation Class F
Service factor 1.35
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 17.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
53.2  61.3  65.1

Power factor

50% 75% 100%
0.43  0.54  0.63

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
