/Products/Electric Motors/3 Phase Metric/Leeson/TEFC, B3 / B14 Flange, Rigid Base/192213.00 Leeson 2HP IEC Metric Electric Motor, 3600RPM

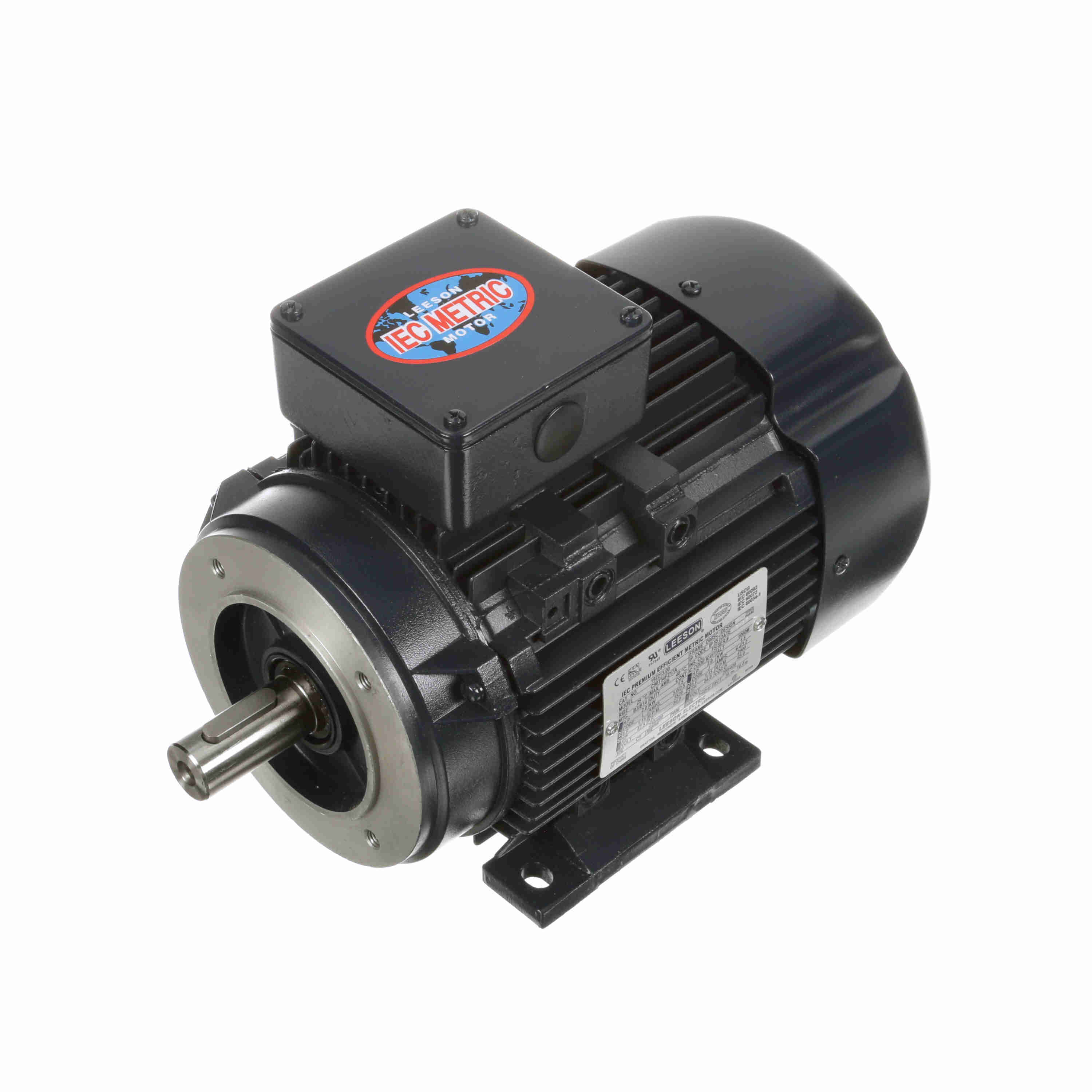

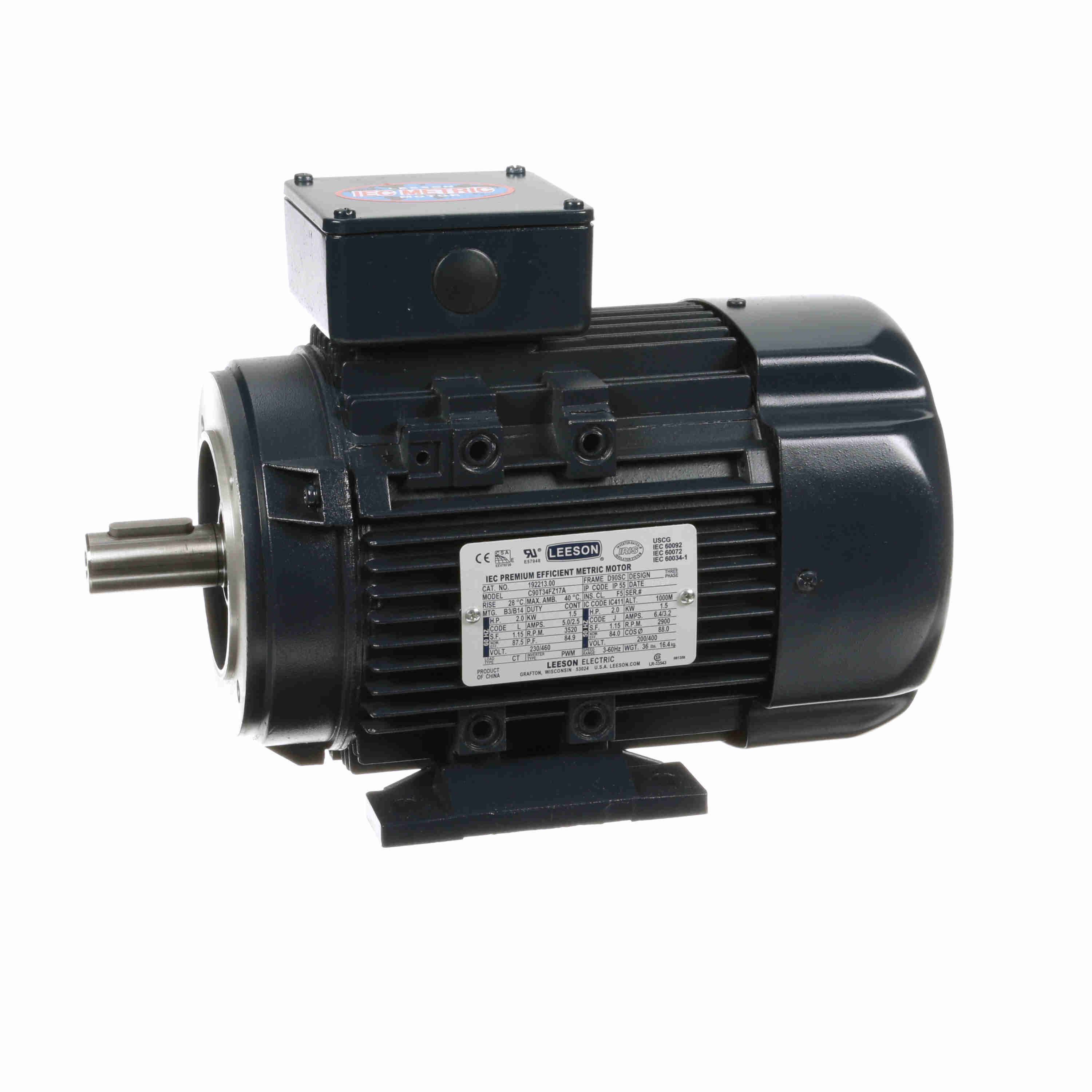

Click Image to Expand

Product ID: 192213.00

192213.00 Leeson 2HP IEC Metric Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 192213.00

Selected accessories will also be added to cart
$661.97 / Each
Quantity:
IP55, D90SC Frame, 230/460V 3-Phase 50/60Hz, B3 / B14 Flange, Rigid Base, C90T34FZ17
Features
  • Aluminum frame construction
  • 60/50 Hz interchangeability
  • B3, B5, B14 mounting flanges
  • Inverter rated (IRIS™) insulation system on AC models
  • 1-year warranty AC standard efficiency models
  • UL listed and CSA certified
General Specifications
Model :C90T34FZ17A Catalog No :192213.00
Part Description :2HP-1.5kW..3470RPM.90S.IP55.230/460V.3PH.60HZ.CONT.40C.1.15SF.B3/B14......IEC METRIC........ Category :TEFC
Stock :No
Nameplate Specifications
Output HP :2 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :230/460 V
Current :5.0/2.5 A Speed :3520 rpm
Service Factor :1.15 Phase :3
Efficiency :85.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :90S
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Line Or Inverter
Poles :2 Rotation :Reversible
Mounting :B3 Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Aluminum Shaft Type :IEC
Overall Length :12.83 in Frame Length :6.33 in
Shaft Diameter :1.000 in Shaft Extension :1.96 in
Assembly/Box Mounting :F1 ONLY UPC :691720246993
Weight :36.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down16.10644.013.28446.02,78610.5081.42.00
Locked-Rotor25.001,000.09.16307.0013.1065.62.00
Full Load2.50100.02.98100.03,5231.7085.52.00
Pull-Up24.50980.07.83263.038613.2067.52.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.20
  • 0.104
  • 0.0
  • 10.9
  • 3,597
  • 0.0
  • 0.00
  • 25 %
  • 1.30
  • 0.485
  • 73.4
  • 46.8
  • 3,580
  • 0.0
  • 0.70
  • 50 %
  • 1.60
  • 0.877
  • 86.6
  • 68.8
  • 3,563
  • 0.0
  • 1.50
  • 75 %
  • 2.00
  • 1.282
  • 86.4
  • 80.5
  • 3,544
  • 0.0
  • 2.20
  • 100 %
  • 2.50
  • 1.702
  • 88.2
  • 85.5
  • 3,523
  • 21.6
  • 3.00
  • 125 %
  • 3.00
  • 2.139
  • 88.3
  • 89.5
  • 3,500
  • 0.0
  • 3.80
  • 150 %
  • 3.60
  • 2.595
  • 85.6
  • 90.5
  • 3,476
  • 0.0
  • 4.50
