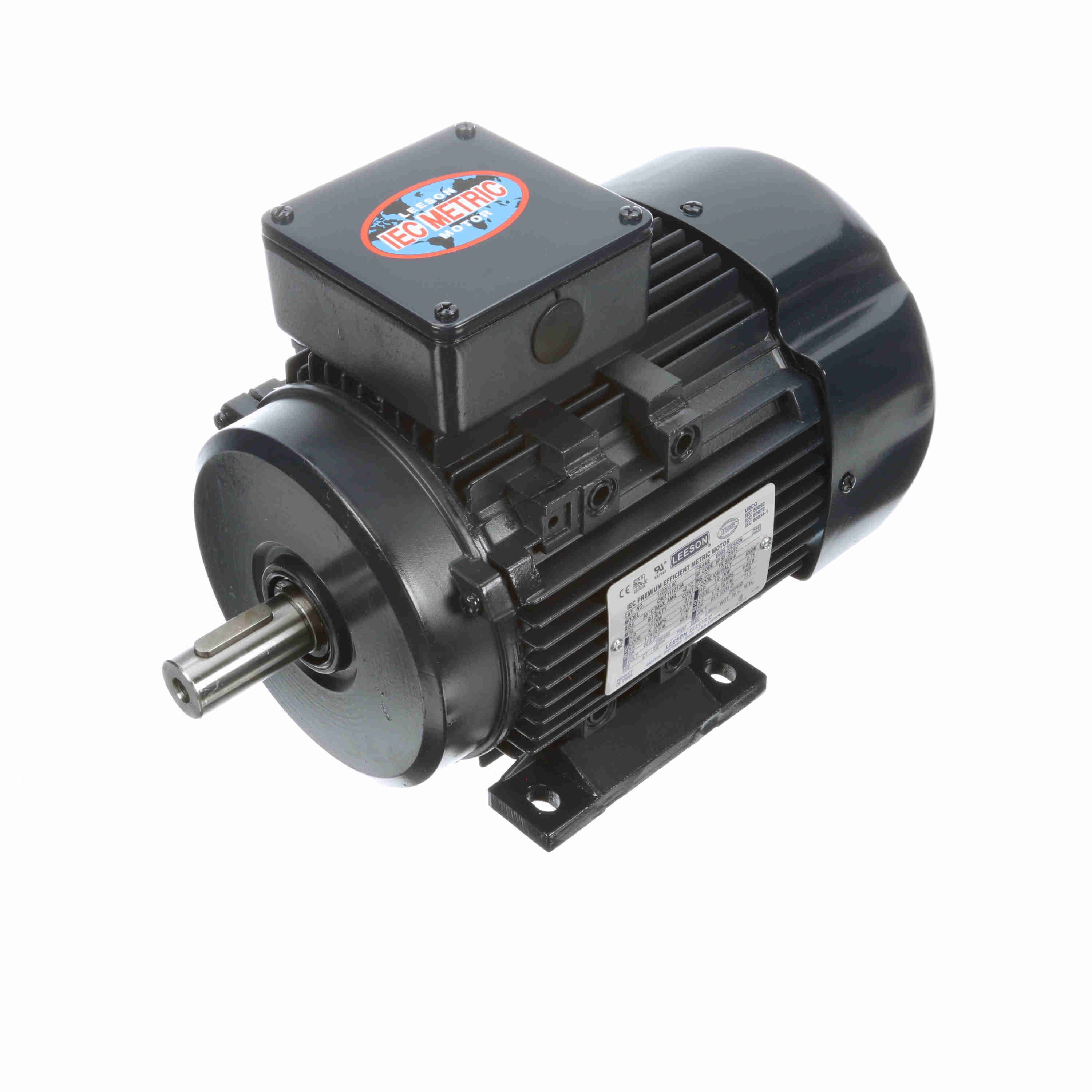

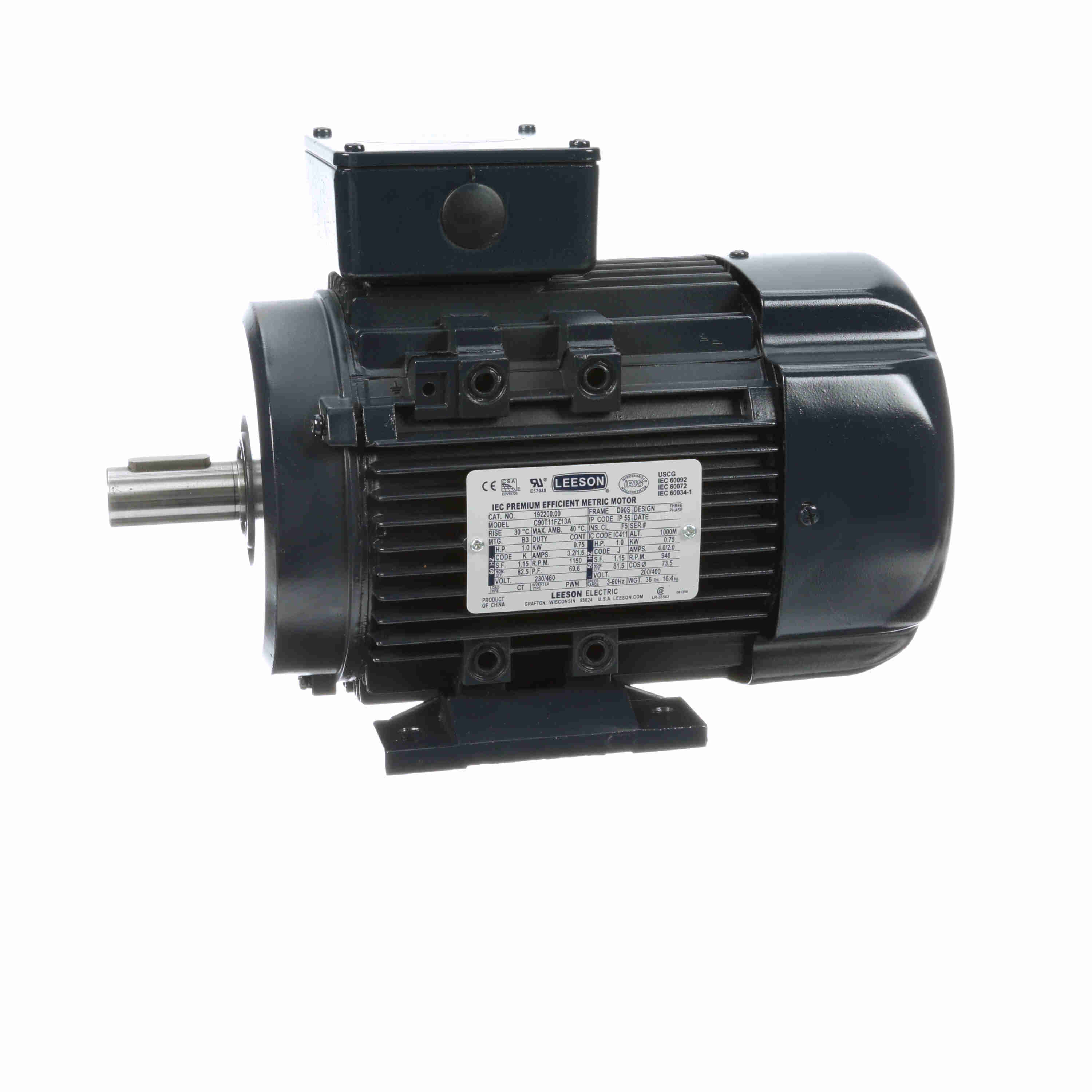

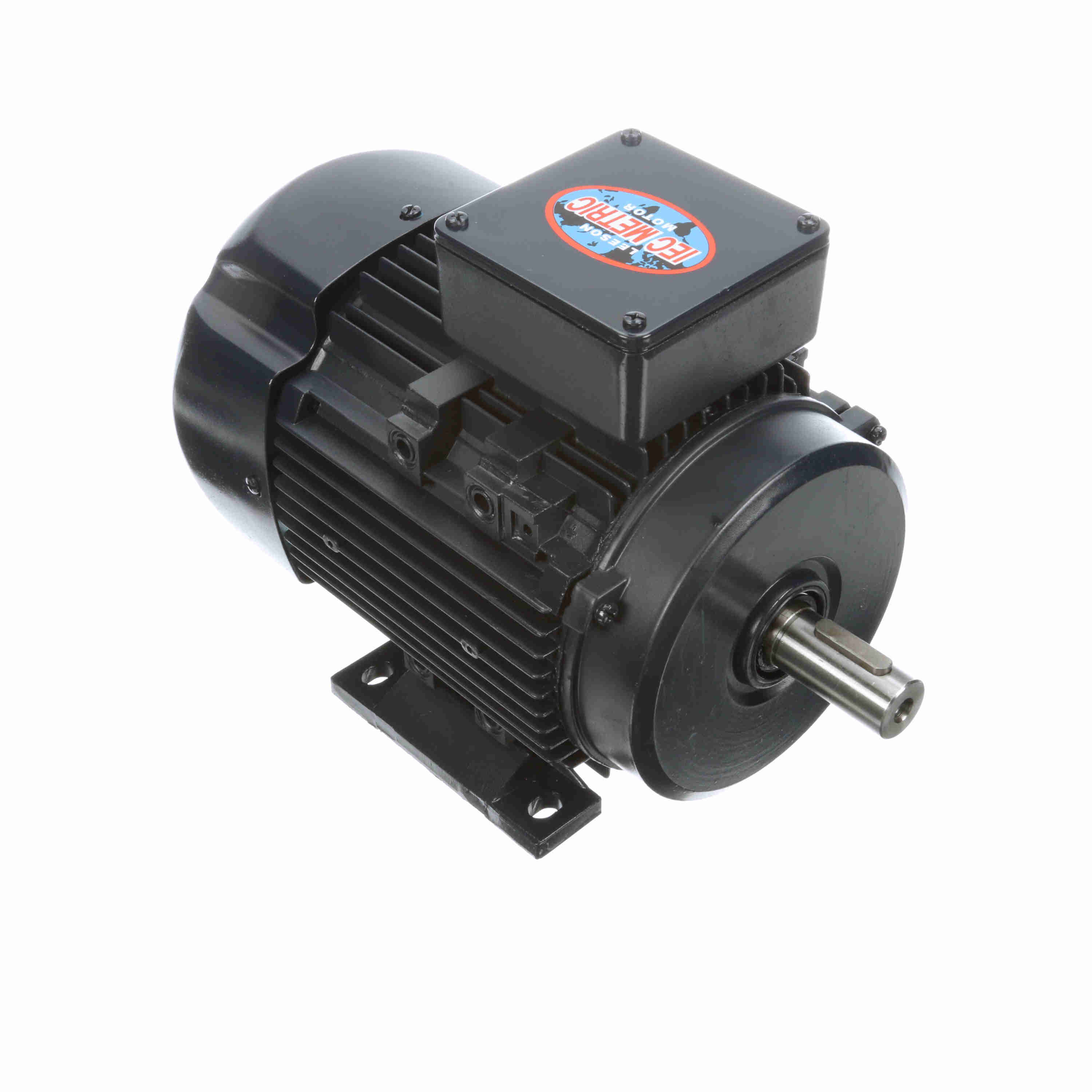

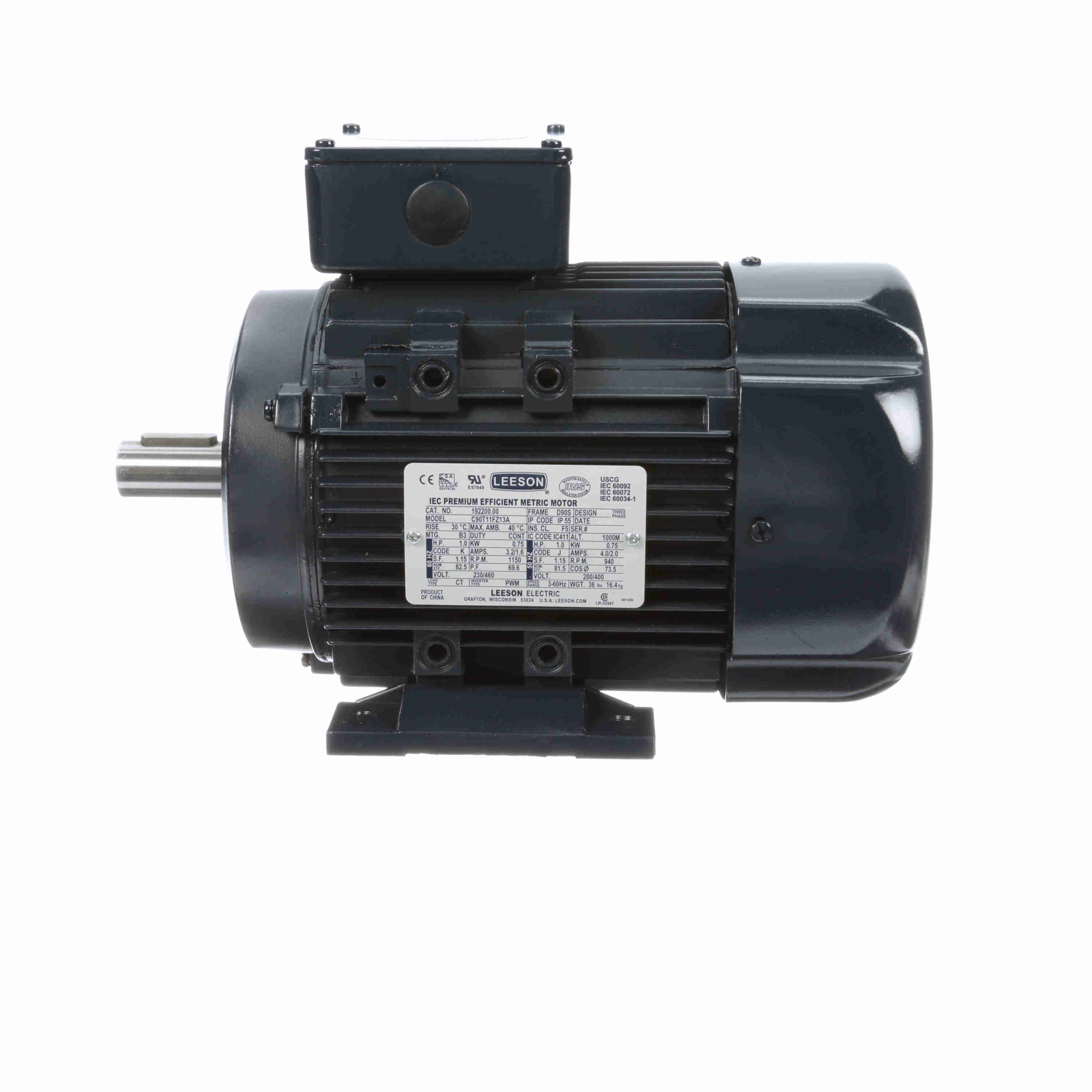

/192200.00 Leeson 1HP/0.75kW IEC Metric Electric Motor, 1200RPM
Click Image to Expand

Product ID: 192200.00

192200.00 Leeson 1HP/0.75kW IEC Metric Electric Motor, 1200RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 192200.00

Selected accessories will also be added to cart
$211.72 / Each
Quantity:
TEFC, 90S Frame, 230/460VAC 3-Phase 50/60Hz, Aluminum Frame, 1" Shaft

Features

  • Aluminum frame construction
  • 60/50 Hz interchangeability
  • B3, B5, B14 mounting flanges
  • Inverter rated (IRIS™) insulation system on AC models
  • UL listed and CSA certified

General Specifications

UPC: 691720246870 Weight: 36.00 LB
Packaged Length: 14.76 IN Packaged Width: 9.65 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 3.2/1.6 A Speed: 1155 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 82.5 % Power Factor: 69.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: D90S Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Line Or Inverter
Poles: 6 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: B3
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Aluminum
Shaft Type: IEC Overall Length: 12.83 in
Frame Length: 6.33 in Shaft Diameter: 1.000 in
Shaft Extension: 1.96 in Assembly/Box Mounting: F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 10.00 625.0 8.45 186.0 193 4.30 54.5 1.00
Locked-Rotor 10.20 638.0 10.71 236.0 4 4.30 53.1 1.00
Break-Down 6.50 406.0 15.70 346.0 907 3.50 67.2 1.00
Full Load 1.60 100.0 4.54 100.0 1,156 0.90 70.7 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.10 1.10 1.30 1.40 1.60 1.90 2.20
Rated Output (KW) 0.08 0.28 0.48 0.68 0.90 1.13 1.38
Efficiency (%) 10.1 67.5 78.6 81.9 82.8 82.3 81.0
Power Factor (%) 9.6 31.5 45.9 61.1 70.7 74.7 78.7
Speed (RPM) 1,198 1,189 1,179 1,168 1,156 1,144 1,128
Temp. Rise @ FL 0.0 0.0 0.0 0.0 24.3 0.0 0.0
Torque (ft-lbs) 0.05 1.10 2.23 3.37 4.54 5.73 6.98
