/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Foot Mount/.1618OS1B48-S WEG 1/6HP General Purpose Electric Motor, 1800RPM

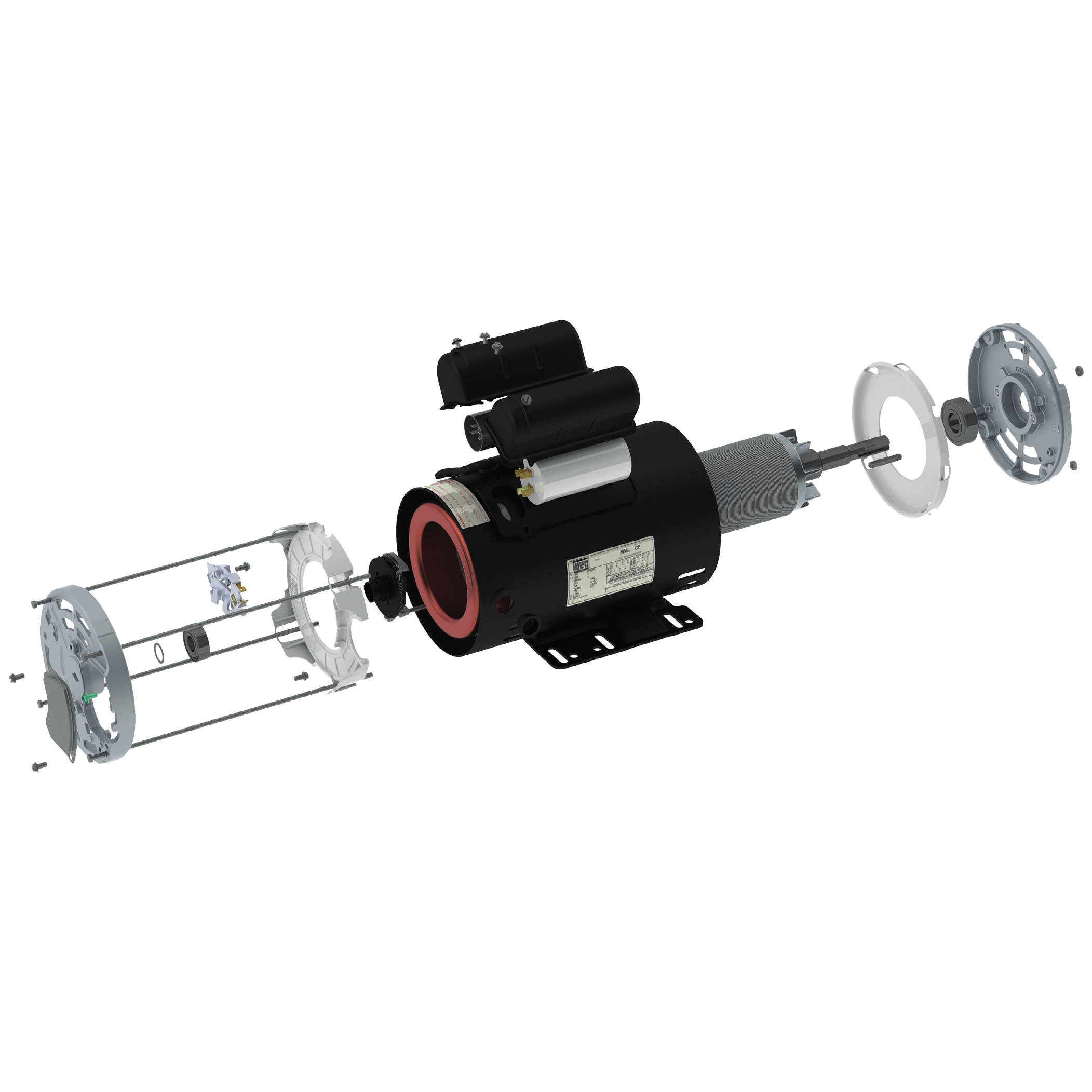

Click Image to Expand

Product ID: .1618OS1B48-S

.1618OS1B48-S WEG 1/6HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .1618OS1B48-S

Selected accessories will also be added to cart
$156.00 / Each
Quantity:
IC01 - ODP, 48 Frame, 115/208-230VAC Single Phase 60Hz, 14360314, Foot Mount, Rolled Steel, 1/2" Shaft

Electric Motors

Frame 48
Output 0.16 HP (0.12 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 115/208-230 V
Rated current 3.46/1.91-1.73 A
L. R. Amperes 19.0/10.5-9.52 A
LRC 5.5x(Code P)
No load current 3.00/1.29-1.50 A
Rated torque 0.476 ft.lb
Locked rotor torque 320 %
Breakdown torque 300 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.0280 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 13.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
41.0  49.0  53.0

Power factor

50% 75% 100%
0.42  0.50  0.57

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without
