/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Resilient Base/.1618OS1ASPRBO48Z-S WEG 1/6HP Fan & Exhaust Electric Motor, 1800RPM

Product ID: .1618OS1ASPRBO48Z-S

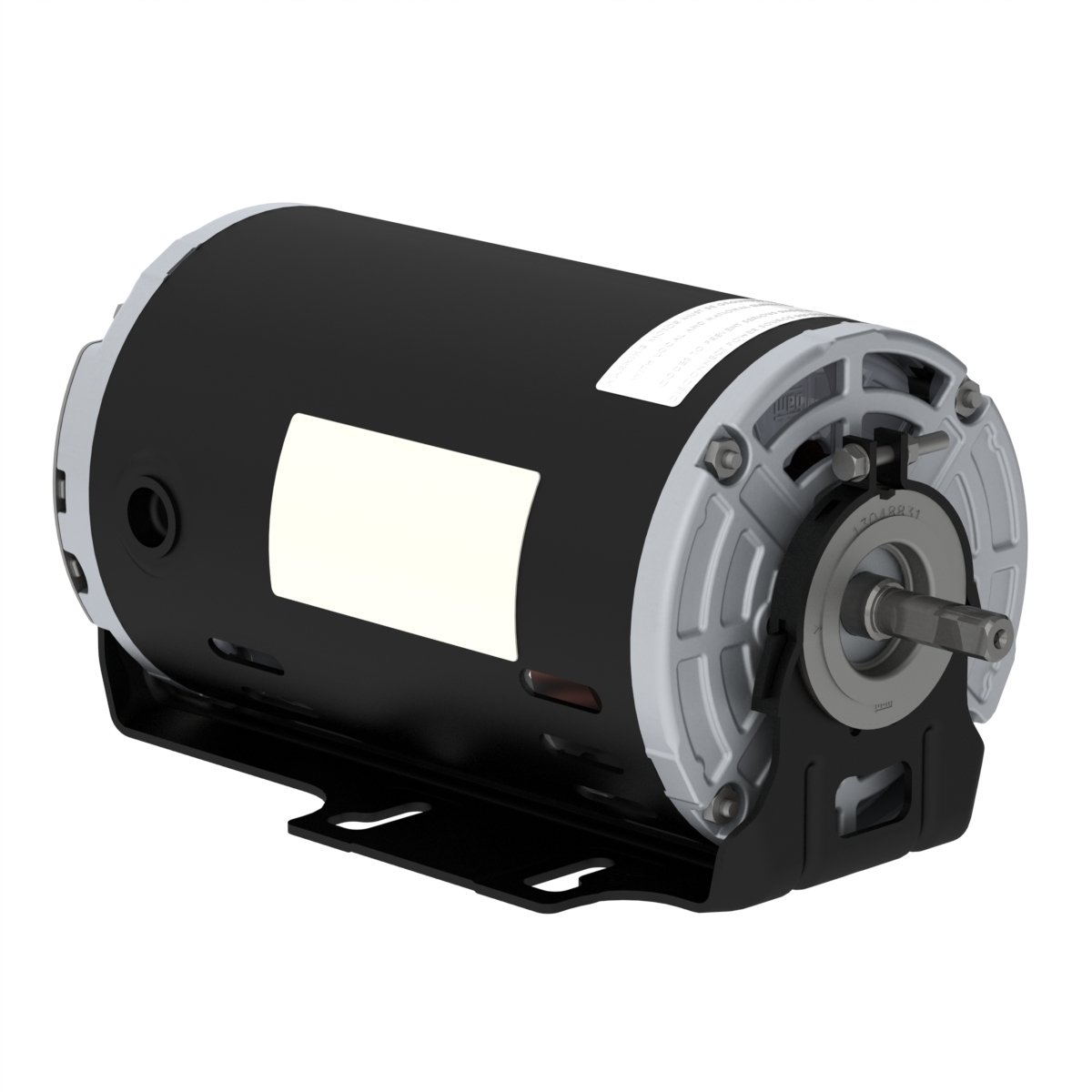

.1618OS1ASPRBO48Z-S WEG 1/6HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .1618OS1ASPRBO48Z-S

Selected accessories will also be added to cart

$204.00 / Each

Quantity:

IC01 - ODP, 48Z Frame, 115VAC Single Phase 60Hz, 13516749, Resilient Base, Foot Mouned, Rolled Steel, 1/2" Shaft

Details
Purchase Components

Electric Motors

Frame	48Z
Output	0.16 HP (0.12 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1725 rpm
Slip	4.17 %
Rated voltage	115 V
Rated current	3.04 A
L. R. Amperes	18.8 A
LRC	6.2x(Code P)
No load current	2.80 A
Rated torque	0.481 ft.lb
Locked rotor torque	130 %
Breakdown torque	270 %

Locked rotor time	10s (cold) 6s (hot)
Design	N
Insulation Class	F
Service factor	1.35
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	18.0 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
38.0	46.0	50.5

Power factor

50%	75%	100%
0.50	0.59	0.68

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
