/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/P-Base/15036ET3G445HP-W22 WEG 150HP P-Base Pump Electric Motor, 3600RPM

Product ID: 15036ET3G445HP-W22

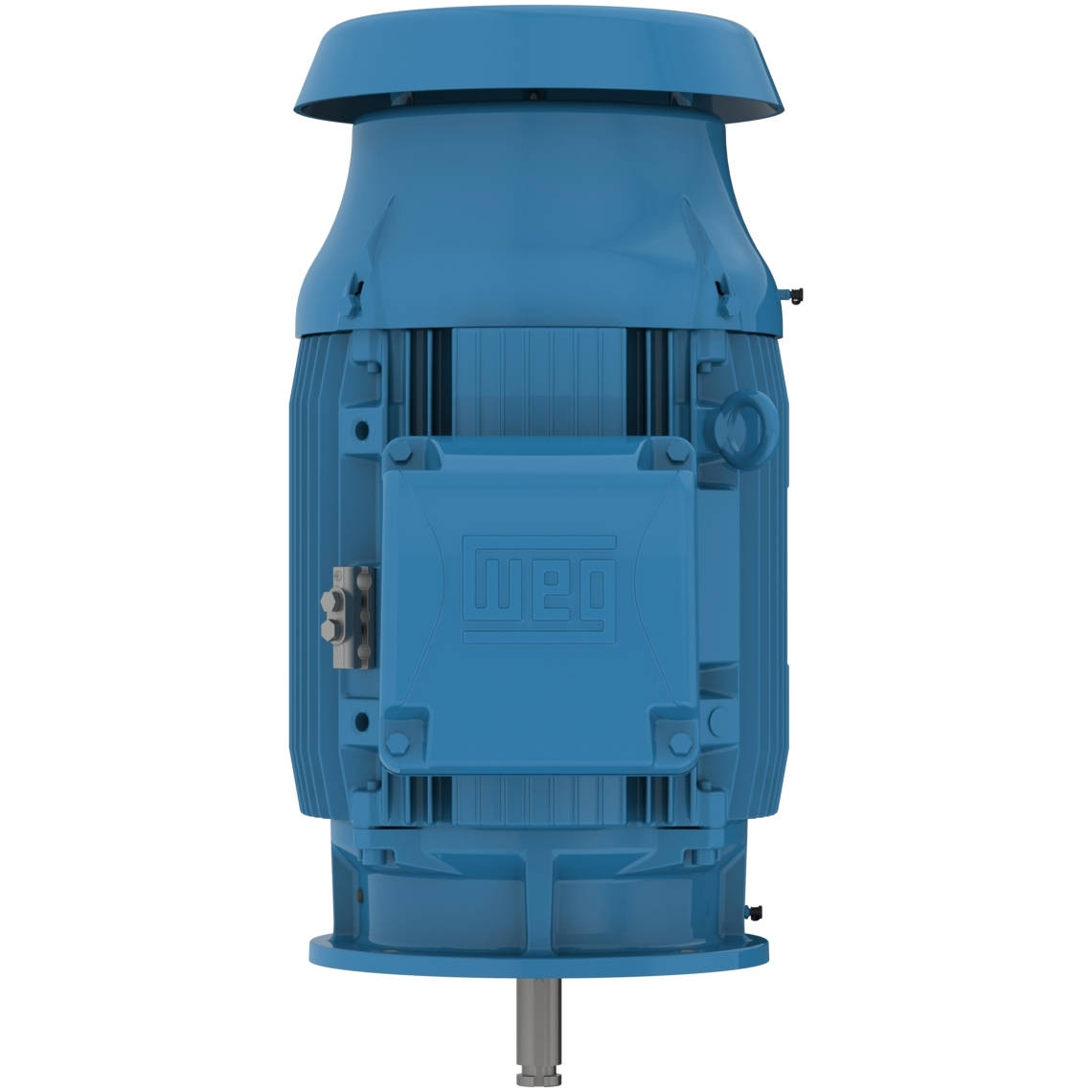

15036ET3G445HP-W22 WEG 150HP P-Base Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 15036ET3G445HP-W22

Selected accessories will also be added to cart

$15,387.75 / Each

Quantity:

IC411 - TEFC, IP55, 444HP/445HP Frame, 460VAC 60Hz 3 Phase, 13502618, NEMA Premium Efficiency, Footless, Cast Iron Frame, 2-1/8" Shaft

Details
Purchase Components

Electric Motors

Frame	444/5HP
Output	150 HP (110 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3570 rpm
Slip	0.83 %
Rated voltage	460 V
Rated current	163 A
L. R. Amperes	1060 A
LRC	6.5x(Code G)
No load current	41.0 A
Rated torque	221 ft.lb
Locked rotor torque	180 %
Breakdown torque	240 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	39.1 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	81.0 dB(A)
Approx. weight³	1734 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	95.0	95.0

Power factor

50%	75%	100%
0.83	0.88	0.89

Frame	444/5HP
Output	125 HP
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	380 V
Rated current	162 A
L. R. Amperes	988 A
LRC	6.1x(Code F)
No load current	41.0 A
Rated torque	221 ft.lb
Locked rotor torque	170 %
Breakdown torque	229 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	39.1 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	1734 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.7	94.4	95.0

Power factor

50%	75%	100%
0.81	0.88	0.89

Frame	444/5HP
Output	125 HP
Number of Poles	2
Frequency	50 Hz
Rated speed	2970 rpm
Slip	1.00 %
Rated voltage	400 V
Rated current	154 A
L. R. Amperes	1063 A
LRC	6.9x(Code G)
No load current	43.1 A
Rated torque	221 ft.lb
Locked rotor torque	190 %
Breakdown torque	250 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	39.1 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	1734 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.9	95.0

Power factor

50%	75%	100%
0.79	0.88	0.89

Frame	444/5HP
Output	125 HP
Number of Poles	2
Frequency	50 Hz
Rated speed	2970 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	148 A
L. R. Amperes	1080 A
LRC	7.3x(Code G)
No load current	45.1 A
Rated torque	221 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	39.1 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	1734 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.9	95.0

Power factor

50%	75%	100%
0.77	0.87	0.89

Frame	444/5HP
Output	150 HP (110 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	200 A
L. R. Amperes	1020 A
LRC	5.1x(Code D)
No load current	41.0 A
Rated torque	266 ft.lb
Locked rotor torque	140 %
Breakdown torque	190 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	39.1 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	1734 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.5	94.1

Power factor

50%	75%	100%
0.86	0.89	0.89

Frame	444/5HP
Output	150 HP (110 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	400 V
Rated current	189 A
L. R. Amperes	1077 A
LRC	5.7x(Code E)
No load current	43.1 A
Rated torque	266 ft.lb
Locked rotor torque	160 %
Breakdown torque	210 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	39.1 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	1734 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.0	94.5

Power factor

50%	75%	100%
0.84	0.89	0.89

Frame	444/5HP
Output	150 HP (110 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	415 V
Rated current	182 A
L. R. Amperes	1110 A
LRC	6.1x(Code F)
No load current	45.1 A
Rated torque	266 ft.lb
Locked rotor torque	170 %
Breakdown torque	229 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	39.1 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	77.0 dB(A)
Approx. weight³	1734 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.0	94.5

Power factor

50%	75%	100%
0.83	0.88	0.89

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
