Products
/
Ball Bearings
/
6300 Series Ball Bearings
/
6316ZZC3 Koyo Ball Bearing, Double Shielded
Click Image to Expand
Previous
Next
Product ID: 6316-ZZC3
6316ZZC3 Koyo Ball Bearing, Double Shielded
MFG: JTEKT Corporation
MFG Part Number: 6316ZZC3
Available Stock:
2
Selected accessories will also be added to cart
$224.11 / Each
Quantity:
6316-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:
105330 Mobil Polyrex EM Grease
$24.44 / Each
Details
Specifications
Brand
Koyo Seiko Company, LTD
Manufacturer Part Number
6316ZZC3
Group
Deep Groove Ball Bearings
Type

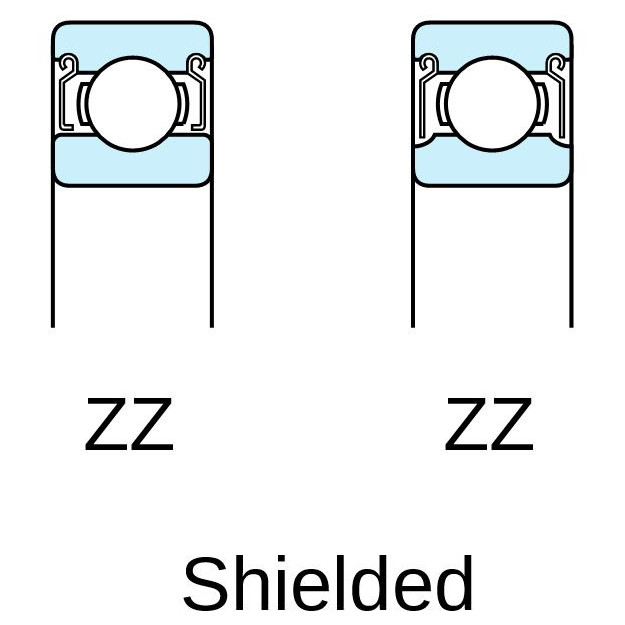

Shielded (ZZ)
Bore / Inside Diameter (d)
80 mm
Housing / Outside Diameter (D)
170 mm
Width (B)
39 mm
Minimum Radius (r)
2.1 mm
Operating Temperature
-30 to 110°C
Cage Type
Pressed Steel Cage
Configuration
Single-row
Tolerances
JIS B 1514
Allowable Misalignment
.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating
C
r
123.0 kN
C
0r
86.7 kN
Fatigue Load Limit (C
u
)
5.85 kN
Factor (f0)
13.3
Limiting Speeds (Grease Lubrication)
3,900 min
-1

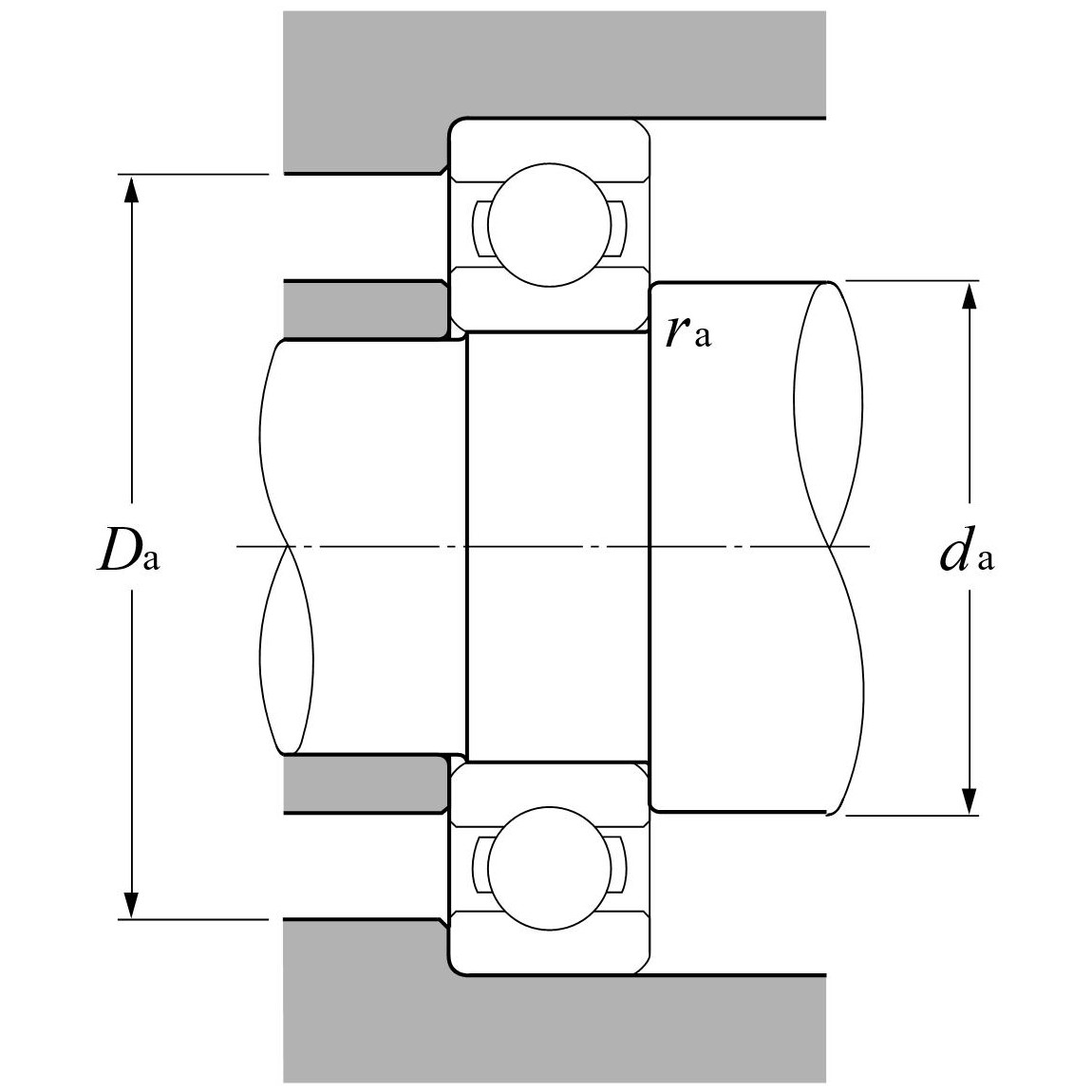

Shaft Shoulder Mounting Dimension (d
a
)
91 mm Minimum
105 mm Maximum
Housing Shoulder Mounting Dimension (D
a
)
159 mm Maximum
Shoulder Radius (r
a
)
2 mm Maximum
Mass
3.59 kg
7.92 lbs
UPC
4549250175084
Country of Manufacture
Japan
