/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount/15018ST3QIE445T-W22 WEG 150HP Severe Duty Electric Motor, 1800RPM

Product ID: 15018ST3QIE445T-W22

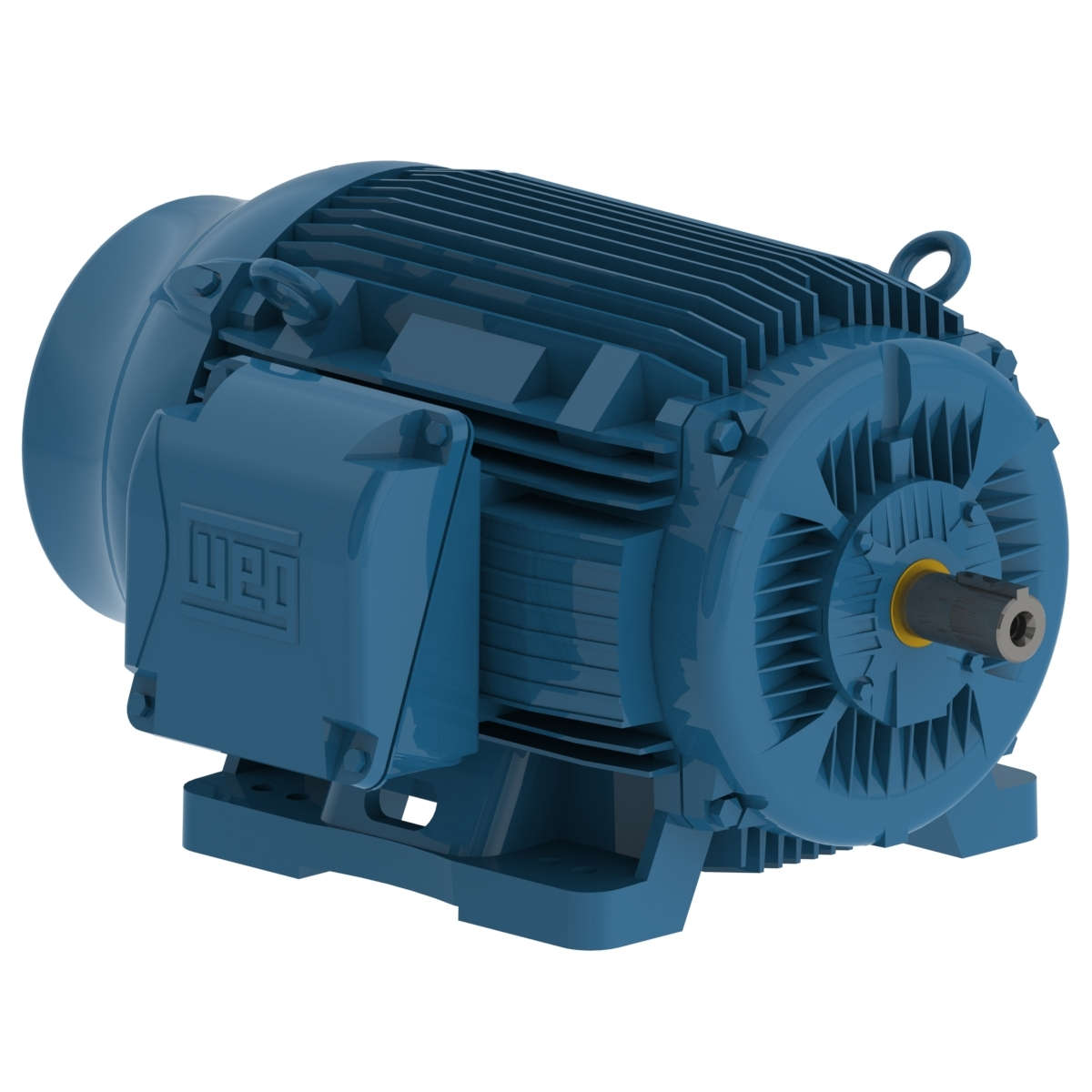

15018ST3QIE445T-W22 WEG 150HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 15018ST3QIE445T-W22

Selected accessories will also be added to cart

$13,940.25 / Each

Quantity:

IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 11431430, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 3-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	444/5T
Output	150 HP (110 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	460 V
Rated current	170 A
L. R. Amperes	1122 A
LRC	6.6x(Code G)
No load current	58.0 A
Rated torque	443 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	48s (cold) 27s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	1861 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.8	95.8

Power factor

50%	75%	100%
0.74	0.82	0.85

Frame	444/5T
Output	125 HP
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	170 A
L. R. Amperes	1189 A
LRC	7.0x(Code G)
No load current	58.0 A
Rated torque	444 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1861 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.1	95.5	95.3

Power factor

50%	75%	100%
0.73	0.83	0.86

Frame	444/5T
Output	125 HP
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	163 A
L. R. Amperes	1127 A
LRC	6.9x(Code G)
No load current	61.2 A
Rated torque	444 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1861 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.1	95.5	95.3

Power factor

50%	75%	100%
0.70	0.81	0.85

Frame	444/5T
Output	125 HP
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	159 A
L. R. Amperes	1192 A
LRC	7.5x(Code H)
No load current	64.0 A
Rated torque	444 ft.lb
Locked rotor torque	229 %
Breakdown torque	290 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1861 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.8	95.5	95.5

Power factor

50%	75%	100%
0.68	0.79	0.84

Frame	444/5T
Output	150 HP (110 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	205 A
L. R. Amperes	1189 A
LRC	5.8x(Code F)
No load current	58.0 A
Rated torque	534 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1861 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.4	95.0

Power factor

50%	75%	100%
0.79	0.85	0.86

Frame	444/5T
Output	150 HP (110 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	194 A
L. R. Amperes	1125 A
LRC	5.8x(Code F)
No load current	61.2 A
Rated torque	534 ft.lb
Locked rotor torque	180 %
Breakdown torque	220 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1861 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.4	95.0

Power factor

50%	75%	100%
0.76	0.83	0.86

Frame	444/5T
Output	150 HP (110 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	189 A
L. R. Amperes	1191 A
LRC	6.3x(Code G)
No load current	64.0 A
Rated torque	532 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1861 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.4	95.4

Power factor

50%	75%	100%
0.74	0.82	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
