Product ID: 141274.00

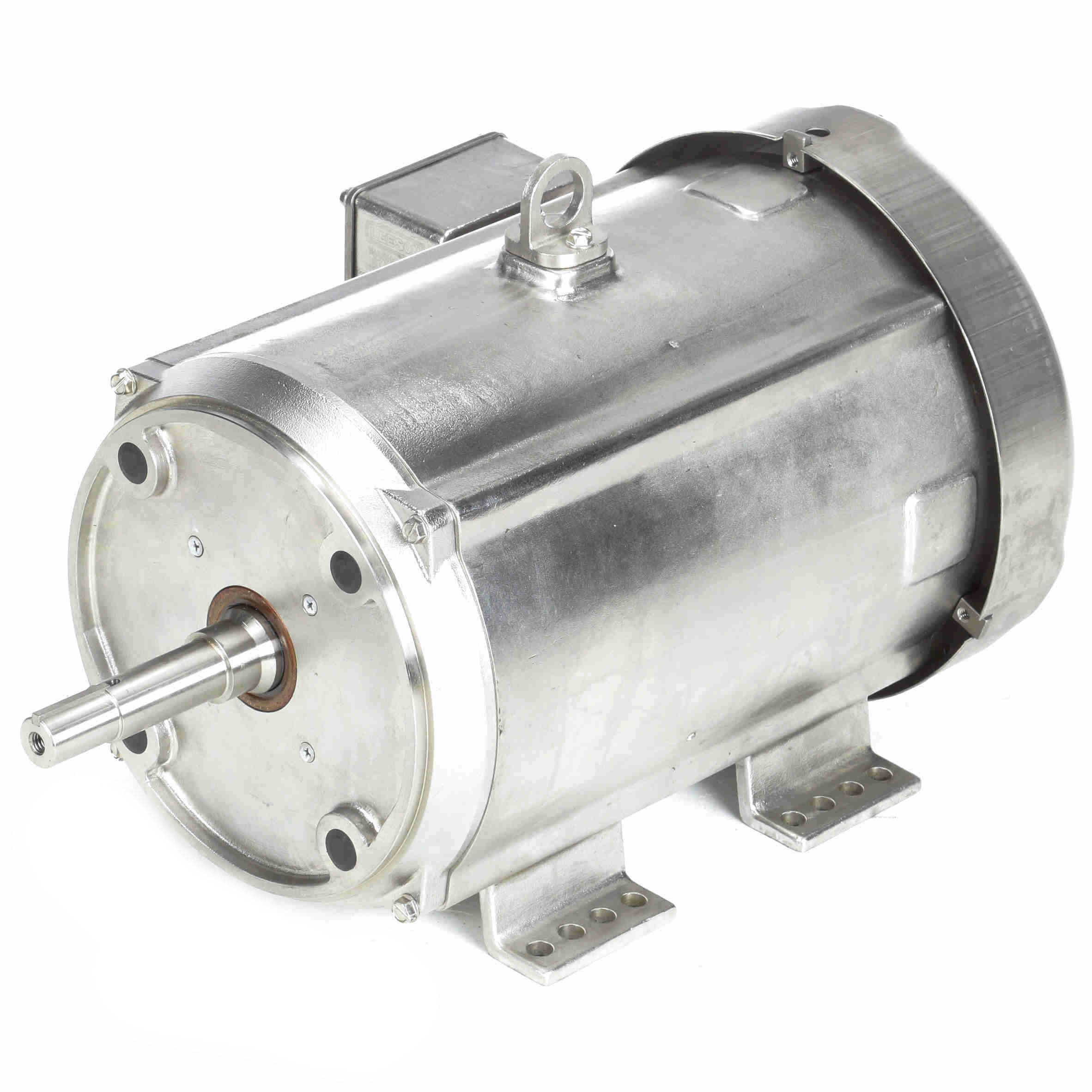

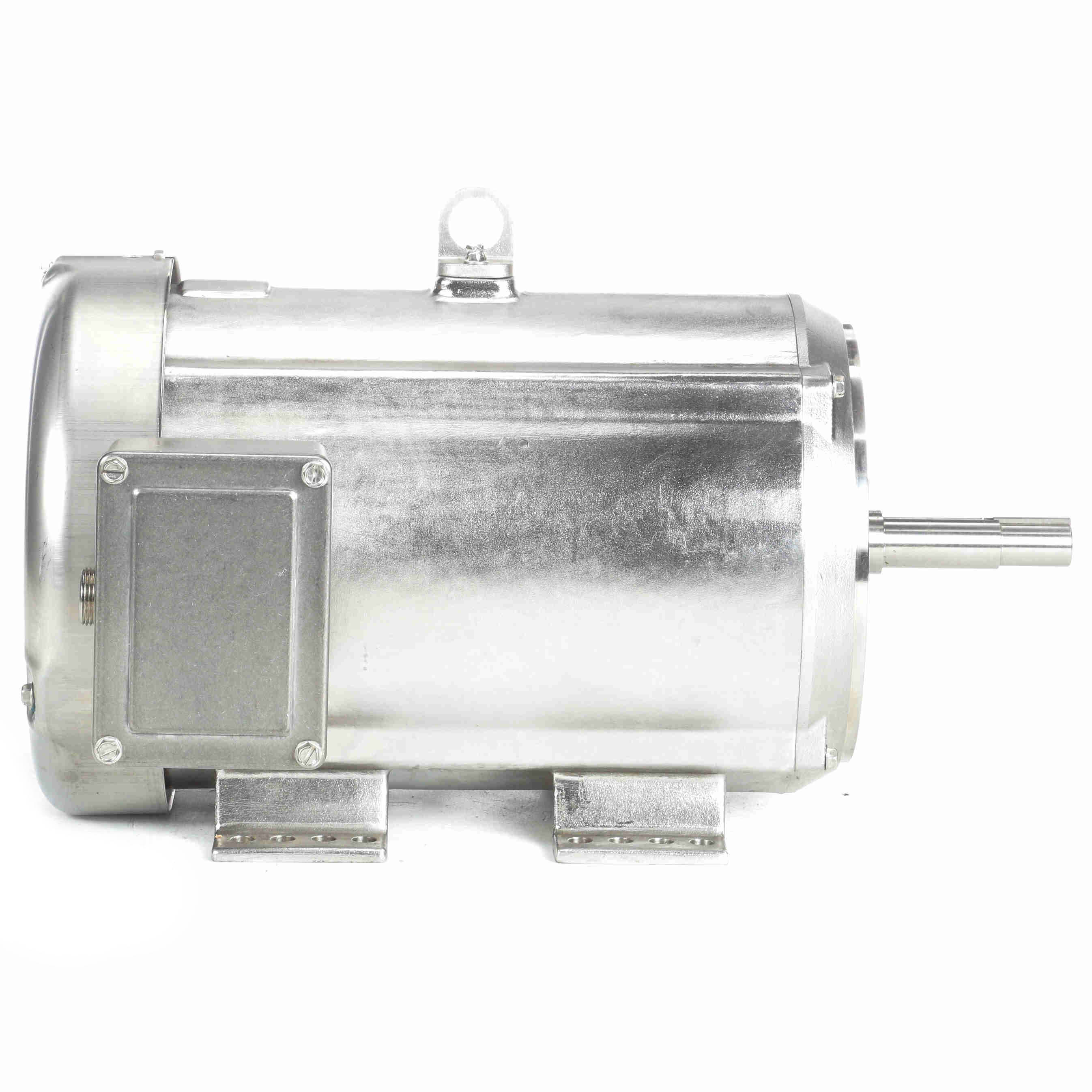

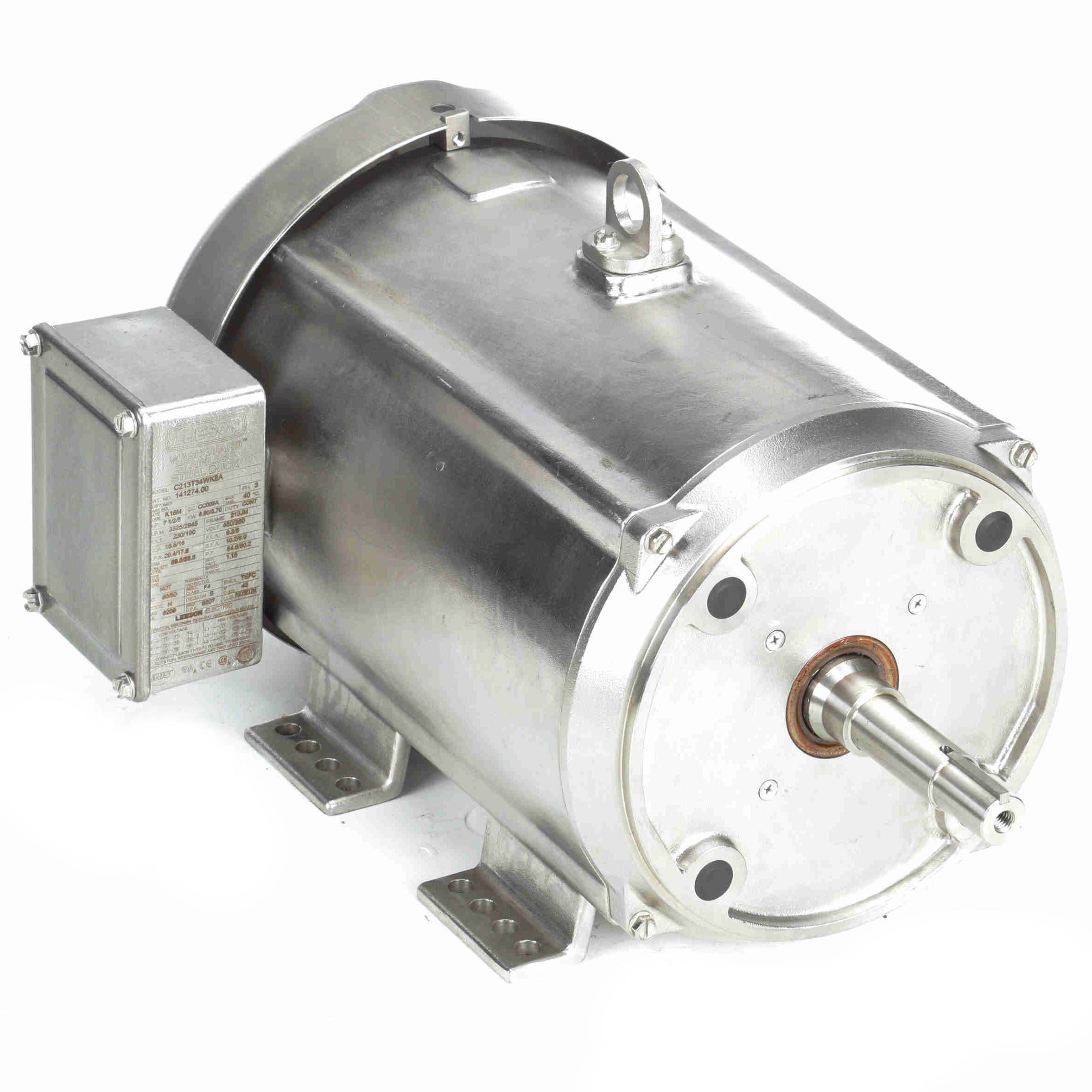

141274.00 Leeson 7.5HP Washdown JM Pump Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 141274.00

Selected accessories will also be added to cart

$2,978.97 / Each

Quantity:

TEFC, IP43, 213JM Frame, 230/460VAC 60Hz 3-Phase, Rigid Base, Stainless Steel Frame, 7/8" Keyed Shaft

Details
Purchase Components

Features

All exterior components are 300-series stainless steel
All sealing components are Viton® for superior chemical resistance
End shields are O-ring sealed to the frame
Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion
Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
Three phase motors are UL component recognized – file number E57948, guide number PRGY2; Full fact nameplate is laser etched on the motor frame

General Specifications

UPC:	691720053201	Weight:	156.00 LB
Packaged Length:	22.5 IN	Packaged Width:	16 IN
Packaged Height:	12.05 IN

Nameplate Specifications

Output HP:	7.50 Hp	Output KW:	5.6 kW
Frequency:	60 Hz	Voltage:	230/460 V
Current:	18.6/9.3 A	Speed:	3525 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	89.5 %	Power Factor:	84.6
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	H
Frame:	213JM	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6209	Opp Drive End Bearing Size:	6207
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43

Technical Specifications

Electrical Type:	Squirrel Cage Inverter Rated	Starting Method:	Line Or Inverter
Poles:	2	Rotation:	Reversible
Resistance Main:	.1725 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Stainless Steel
Shaft Type:	JM	Overall Length:	19.81 in
Frame Length:	12.00 in	Shaft Diameter:	0.875 in
Shaft Extension:	4.21 in	Assembly/Box Mounting:	F1 Only

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
1/3	58.00	624.0	25.00	223.0	1,200	0.00	0.0	7.50
2/3	48.00	516.0	30.00	268.0	2,400	0.00	0.0	7.50
Locked-Rotor	63.00	677.0	19.30	172.0	0	0.00	0.0	7.50
No Load	4.10	44.0	0.00	0.0	3,600	0.00	0.0	7.50
Pull-Up	60.00	645.0	19.00	170.0	552	0.00	0.0	7.50
Full Load	9.30	100.0	11.20	100.0	3,525	0.00	0.0	7.50
Break-Down	38.00	409.0	33.00	295.0	3,130	0.00	74.7	7.50

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %	125 %
Current (Amps)	4.10	4.50	5.80	7.40	9.30	10.20	11.40
Rated Output (KW)	0.26	1.68	3.16	4.70	6.27	6.95	7.91
Efficiency (%)	0.0	81.8	88.1	88.9	89.5	89.9	88.1
Power Factor (%)	8.0	46.9	68.4	79.7	84.6	85.5	87.1
Speed (RPM)	3,600	3,585	3,565	3,545	3,525	3,520	3,505
Temp. Rise @ FL	0.0	0.0	0.0	0.0	55.0	70.0	85.0
Torque (ft-lbs)	0.00	2.70	5.50	8.30	11.20	12.50	14.00
