/Products/Electric Motors/Single Phase/Leeson/TEFC, Rigid Base/140685.00 Leeson 10HP General Purpose Electric Motor, 3600RPM

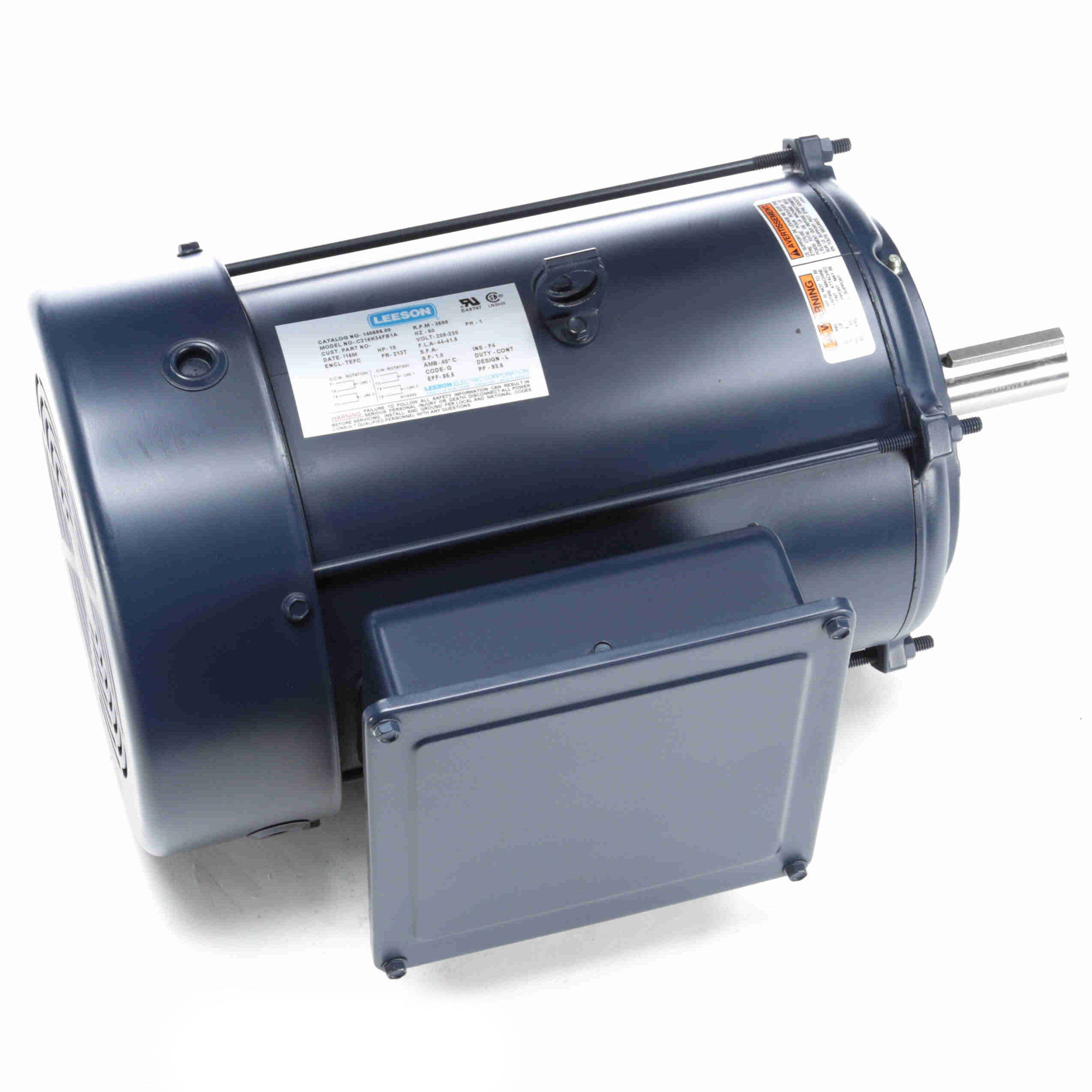

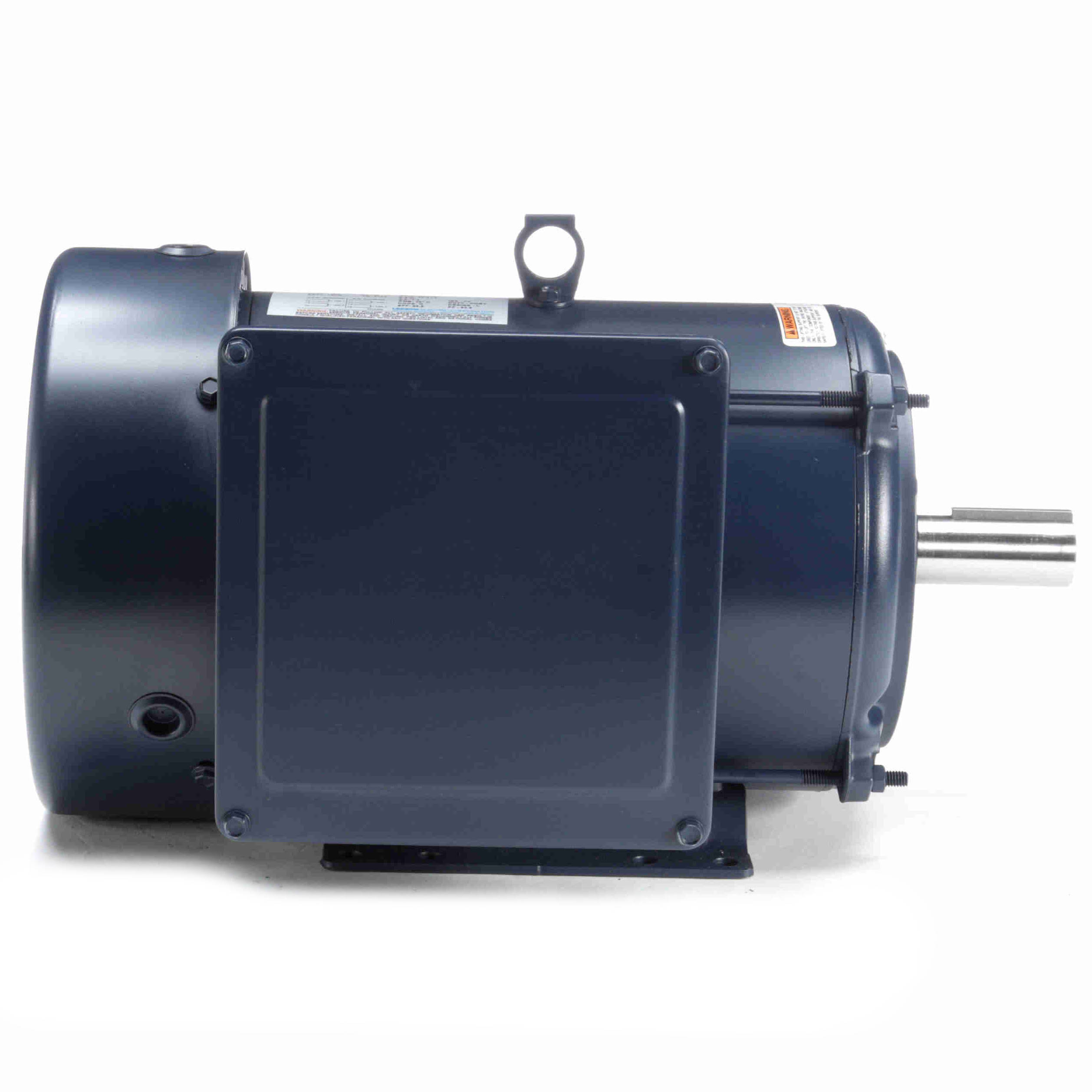

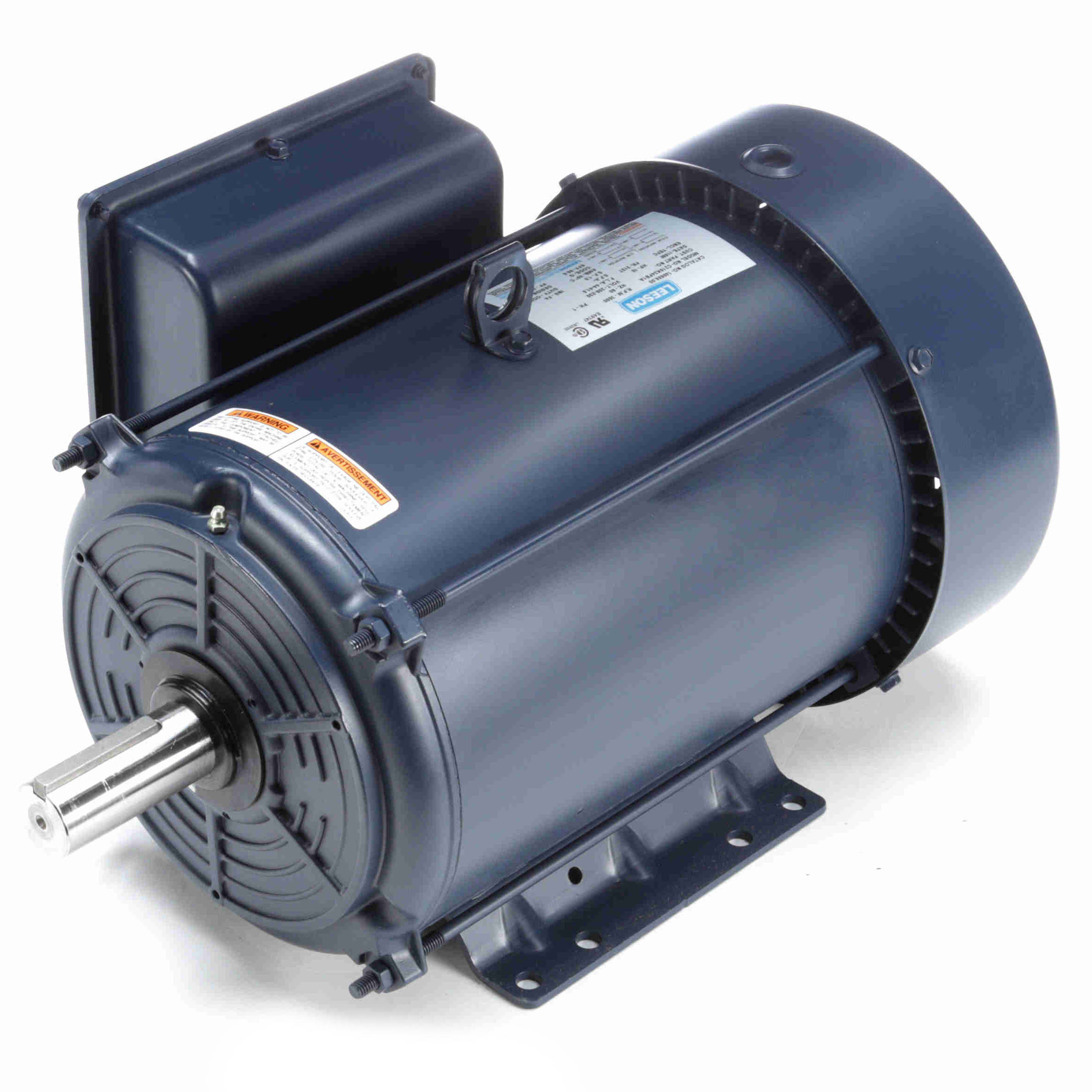

Click Image to Expand

Product ID: 140685.00

140685.00 Leeson 10HP General Purpose Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 140685.00

Selected accessories will also be added to cart
$1,599.97 / Each
Quantity:
TEFC, 215T Frame, 208-230VAC 60Hz Single Phase, C215K34FB1A, Rigid Base, Rolled Steel, 1-3/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720256992 Weight: 145.00 LB
Packaged Length: 22.5 IN Packaged Width: 16.81 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 10 Hp Output KW: 7.5 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 44.0-41.5 A Speed: 3500 rpm
Service Factor: 1 Phase: 1
Efficiency: 85.5 % Power Factor: 93.5
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: G
Frame: 215T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 307 Opp Drive End Bearing Size: 206
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: T Overall Length: 19.84 in
Frame Length: 11.15 in Shaft Diameter: 1.375 in
Shaft Extension: 3.38 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 151.00 364.0 38.50 257.0 3,043 29.00 0.0 10.00
Pull-Up 25.00 60.0 20.00 133.0 129 42.60 0.0 10.00
Full Load 41.50 100.0 15.00 100.0 3,500 8.90 0.0 10.00
Locked-Rotor 249.00 600.0 26.00 173.0 0 43.00 63.5 10.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 9.00 13.90 22.10 31.30 41.50 47.70 52.40
Rated Output (KW) 1.00 2.60 4.59 6.69 8.90 10.30 11.30
Efficiency (%) 0.0 72.2 81.3 83.9 83.8 83.5 82.8
Power Factor (%) 48.3 81.3 90.3 92.9 93.2 93.9 93.8
Speed (RPM) 3,600 3,574 3,552 3,528 3,500 3,480 3,465
Temp. Rise @ FL 0.0 0.0 0.0 0.0 85.0 115.0 0.0
Torque (ft-lbs) 0.00 3.70 7.40 11.20 15.00 17.40 19.00
