/Products/Electric Motors/Single Phase/Leeson/TEFC, Rigid Base/140684.00 Leeson 7.5HP Electric Motor, 3600RPM
Click Image to Expand

Product ID: 140684.00

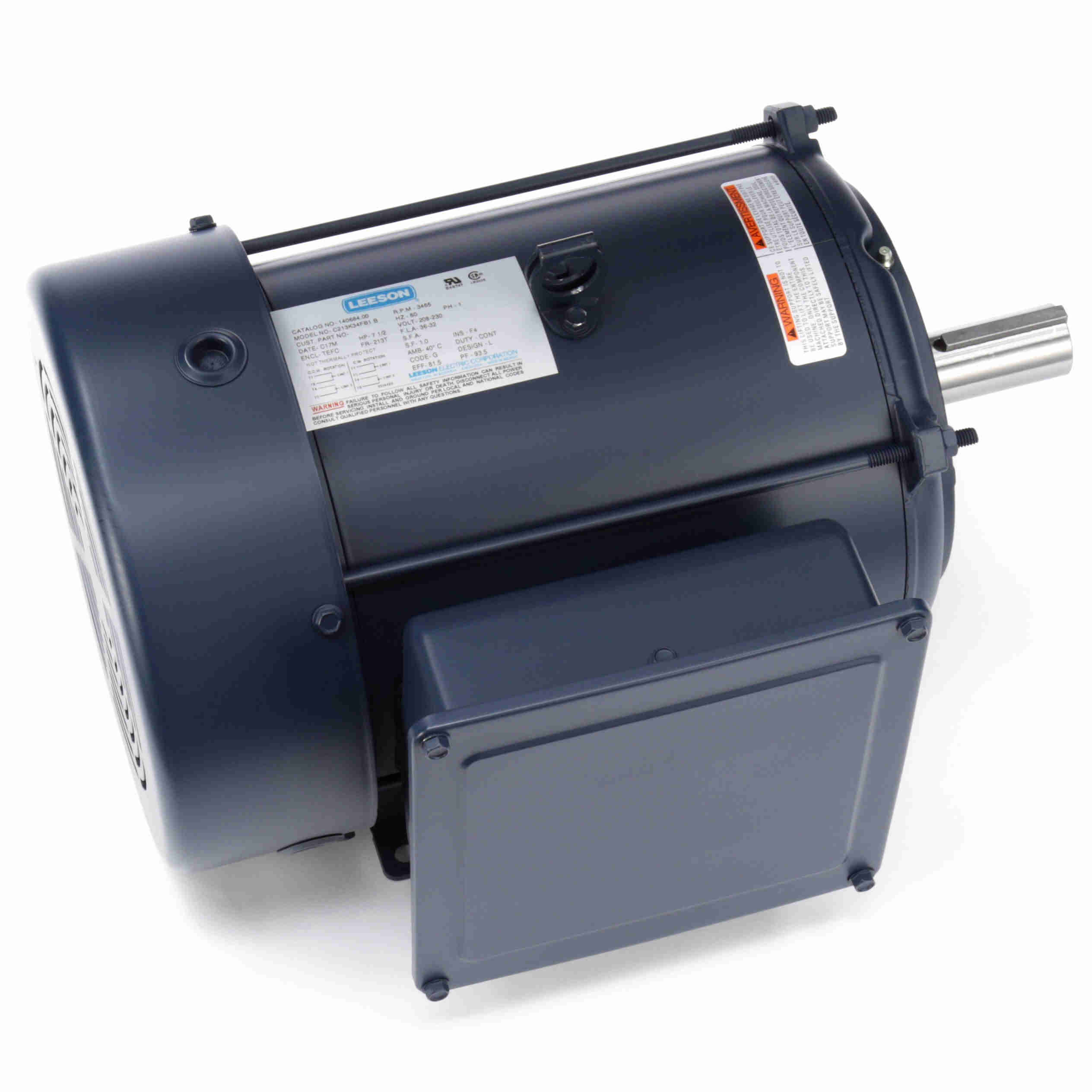

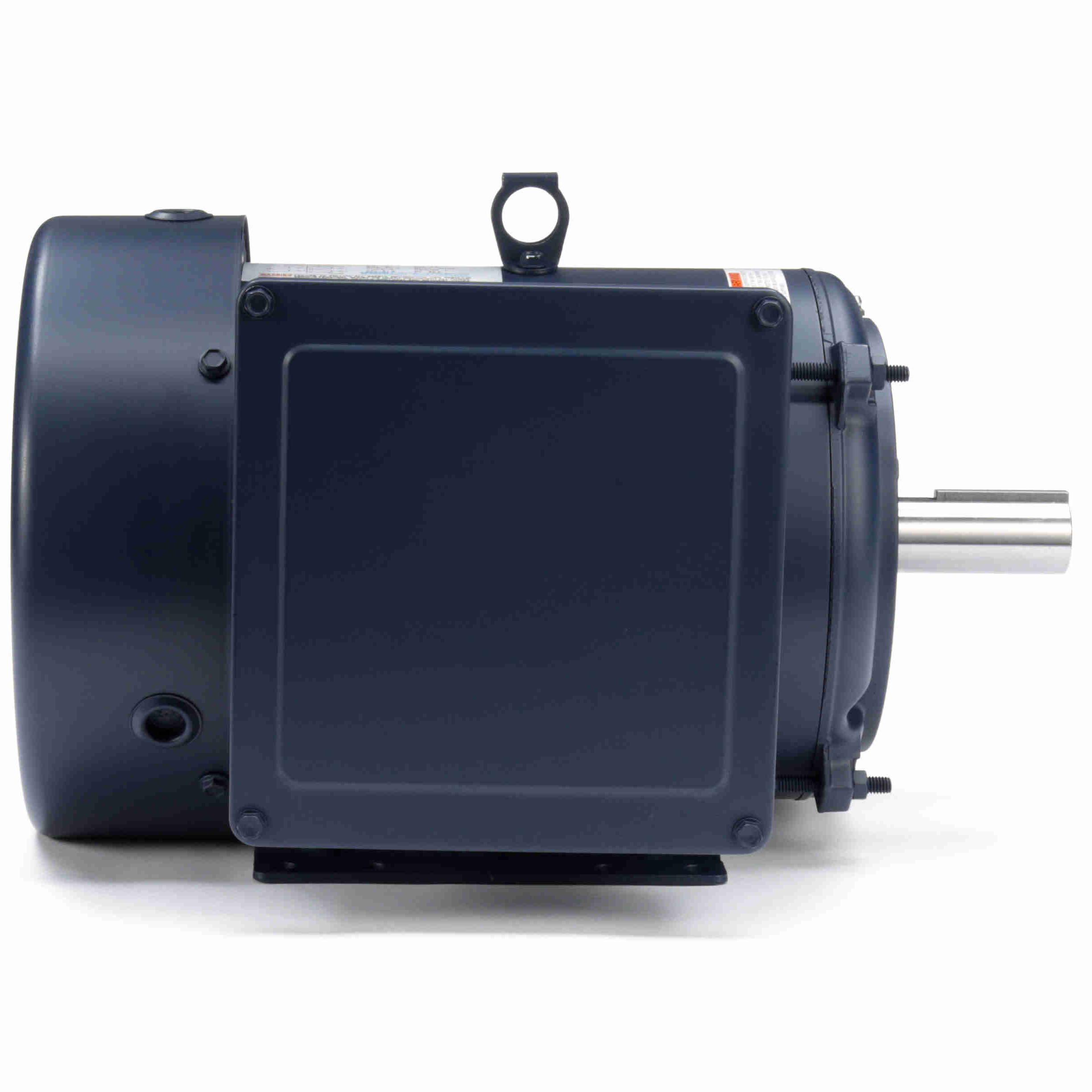

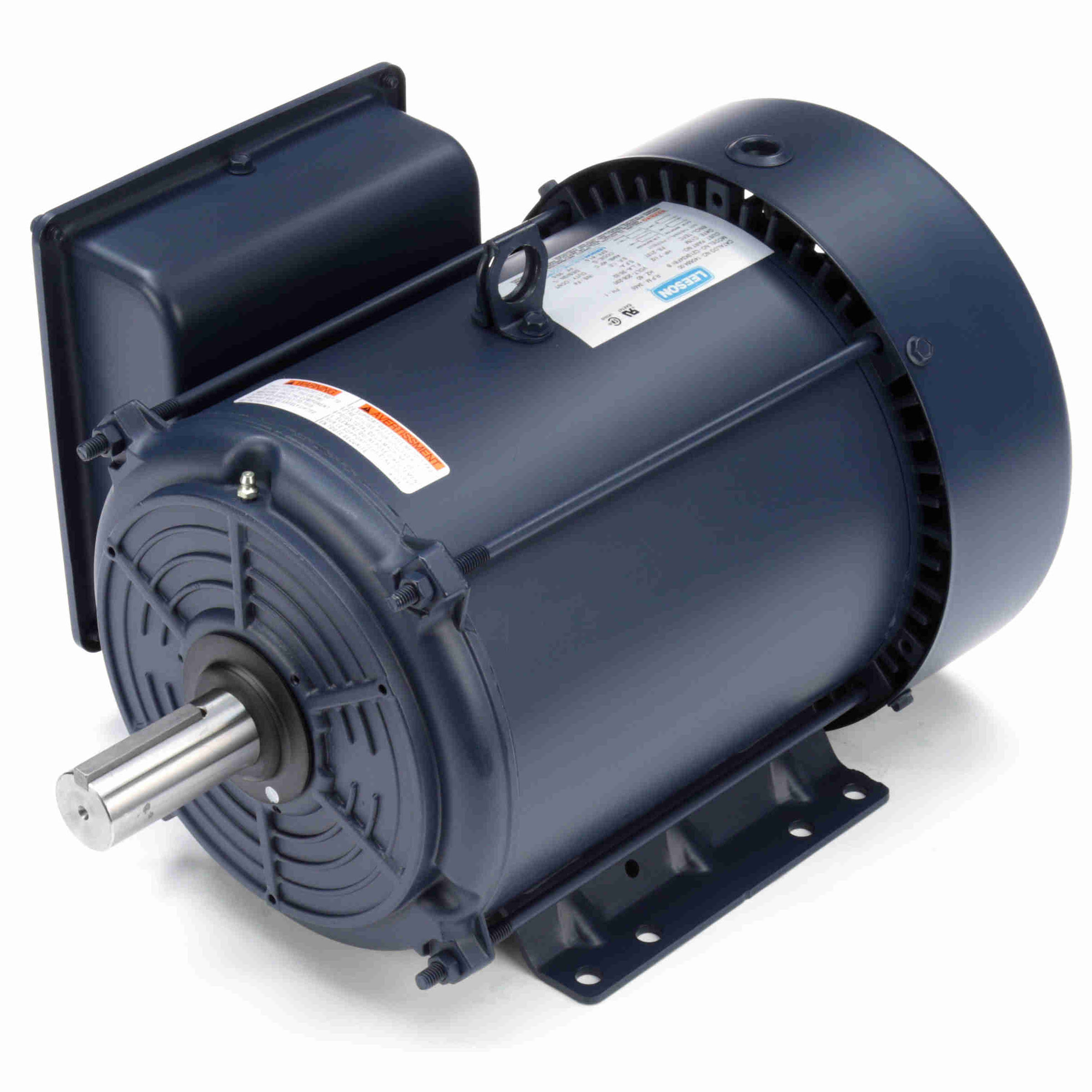

140684.00 Leeson 7.5HP Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 140684.00

Selected accessories will also be added to cart
$1,799.97 / Each
Quantity:
TEFC, 213T Frame, 208-230V Single Phase 60Hz, Rigid Base, C213K34FB1
Features
  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • 1-year warranty on general purpose motors
  • 3-year warranty on Premium efficient motors
  • UL recognized component listing and CSA certified
General Specifications
Model :C213K34FB1 B Catalog No :140684.00
Part Description :..7 1/2HP..3450RPM.213.TEFC.208-230V.1PH.60HZ.CONT.40C.1.0SF.RIGID.C213K34FB1B.....GENERAL PURPOSES.NOT....... Category :Totally Enclosed Fan Cooled (TEFC)
Stock :No
Nameplate Specifications
Output HP :7.5 Hp Output KW :5.6 kW
Frequency :60 Hz Voltage :208-230 V
Current :36-32 A Speed :3465 rpm
Service Factor :1 Phase :1
Efficiency :81.5 % Duty :CONTINUOUS
Insulation Class :F Design Code :L
KVA Code :G Frame :213T
Enclosure :TEFC Overload Protector :NOT
Ambient Temperature :40 °C Drive End Bearing Size :307
Opp Drive End Bearing Size :206 UL :Recognized
CSA :Y CE :N
IP Code :43
Technical Specifications
Electrical Type :CAP START CAP RUN Starting Method :ACROSS THE LINE
Poles :2 Rotation :SELECTIVE CCW
Mounting :RIGID Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :ROLLED STEEL Shaft Type :T
Overall Length :18.34 in Frame Length :9.65 in
Shaft Diameter :1.38 in Shaft Extension :3.38 in
Assembly/Box Mounting :F1 ONLY UPC :691720256985
Weight :113.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up116.00362.022.50199.02,72921.100.07.50
Locked-Rotor189.00591.018.70165.0031.400.07.50
Full Load32.00100.011.30100.03,4656.940.07.50
Break-Down106.00331.025.30224.03,04319.900.07.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 8.36
  • 1.310
  • 0.0
  • 68.1
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 11.40
  • 2.150
  • 65.9
  • 82.0
  • 3,565
  • 0.0
  • 2.80
  • 50 %
  • 17.41
  • 3.620
  • 77.8
  • 90.4
  • 3,540
  • 0.0
  • 5.60
  • 75 %
  • 24.25
  • 5.185
  • 80.9
  • 93.0
  • 3,515
  • 0.0
  • 8.40
  • 100 %
  • 32.00
  • 6.935
  • 81.5
  • 93.5
  • 3,465
  • 80.0
  • 11.30
  • 115 %
  • 37.20
  • 8.050
  • 80.0
  • 94.1
  • 3,454
  • 105.0
  • 13.10
  • 125 %
  • 40.70
  • 8.750
  • 79.4
  • 93.5
  • 3,445
  • 0.0
  • 14.20
  • 150 %
  • 50.60
  • 10.800
  • 77.4
  • 92.8
  • 3,400
  • 0.0
  • 17.30
