/Products/Electric Motors/3 Phase Stainless Steel/Leeson/Washguard/JM Pump, TEFC, C-Face with Base/132451.00 Leeson 5HP Premium Duck Washdown JM Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: 132451.00

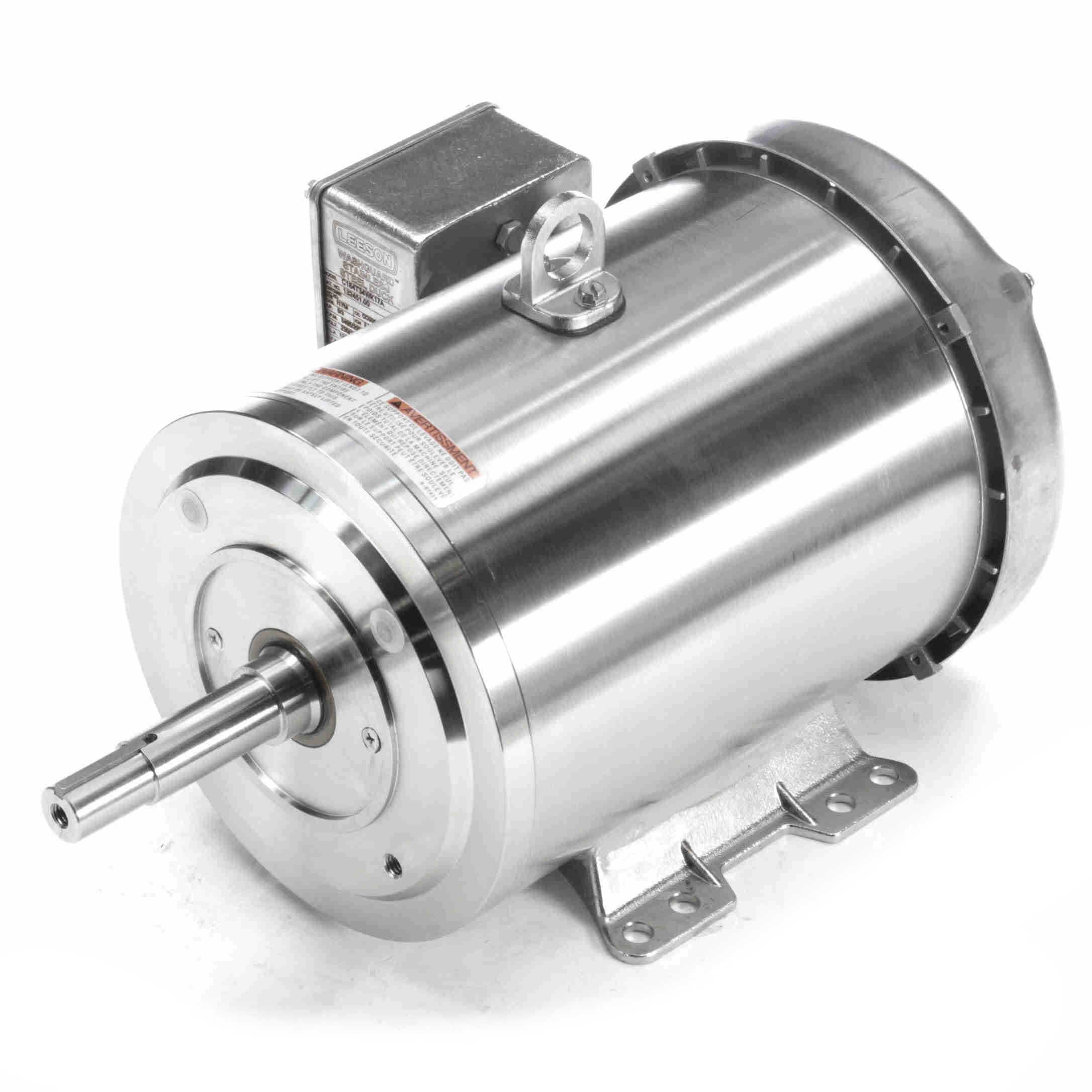

132451.00 Leeson 5HP Premium Duck Washdown JM Pump Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 132451.00

Selected accessories will also be added to cart
$1,934.97 / Each
Quantity:
TEFC, 184JM Frame, 230/460VAC 60Hz 3 Phase, Rigid Base, Stainless Steel Frame, 7/8" Keyed Shaft

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • Three phase motors are UL component recognized – file number E57948, guide number PRGY2
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720053171 Weight: 99.70 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN Country of Origin: Mexico

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 12.0/6.0 A Speed: 3495 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 88.5 % Power Factor: 89.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 184JM Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Ambient Temperature: 40 °C
Drive End Bearing Size: 6207 Opp Drive End Bearing Size: 6207
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 2.32 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: JM Overall Length: 16.77 in
Frame Length: 9.50 in Shaft Diameter: 0.875 in
Shaft Extension: 4.21 in Assembly/Box Mounting: F1/F2 CAPABLE
Inverter Load: CONSTANT 3:1

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 30.00 500.0 26.00 347.0 2,850 0.00 74.5 5.00
Full Load 6.00 100.0 7.50 100.0 3,495 0.00 0.0 5.00
No Load 1.70 28.0 0.00 0.0 3,600 0.00 0.0 5.00
1/3 44.50 742.0 13.50 180.0 1,200 0.00 0.0 5.00
2/3 37.50 625.0 17.00 227.0 2,400 0.00 0.0 5.00
Pull-Up 47.00 783.0 15.50 207.0 170 0.00 0.0 5.00
Locked-Rotor 46.00 783.0 16.00 213.0 0 0.00 45.5 5.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.70 2.30 3.30 4.50 6.00 6.80 7.40
Rated Output (KW) 0.20 1.10 2.10 3.10 4.20 4.90 5.30
Efficiency (%) 0.0 81.9 87.9 89.1 88.5 88.3 87.6
Power Factor (%) 12.5 62.9 81.1 87.5 89.5 90.5 90.8
Speed (RPM) 3,600 3,576 3,551 3,526 3,495 3,477 3,463
Temp. Rise @ FL 0.0 0.0 0.0 0.0 55.0 0.0 85.0
Torque (LB-FT) 0.00 1.80 3.70 5.60 7.50 8.70 9.50
