/Products/Electric Motors/3 Phase Stainless Steel/Leeson/Washguard/JM Pump, TEFC, C-Face with Base/132450.00 Leeson 3HP Washdown JM Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: 132450.00

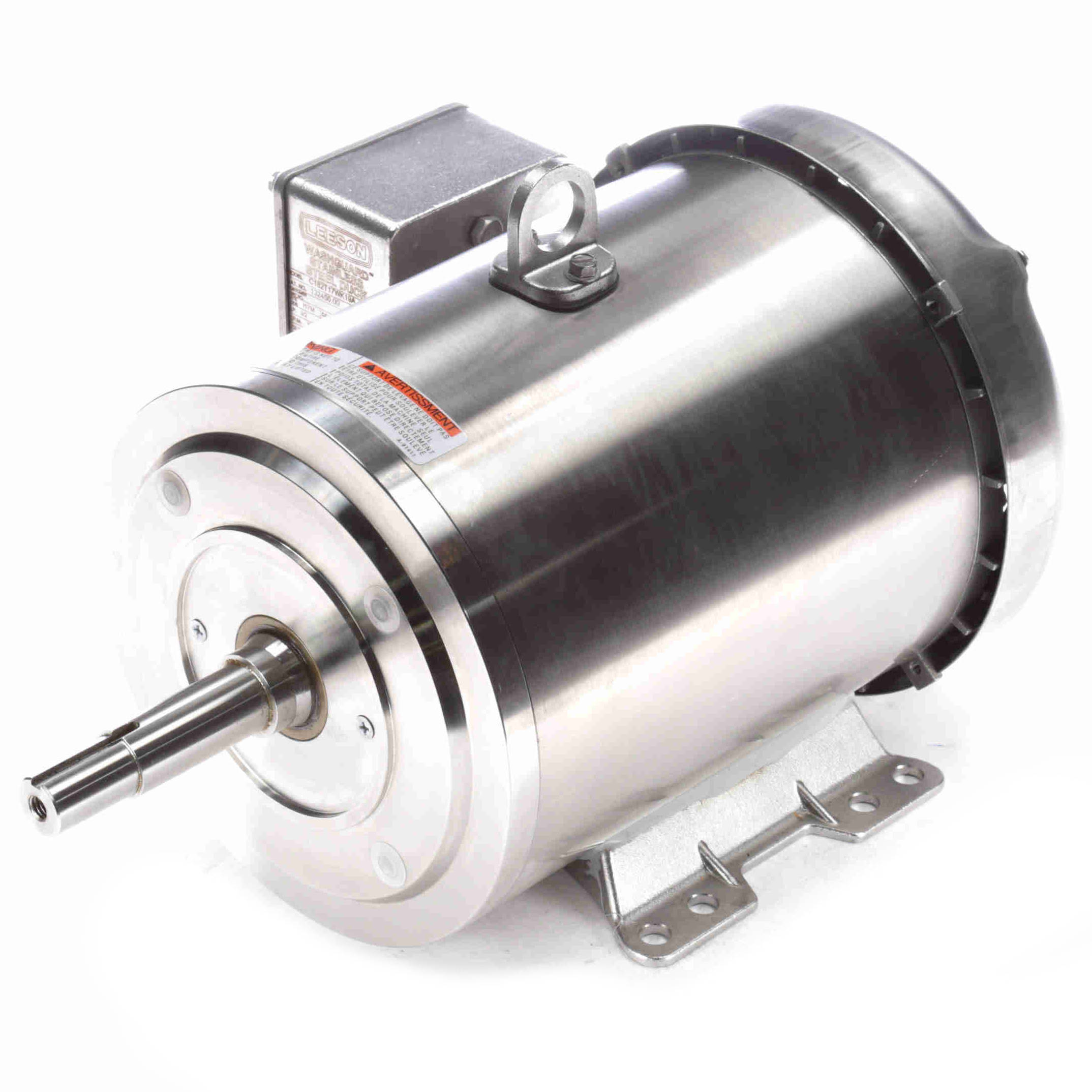

132450.00 Leeson 3HP Washdown JM Pump Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 132450.00

Selected accessories will also be added to cart
$1,806.97 / Each
Quantity:
TEFC, 182JM Frame, 230/460VAC 60Hz 3-Phase, Rigid Base, Stainless Steel Frame, 7/8" Keyed Shaft

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • Three phase motors are UL component recognized – file number E57948, guide number PRGY2
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720053164 Weight: 94.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 7.8/3.9 A Speed: 1770 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 89.5 % Power Factor: 80.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 182JM Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6207 Opp Drive End Bearing Size: 6207
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 6.08 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Stainless Steel
Shaft Type: JM Overall Length: 16.20 in
Frame Length: 9.00 in Shaft Diameter: 0.875 in
Shaft Extension: 4.28 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 33.50 859.0 22.50 253.0 0 0.00 0.0 3.00
Break-Down 21.50 551.0 36.00 404.0 0 0.00 0.0 3.00
Pull-Up 33.00 846.0 21.00 236.0 0 0.00 0.0 3.00
Full Load 3.90 100.0 8.90 100.0 1,770 0.00 80.5 3.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 1.90 2.10 2.56 3.18 3.90 4.40 4.73 5.61
Rated Output (KW) 0.11 0.69 1.28 1.87 2.50 2.86 3.13 3.79
Efficiency (%) 0.0 80.8 87.7 89.6 89.5 89.9 89.5 88.5
Power Factor (%) 6.9 41.4 62.7 73.8 80.5 81.6 83.0 84.7
Speed (RPM) 1,798 1,792 1,785 1,777 1,770 1,766 1,755 1,750
Temp. Rise @ FL 0.0 0.0 0.0 0.0 40.0 47.0 60.0 0.0
Torque (ft-lbs) 0.00 2.20 4.42 6.64 8.91 10.26 11.20 13.49
