/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/13209ET3Y315L-W22 WEG 175HP/132kW IEC TRU-Metric Electric Motor, 900RPM

Product ID: 13209ET3Y315L-W22

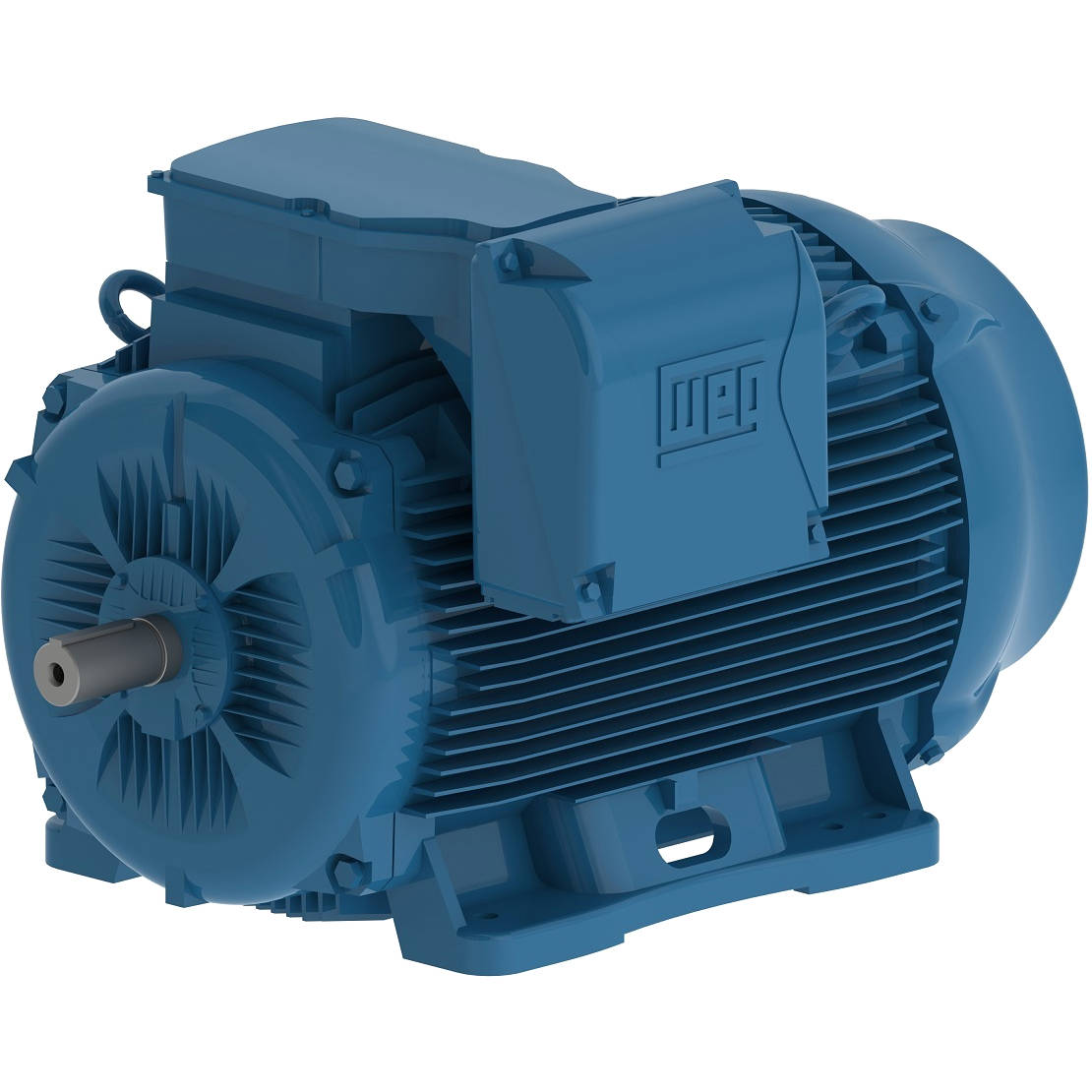

13209ET3Y315L-W22 WEG 175HP/132kW IEC TRU-Metric Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 13209ET3Y315L-W22

Selected accessories will also be added to cart

$25,265.25 / Each

Quantity:

IC411 - TEFC, IP55, 315L Frame, 460/380-415/660-690VAC 60Hz 3 Phase, 13034308, B3L(E) Mounting, Foot Mounted, Cast Iron Frame, 80mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	315L
Output	175 HP (132 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	895 rpm
Slip	0.56 %
Rated voltage	460 V
Rated current	223 A
L. R. Amperes	1539 A
LRC	6.9
No load current	108 A
Rated torque	1030 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	84s (cold) 47s (hot)

Moment of inertia (J)	313 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	71.0 dB(A)
Approx. weight³	3325 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.4

Power factor

50%	75%	100%
0.60	0.72	0.78

Frame	315L
Output	175 HP (132 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	740 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	260 A
L. R. Amperes	1560 A
LRC	6.0
No load current	106 A
Rated torque	1240 ft.lb
Locked rotor torque	170 %
Breakdown torque	200 %
Locked rotor time	61s (cold) 34s (hot)

Moment of inertia (J)	313 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	3325 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.5	95.6	95.4

Power factor

50%	75%	100%
0.68	0.77	0.81

Frame	315L
Output	175 HP (132 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	740 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	252 A
L. R. Amperes	1512 A
LRC	6.0
No load current	114 A
Rated torque	1240 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	61s (cold) 34s (hot)

Moment of inertia (J)	313 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	3325 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.3	95.7	95.7

Power factor

50%	75%	100%
0.64	0.74	0.79

Frame	315L
Output	175 HP (132 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	740 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	246 A
L. R. Amperes	1476 A
LRC	6.0
No load current	120 A
Rated torque	1240 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	61s (cold) 34s (hot)

Moment of inertia (J)	313 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	3325 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.1	95.6	95.8

Power factor

50%	75%	100%
0.61	0.72	0.78

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM63x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Aluminum
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
