/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Foot Mount/.1236OS1B48-S WEG 0.12HP General Purpose Electric Motor, 3600RPM

Product ID: .1236OS1B48-S

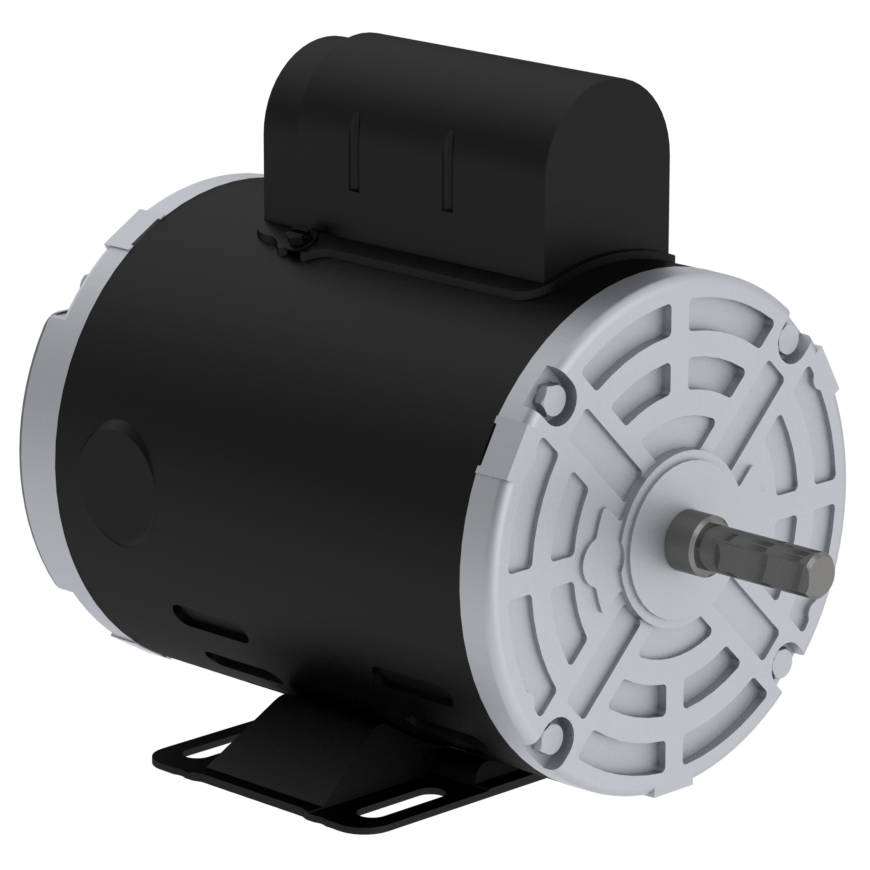

.1236OS1B48-S WEG 0.12HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .1236OS1B48-S

Selected accessories will also be added to cart

$153.75 / Each

Quantity:

IC01 - ODP, 48 Frame, 115/208-230VAC 60Hz Single Phase, 14419270, Rolled Steel Frame, Foot Mounted, 1/2" Flatted Shaft

Details
Purchase Components

Electric Motors

Frame	48
Output	0.12 HP (0.09 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	115/208-230 V
Rated current	2.48/1.37-1.24 A
L. R. Amperes	15.9/8.77-7.94 A
LRC	6.4x(Code R)
No load current	1.80/0.776-0.900 A
Rated torque	0.180 ft.lb
Locked rotor torque	300 %
Breakdown torque	300 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.0126 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.40 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	14.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
32.0	40.0	44.0

Power factor

50%	75%	100%
0.60	0.67	0.72

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
