Product ID: 122222.00

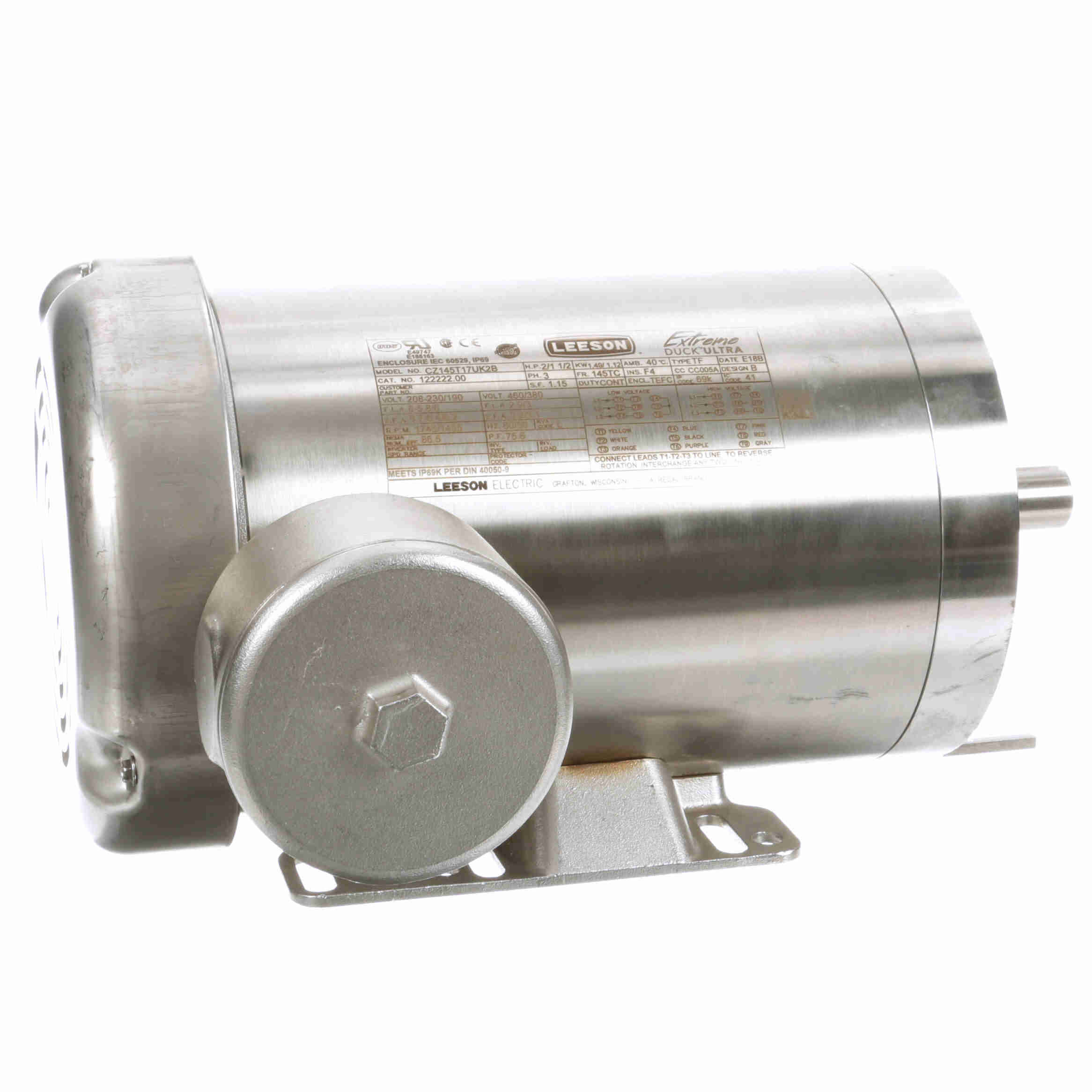

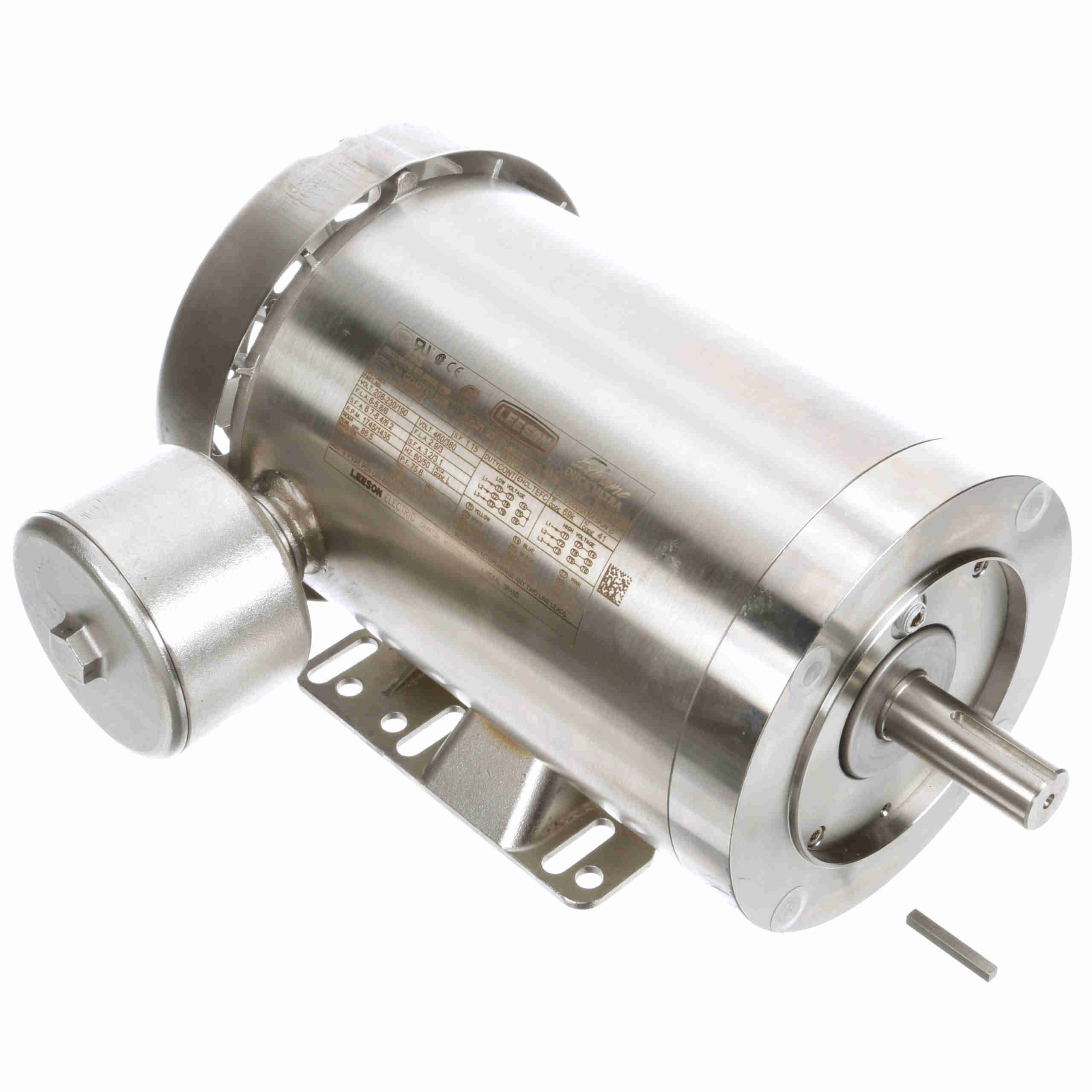

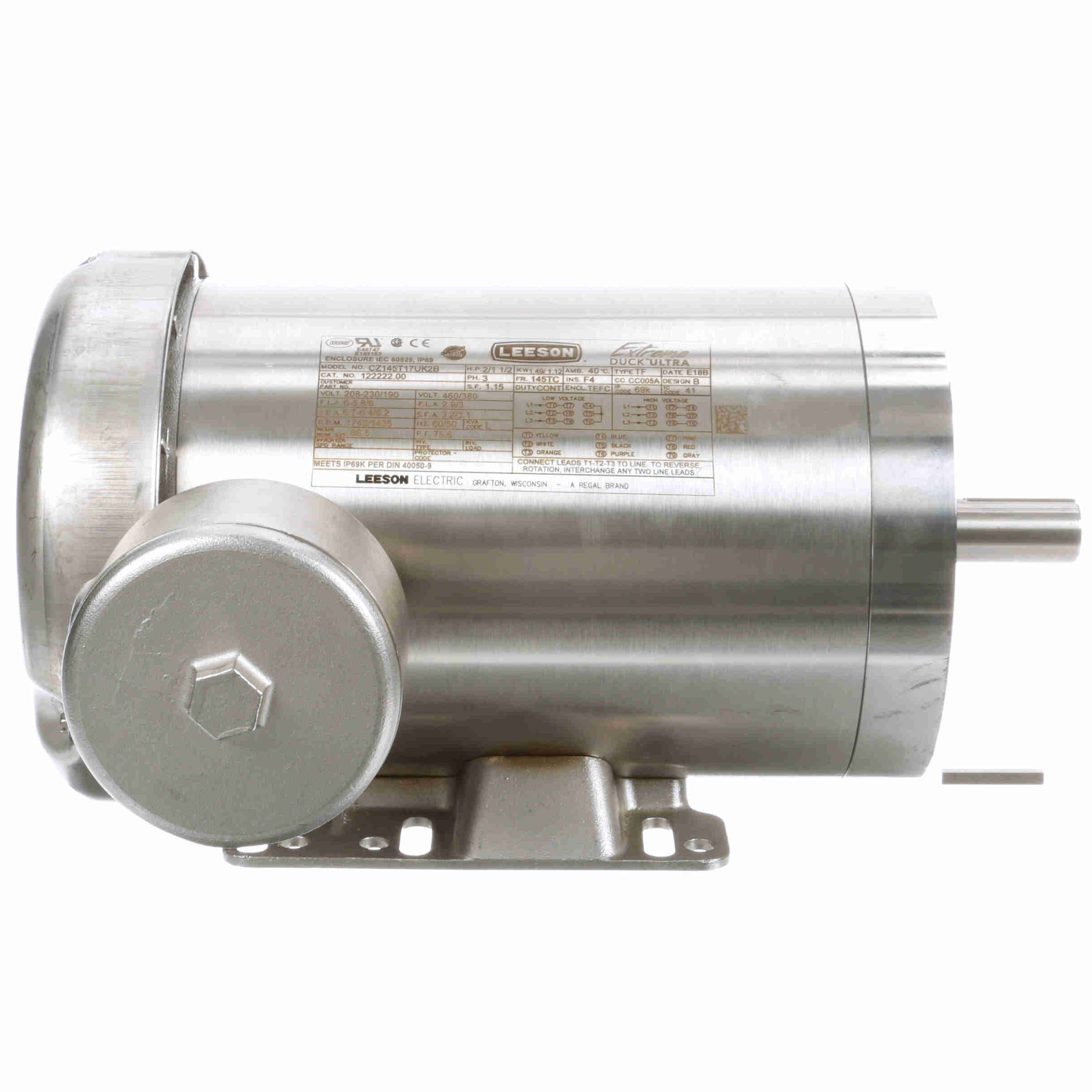

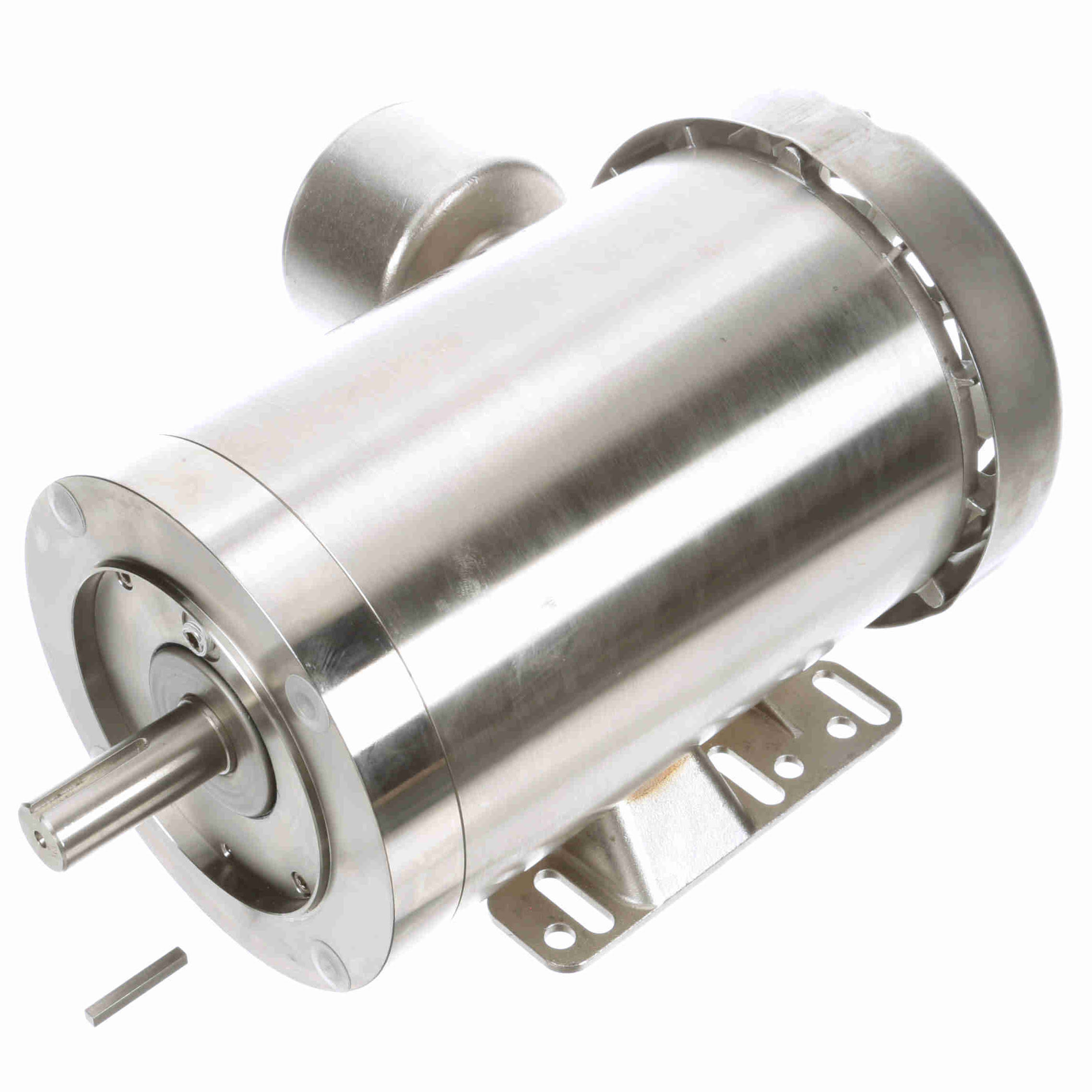

122222.00 Leeson 2HP Washdown Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 122222.00

Selected accessories will also be added to cart

$1,836.97 / Each

Quantity:

TEFC, 145TC Frame, 208-230/460VAC 60Hz 3-Phase, C-Face, Rigid Base, Stainless Steel Frame, 7/8" Keyed Shaft

Details
Purchase Components

Features

Q-Car(TM) rotor cartridge for quick access
Double-sealed ball bearings with high temperature grease
Non-wicking lead wires; Two-piece shaft seal with flinger
Chemical and abrasion resistant lead markers
Conduit box rotates 360 degrees on TEFC models
Enhanced encapsulation process
Total winding encapsulation using an epoxy resin
LEESON’s exclusive IRIS® Inverter-Rated Insulation System provides extra protection and long life, especially when used in applications driven by an Inverter
CSA Energy Efficiency Verification Program, report number EEV 78720-1
IP69K enclosure protection;Color Coded Leads; Full fact nameplate is laser etched on the motor frame

General Specifications

UPC:	691720053515	Weight:	62.00 LB
Packaged Length:	17.94 IN	Packaged Width:	13.06 IN
Packaged Height:	12.88 IN

Nameplate Specifications

Output HP:	2 Hp	Output KW:	1.5 kW
Frequency:	60 Hz	Voltage:	208-230/460 V
Current:	6.0-5.8/2.9 A	Speed:	1745 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	86.5 %	Power Factor:	75.6
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	L
Frame:	145TC	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6205
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	69

Technical Specifications

Electrical Type:	Squirrel Cage Inverter Rated	Starting Method:	Line Or Inverter
Poles:	4	Rotation:	Reversible
Resistance Main:	6 Ohms	Mounting:	Rigid base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Stainless Steel
Shaft Type:	T	Overall Length:	13.25 in
Frame Length:	8.25 in	Shaft Diameter:	0.875 in
Shaft Extension:	2.12 in	Assembly/Box Mounting:	F1 Only

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Pull-Up	25.37	1,268.0	24.60	410.0	120	14.10	0.0	2.00
Full Load	2.00	100.0	6.00	100.0	1,757	1.70	0.0	2.00
Locked-Rotor	26.58	1,329.0	24.60	410.0	0	14.36	0.0	2.00
Break-Down	19.17	958.0	28.80	480.0	1,100	12.00	0.0	2.00

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	150 %
Current (Amps)	1.70	1.92	2.19	2.58	3.01	3.50	4.05
Rated Output (KW)	0.10	0.51	0.91	1.32	1.73	2.16	2.59
Efficiency (%)	0.0	74.5	83.5	85.7	86.5	85.6	84.7
Power Factor (%)	7.0	33.4	51.9	64.0	72.0	77.3	80.3
Speed (RPM)	1,798	1,787	1,774	1,763	1,751	1,732	1,717
Temp. Rise @ FL	0.0	0.0	0.0	0.0	53.0	0.0	0.0
Torque (ft-lbs)	0.00	1.50	3.00	4.50	6.00	7.50	9.00
