/Products/Electric Motors/3 Phase Stainless Steel/Leeson/Washguard/JM Pump, TEFC, C-Face with Base/122210.00 Leeson 1.5HP Washdown JM Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: 122210.00

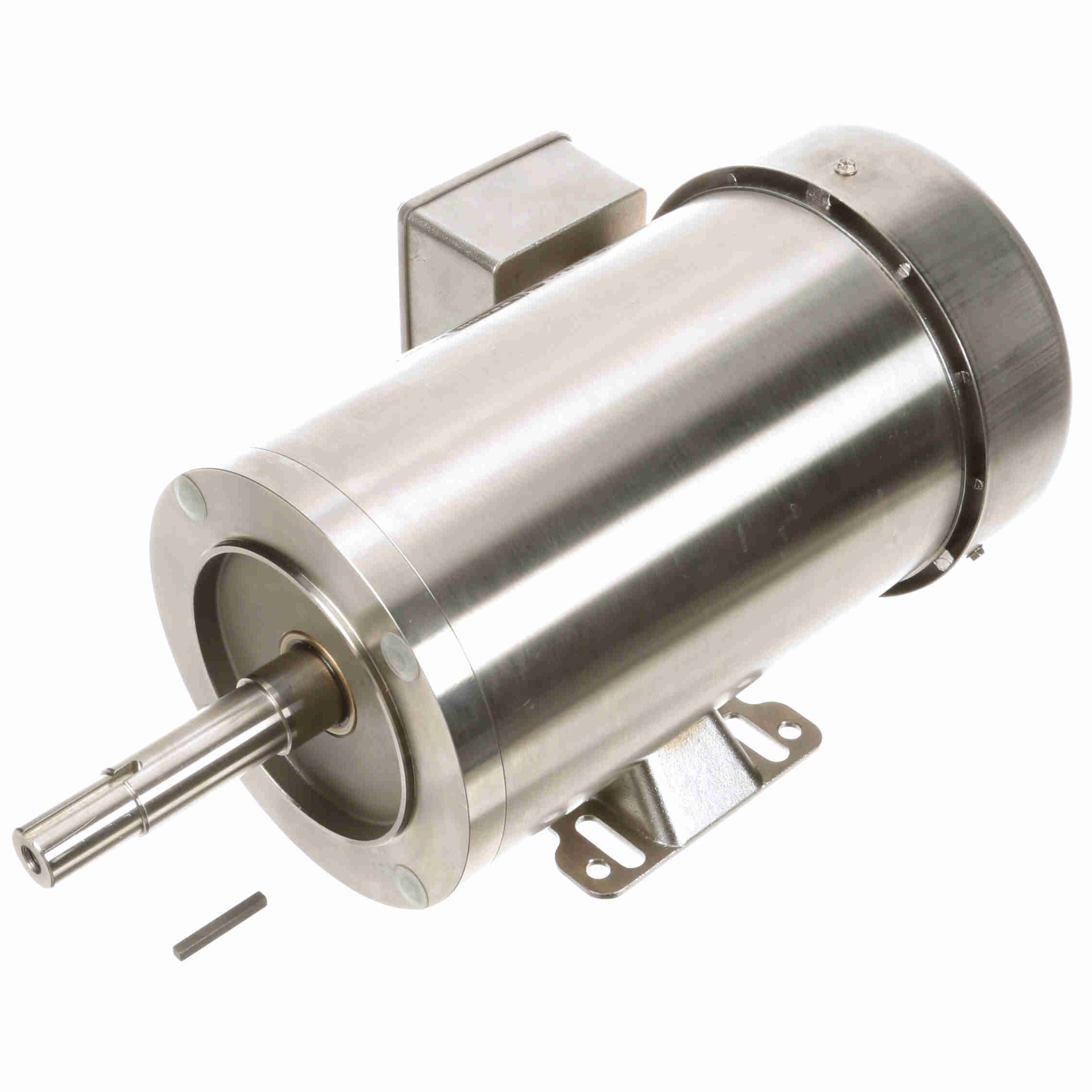

122210.00 Leeson 1.5HP Washdown JM Pump Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 122210.00

Selected accessories will also be added to cart
$1,419.97 / Each
Quantity:
TEFC, 143JM Frame, 230/460VAC 60Hz 3-Phase, Rigid Base, Stainless Steel Frame, 7/8" Keyed Shaft

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion
  • Three phase motors are UL component recognized – file number E57948, guide number PRGY2
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720053126 Weight: 48.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 4.0/2.0 A Speed: 3490 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 84 % Power Factor: 82
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: M
Frame: 143JM Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 8.5 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Stainless Steel
Shaft Type: JM Overall Length: 16.50 in
Frame Length: 9.00 in Shaft Diameter: 0.875 in
Shaft Extension: 4.28 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 2.00 2.25 100.0 3,521 1.50
Break-Down 0.00 11.20 498.0 2,600 1.50
Pull-Up 0.00 8.50 378.0 200 1.50
Locked-Rotor 21.00 8.50 378.0 0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.00 1.14 1.39 1.69 2.03 2.44 2.87
Rated Output (KW) 0.10 0.42 0.72 1.03 1.33 1.64 1.98
Efficiency (%) 0.0 67.8 79.1 82.2 84.6 84.7 84.2
Power Factor (%) 12.6 46.2 64.7 76.3 82.2 84.6 86.8
Speed (RPM) 3,599 3,578 3,559 3,540 3,521 3,501 3,478
Temp. Rise @ FL 0.0 0.0 0.0 0.0 46.0 0.0 0.0
Torque (ft-lbs) 0.00 0.56 1.12 1.68 2.25 2.80 3.38
