/Products/Electric Motors/3 Phase Explosion Proof/Leeson/Rigid Base/121918.00 Leeson 3HP Explosion Proof Electric Motor, 3600RPM
Click Image to Expand

Product ID: 121918.00

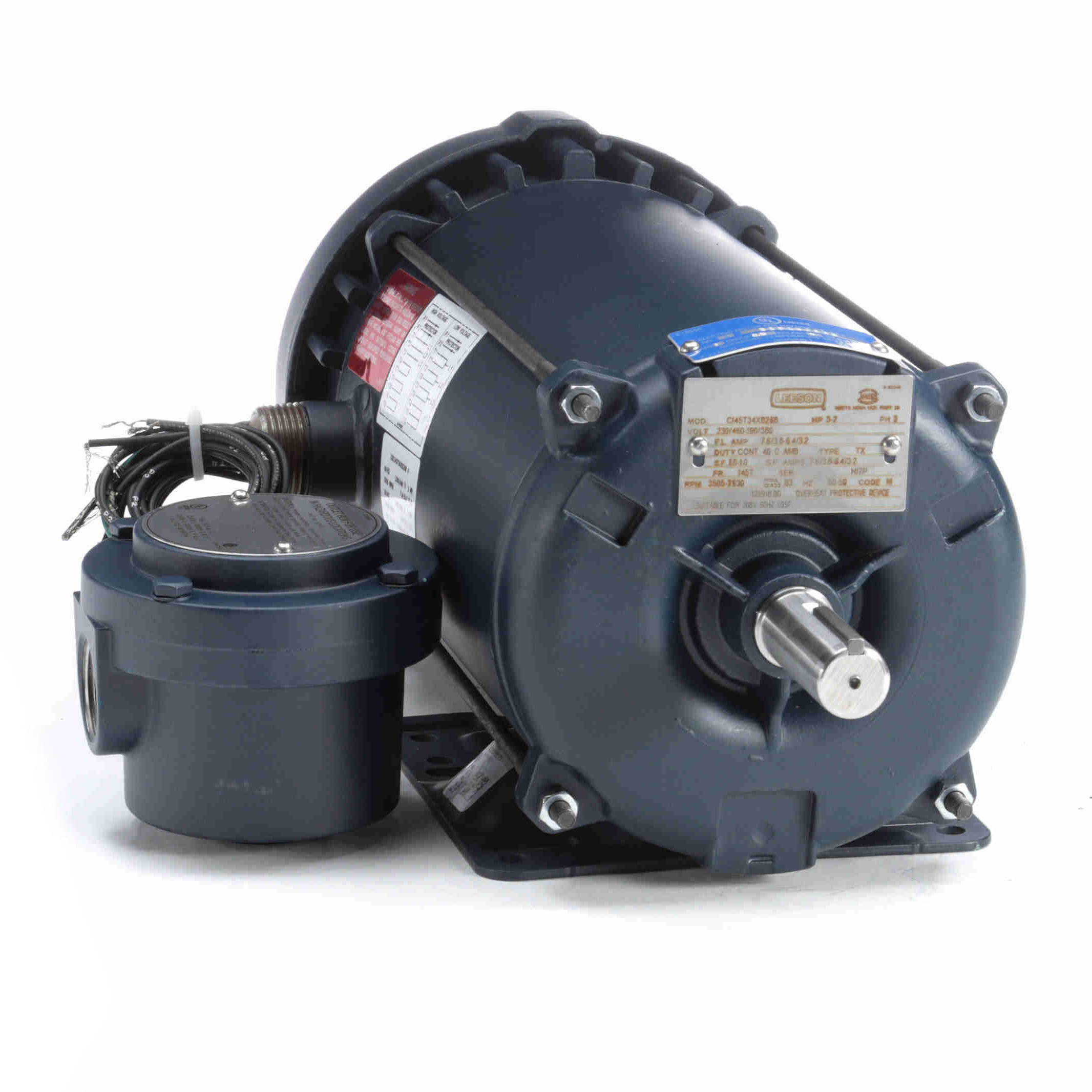

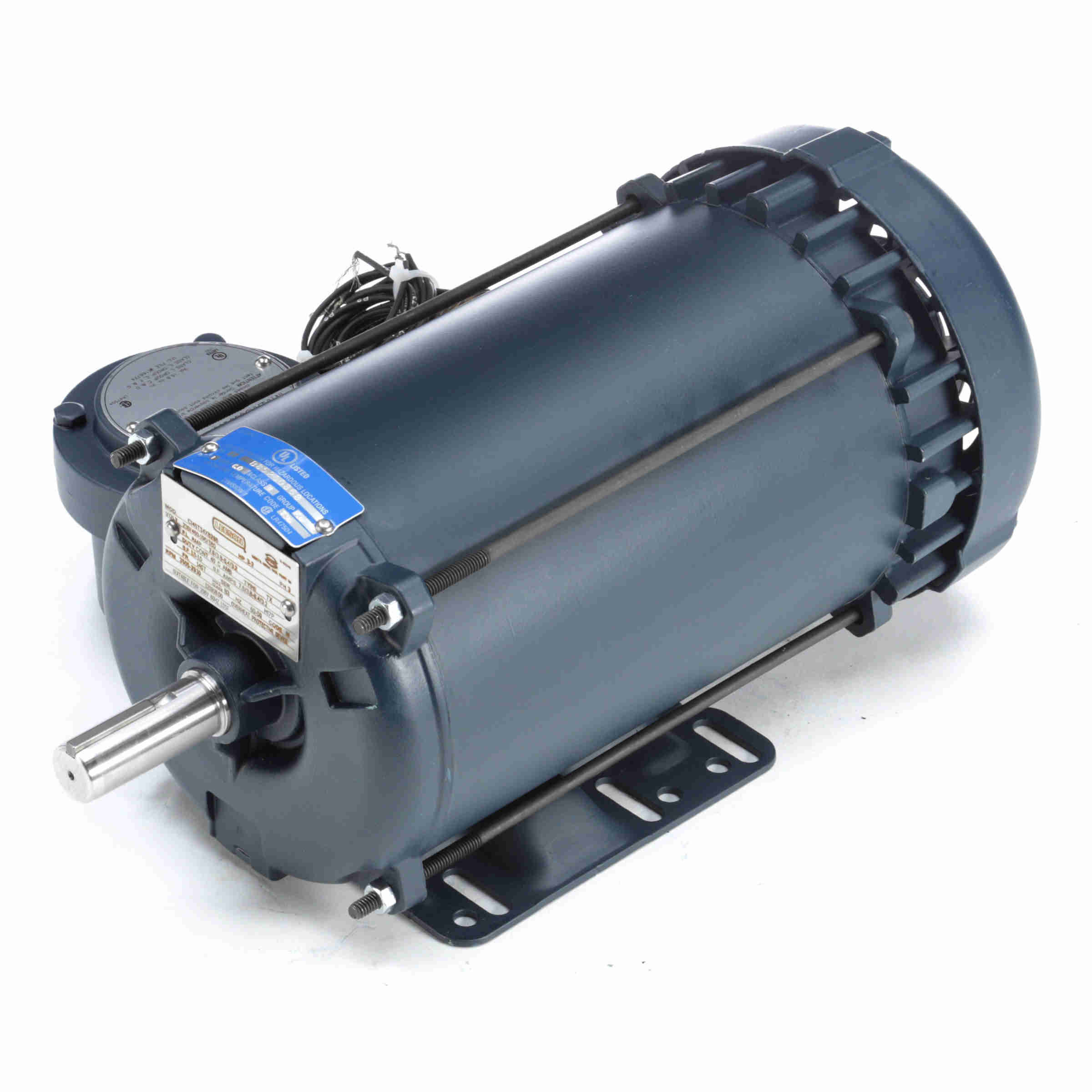

121918.00 Leeson 3HP Explosion Proof Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 121918.00

Selected accessories will also be added to cart
$1,399.97 / Each
Quantity:
EPFC, 145T Frame, 230/460V 3-Phase 60Hz, T-Stat, Rigid Base, C145T34XB26B
Features
  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B
General Specifications
Model :C145T34XB26B Catalog No :121918.00
Part Description :3HP..3600RPM.145T.EPFC.60HZ..230/460V.3PH. Category :Explosion Proof
Stock :No
Nameplate Specifications
Output HP :3 Hp Output KW :2.2 kW
Frequency :60 Hz Voltage :230/460 V
Current :7.6/3.8 A Speed :3505 rpm
Service Factor :1 Phase :3
Efficiency :87.5 % Duty :Continuous
Insulation Class :B Design Code :A
KVA Code :M Frame :145T
Enclosure :Explosion Proof Fan cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Listed
CSA :N CE :N
IP Code :54
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :16.00 in Frame Length :8.81 in
Shaft Diameter :0.875 in Shaft Extension :2.25 in
Assembly/Box Mounting :F1 ONLY UPC :691720346266
Weight :56.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down27.20716.022.70504.02,3850.0085.53.00
Pull-Up38.301,008.016.60369.023021.1069.03.00
2/329.50776.018.15403.02,4000.000.03.00
1/335.00921.014.70327.01,2000.000.03.00
No Load1.7045.00.000.03,6000.1511.03.00
Locked-Rotor36.90971.017.29384.0021.1071.53.00
Full Load3.80100.04.50100.03,5050.0084.03.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.70
  • 0.150
  • 0.0
  • 11.0
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 1.90
  • 0.706
  • 78.6
  • 46.4
  • 3,577
  • 0.0
  • 1.10
  • 50 %
  • 2.40
  • 1.297
  • 85.8
  • 67.3
  • 3,555
  • 0.0
  • 2.22
  • 75 %
  • 3.10
  • 1.910
  • 87.9
  • 78.4
  • 3,530
  • 0.0
  • 3.35
  • 100 %
  • 3.80
  • 2.545
  • 87.5
  • 84.0
  • 3,505
  • 57.0
  • 4.50
  • 115 %
  • 4.30
  • 2.950
  • 87.5
  • 86.5
  • 3,485
  • 69.0
  • 5.20
  • 125 %
  • 4.60
  • 3.211
  • 87.1
  • 87.6
  • 3,475
  • 0.0
  • 5.67
  • 150 %
  • 5.50
  • 3.903
  • 86.0
  • 89.4
  • 3,450
  • 0.0
  • 6.85
