/Products/Electric Motors/Single Phase/Leeson/High Torque TEFC/121569.00 1HP Leeson Farm Duty Electric Motor
Click Image to Expand

Product ID: 121569.00

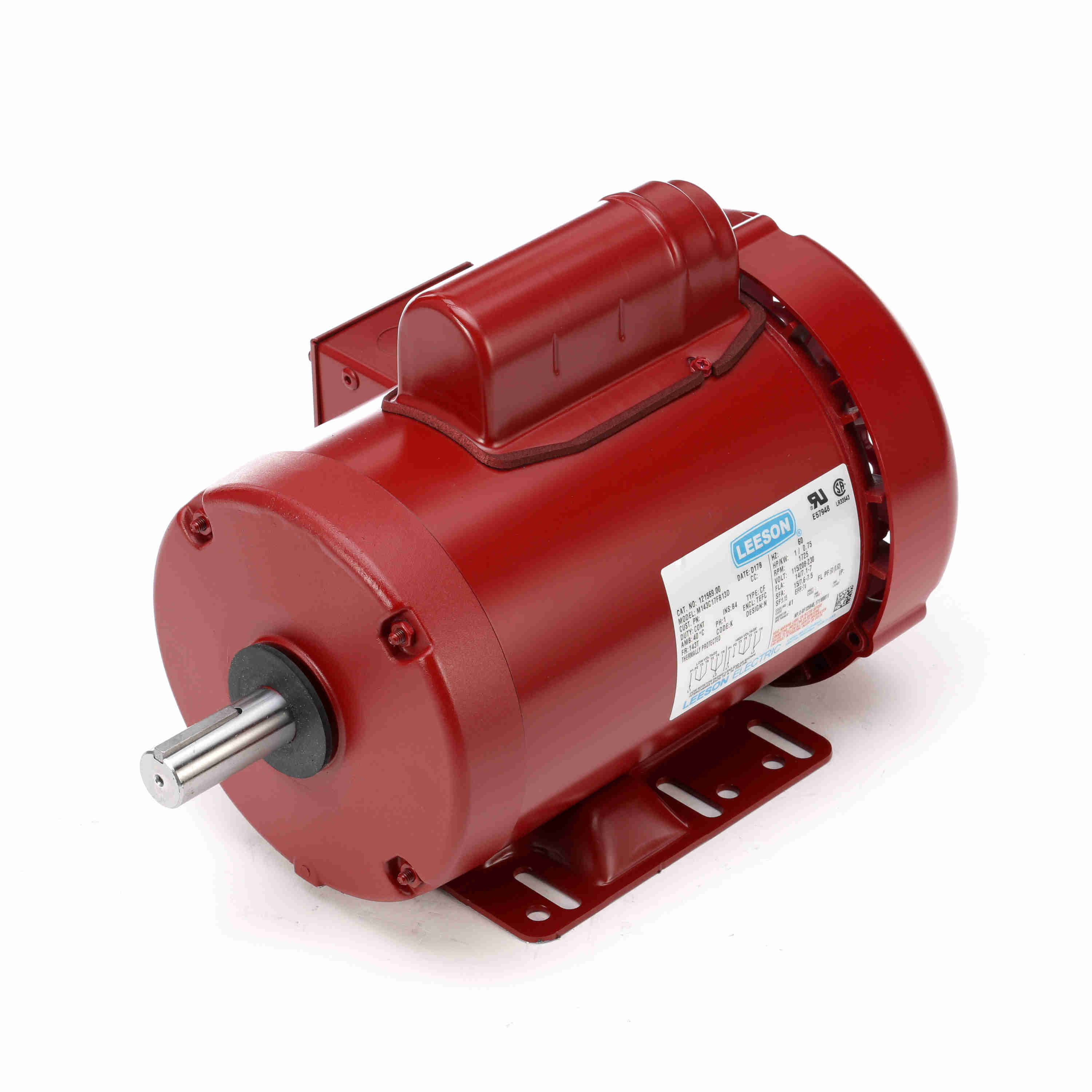

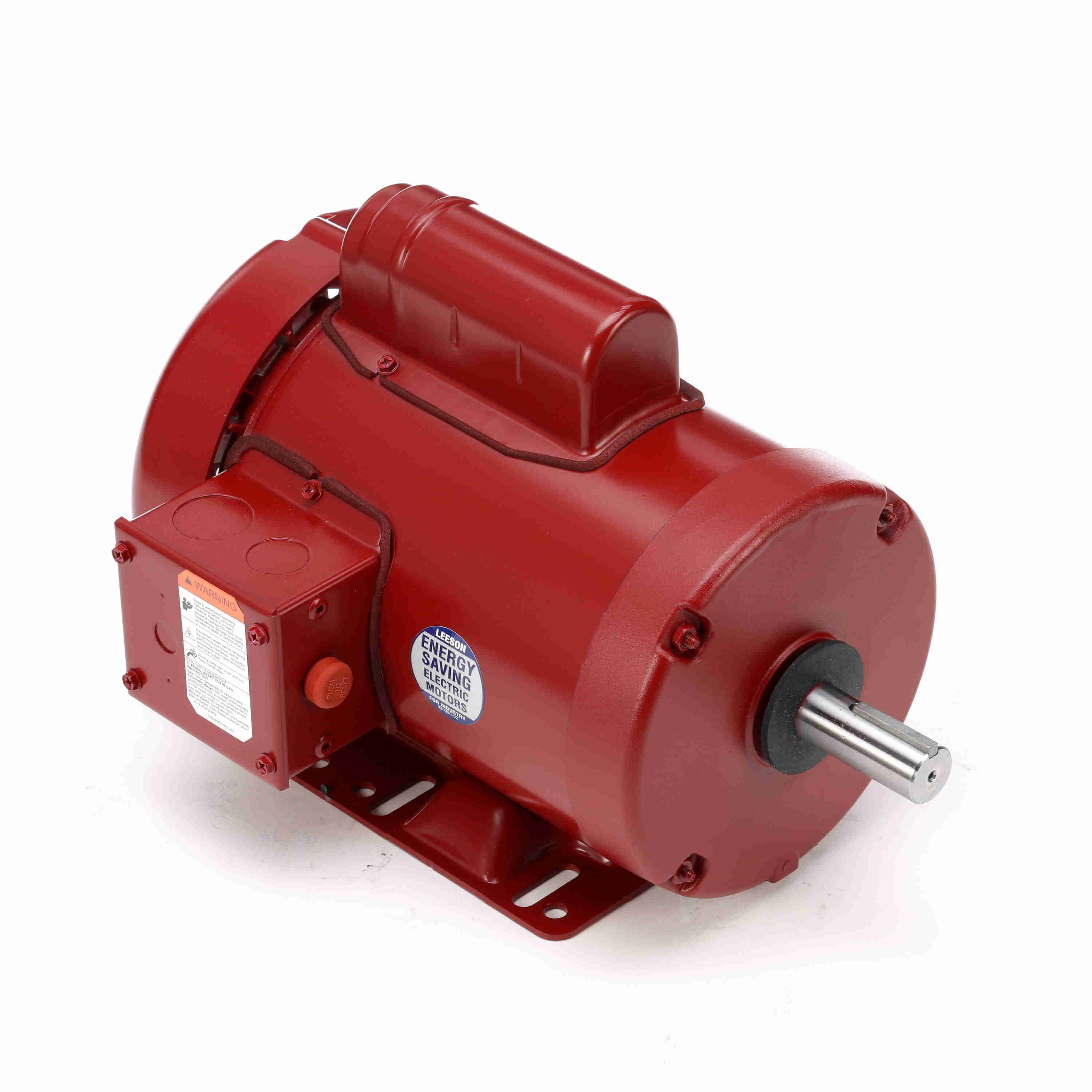

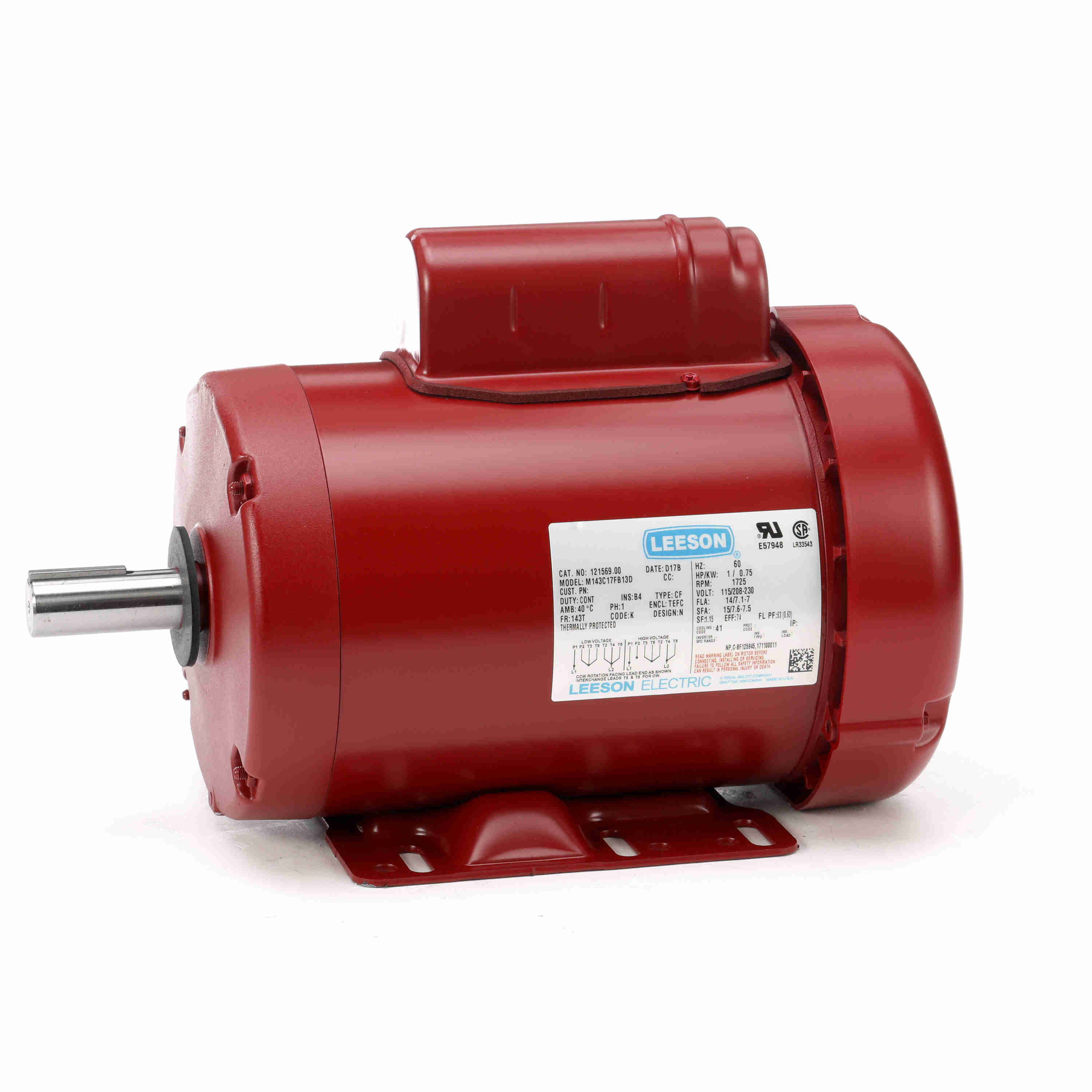

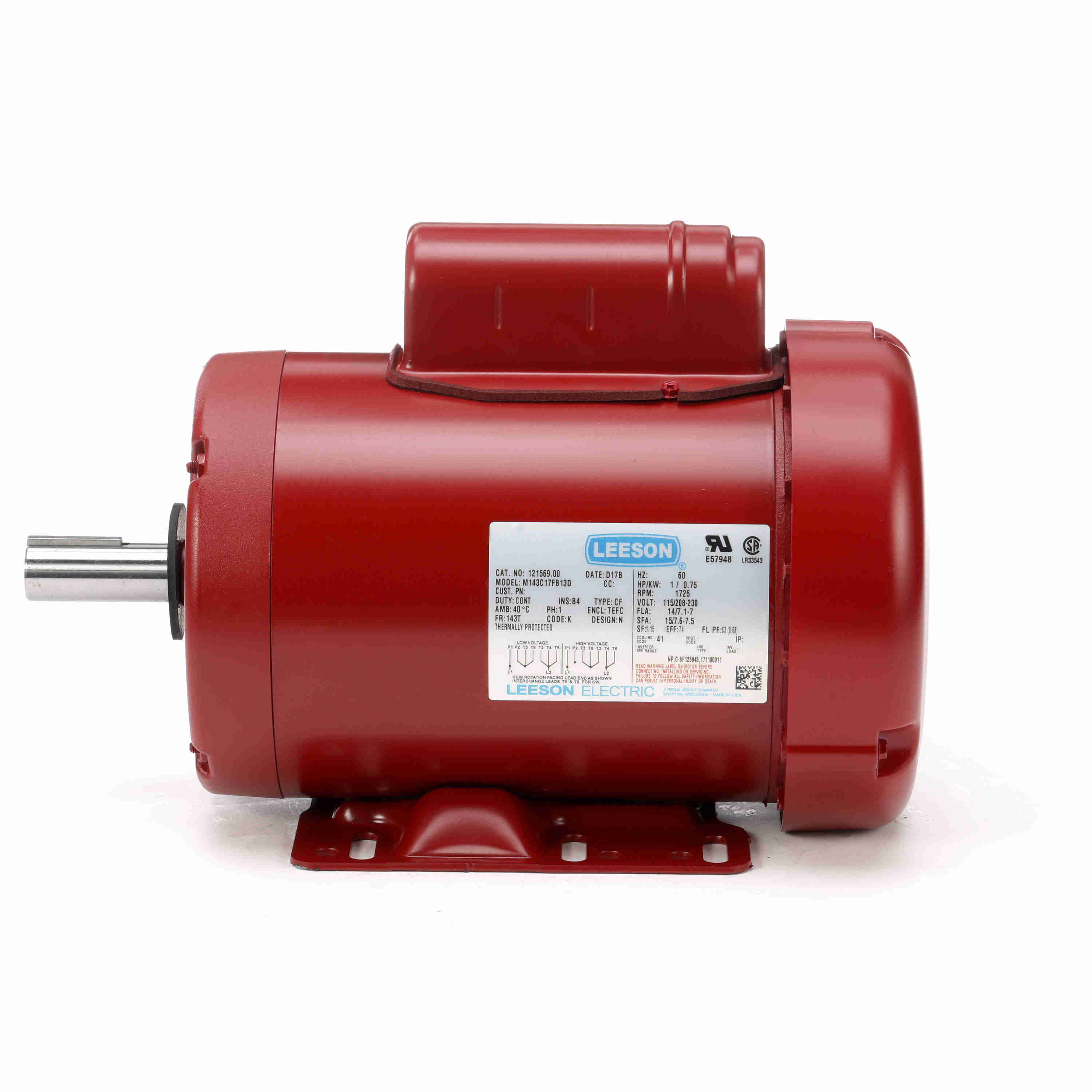

121569.00 1HP Leeson Farm Duty Electric Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M174C17FB13

Temporarily out of stock
Selected accessories will also be added to cart
$154.88 / Each
TEFC, 1800RPM, 143T Frame, 115/208-230VAC Single Phase 60Hz

Product Features

Catalog No 121569.00 Model M143C17FB13D
Product type AC MOTOR Stock Stock
Description 1HP..1725RPM.143.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.FARM DUTY.M143C17FB13D
 Engineering Data
Volts 115 Volts 208-230 Volts
F.L. Amps 14 F.L. Amps 7.1-7 F.L. Amps
S. F Amps 15 S. F Amps 7.6-7.5 S. F Amps
RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE CF
KW .75
Frame 143T Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection MANUAL Therm.Prot. CED2797
Eff 100% 74 Eff 75% PF 63
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 33 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
Assembly Shaft Dia. 7/8 IN Ext. Diag. 005003.03
Cust Part No Outline 028915-700B Ext. Diag2
Packaging B Winding C634259
Carton Label Leeson Farm Duty     GROUP: 3
Iris Paint RED - LEESON FARM DUTY Test Card 04
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM OZ-FT Inertia (WK²) .099 LB-FT^2
Torque 48.16(Full Load) 132.6(Break Down) 117.6(Pull Up) 141.8(Locked Rotor)
CURRENT (amps) 7.01(Full Load) 17.9(Break Down) 29(Pull Up) 37.3(Locked Rotor)
Efficiency (%) 0(Full Load) 67.8(75% Load) 61.6(50% Load) 46.6(25% Load)
PowerFactor 0(Full Load) 57.8(75% Load) 46.9(50% Load) 33.3(25% Load)
Load Curve Data @60 Hz, 230 Volts, 1 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 4.85 0.206 1797 0.0 0.0 0.0 0.0 -
0.25 5.24 0.401 1787 11.74 46.6 33.3 0.0 -
0.5 5.61 0.606 1776 23.67 61.6 46.9 0.0 -
0.75 6.2 0.825 1764 35.74 67.8 57.8 0.0 -
1.0 7.01 1.063 1751 48.16 70.4 65.9 88.6 47.2
1.15 7.56 1.208 1743 55.44 71.0 69.4 102.0 56.3
1.25 7.97 1.312 1738 60.47 71.1 71.5 0.0 -
1.5 9.14 1.586 1722 73.28 70.6 75.5 0.0 -
SOURCE: CALCULATED GROUP: 3
