/Products/Electric Motors/Single Phase/Leeson/Woodworking/120925.00 Leeson 1.5HP Electric Motor, 3450RPM

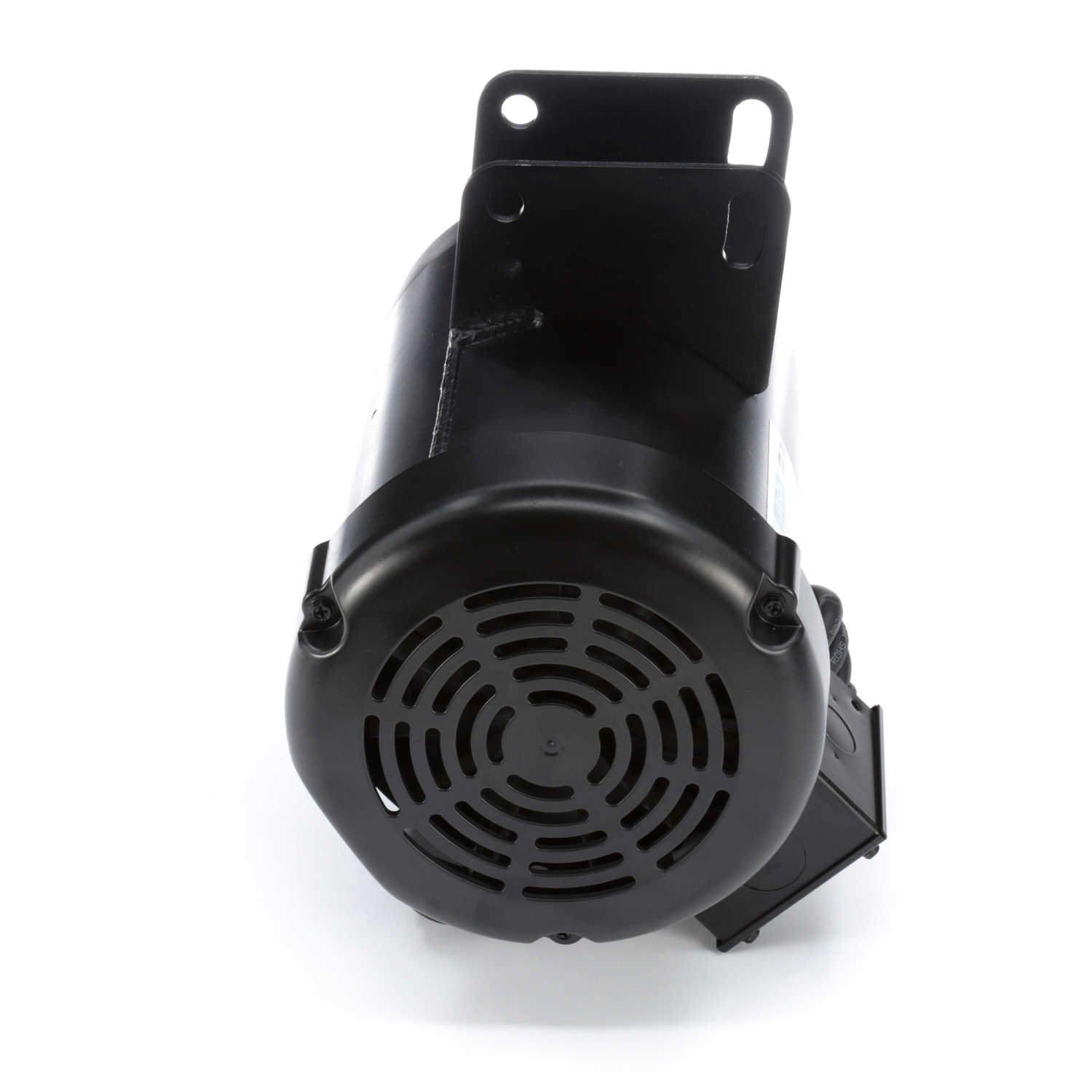

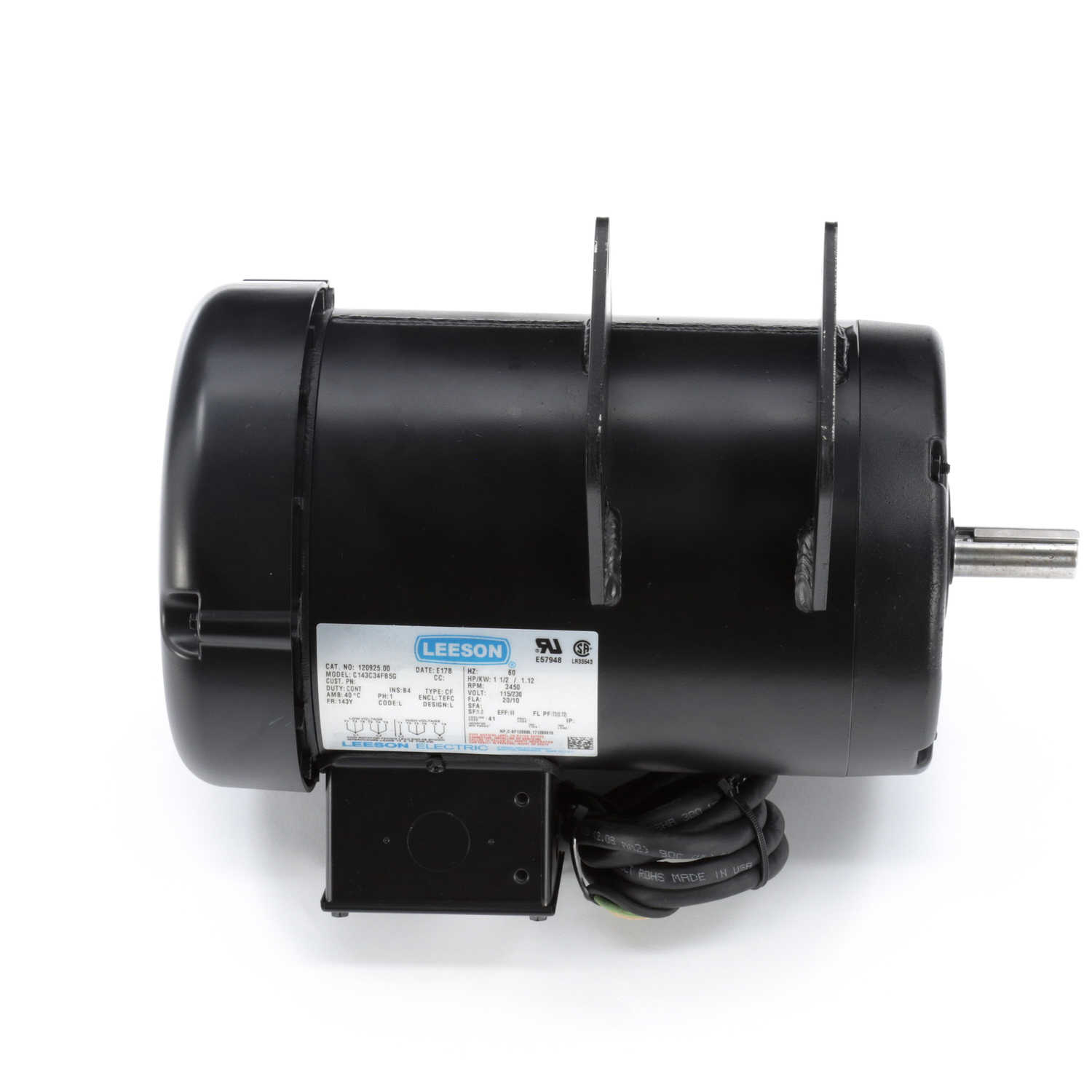

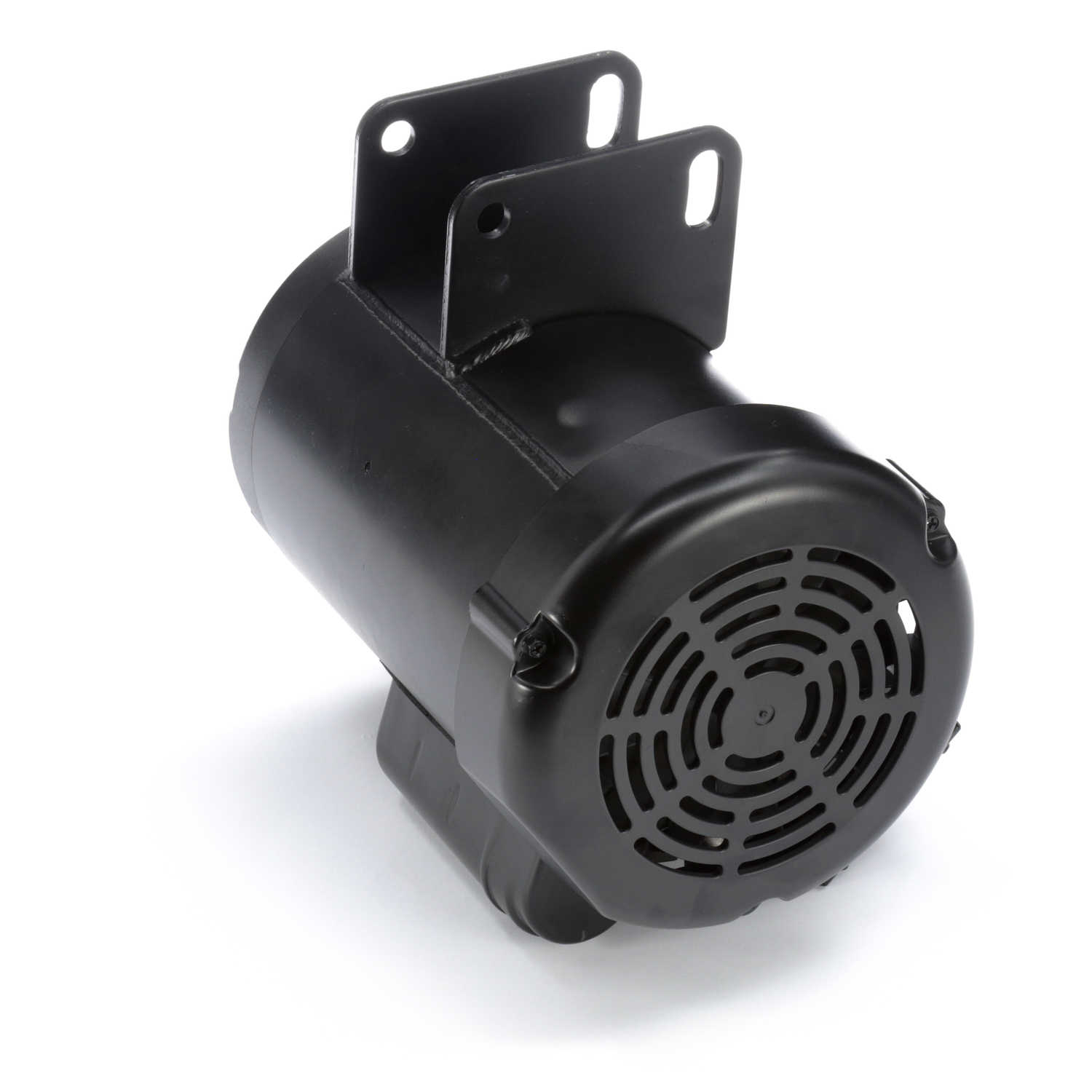

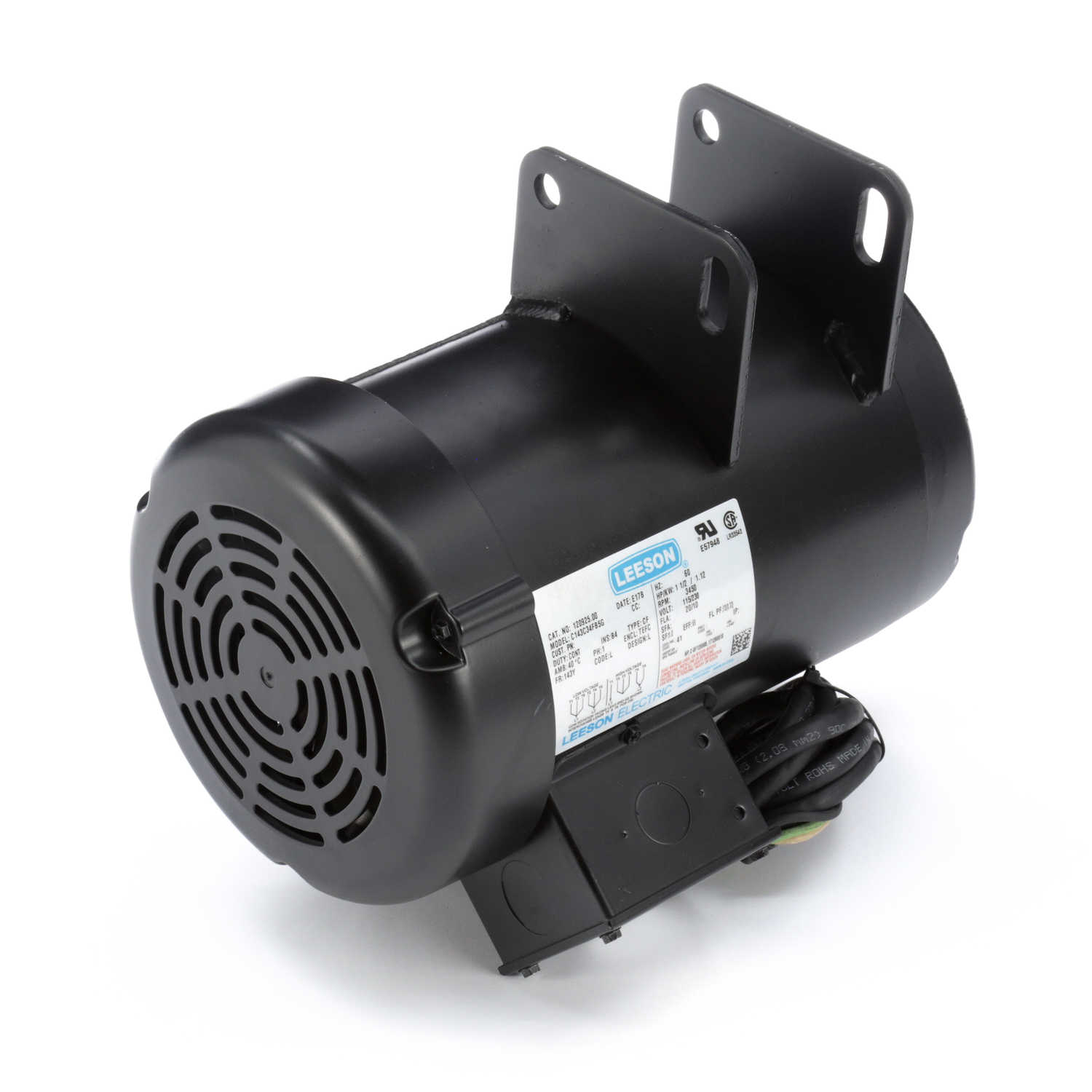

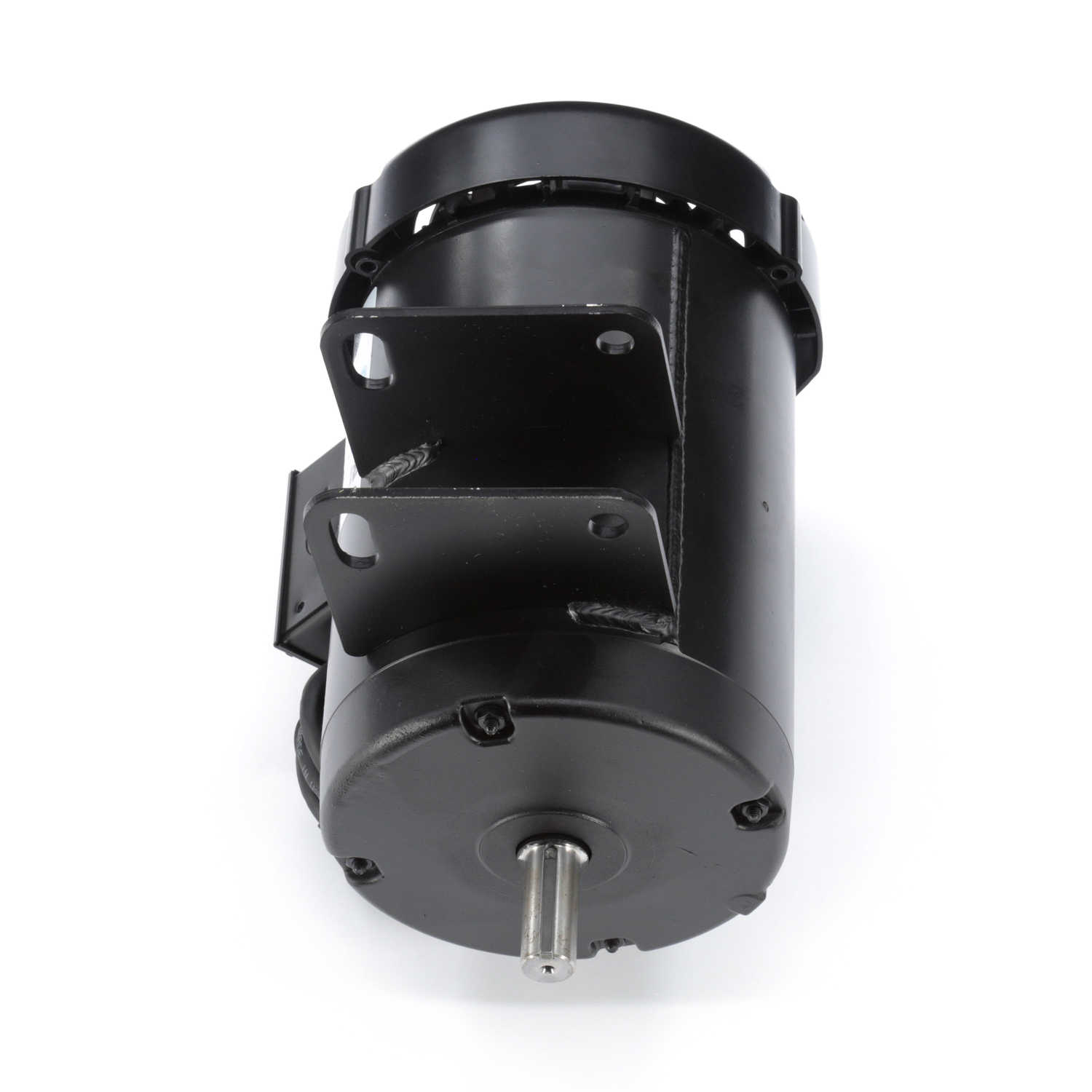

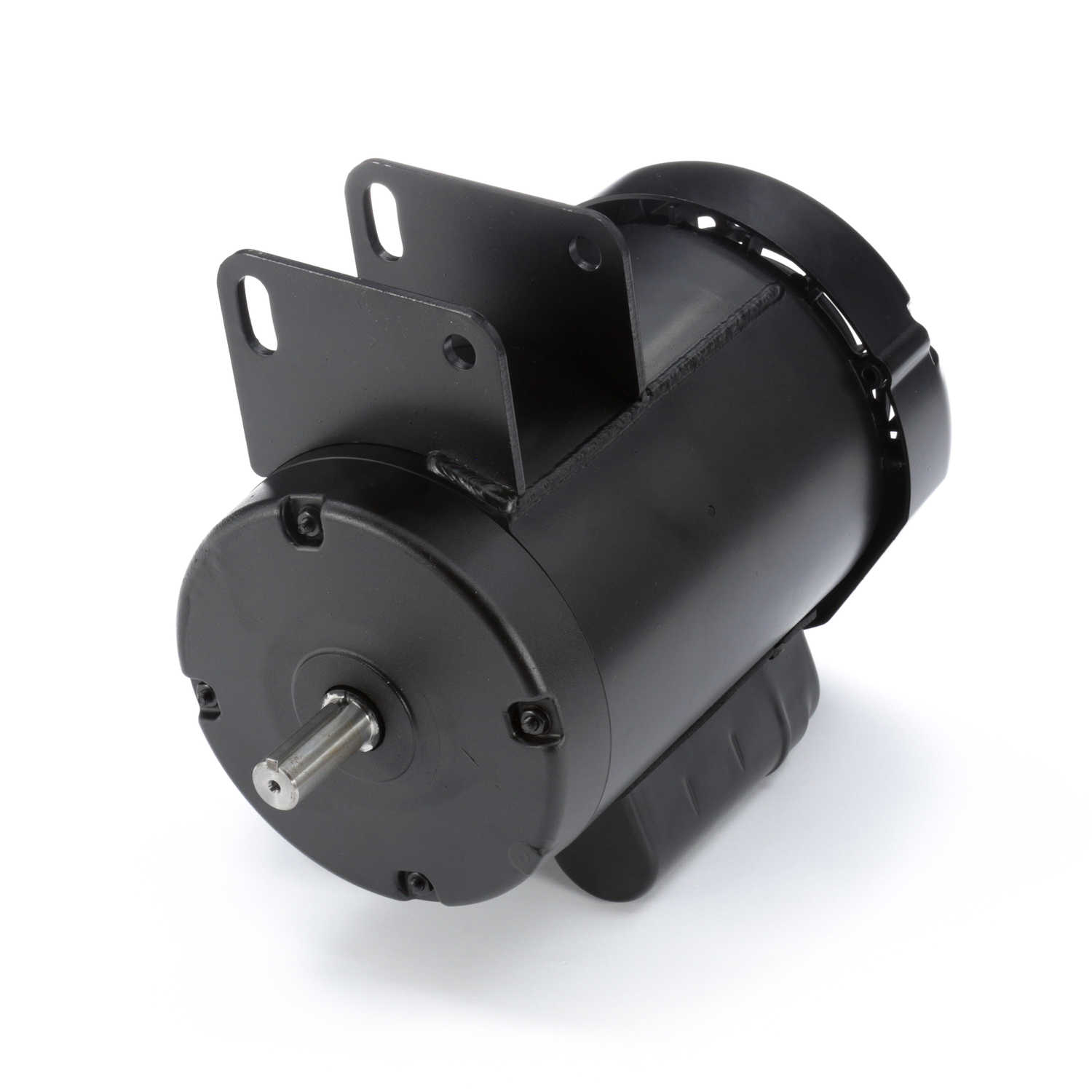

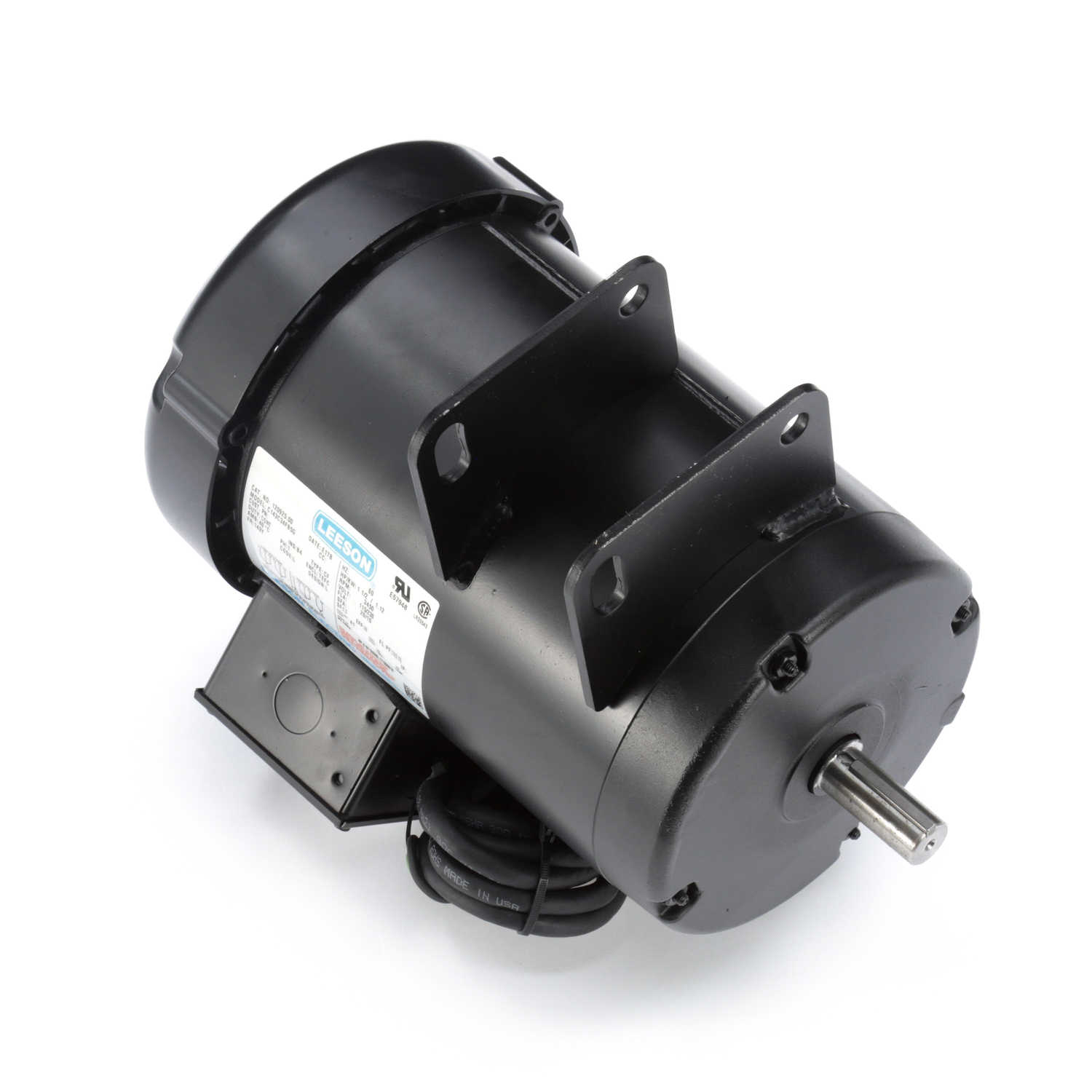

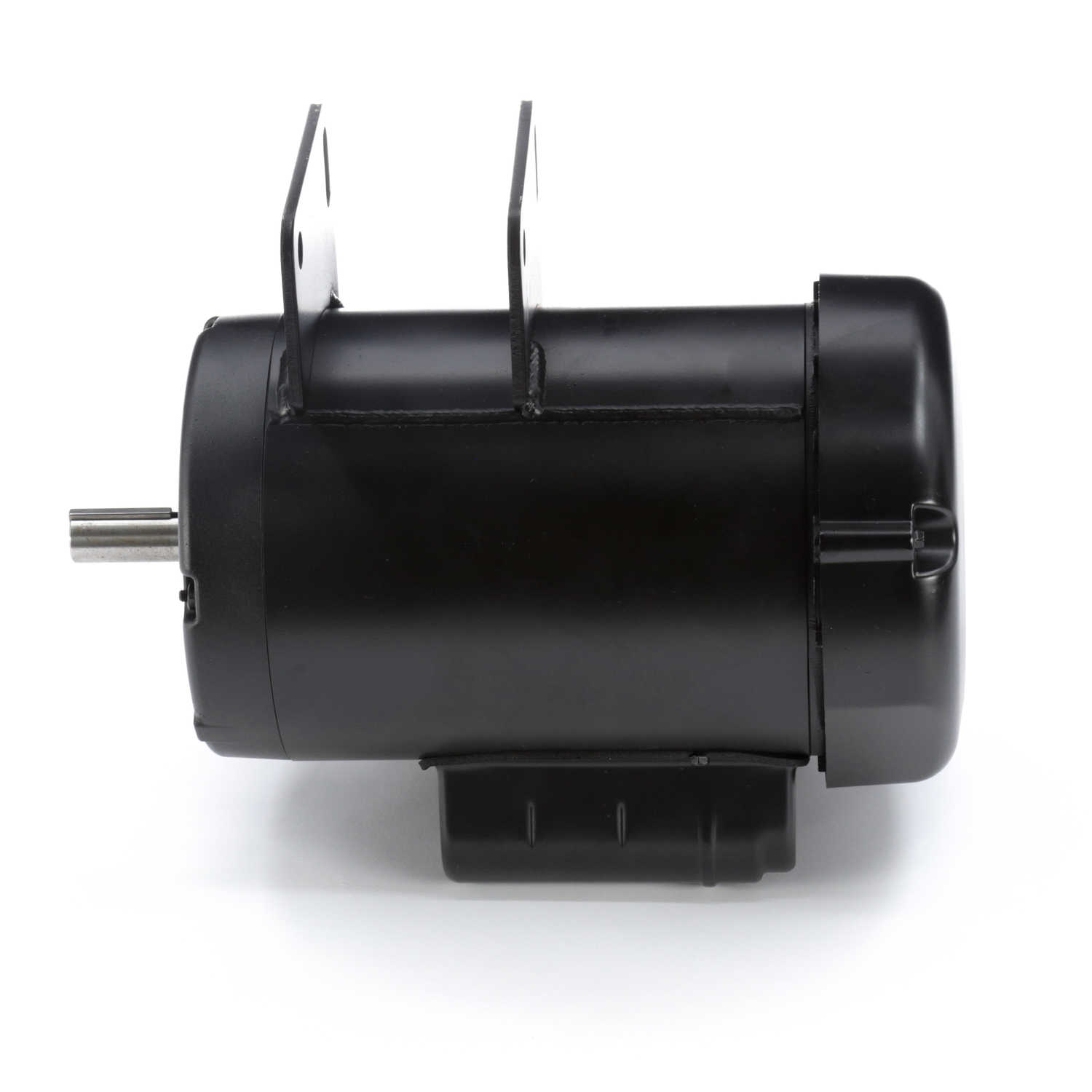

Click Image to Expand

Product ID: 120925.00

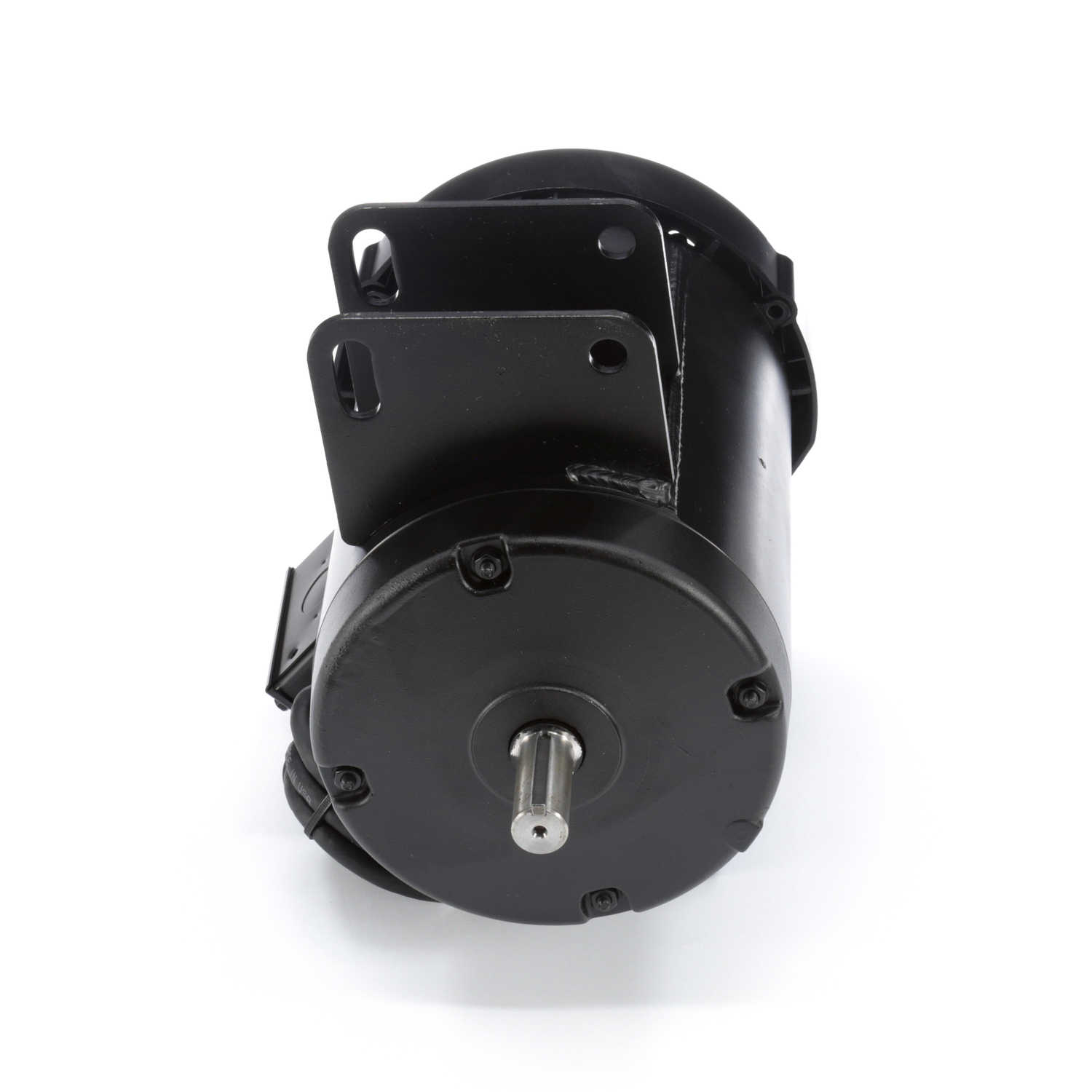

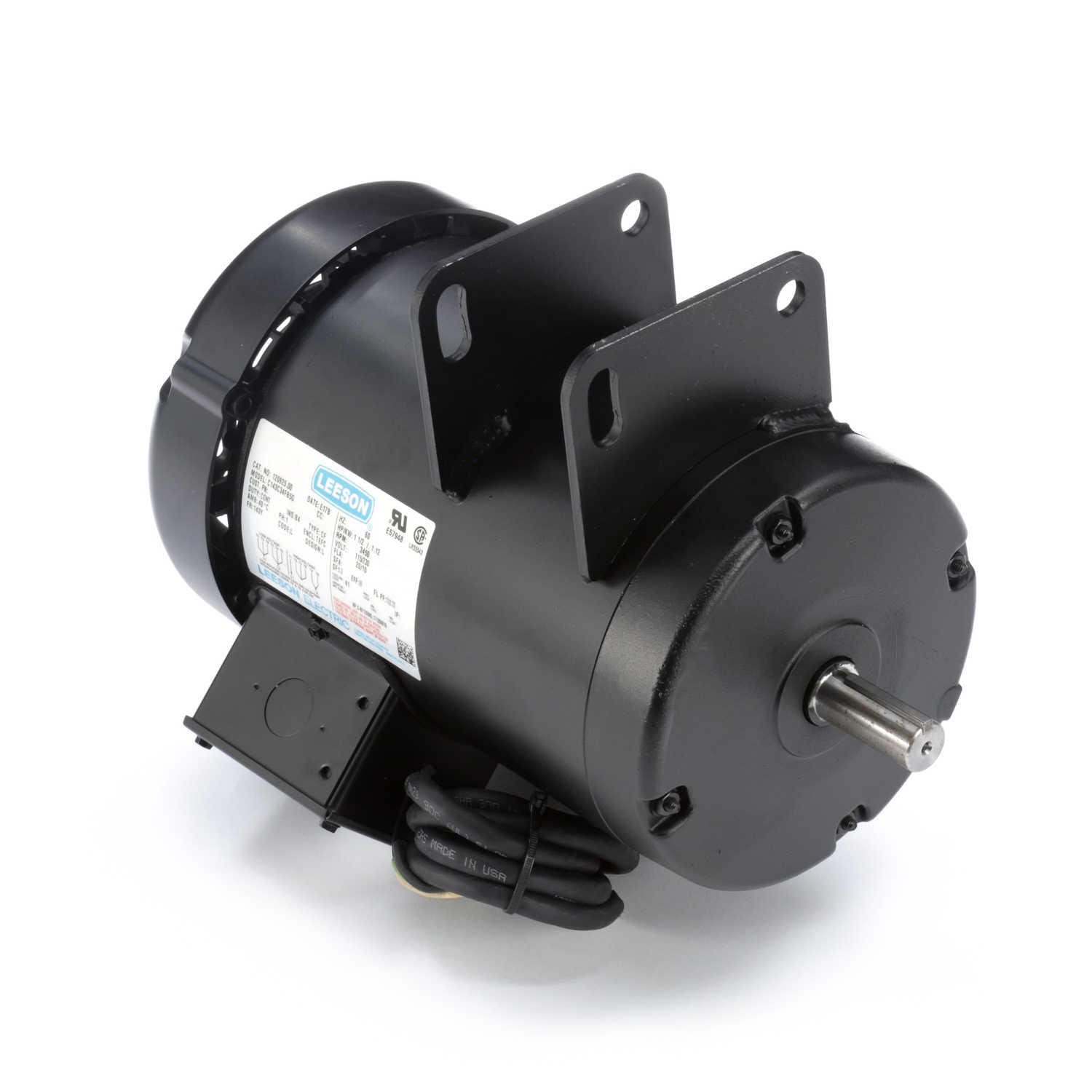

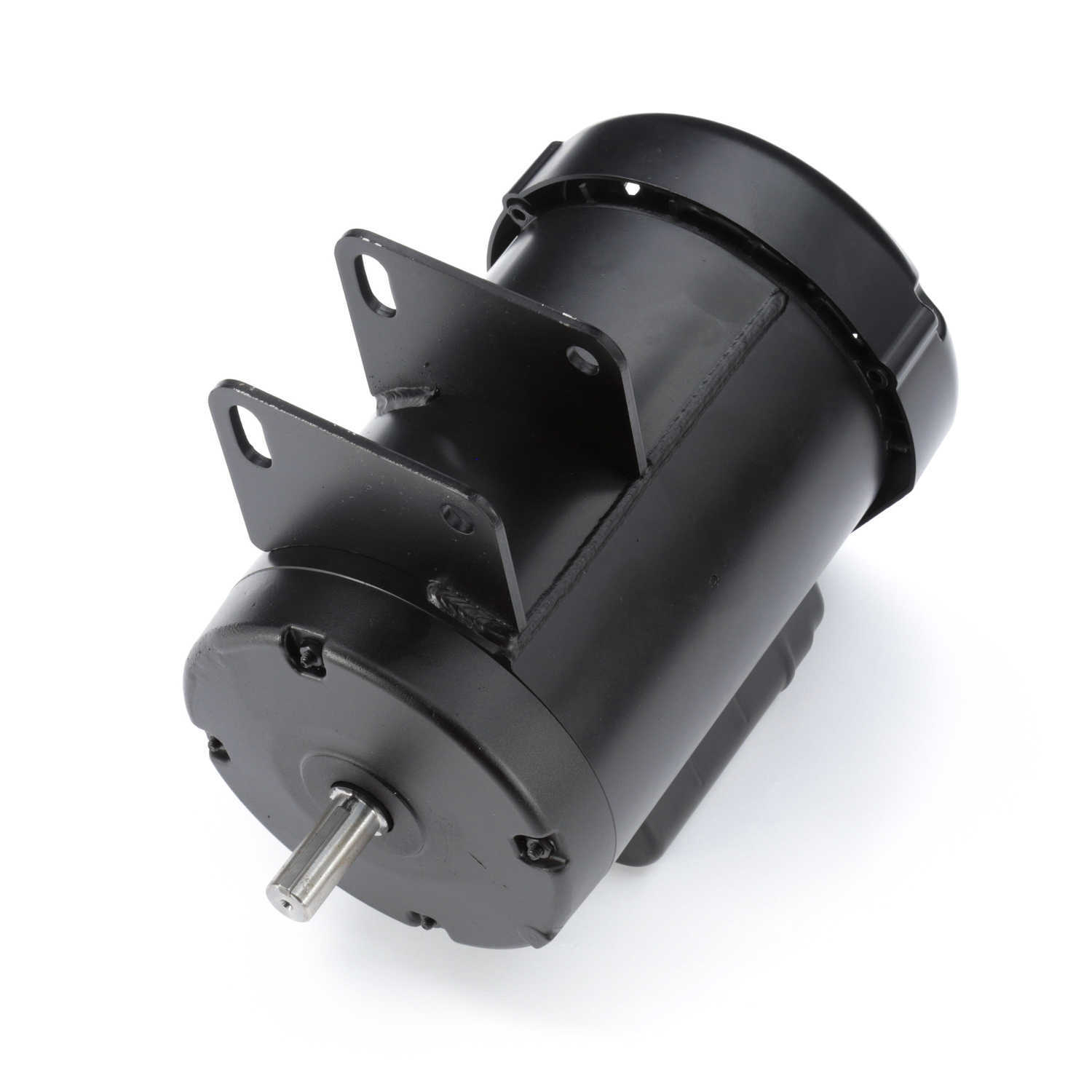

120925.00 Leeson 1.5HP Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 120925.00

Selected accessories will also be added to cart
$777.20 / Each
Quantity:
TEFC, 143Y Frame, 115/230VAC 60Hz Single Phase, Delta UNISAW Mounting, Rolled Steel, 3/4" Keyed Shaft

Features

  • Motor pivots on rod for belt tensioning
  • Extra high breakdown torques for maximum cutting power
  • 3/4” Dia. Shaft, 1-3/4” long with keyway
  • Includes 54 inch cord

General Specifications

UPC: 691720016251 Weight: 47.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 20.0/10.0 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 69 % Power Factor: 72
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: L
Frame: 143Y Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Fixed Counterclockwise
Resistance Main: .98 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 12.86 in
Frame Length: 7.50 in Shaft Diameter: 0.750 in
Shaft Extension: 1.75 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 5.50 244.0 2,300 1.50
Full Load 10.00 2.25 100.0 3,518 1.50
Locked-Rotor 60.00 6.00 267.0 0 1.50
Break-Down 0.00 7.50 333.0 2,900 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 6.30 6.54 7.19 8.08 9.17 10.10 10.41 11.80
Rated Output (KW) 0.26 0.55 0.88 1.19 1.54 1.79 1.86 2.21
Efficiency (%) 0.0 51.5 65.3 71.4 73.2 74.2 75.1 75.3
Power Factor (%) 17.9 36.8 52.9 64.0 72.9 75.0 77.6 81.5
Speed (RPM) 3,598 3,578 3,558 3,540 3,518 3,500 3,495 3,467
Temp. Rise @ FL 0.0 0.0 0.0 0.0 65.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 0.56 1.13 1.69 2.25 2.48 2.81 3.38
