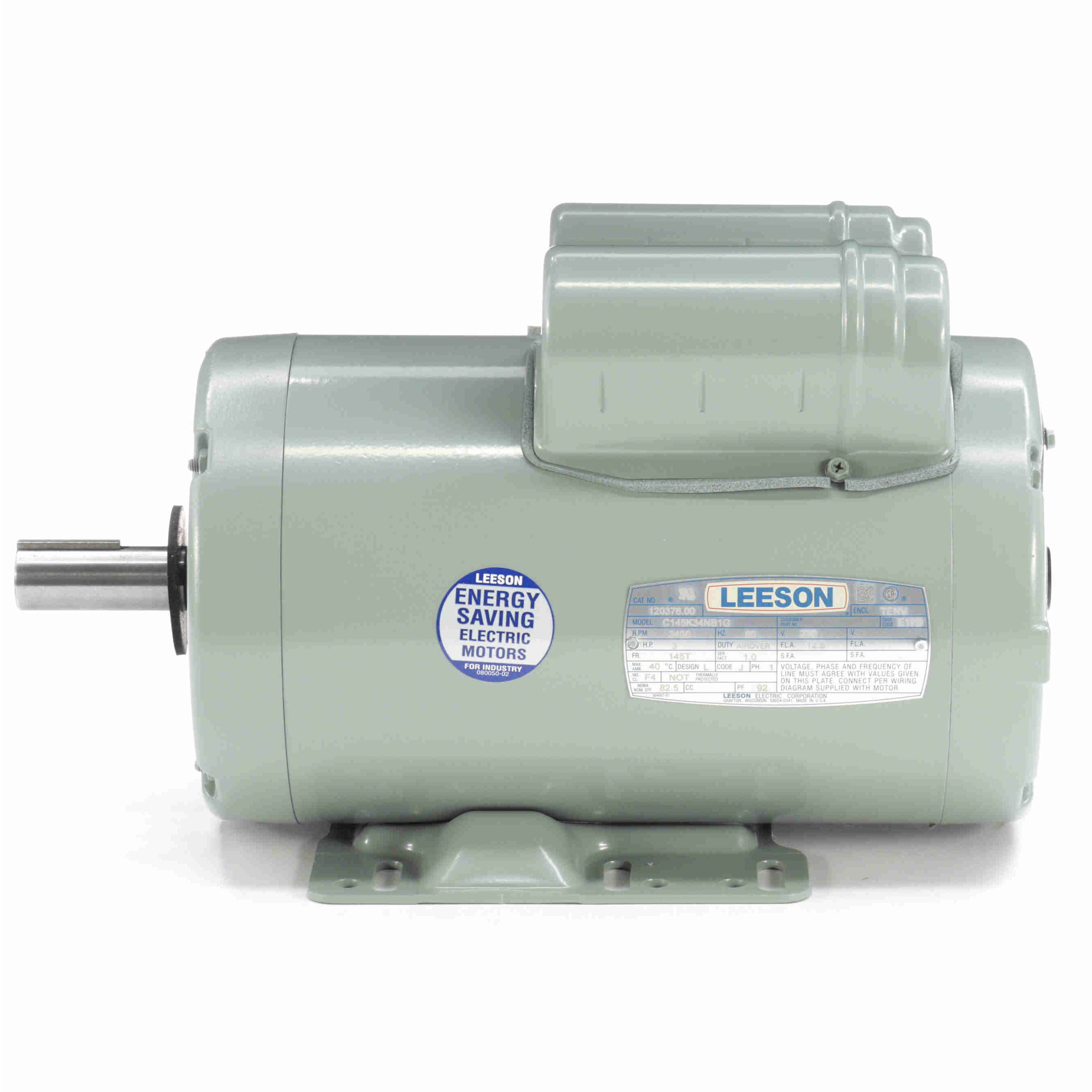

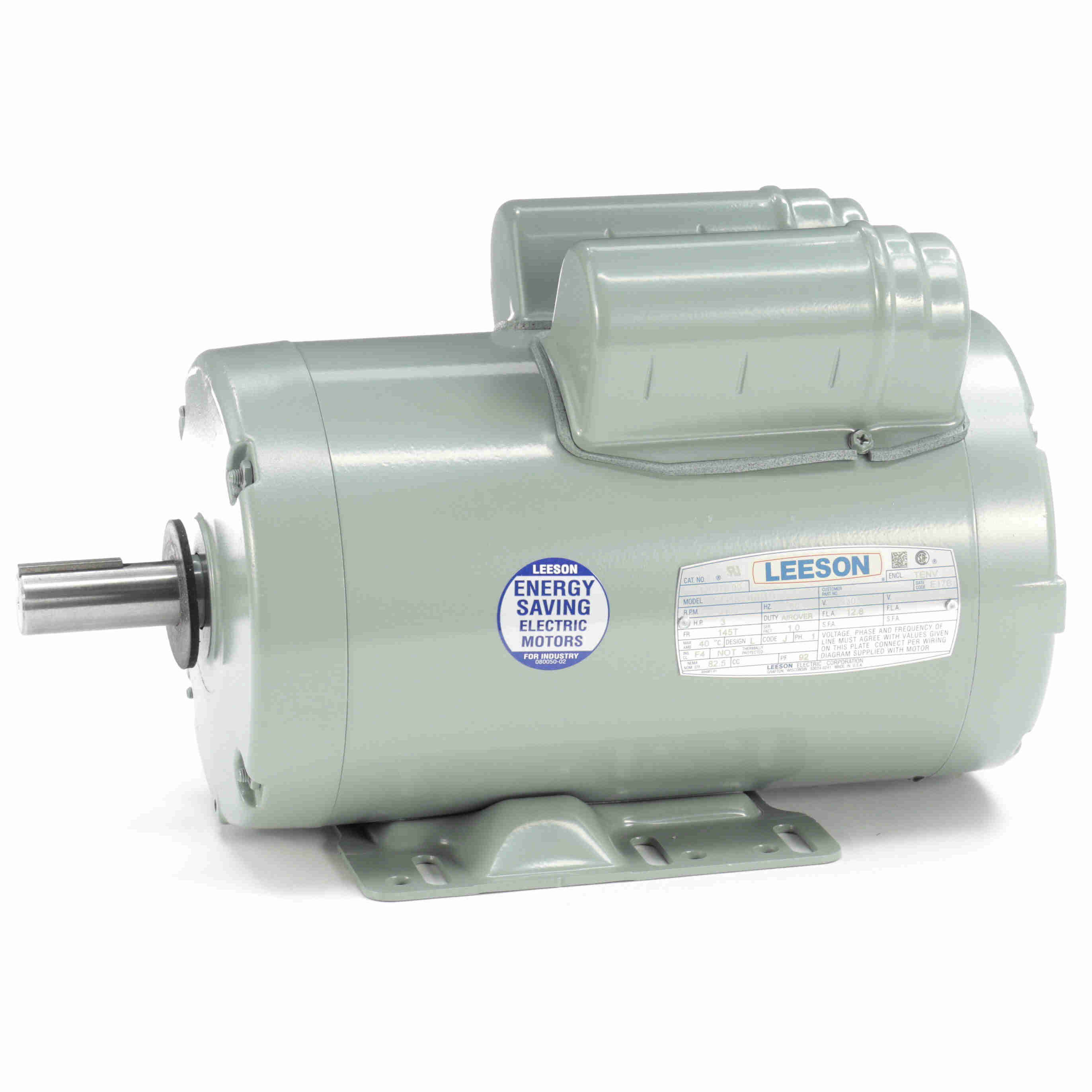

Aeration Fan Motors
Features:
• Belt driven fans or fan on shaft applications
• Capacitor start design
• Must be mounted in airstream for proper cooling
• Epoxy paint to resist corrosion
• Built-in terminal boards
Features
- Belt driven fans or fan on shaft applications
- Capacitor start designs
- Must be mounted in airstream for proper cooling
- Epoxy paint to resist corrosion
- Single-phase models have built-in terminal boards
General Specifications
| UPC: |
691720015445 |
Weight: |
48.00 LB |
| Packaged Length: |
19.5 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
12.8 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
82.5 % |
Power Factor: |
92 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
J |
| Frame: |
145T |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
.71 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
13.84 in |
| Frame Length: |
8.50 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.25 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
0.00 |
|
7.00 |
156.0 |
2,700 |
|
|
3.00 |
| Locked-Rotor |
95.00 |
|
7.60 |
169.0 |
0 |
|
|
3.00 |
| Full Load |
12.80 |
|
4.50 |
100.0 |
3,524 |
|
|
3.00 |
| Break-Down |
0.00 |
|
12.10 |
269.0 |
3,100 |
|
|
3.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
3.63 |
5.24 |
7.74 |
10.06 |
12.87 |
15.92 |
19.31 |
| Rated Output (KW) |
0.27 |
0.87 |
1.52 |
2.08 |
2.73 |
3.41 |
4.16 |
| Efficiency (%) |
0.0 |
66.5 |
75.0 |
82.0 |
82.6 |
82.2 |
80.2 |
| Power Factor (%) |
32.3 |
71.8 |
85.2 |
89.7 |
92.1 |
93.1 |
93.6 |
| Speed (RPM) |
3,598 |
3,582 |
3,561 |
3,545 |
3,524 |
3,502 |
3,475 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.13 |
2.25 |
3.38 |
4.50 |
5.63 |
6.75 |
