/Products/Electric Motors/Single Phase/Leeson/Woodworking/120341.00 Leeson 3HP Electric Motor, 3450RPM

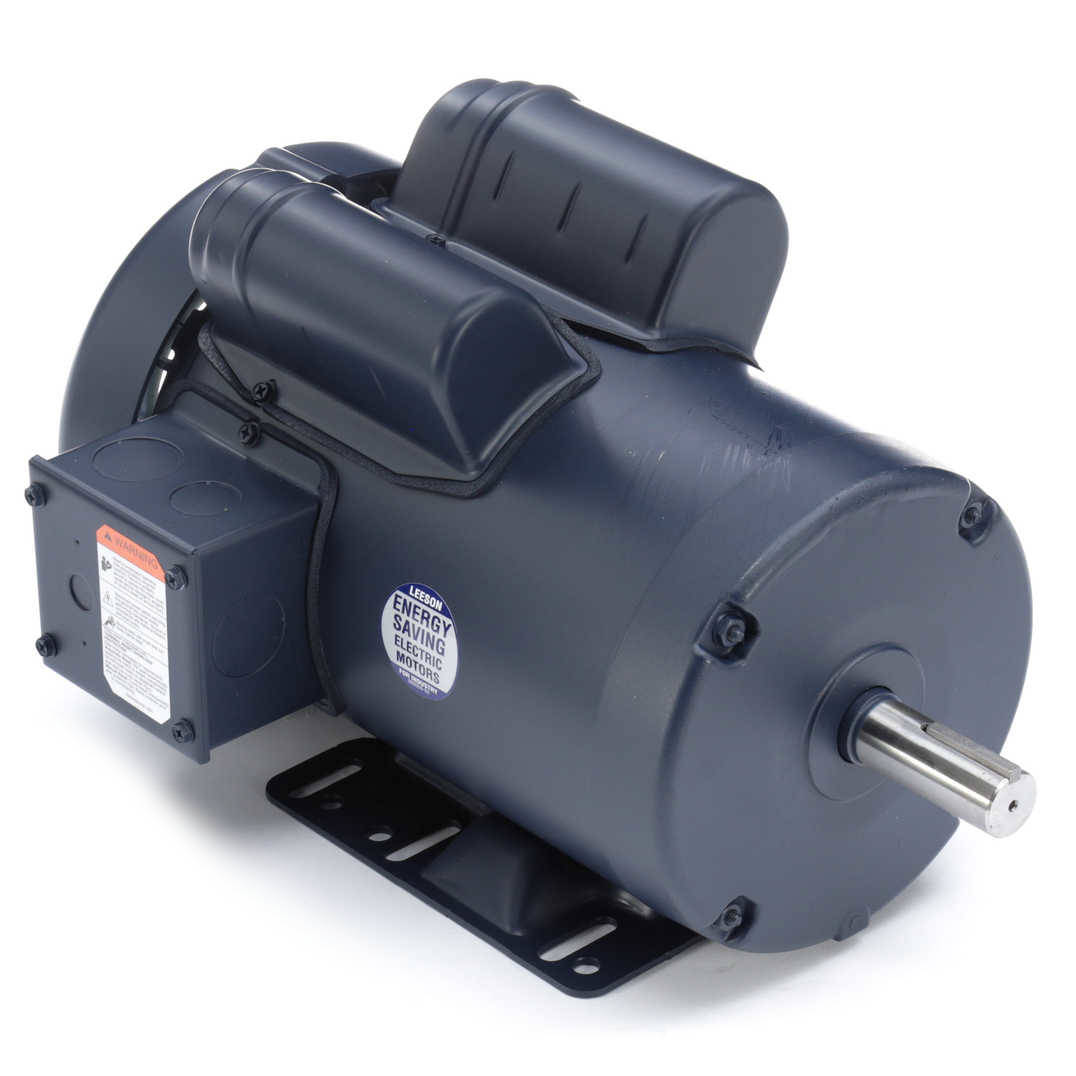

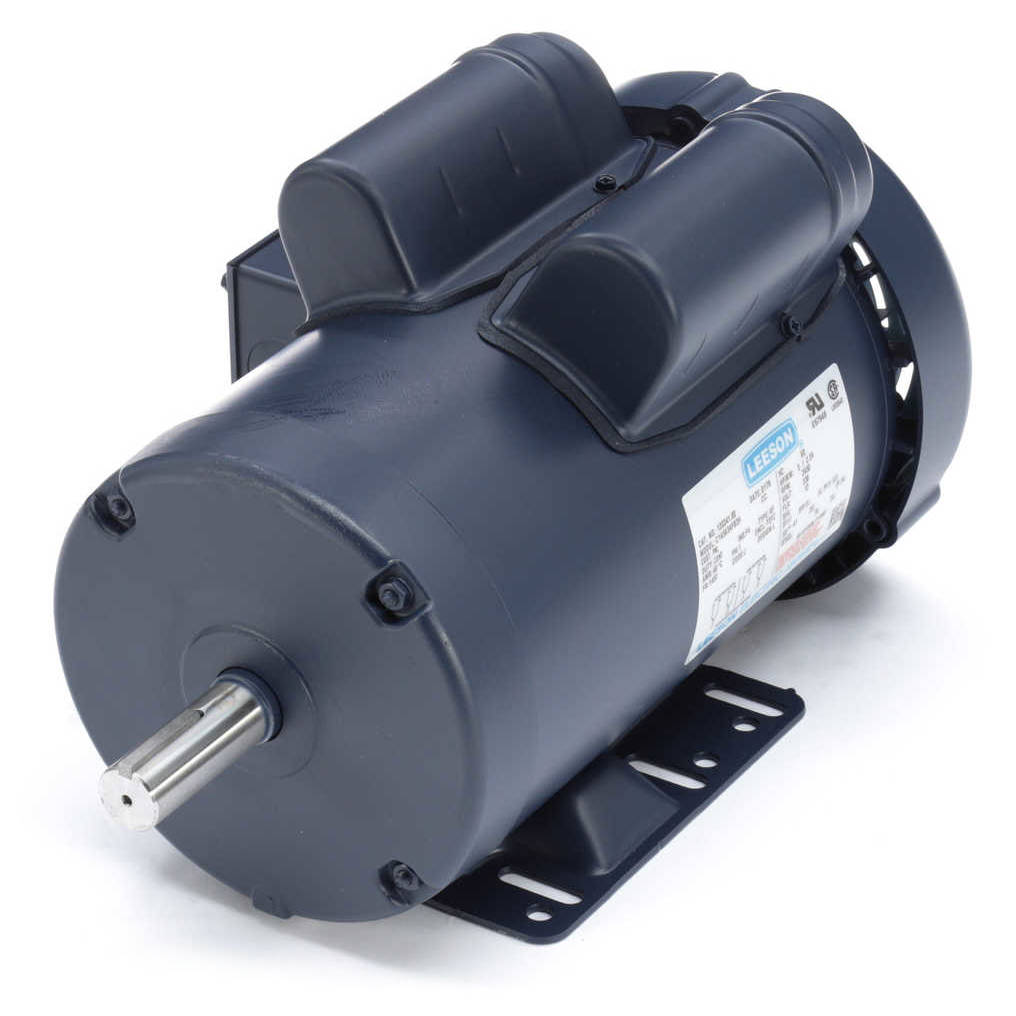

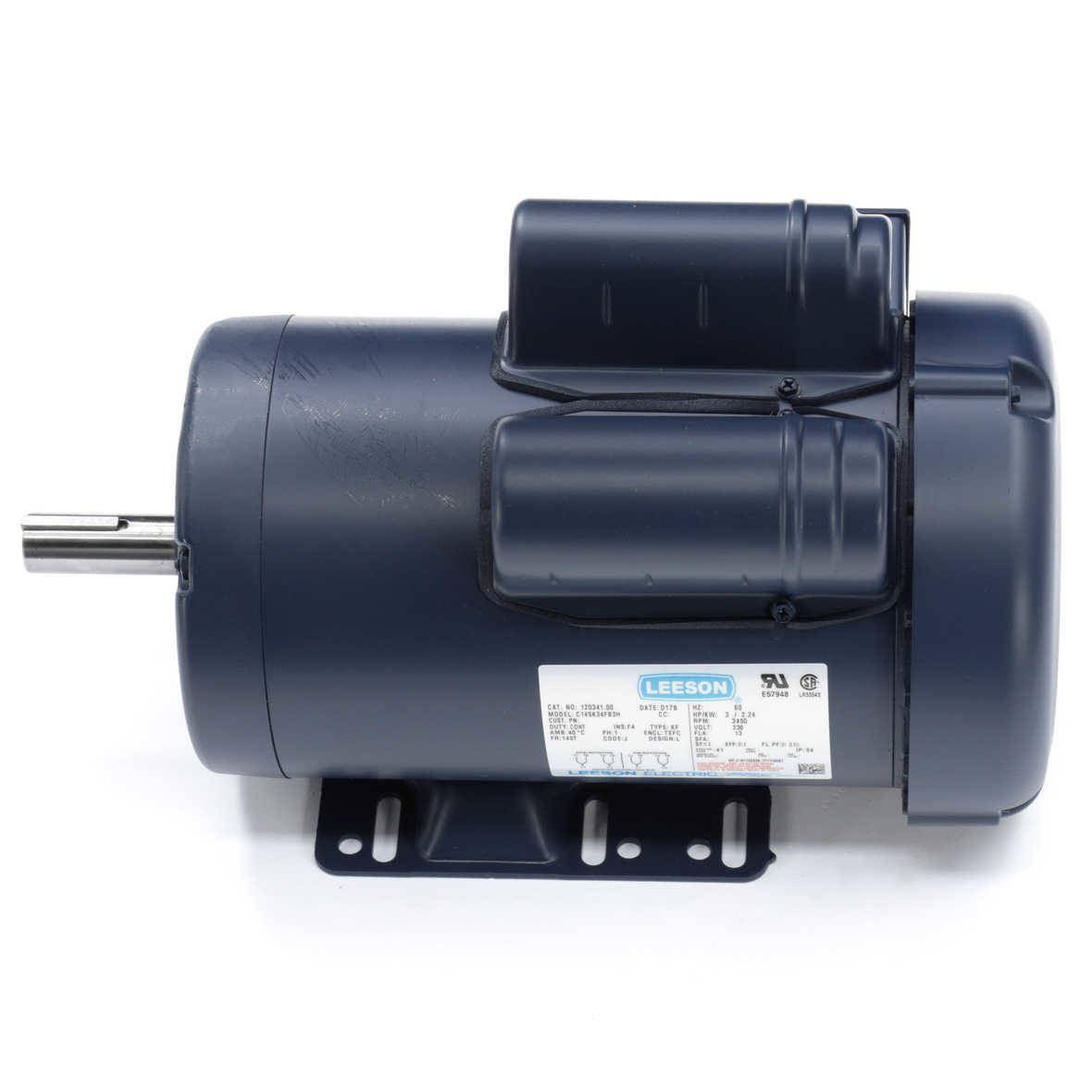

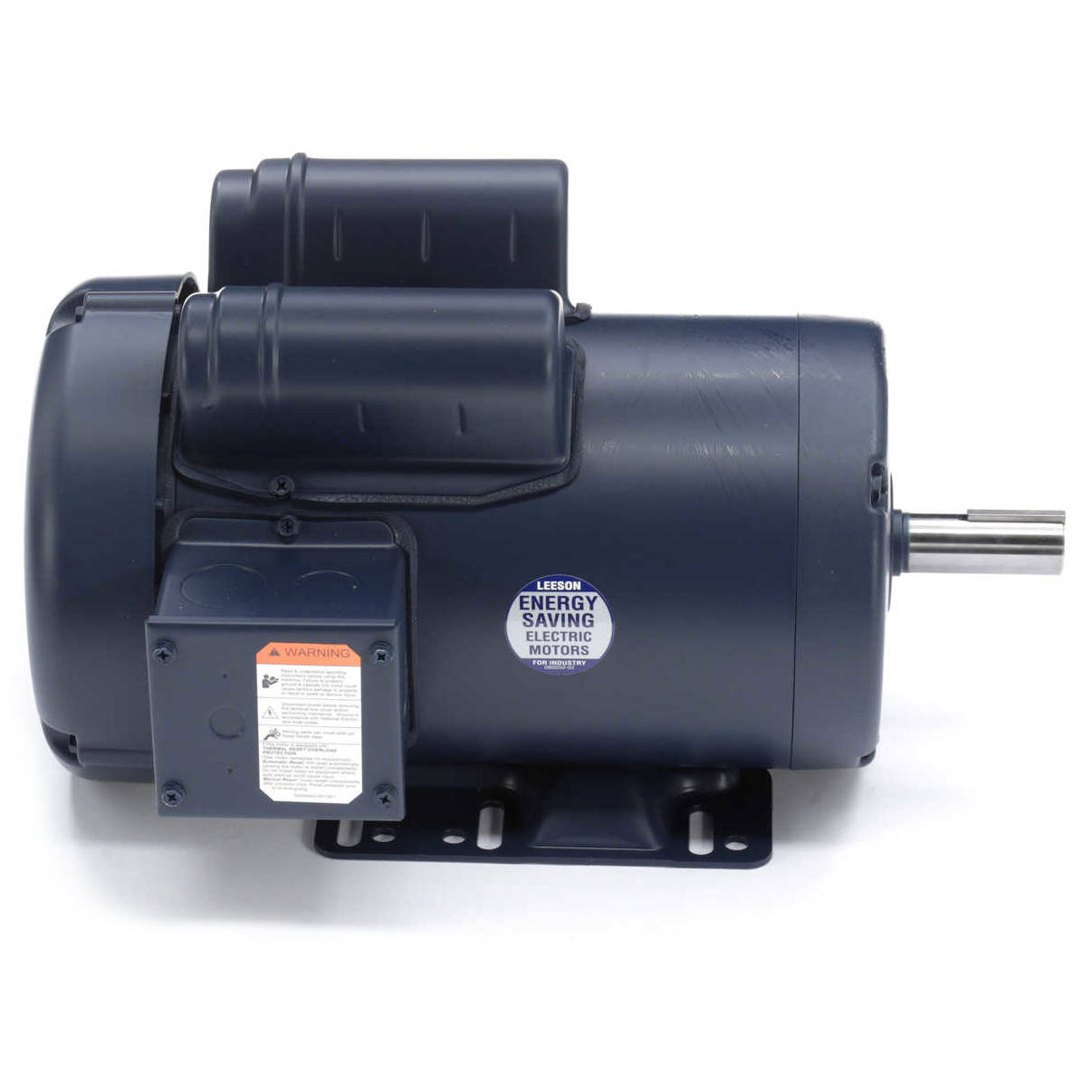

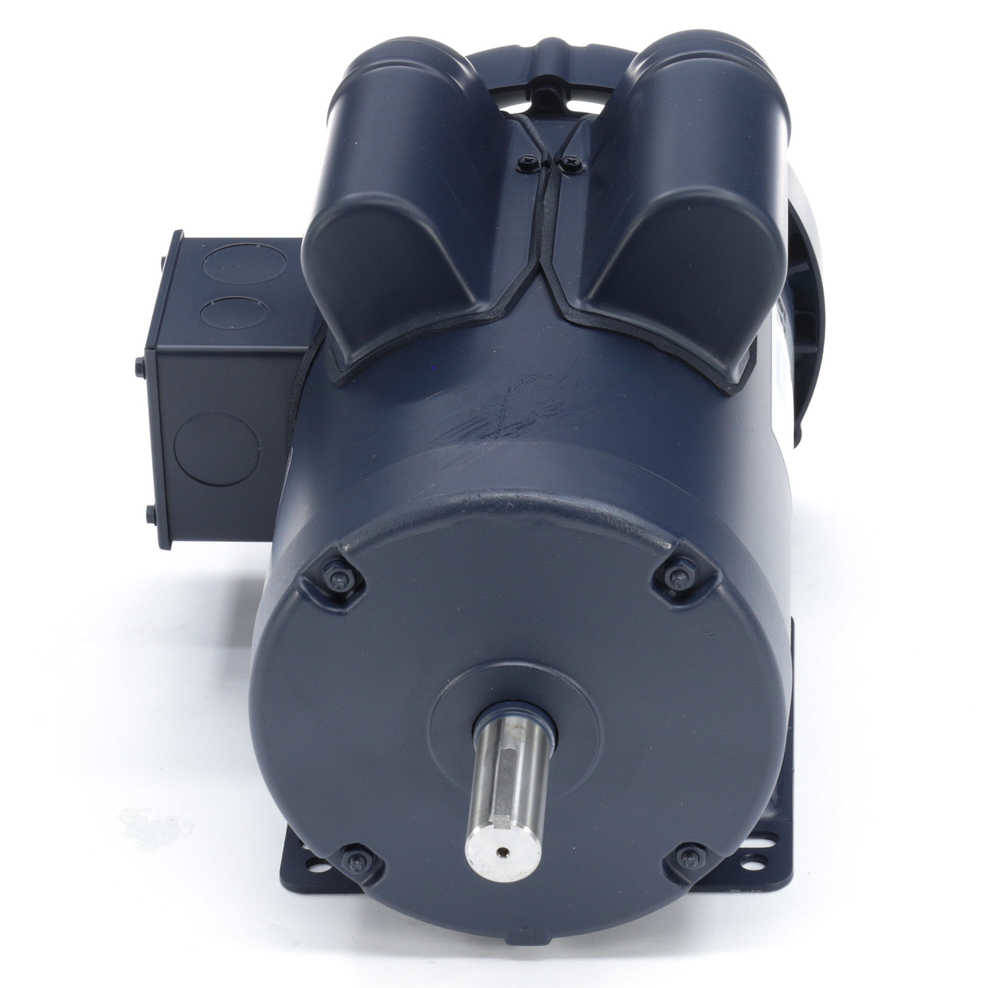

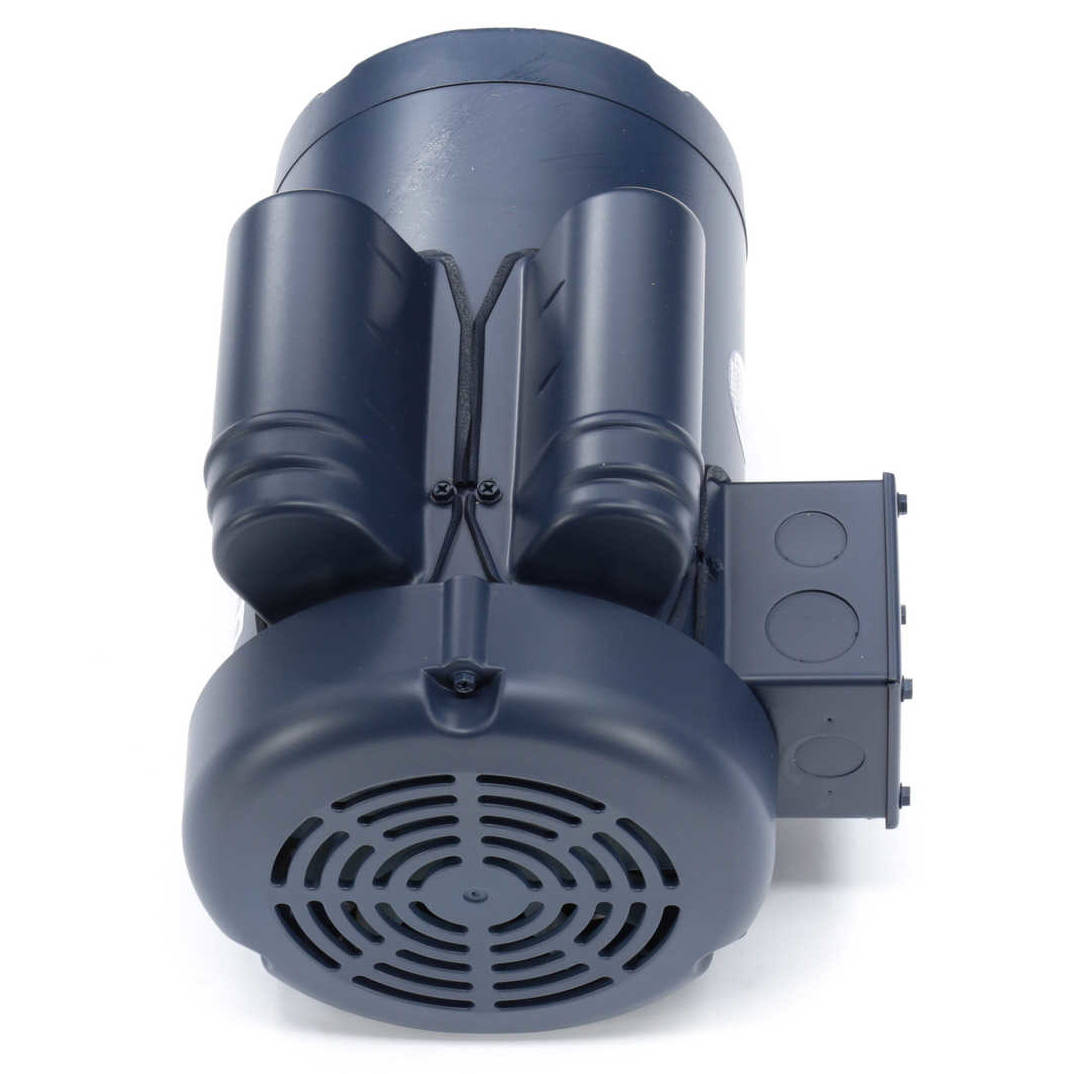

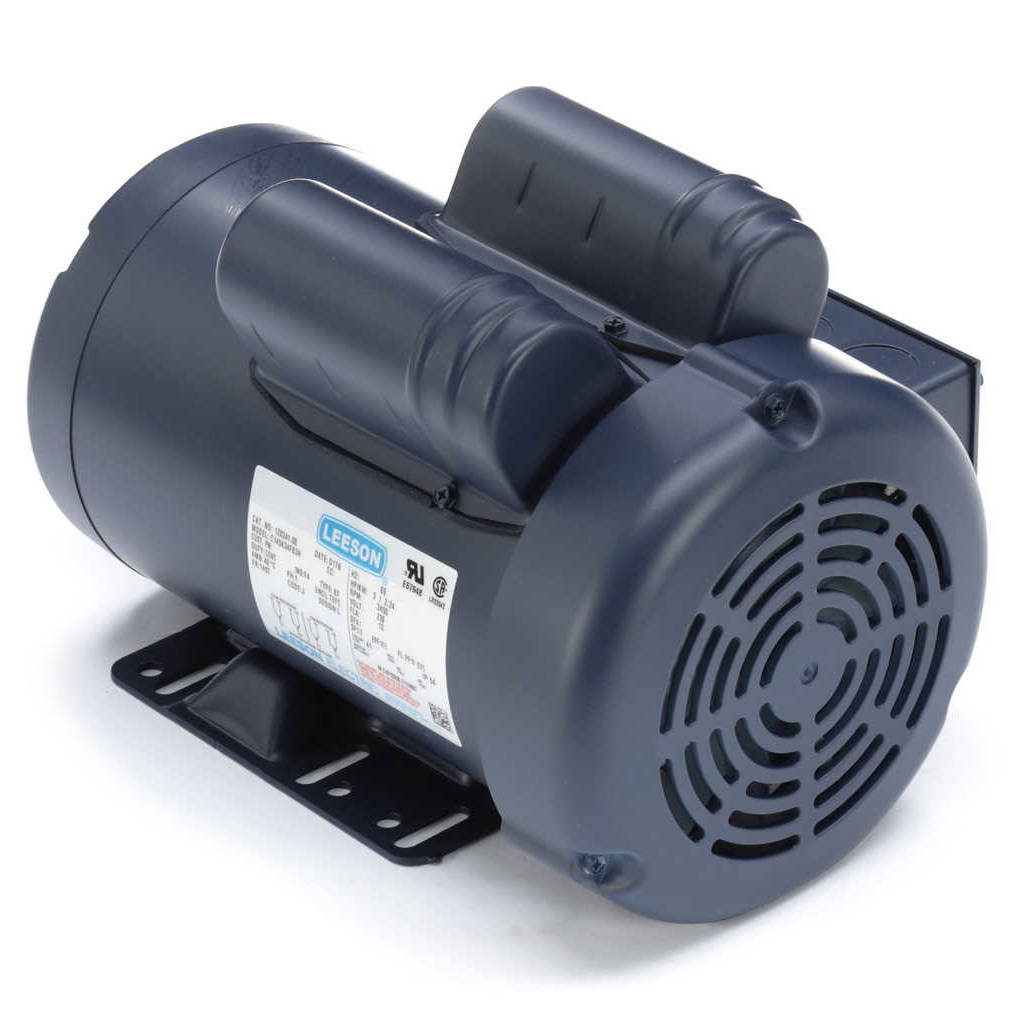

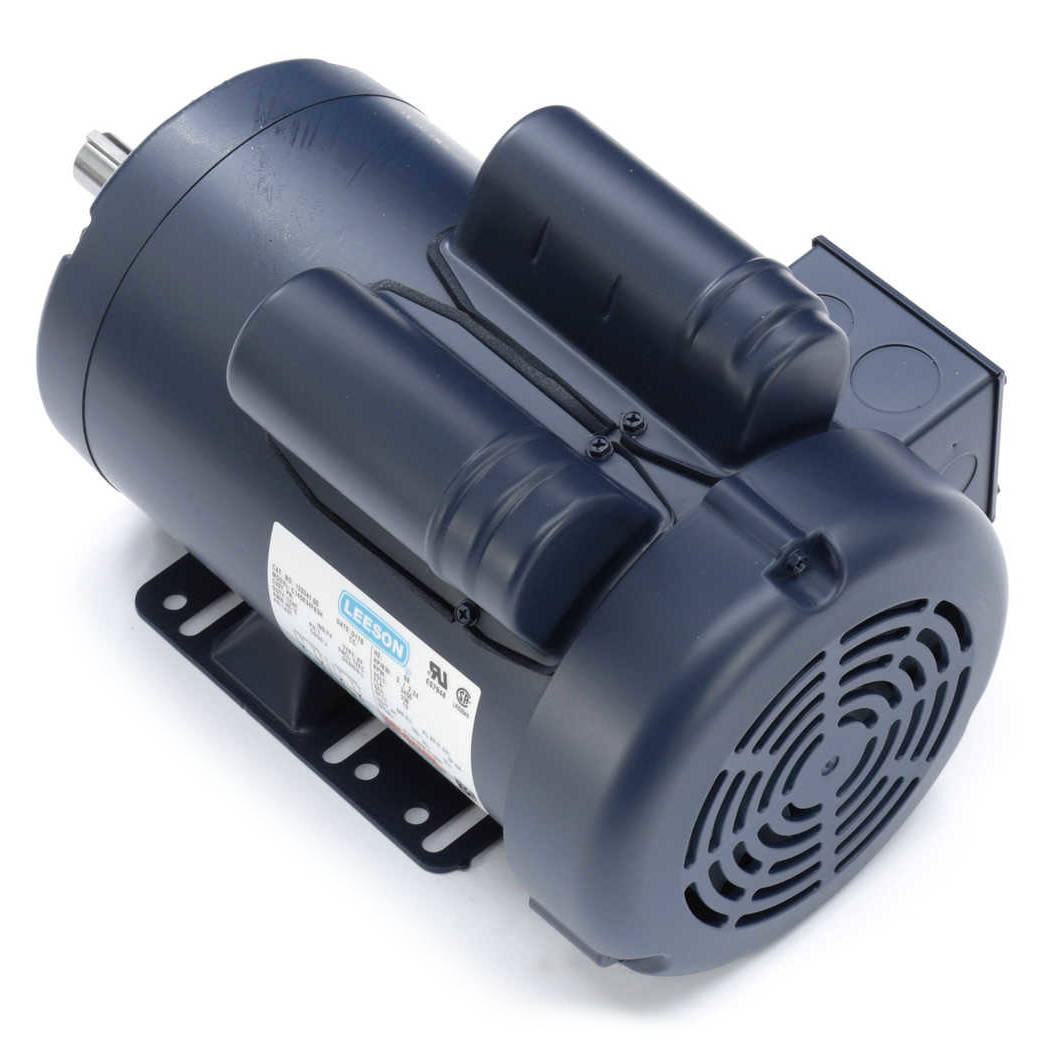

Click Image to Expand

Product ID: 120341.00

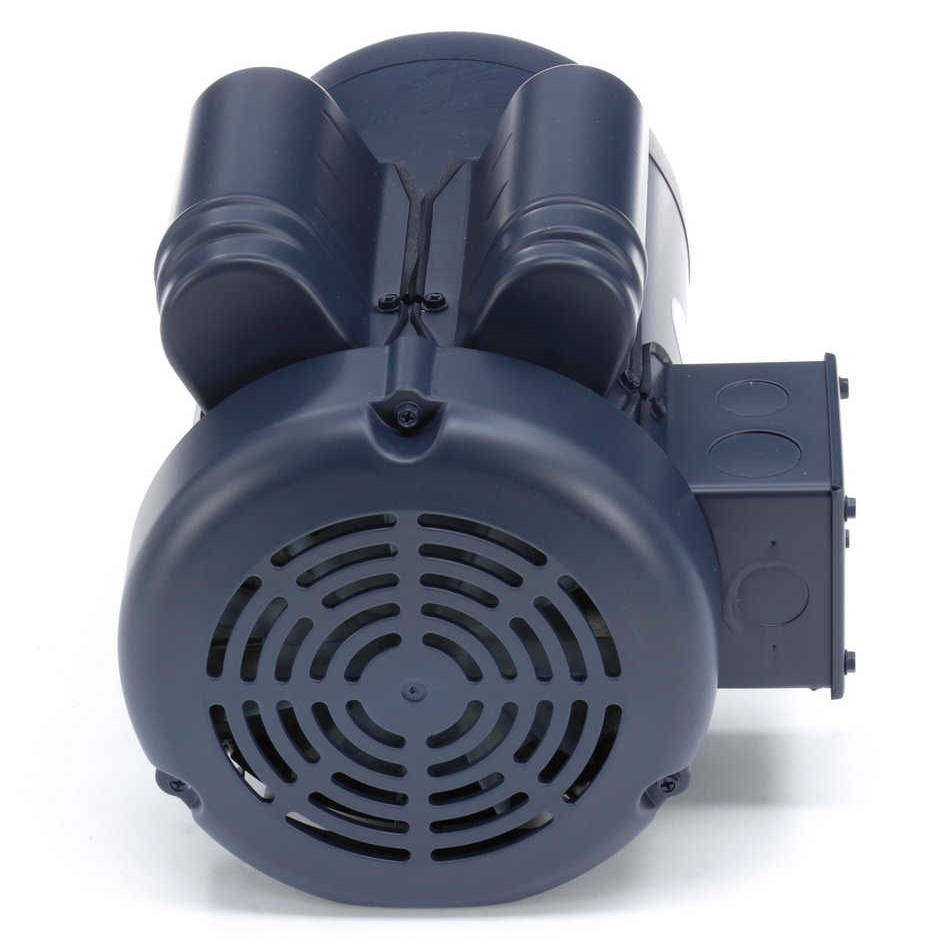

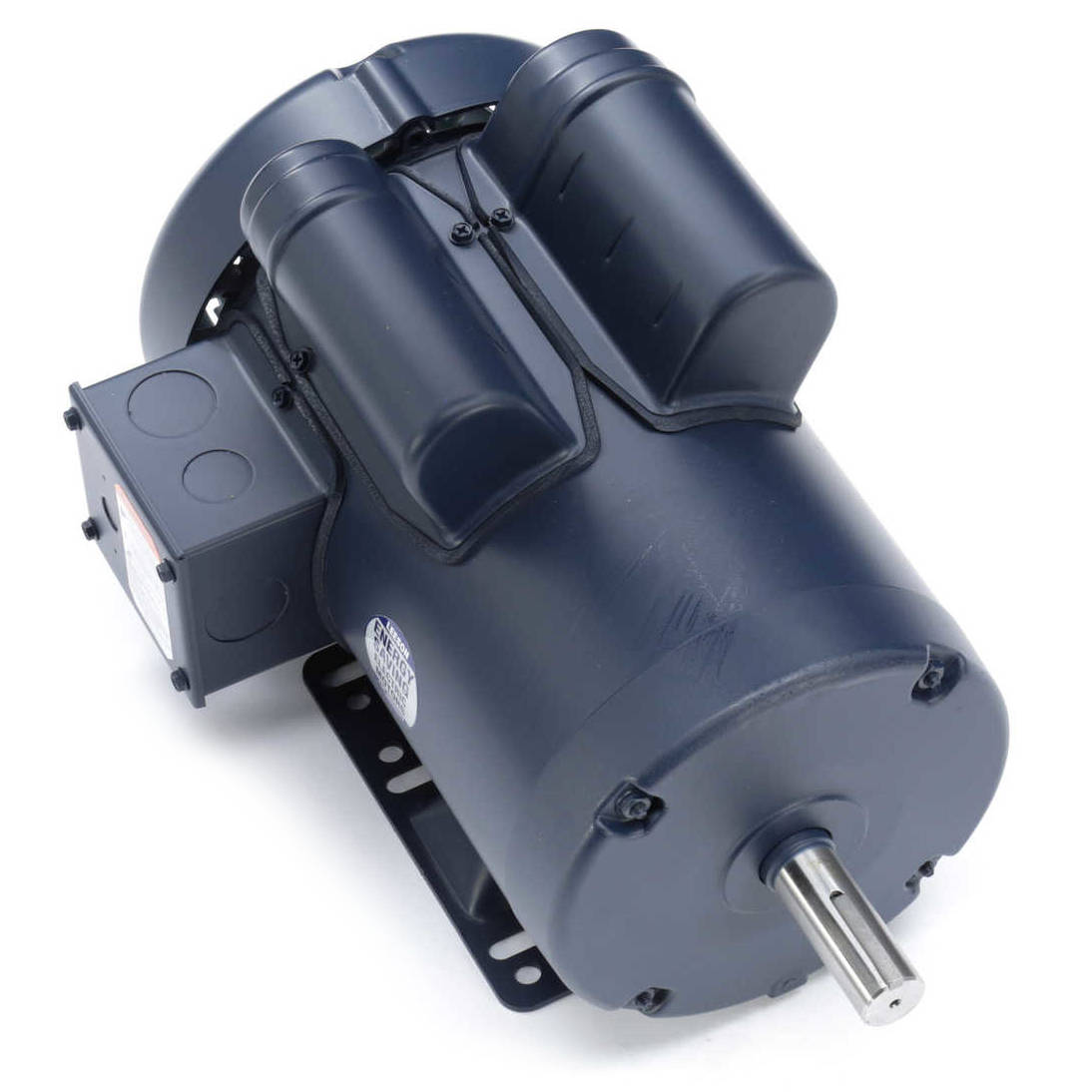

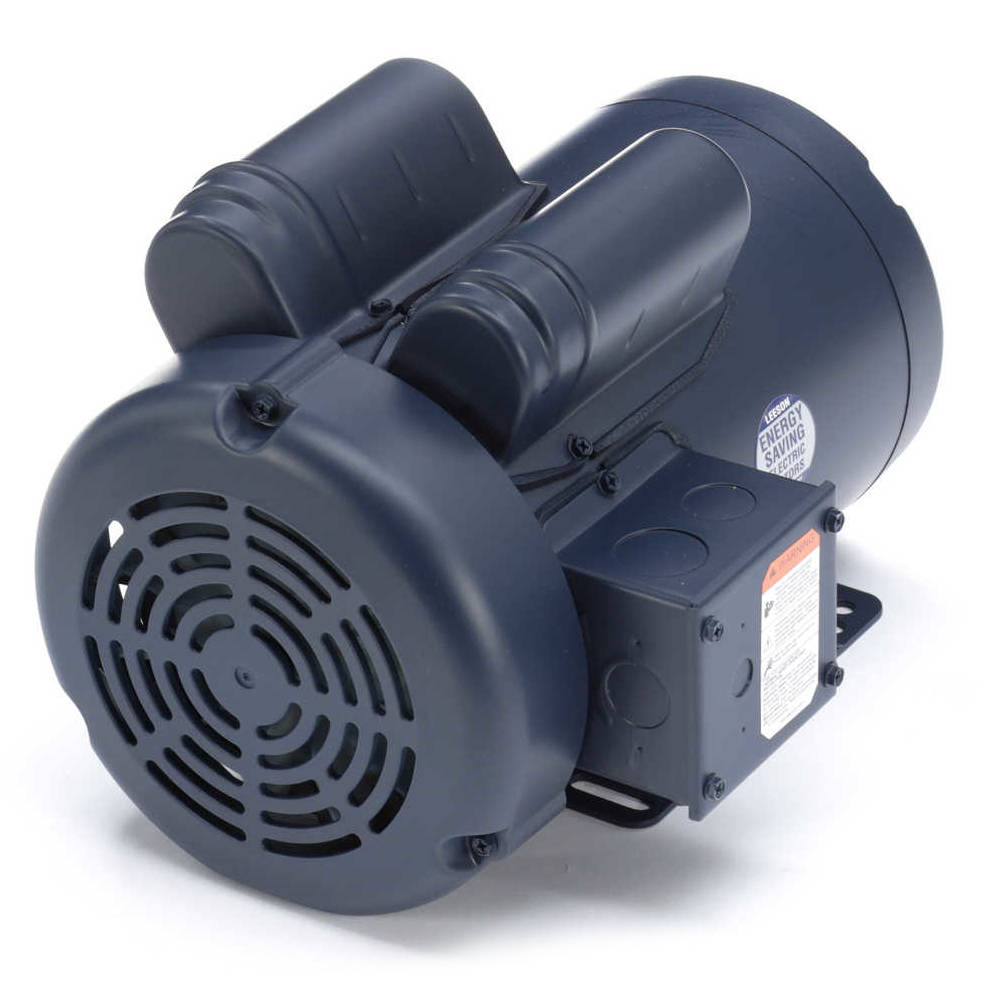

120341.00 Leeson 3HP Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 120341.00

Selected accessories will also be added to cart
$877.23 / Each
Quantity:
TEFC, 145 Frame, 230VAC Single Phase 60Hz, C145K34FB3H, Foot Mount, 7/8" Keyed Shaft

Features

Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • Windings dipped in heavy duty varnish system
  • Capacitor start / capacitor run designs to reduce amp draw
  • Manual reset overload protection
  • High service factor
  • Fully gasketed

General Specifications

General Specifications
Model :C145K34FB3H Catalog No :120341.00
Part Description :..3HP..3450RPM.145.TEFC.230V.1PH.60HZ.CONT.40C.1.0SF.RIGID.C145K34FB3H.....GENERAL PURPOSE.NOT....... Category :Totally Enclosed Fan Cooled (TEFC)
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :3 HP Output KW :2.2 kW
Frequency :60 Hz Voltage :230 V
Current :13.0 A Speed :3450 RPM
Service Factor :1 Phase :1
Efficiency :81.5 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :J Frame :145T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :54

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :14.43 in Frame Length :8.50 in
Shaft Diameter :0.875 in Shaft Extension :2.25 in
Assembly/Box Mounting :F1 ONLY UPC :691720015353
Weight :49.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.012.00287.02,6500.000.03.00
Break-Down0.000.013.50300.02,8500.000.03.00
Full Load13.000.04.50100.03,5120.000.03.00
Locked-Rotor100.000.012.50302.000.000.03.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.93
  • 0.341
  • 0.0
  • 31.3
  • 3,598
  • 0.0
  • 0.00
  • 25 %
  • 5.79
  • 0.897
  • 64.0
  • 67.4
  • 3,577
  • 0.0
  • 1.13
  • 50 %
  • 7.89
  • 1.470
  • 77.4
  • 81.0
  • 3,557
  • 0.0
  • 2.25
  • 75 %
  • 10.30
  • 2.089
  • 81.3
  • 88.2
  • 3,536
  • 0.0
  • 3.38
  • 100 %
  • 13.23
  • 2.760
  • 82.4
  • 91.0
  • 3,512
  • 80.0
  • 4.50
  • 125 %
  • 15.94
  • 3.397
  • 82.1
  • 92.7
  • 3,486
  • 0.0
  • 5.63
  • 150 %
  • 19.08
  • 4.100
  • 80.8
  • 93.4
  • 3,455
  • 0.0
  • 6.75
