/Products/Electric Motors/3 Phase/Leeson/Feather Picker/119783.00 Leeson 3HP Agriculture Duty Feather Picker Electric Motor, 1800RPM

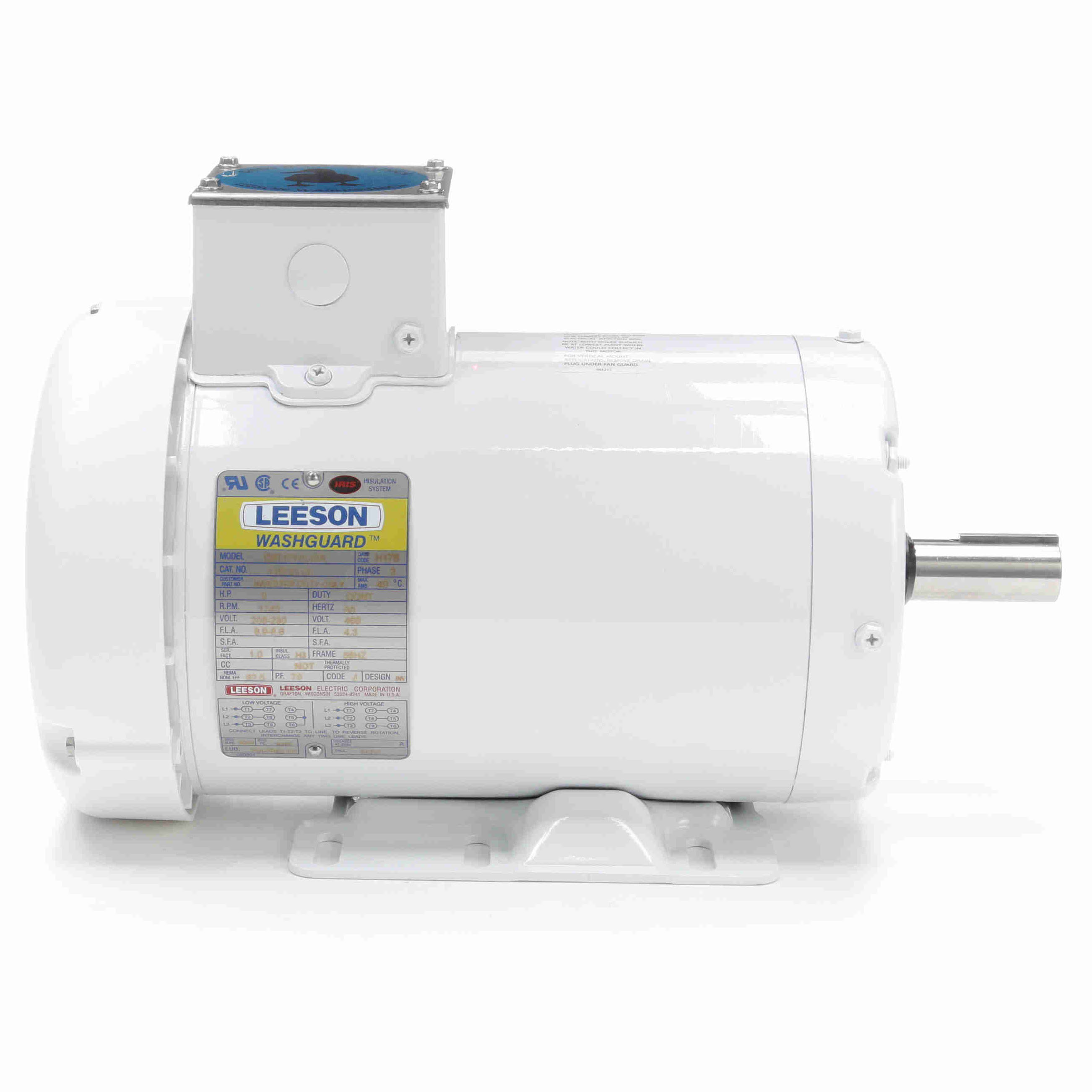

Click Image to Expand

Product ID: 119783.00

119783.00 Leeson 3HP Agriculture Duty Feather Picker Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T17WK48

Selected accessories will also be added to cart
$708.66 / Each
Quantity:
TEFC, 56HZ Frame, 208-230/460VAC 3-Phase 60Hz, C6T17WK48A, Rigid Base, Rolled Steel, 7/8" Keyed Shaft

Features

Features
  • Phosphatized or stainless steel shafts
  • Metric motor has phosphatized shaft drilled and tapped
  • Epoxy painted for corrosion protection
  • Washdown duty features including shaft seals
  • USDA approved food-safe paint
  • Extra high breakdown torques

General Specifications

General Specifications
Model :C6T17WK48A Catalog No :119783.00
Part Description :3HP.2.24KW.1740RPM.56H.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.0SF.RIGID.AG - FEATHER PICKER.C6T17FB113B Category :Feather Picker
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :3 HP Output KW :2.2 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :8.9-8.6/4.3 A Speed :1740 RPM
Service Factor :1 Phase :3
Efficiency :82.5 % Duty :Continuous
Insulation Class :H Design Code :INV
KVA Code :J Frame :56HZ
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55

Technical Specifications

Technical Specifications
Electrical Type :Squirrel Cage Inverter Duty Starting Method :Inverter Only
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :13.93 in Frame Length :8.00 in
Shaft Diameter :0.875 in Shaft Extension :2.38 in
Assembly/Box Mounting :F3 UPC :691720053829
Weight :48.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.000.035.70397.000.000.03.00
Pull-Up0.000.029.00322.000.000.03.00
Full Load4.30100.09.00100.000.000.03.00
Locked-Rotor31.00721.030.00333.000.000.05.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.43
  • 0.193
  • 0.0
  • 10.0
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.68
  • 0.814
  • 71.7
  • 38.1
  • 1,786
  • 0.0
  • 2.30
  • 50 %
  • 3.06
  • 1.417
  • 79.9
  • 58.1
  • 1,772
  • 0.0
  • 4.50
  • 75 %
  • 3.71
  • 2.046
  • 83.0
  • 69.2
  • 1,758
  • 0.0
  • 6.80
  • 100 %
  • 4.29
  • 2.699
  • 82.5
  • 79.0
  • 1,742
  • 93.0
  • 9.00
  • 125 %
  • 5.08
  • 3.372
  • 82.2
  • 83.3
  • 1,726
  • 0.0
  • 11.30
  • 150 %
  • 5.92
  • 4.005
  • 81.7
  • 84.9
  • 1,707
  • 0.0
  • 13.50
