/Products/Electric Motors/3 Phase Metric/Leeson/IEC Washguard All-Stainless/119507.00 Leeson 1HP/0.75kW IEC Metric Washguard Electric Motor, 1800RPM
Click Image to Expand

Product ID: 119507.00

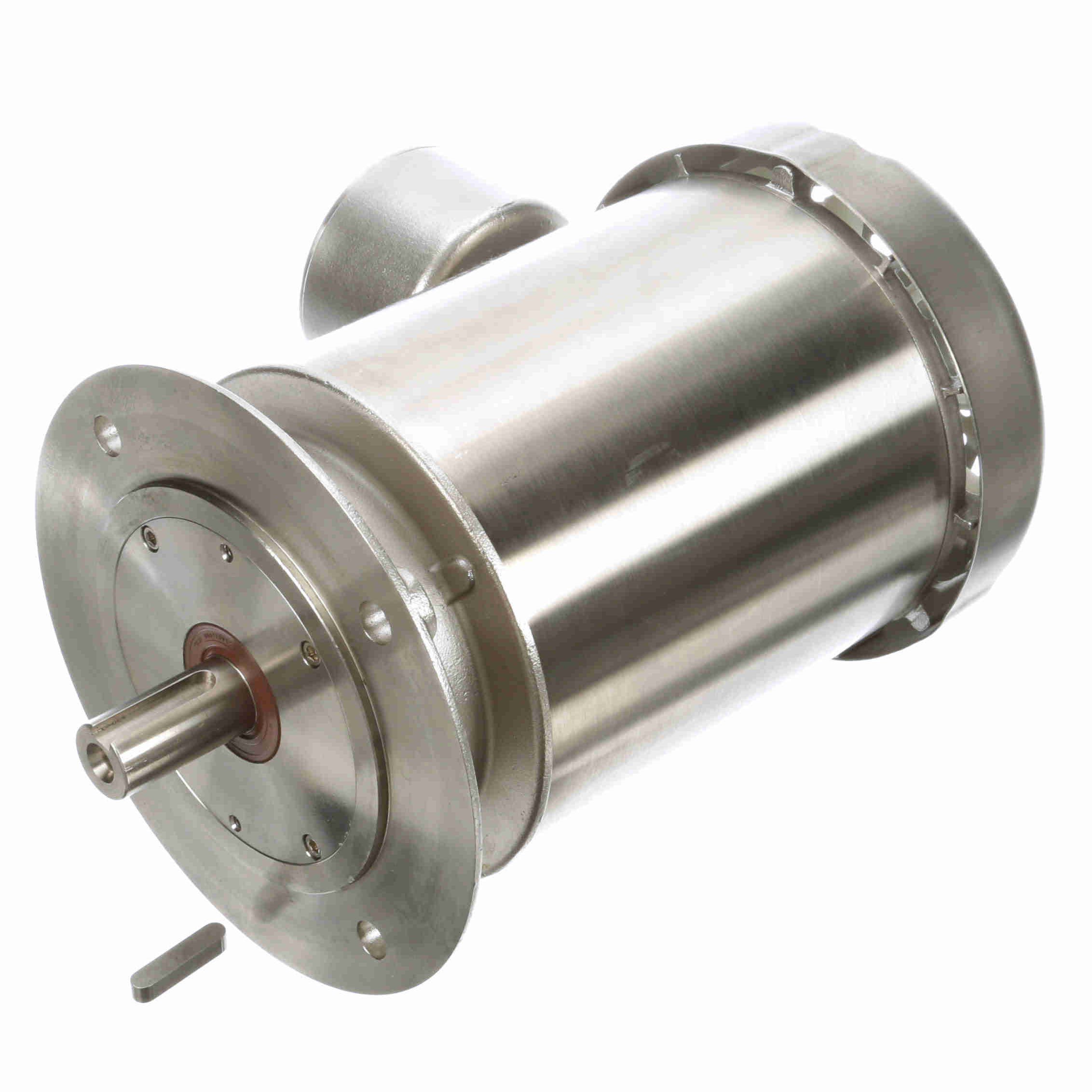

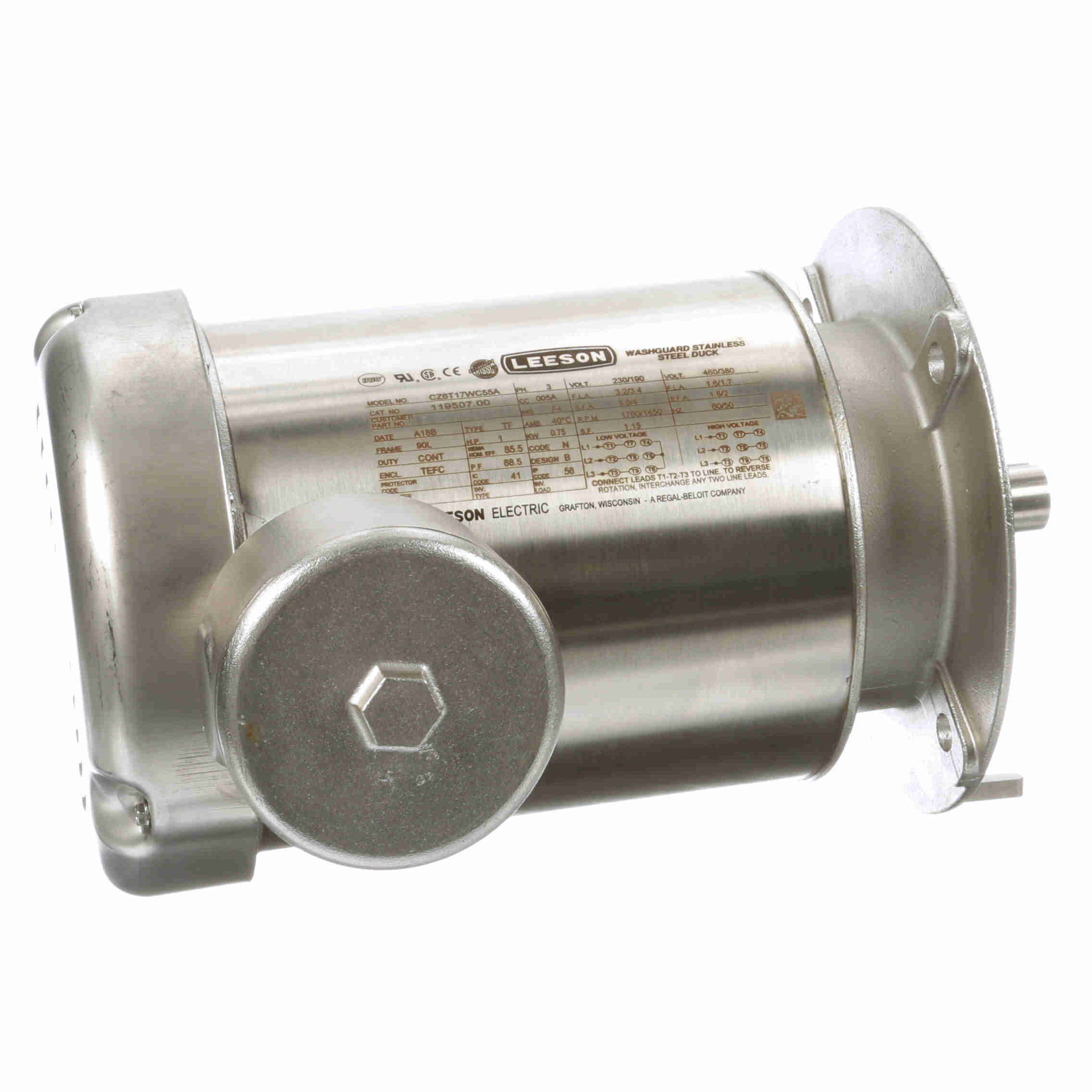

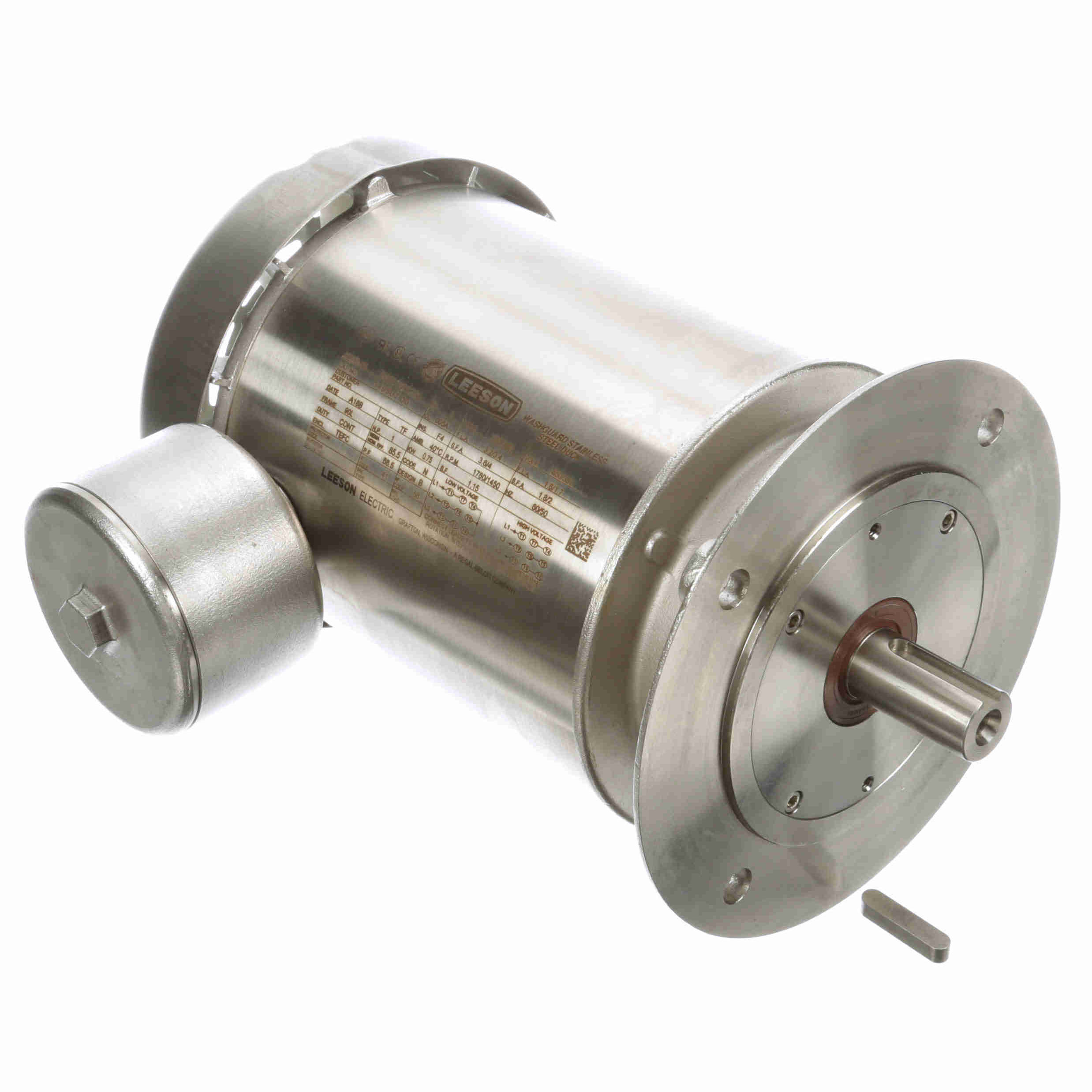

119507.00 Leeson 1HP/0.75kW IEC Metric Washguard Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119507.00

Selected accessories will also be added to cart
$1,594.97 / Each
Quantity:
TEFC, IP56, 90L Frame, 230/460VAC 3-Phase 60Hz, CZ6T17WC55A, Round Body, Stainless Steel Housing, 15/16" Shaft

Features

Features
  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • Single and three phase motors are UL component recognized – file number E57948, guide number PRGY2
  • Full fact nameplate is laser etched on the motor frame

General Specifications

General Specifications
Model : CZ6T17WC55A Catalog No : 119507.00
Part Description : ..1HP/0.75kW..1800RPM.90 IEC.TEFC.230/460V.3PH.60/50HZ.CONT.40C.1.15 S.F..IEC B5......IEC B5 FLANGE........ Category : Washguard
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1 HP Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 3.2/1.6 A Speed : 1760 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 85.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : N Frame : 90L
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 56

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated Starting Method : Line Or Inverter
Poles : 4 Rotation : Reversible
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Stainless Steel Shaft Type : IEC
Overall Length : 12.59 in Frame Length : 7.00 in
Shaft Diameter : 0.937 in Shaft Extension : 1.96 in
Assembly/Box Mounting : F1/F2 CAPABLE UPC : 691720102879
Weight : 48.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 14.00 0.0 12.00 0.0 0 7.30 0.0 1.00
Break-Down 9.86 0.0 15.80 0.0 1,170 6.16 0.0 1.00
Pull-Up 13.02 0.0 11.90 0.0 110 7.20 0.0 1.00
Full Load 1.70 0.0 3.00 0.0 1,761 0.91 69.9 1.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.00
  • 0.064
  • 0.0
  • 8.0
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 1.02
  • 0.263
  • 72.5
  • 32.4
  • 1,789
  • 0.0
  • 0.75
  • 50 %
  • 1.16
  • 0.476
  • 79.6
  • 51.5
  • 1,779
  • 0.0
  • 1.50
  • 75 %
  • 1.35
  • 0.662
  • 85.4
  • 61.5
  • 1,769
  • 0.0
  • 2.25
  • 100 %
  • 1.55
  • 0.876
  • 85.5
  • 70.9
  • 1,757
  • 38.0
  • 3.00
  • 115 %
  • 1.70
  • 1.000
  • 85.0
  • 75.0
  • 1,750
  • 0.0
  • 3.45
  • 125 %
  • 1.77
  • 1.098
  • 84.7
  • 77.9
  • 1,745
  • 60.0
  • 3.75
  • 150 %
  • 2.03
  • 1.316
  • 84.2
  • 81.4
  • 1,733
  • 0.0
  • 4.50
