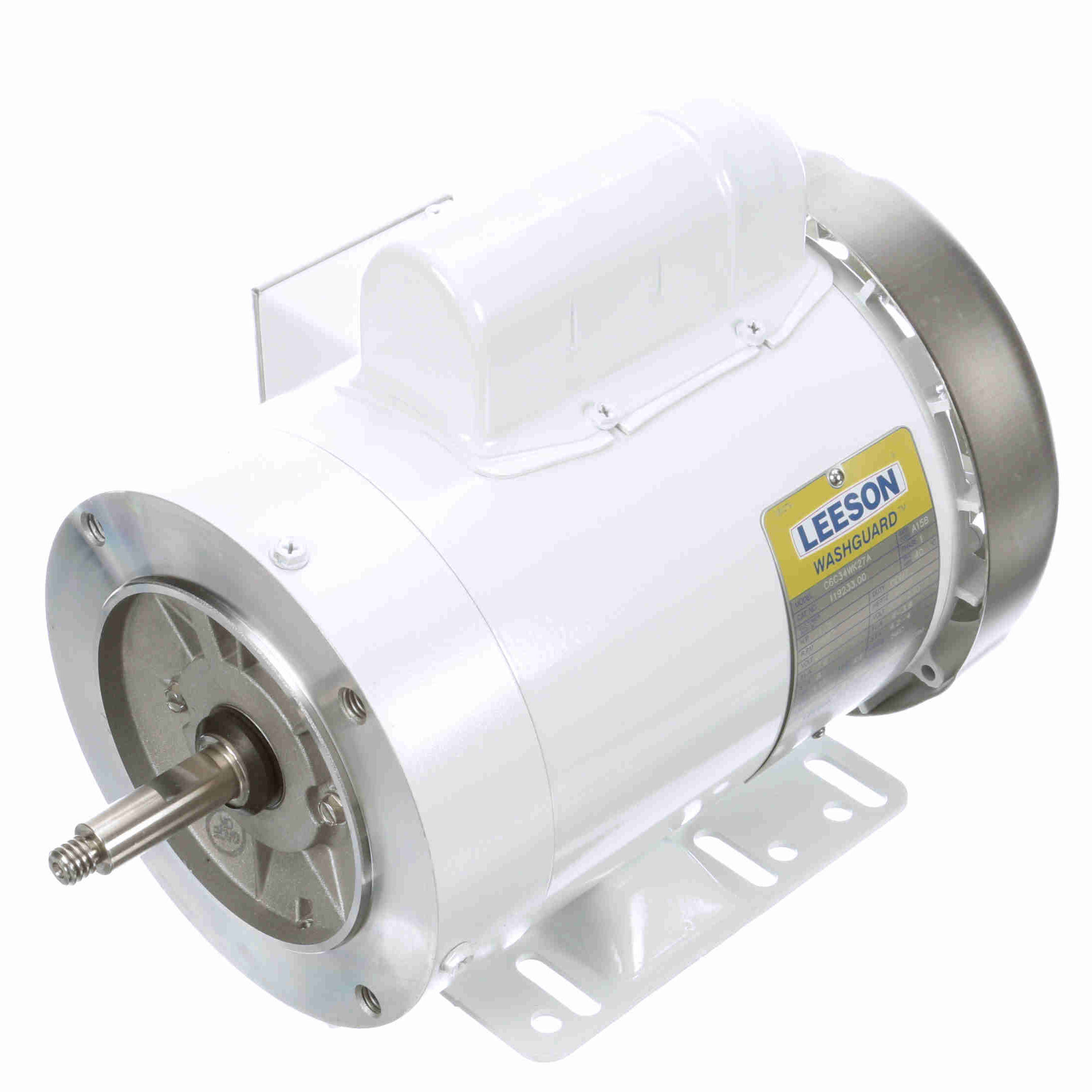

Features:
• Replacements for SURGE® milk pumps
• WASHGUARD® motor features for high pressure washdown applications
• Epoxy painted and stainless ratings available for corrosion protection
• Solid state encapsulated starting switch on capacitor start motors
Features
- Replacements Motors for BouMatic Milk Pumps
- WASHGUARD® motor features for high pressure washdown applications
- Epoxy painted and stainless ratings available for corrosion protection
- Single phase motors are capacitor start - induction run designs
- Solid state encapsulated starting switch on single phase motors
- Three phase motors are inverter rated
General Specifications
| UPC: |
691720053775 |
Weight: |
30.00 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
7.6/4.0-3.8 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
63 % |
Power Factor: |
70 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
N |
KVA Code: |
M |
| Frame: |
56CZ |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
4.42 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
JET PUMP SPL EXT |
Overall Length: |
12.62 in |
| Frame Length: |
6.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.19 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
22.00 |
|
45.00 |
375.0 |
0 |
|
|
0.50 |
| Break-Down |
0.00 |
|
32.00 |
267.0 |
0 |
|
|
0.50 |
| Pull-Up |
0.00 |
|
32.00 |
267.0 |
0 |
|
|
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
2.80 |
2.88 |
3.09 |
3.34 |
3.69 |
4.18 |
4.74 |
| Rated Output (KW) |
0.16 |
0.26 |
0.37 |
0.47 |
0.59 |
0.72 |
0.86 |
| Efficiency (%) |
0.0 |
36.0 |
51.1 |
59.3 |
63.0 |
64.9 |
65.1 |
| Power Factor (%) |
24.8 |
39.3 |
51.6 |
61.6 |
70.0 |
74.9 |
79.0 |
| Speed (RPM) |
3,598 |
3,564 |
3,538 |
3,515 |
3,486 |
3,456 |
3,420 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
46.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
2.96 |
5.97 |
8.99 |
12.09 |
15.23 |
18.45 |
