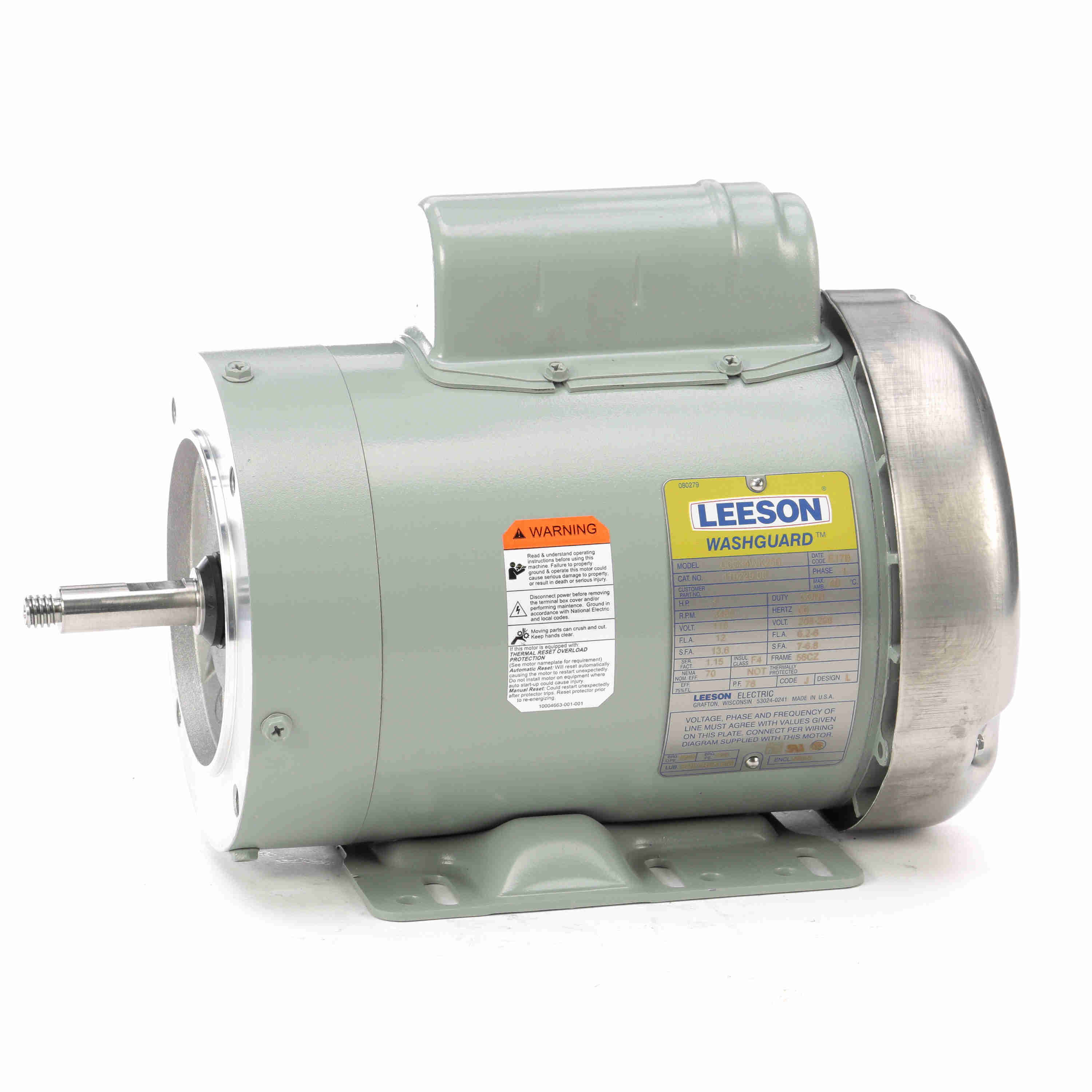

Features:
• Replacements for SURGE® milk pumps
• WASHGUARD® motor features for high pressure washdown applications
• Epoxy painted and stainless ratings available for corrosion protection
• Solid state encapsulated starting switch on capacitor start motors
Features
- Replacements Motors for BouMatic Milk Pumps
- WASHGUARD® motor features for high pressure washdown applications
- Epoxy painted and stainless ratings available for corrosion protection
- Single phase motors are capacitor start - induction run designs
- Solid state encapsulated starting switch on single phase motors
- Three phase motors are inverter rated
General Specifications
| UPC: |
691720053744 |
Weight: |
30.00 LB |
| Packaged Length: |
14.44 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
12.0/6.2-6.0 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
70 % |
Power Factor: |
76 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
J |
| Frame: |
56CZ |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Fixed Clockwise |
| Resistance Main: |
1.92 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
12.41 in |
| Frame Length: |
6.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.19 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
6.00 |
|
24.00 |
100.0 |
3,491 |
|
|
1.00 |
| Break-Down |
0.00 |
|
64.00 |
267.0 |
3,000 |
|
|
1.00 |
| Pull-Up |
0.00 |
|
60.00 |
250.0 |
2,800 |
|
|
1.00 |
| Locked-Rotor |
34.00 |
|
80.00 |
333.0 |
0 |
|
|
1.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
3.70 |
3.95 |
4.44 |
5.13 |
5.99 |
7.04 |
8.28 |
| Rated Output (KW) |
0.18 |
0.39 |
0.60 |
0.82 |
1.06 |
1.31 |
1.60 |
| Efficiency (%) |
0.0 |
49.1 |
63.5 |
68.7 |
70.5 |
70.1 |
68.4 |
| Power Factor (%) |
21.2 |
42.6 |
58.3 |
69.4 |
76.6 |
81.2 |
83.9 |
| Speed (RPM) |
3,599 |
3,568 |
3,544 |
3,519 |
3,491 |
3,458 |
3,420 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
60.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
6.00 |
12.00 |
18.00 |
24.00 |
30.00 |
36.00 |
