/Products/Electric Motors/3 Phase Stainless Steel/Leeson/Extreme Duck Ultra Washguard/C-Face with Base, TE, IP69, SGR/117907.00 Leeson 3/4HP Washdown Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: 117907.00

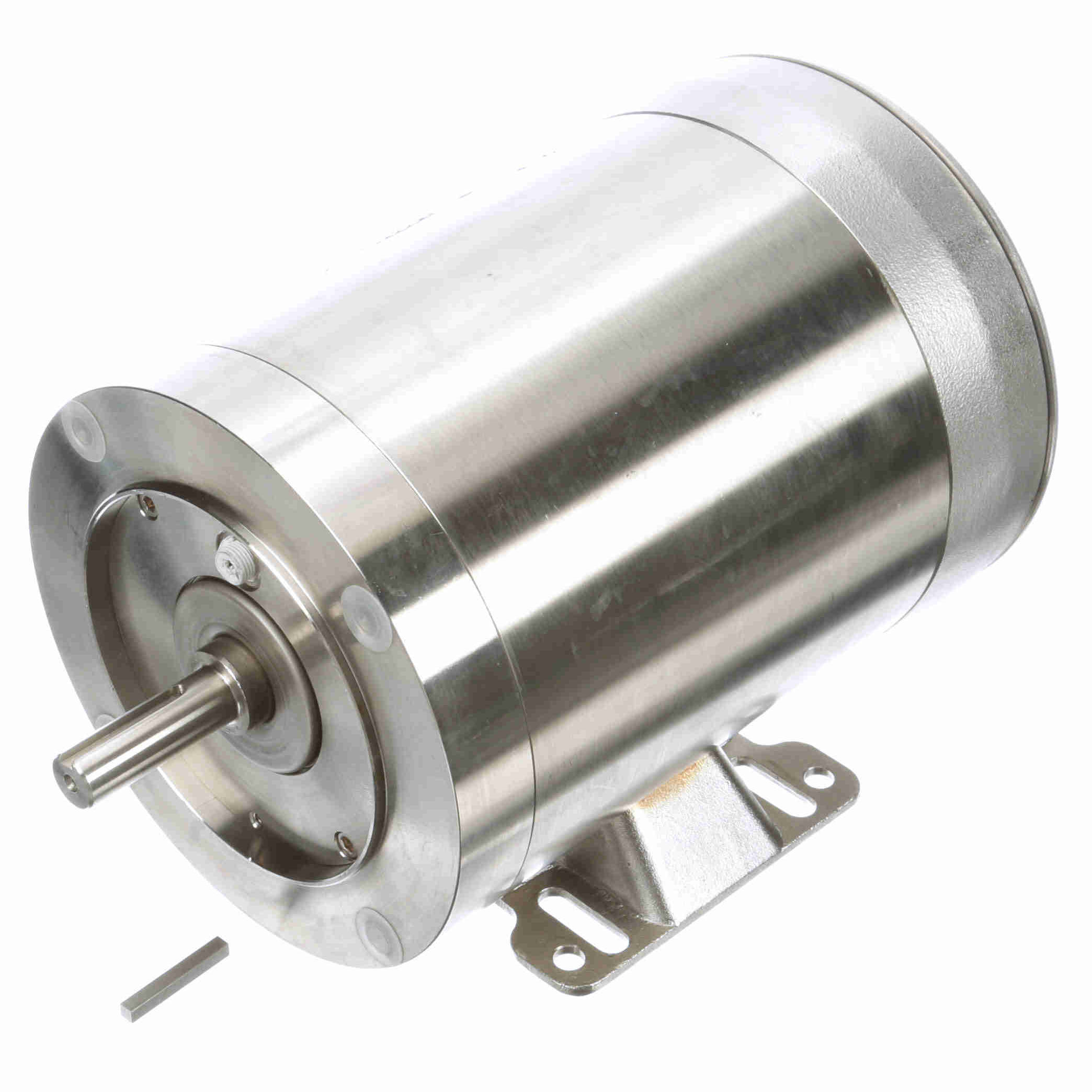

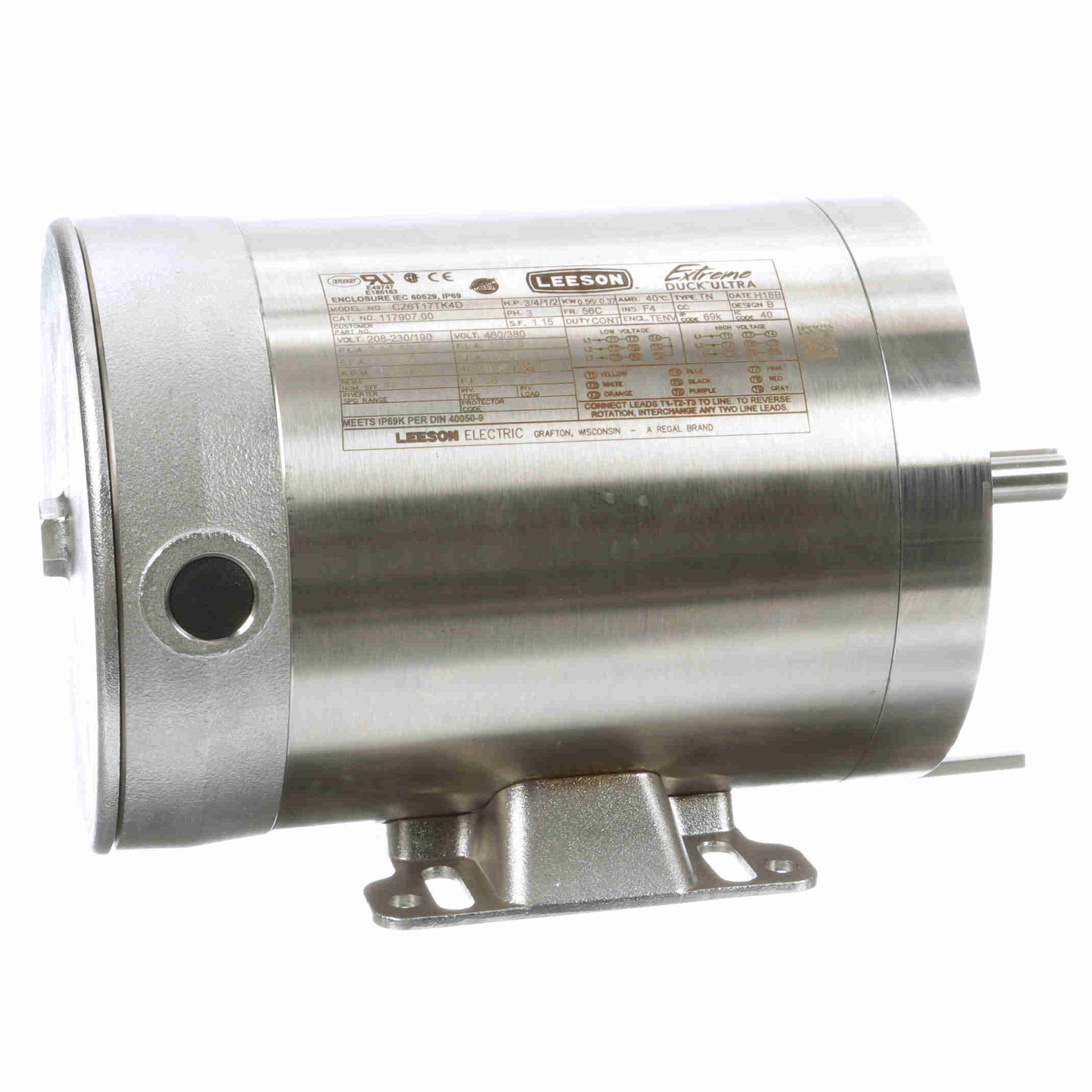

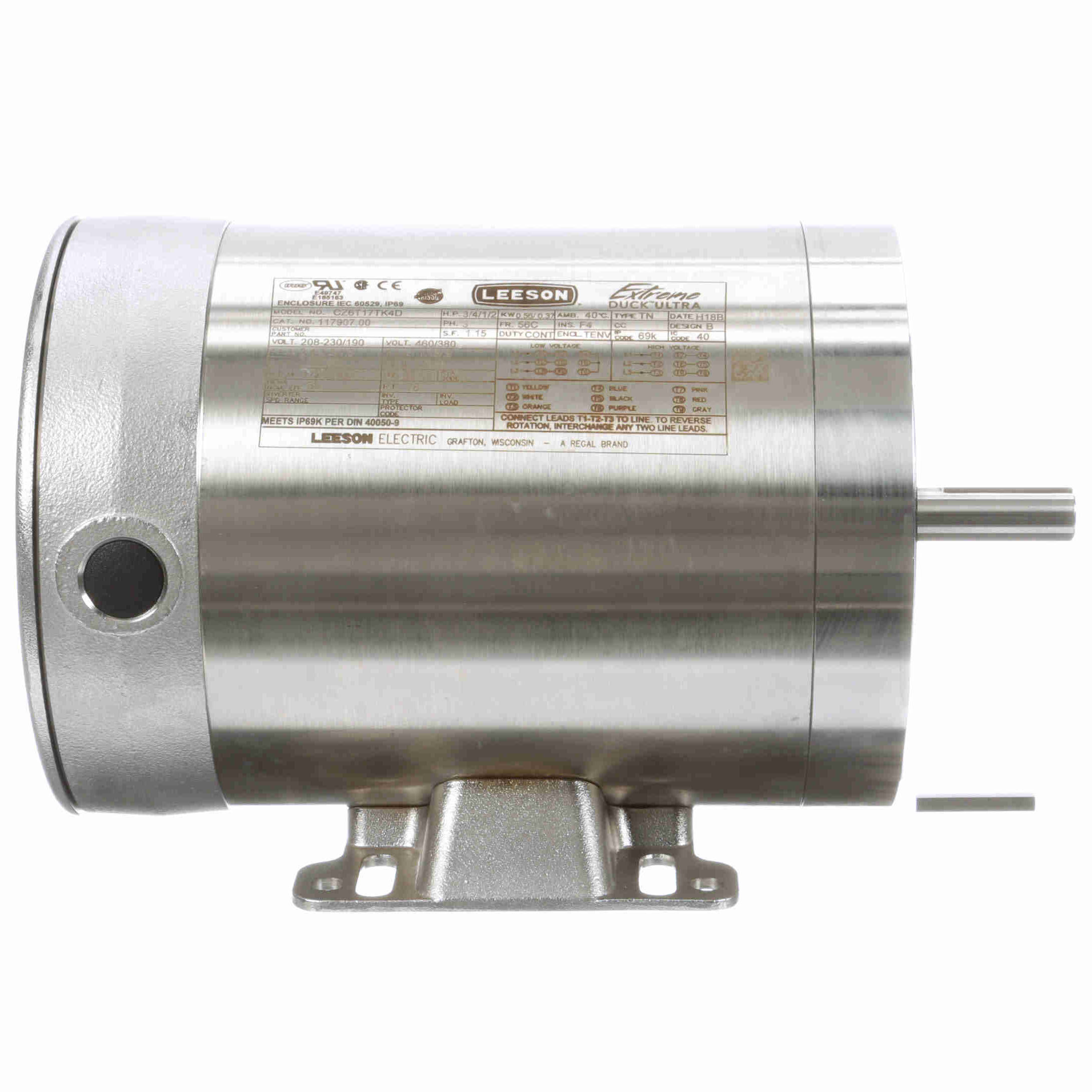

117907.00 Leeson 3/4HP Washdown Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 117907.00

Selected accessories will also be added to cart

$441.97 / Each

Quantity:

TENV, 56C Frame, 208-230/460VAC 3-Phase 60Hz, Rigid Base, Stainless Steel, 5/8" Keyed Shaft

Details
Purchase Components

Features

All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
Q-Car(TM) rotor cartridge for quick access
Color Coded Leads
IP69K enclosure protection; Internal Shaft Grounding Rings; Full fact nameplate is laser etched on the motor frame

General Specifications

UPC:	691720020777	Weight:	45.00 LB
Packaged Length:	19.5 IN	Packaged Width:	10.44 IN
Packaged Height:	10.88 IN

Nameplate Specifications

Output HP:	0.75 Hp	Output KW:	0.56 kW
Frequency:	60 Hz	Voltage:	208-230/460 V
Current:	2.4-2.3/1.2 A	Speed:	1725 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	80 %	Power Factor:	76
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	L
Frame:	56C	Enclosure:	Totally Enclosed Non Ventilated
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6205
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	69

Technical Specifications

Electrical Type:	Squirrel Cage Induction Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Reversible
Resistance Main:	0 Ohms	Mounting:	Rigid base
Motor Orientation:	HORIZONTAL	Drive End Bearing:	BALL
Opp Drive End Bearing:	BALL	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	11.47 in
Frame Length:	6.25 in	Shaft Diameter:	0.625 in
Shaft Extension:	1.88 in	Assembly/Box Mounting:	F1 ONLY

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Pull-Up	9.10	0.0	104.30	0.0	129	4.60	0.0	0.75
Full Load	1.12	0.0	36.00	0.0	1,752	0.69	0.0	0.75
Break-Down	5.50	0.0	148.80	0.0	1,314	3.90	0.0	0.75
Locked-Rotor	9.14	0.0	110.60	0.0	0	4.52	0.0	0.75

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	150 %	175 %	200 %
Current (Amps)	0.62	0.68	0.79	0.94	1.12	1.32	1.54	1.78	2.05
Rated Output (KW)	0.08	0.23	0.38	0.53	0.69	0.86	1.04	1.22	1.43
Efficiency (%)	0.0	62.0	74.5	79.1	81.2	81.5	81.0	80.1	78.4
Power Factor (%)	17.0	42.1	59.4	70.5	77.3	81.8	84.6	86.2	87.2
Speed (RPM)	1,794	1,788	1,777	1,765	1,753	1,740	1,725	1,709	1,689
Temp. Rise @ FL	0.0	0.0	0.0	0.0	82.0	0.0	0.0	0.0	0.0
Torque (ft-lbs)	0.00	8.90	17.80	26.80	36.00	45.30	54.80	64.60	74.70
