Product ID: 117128.00

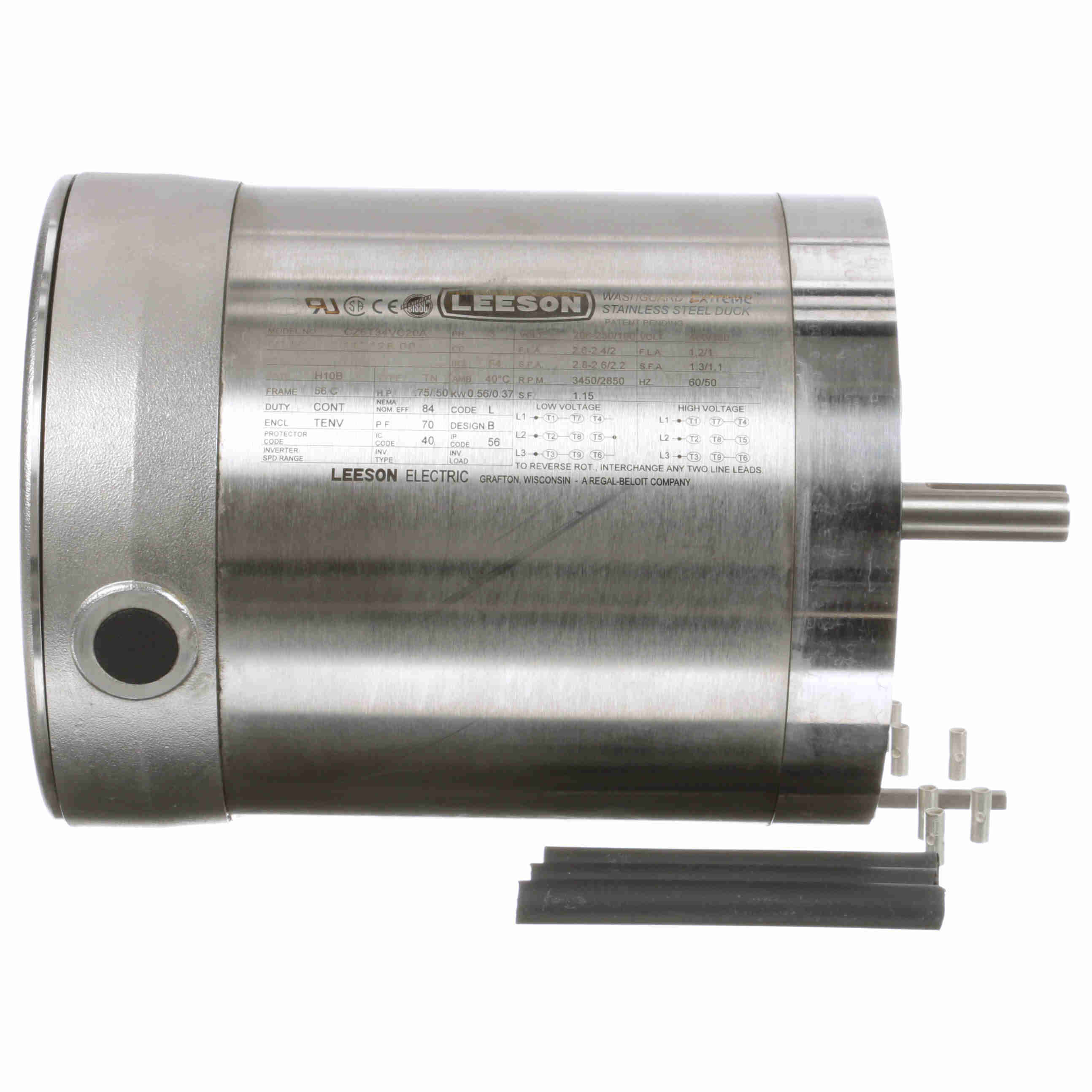

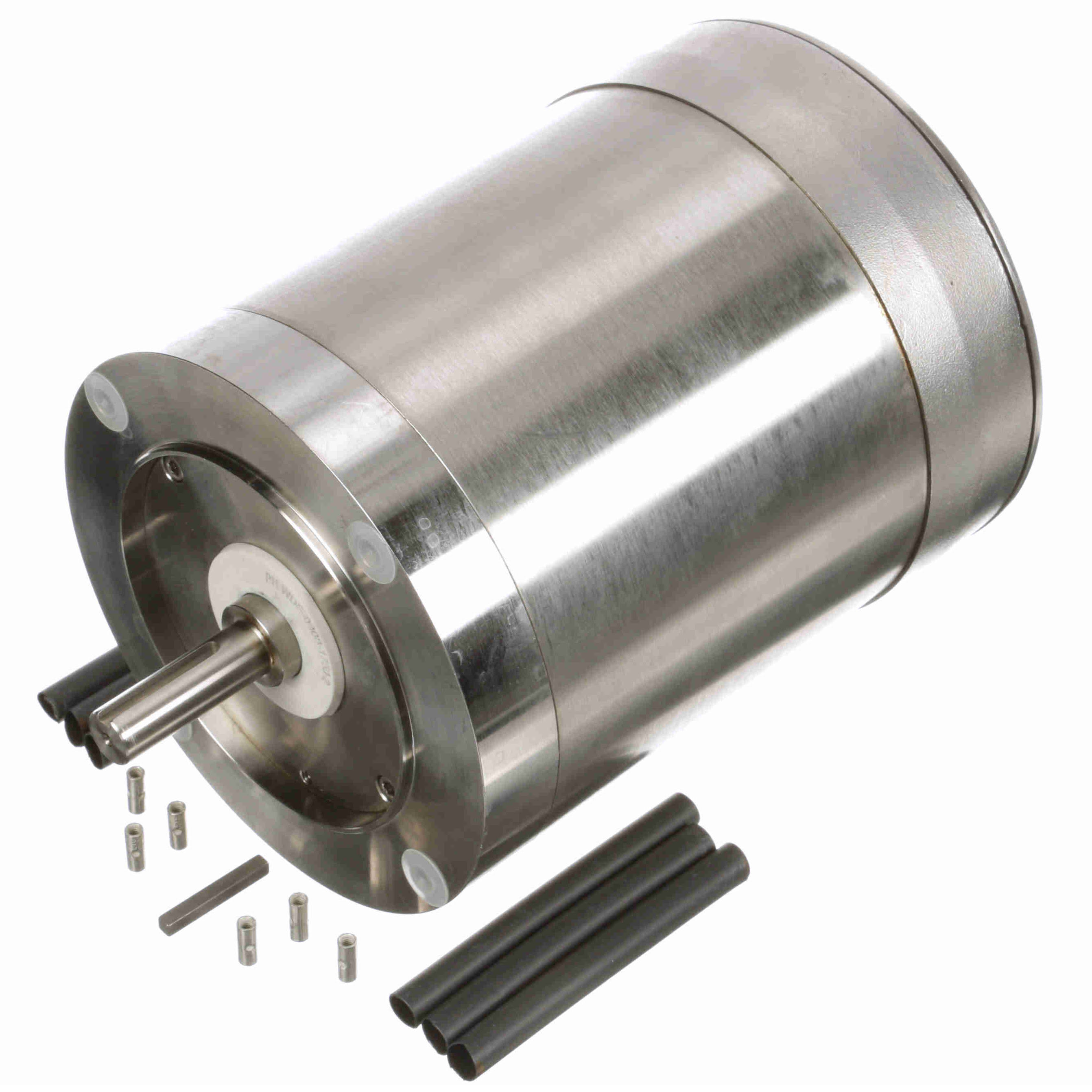

117128.00 Leeson 3/4HP Extreme Duck Ultra Washdown Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 117128.00

Selected accessories will also be added to cart

$1,472.97 / Each

Quantity:

TENV, IP69, 56C Frame, 208-230/460VAC 60Hz 3-Phase, Rolled Steel Frame, Round Body, C-Face, 5/8" Keyed Shaft

Details
Purchase Components

Features

Exterior 300-series stainless steel resists corrosion and maintains strength for reliable operation.
Patent-pending 360° rotatable conduit box.
Designed for various degrees of ingress protection (IP69).
1.15 service factor increases reliability and motor life.

General Specifications

UPC:	691720367513	Weight:	38.00 LB
Packaged Length:	19.5 IN	Packaged Width:	10.44 IN
Packaged Height:	10.88 IN	Country of Origin:	United States of America

Nameplate Specifications

Output HP:	0.75 Hp	Output KW:	0.56 kW
Frequency:	60 Hz	Voltage:	208-230/460 V
Current:	2.6-2.4/1.2 A	Speed:	3450 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	84 %	Power Factor:	70
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	L
Frame:	56C	Enclosure:	Totally Enclosed Non Ventilated
Thermal Protection:	No Protection	Ambient Temperature:	40 °C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6205
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	69
Number of Speeds:	1

Technical Specifications

Electrical Type:	Squirrel Cage Induction Run	Starting Method:	Across The Line
Poles:	2	Rotation:	Reversible
Resistance Main:	22.16 Ohms	Mounting:	Round
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	10.72 in
Frame Length:	5.50 in	Shaft Diameter:	0.625 in
Shaft Extension:	1.88 in	Assembly/Box Mounting:	F1 ONLY

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (OZ-FT)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Full Load	1.13	0.0	18.11	0.0	3,487	0.77	0.0	0.75
Break-Down	6.00	0.0	72.23	0.0	2,500	3.80	0.0	0.75
Locked-Rotor	8.80	0.0	57.04	0.0	0	4.50	0.0	0.75
Pull-Up	8.60	0.0	54.79	0.0	243	4.50	0.0	0.75

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	150 %
Current (Amps)	0.58	0.63	0.78	0.97	1.19	1.40	1.64
Rated Output (KW)	0.23	0.31	0.46	0.63	0.78	0.98	1.17
Efficiency (%)	0.0	46.4	60.8	66.7	70.5	71.6	72.0
Power Factor (%)	49.8	61.0	73.9	81.4	84.0	87.9	89.2
Speed (RPM)	3,598	3,555	3,531	3,501	3,470	3,437	3,401
Temp. Rise @ FL	0.0	0.0	0.0	0.0	80.0	0.0	0.0
Torque (OZ-FT)	0.00	4.50	8.90	13.50	18.20	23.00	27.80
