/Products/Electric Motors/Single Phase/Leeson/Washguard - TEFC/114319.00 Leeson Washguard Motor, 1.5HP, 1800RPM
Click Image to Expand

Product ID: 114319.00

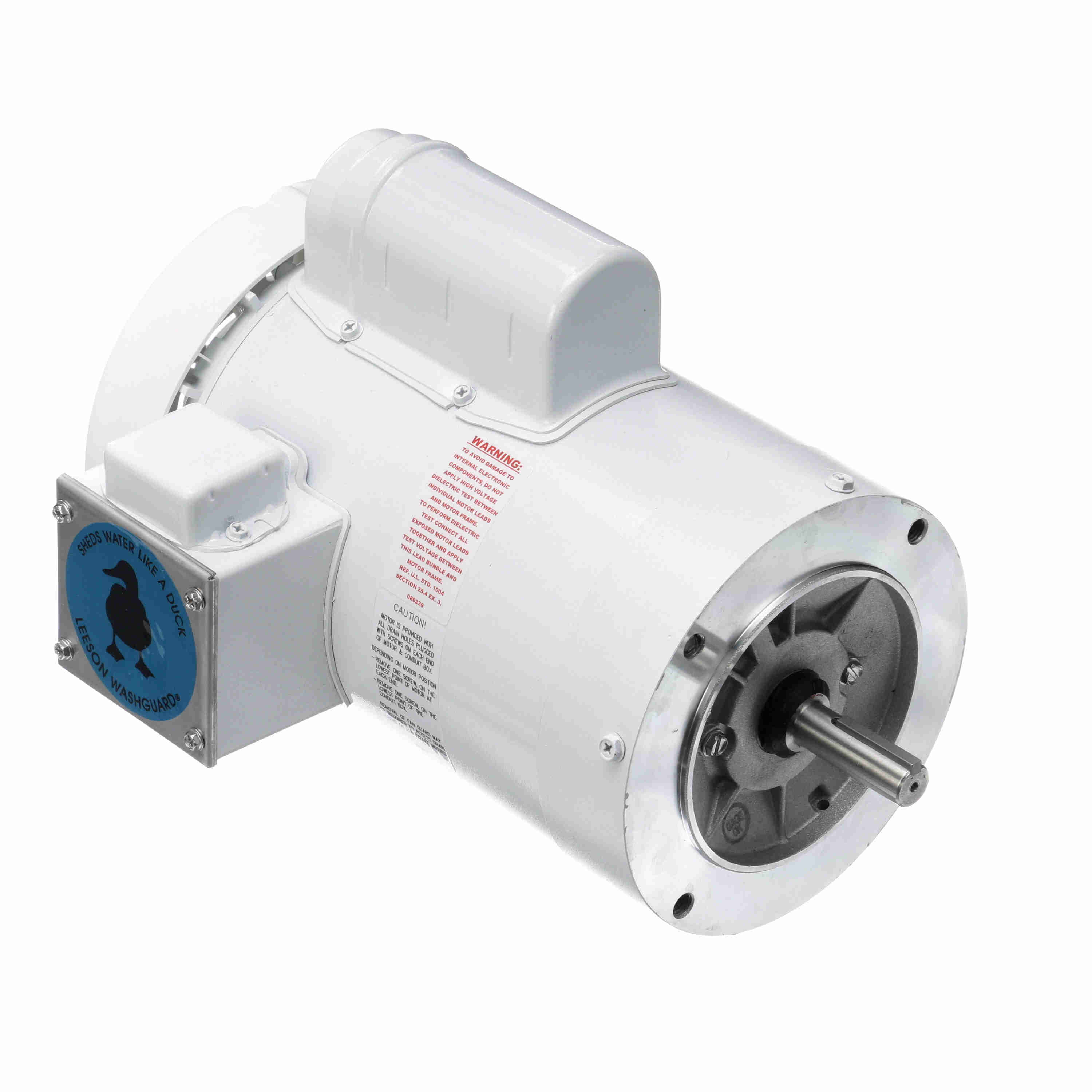

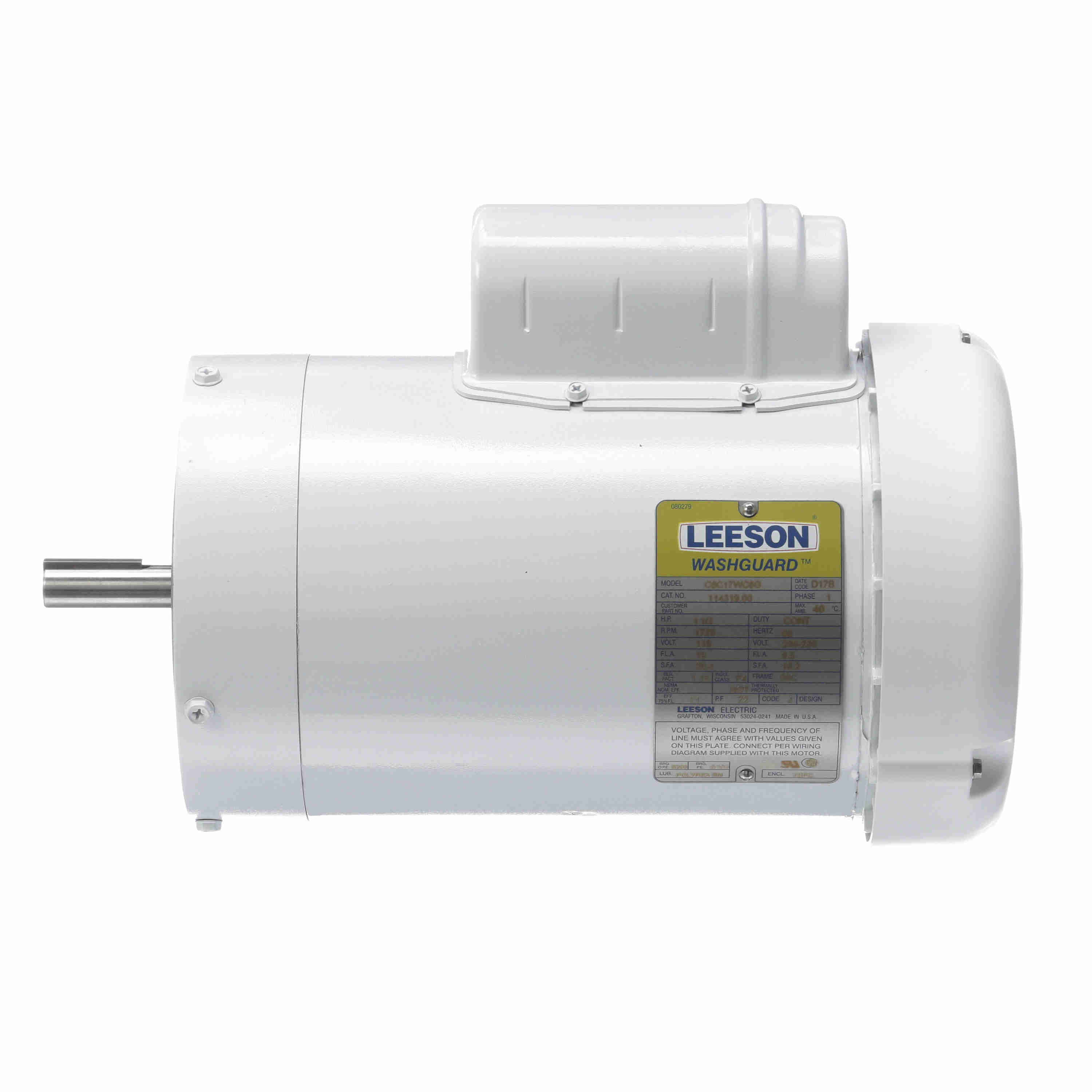

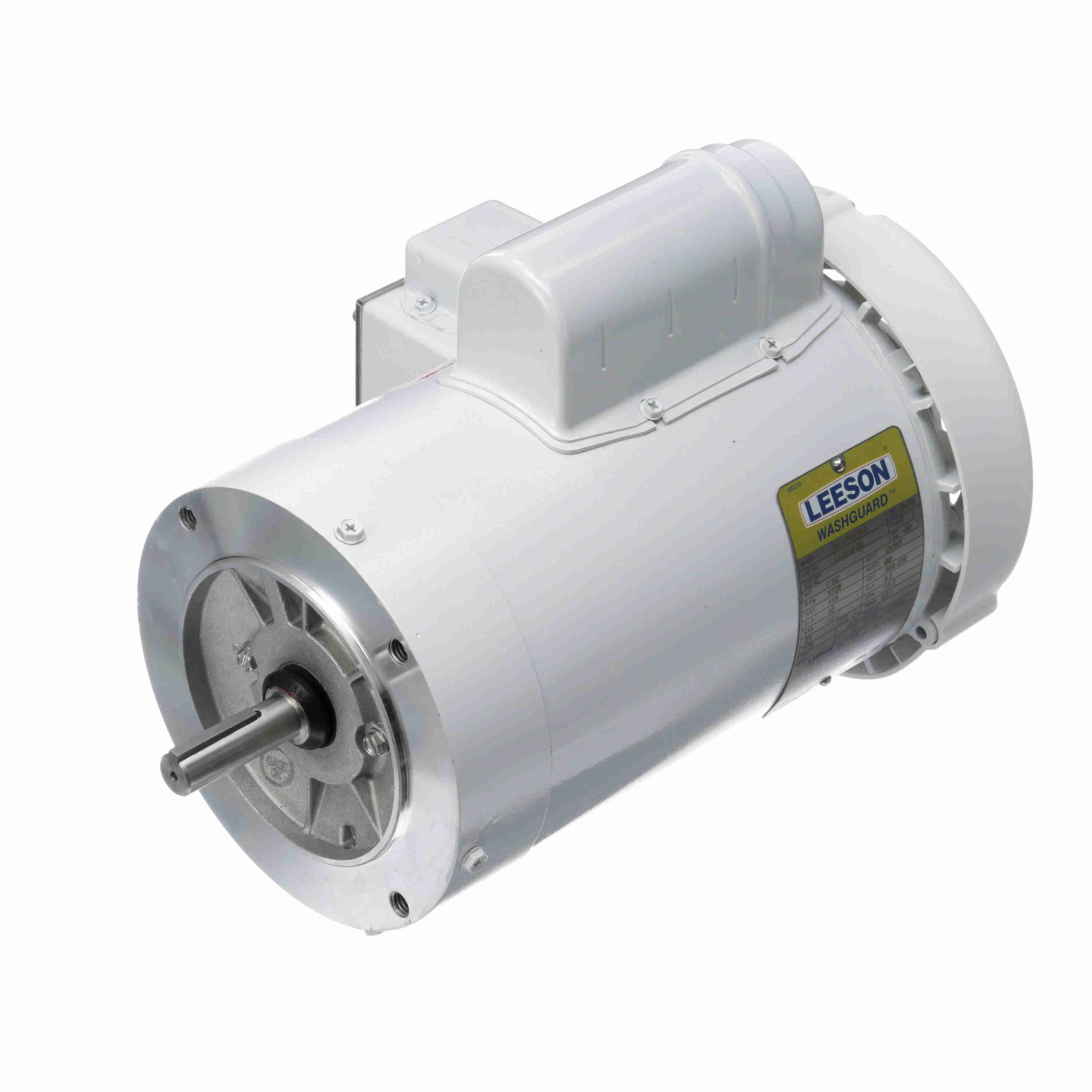

114319.00 Leeson Washguard Motor, 1.5HP, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 114319.00

Selected accessories will also be added to cart
$806.17 / Each
Quantity:
56C Frame, 115/208-230V 1-Phase, TEFC, C Face Less Base, C6C17WC6G
Features
  • USDA-approved epoxy painted motors
  • Stainless steel Shaft
  • NEMA motors
  • AC washdown motors
  • Rigid base and C face mount types
  • BISSC approved designs
  • Double lip contact seals and v-ring seals used for shaft seals
  • UL recognized and CSA certified
  • Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
Model :C6C17WC6G Catalog No :114319.00
Part Description :..1 1/2HP. C-FACE LESS BASE- .1725RPM.56.TEFC./V.1PH.60HZ.CONT.40C.1.15SF.ROUND.C6C17WC6G.....WASHGUARD.NOT....... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :1.50 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :19.0/9.5 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :71 % Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :J Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :13.37 in Frame Length :7.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720013892
Weight :46.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down31.72318.0150.00278.01,5006.320.01.50
Pull-Up42.05422.081.00150.01,1757.010.01.50
Locked-Rotor50.95512.0150.00278.009.760.01.50
Full Load9.96100.054.00100.01,7491.620.01.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 6.29
  • 0.274
  • 0.0
  • 18.9
  • 1,795
  • 0.0
  • 0.00
  • 25 %
  • 6.55
  • 0.583
  • 48.9
  • 38.7
  • 1,783
  • 0.0
  • 18.00
  • 50 %
  • 7.35
  • 0.903
  • 62.7
  • 53.4
  • 1,771
  • 0.0
  • 36.00
  • 75 %
  • 8.40
  • 1.231
  • 68.5
  • 63.7
  • 1,759
  • 0.0
  • 54.00
  • 100 %
  • 9.72
  • 1.583
  • 70.4
  • 70.8
  • 1,743
  • 105.0
  • 72.00
  • 125 %
  • 11.35
  • 1.975
  • 69.9
  • 75.6
  • 1,726
  • 0.0
  • 90.00
  • 150 %
  • 13.34
  • 2.427
  • 67.3
  • 79.0
  • 1,704
  • 0.0
  • 108.00
