/Products/Electric Motors/Single Phase/Leeson/Grain Drying & Stirring/111330.00 Leeson 1.5HP Ag-Duty Grain Stirring Electric Motor, 1800RPM

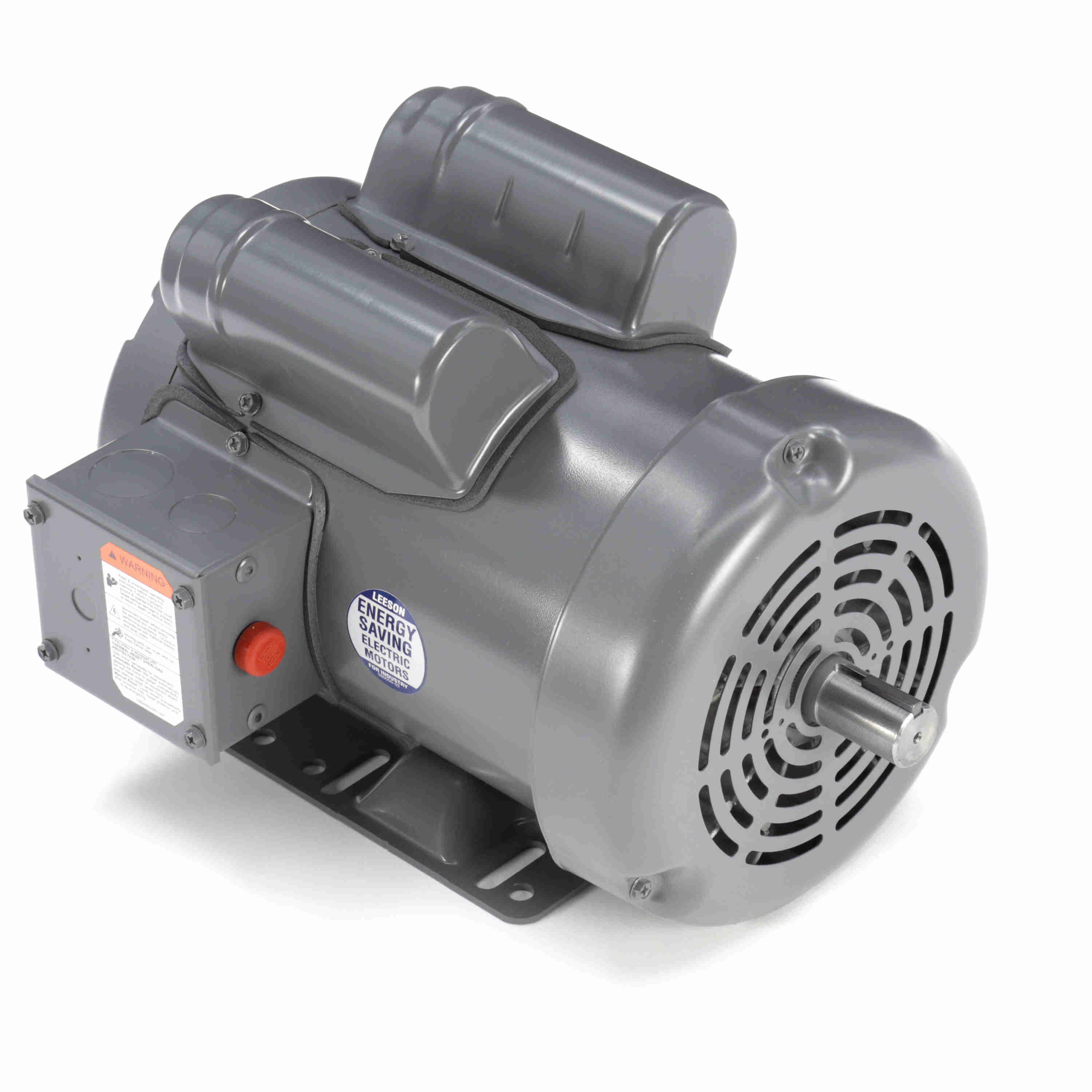

Click Image to Expand

Product ID: 111330.00

111330.00 Leeson 1.5HP Ag-Duty Grain Stirring Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: P6K17FB18

Selected accessories will also be added to cart
$464.59 / Each
Quantity:
TEFC, 56HZ Frame, 115/208-230VAC Single Phase 60Hz, M6K17FB18J, Rigid Base, Rolled Steel, 7/8" Shaft
Used in grain stirring systems inside grain bins.

Features

Features
  • TEFC, continuous duty
  • High torque designs
  • Vertical shaft up design with drain hole
  • 7/8” Dia. Shaft

General Specifications

General Specifications
Model : M6K17FB18J Catalog No : 111330.00
Part Description : ..1 1/2HP..1725RPM.56H.TEFC.115/208-230V.1PH.60HZ.CONT.40C.1SF.RIGID.P6K17FB18H.....AG - GRAIN STIRRING.MANUAL....... Category : Grain Stirring
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1.50 HP Output KW : 1.1 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 17.2/8.8-8.6 A Speed : 1725 RPM
Service Factor : 1 Phase : 1
Efficiency : 79 % Duty : Continuous
Insulation Class : B Design Code : L
KVA Code : J Frame : 56HZ
Enclosure : Totally Enclosed Fan Cooled Overload Protector : Manual
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : Single Special Extension
Overall Length : 12.39 in Frame Length : 7.50 in
Shaft Diameter : 0.875 in Shaft Extension : 1.31 in
Assembly/Box Mounting : F1 ONLY UPC : 691720009925
Weight : 45.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 51.00 607.0 13.00 290.0 0 9.60 0.0 1.50
Pull-Up 0.00 0.0 9.30 208.0 1,400 0.00 0.0 1.50
Break-Down 21.40 255.0 10.80 241.0 1,550 5.10 0.0 1.50
Full Load 8.40 100.0 4.48 100.0 1,758 1.41 0.0 1.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 5.20
  • 0.240
  • 0.0
  • 20.1
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 5.49
  • 0.452
  • 65.3
  • 35.8
  • 1,790
  • 0.0
  • 1.16
  • 50 %
  • 6.13
  • 0.750
  • 75.8
  • 53.2
  • 1,779
  • 0.0
  • 2.25
  • 75 %
  • 7.03
  • 1.064
  • 78.7
  • 65.8
  • 1,770
  • 0.0
  • 3.33
  • 100 %
  • 8.40
  • 1.414
  • 79.1
  • 73.2
  • 1,758
  • 84.0
  • 4.48
  • 125 %
  • 9.78
  • 1.767
  • 79.0
  • 78.6
  • 1,746
  • 0.0
  • 5.63
  • 150 %
  • 11.69
  • 2.181
  • 76.7
  • 81.1
  • 1,729
  • 0.0
  • 6.81
