/Products/Electric Motors/Single Phase/Leeson/Air Compressor/111275.00 Leeson 5HP Compressor Duty Electric Motor, 3600 RPM

Click Image to Expand

Previous Next

Product ID: 111275.00

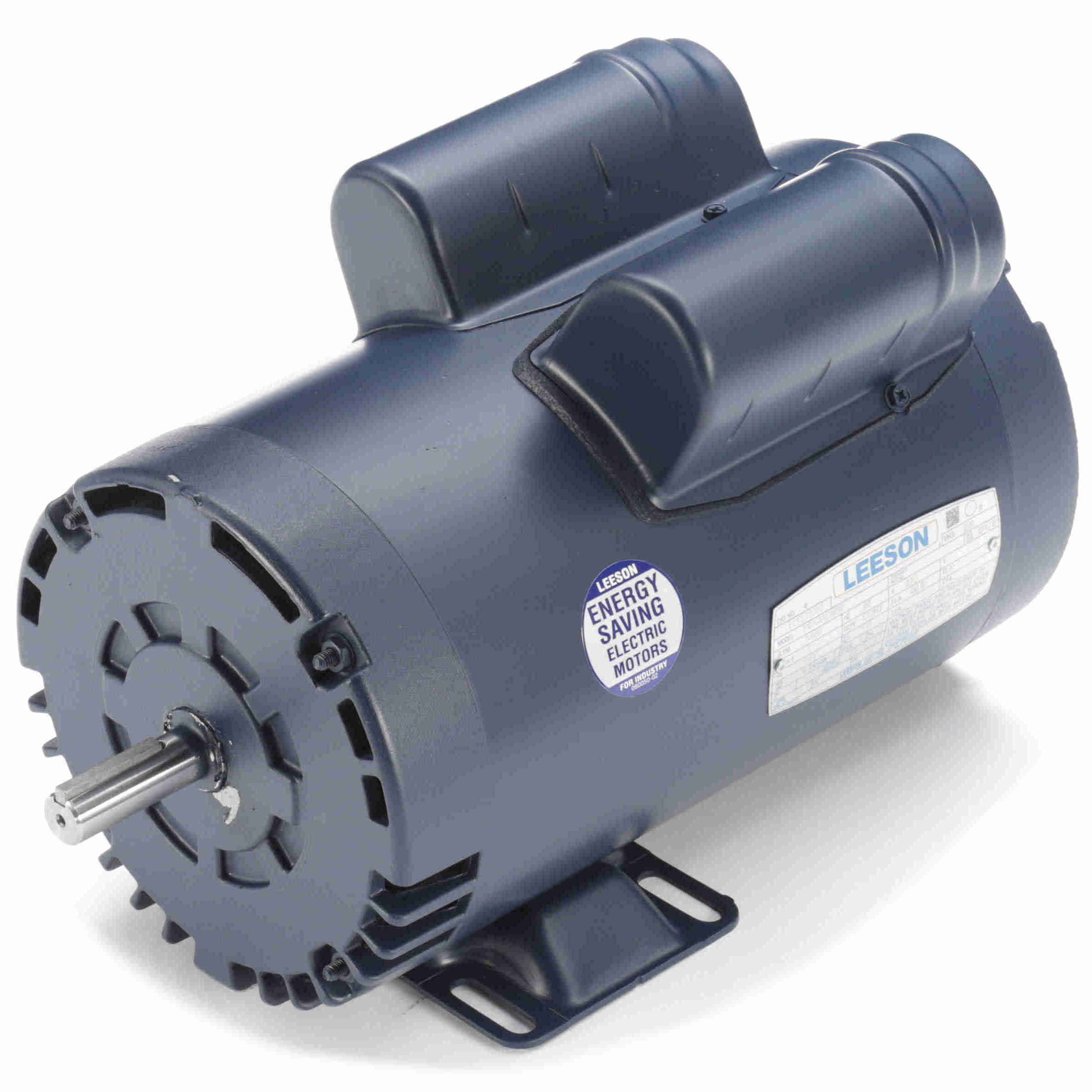

111275.00 Leeson 5HP Compressor Duty Electric Motor, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 111275.00

Selected accessories will also be added to cart

$666.39 / Each

Quantity:

Drip Proof, 56Y Frame, 230V 1-Phase 60Hz, Rigid Base

Details
Purchase Components

Features

Double shielded ball bearings
Designed for belted loads
High starting and breakdown torque
Dual rotation

General Specifications

Model :	P6K34DB5F	Catalog No :	111275.00
Part Description :	5HP..3450RPM.56.DP./230V.1PH.60HZ.CONT.MANUAL.40C.1.0SF.RIGID.COMPRESSOR DUTY.P6K34DB5F	Category :	Air Compressor
Stock :	No

Nameplate Specifications

Output HP :	5 Hp	Output KW :	3.7 kW
Frequency :	60 Hz	Voltage :	230 V
Current :	20.8 A	Speed :	3450 rpm
Service Factor :	1	Phase :	1
Efficiency :	82.5 %	Duty :	Continuous
Insulation Class :	F	Design Code :	L
KVA Code :	E	Frame :	56Y
Enclosure :	Drip Proof	Overload Protector :	Manual
Ambient Temperature :	40 °C	Drive End Bearing Size :	6205
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y	CE :	N
IP Code :	22

Technical Specifications

Electrical Type :	Capacitor Start Capacitor Run	Starting Method :	Across The Line
Poles :	2	Rotation :	Selective Clockwise
Mounting :	Rigid base	Motor Orientation :	HORIZONTAL
Drive End Bearing :	BALL	Opp Drive End Bearing :	BALL
Frame Material :	Rolled Steel	Shaft Type :	NEMA 56
Overall Length :	13.34 in	Frame Length :	8.50 in
Shaft Diameter :	0.625 in	Shaft Extension :	1.87 in
Assembly/Box Mounting :	F1 ONLY	UPC :	691720009789
Weight :	47.00 LB
